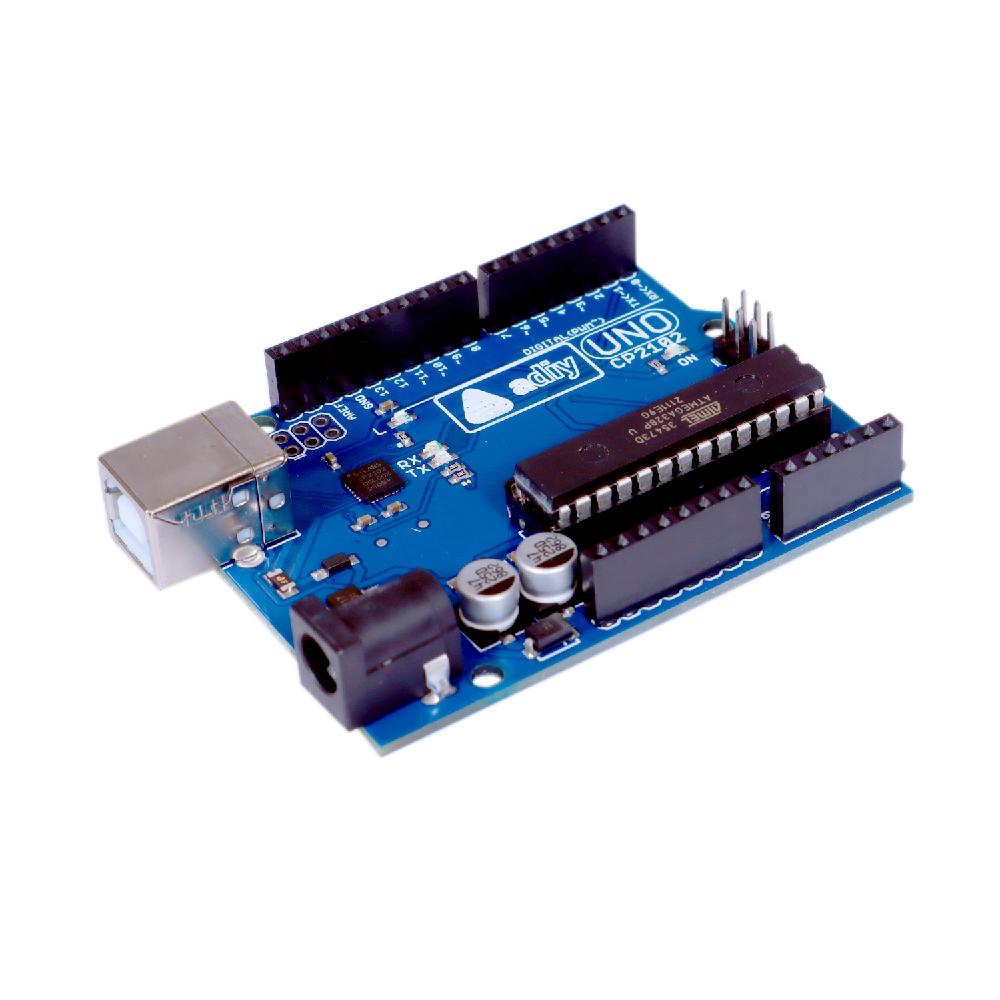

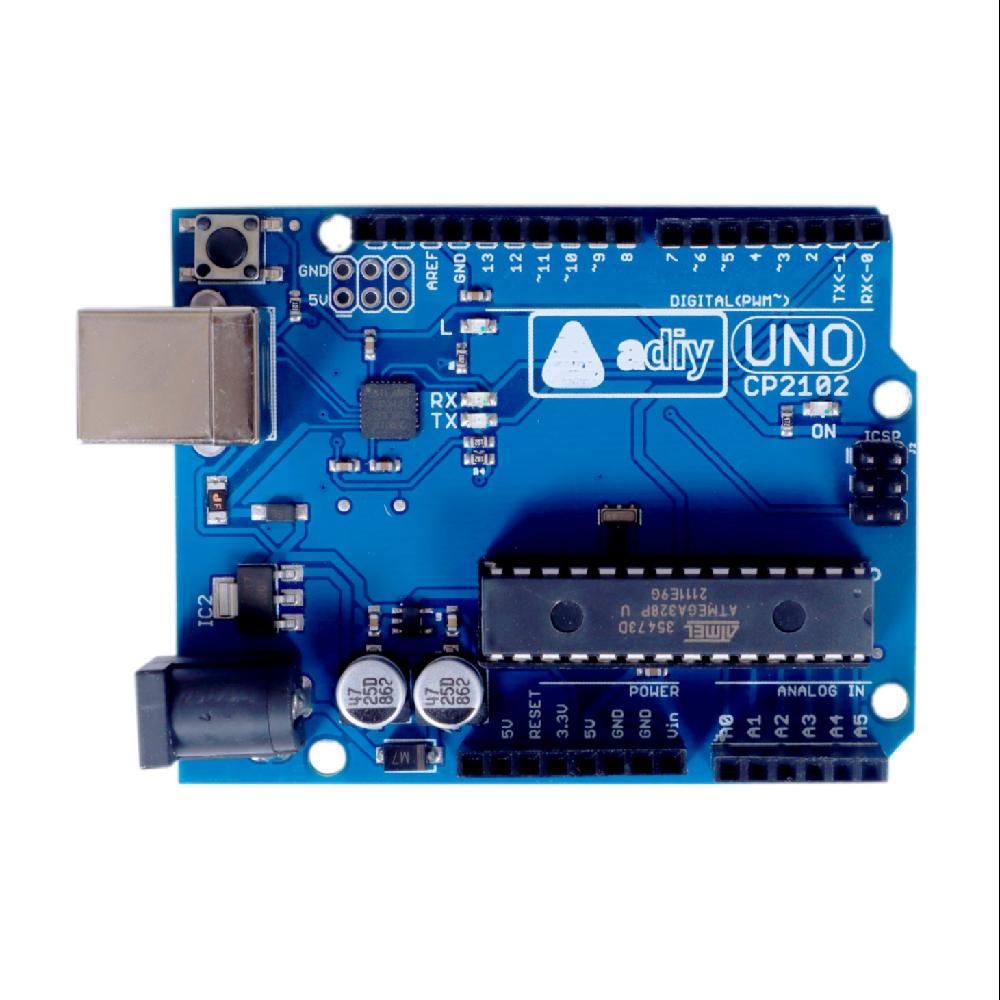

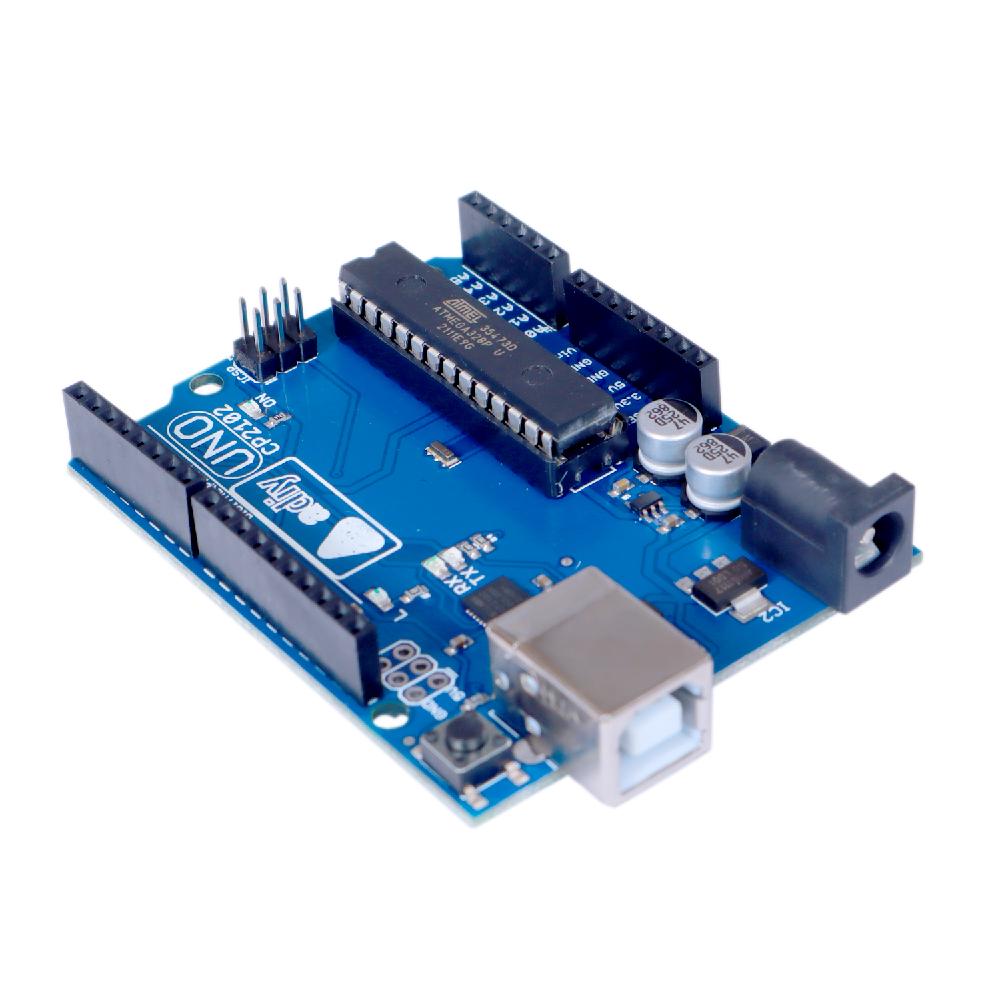

The ADIY Uno R3 CP2102 ATmega328P Development Board is the low-cost version of the popular UNO R3 Arduino. Instead of ATmega16U2 processor, it is assembled with CP2102 IC. ADIY UNO is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

Price :  excl. GST
Qty Price
1 > 405.00
6 > 390.00
21 > 372.00
50 > 366.00
100 > 363.00
200 > 360.00
500 > 357.00

The ADIY Uno R3 CP2102 ATmega328P Development Board is the low-cost version of the popular UNO R3 Arduino. Instead of ATmega16U2 processor, it is assembled with CP2102 IC. ADIY UNO is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

Features and Specifications

  • Board Name: ADIY UNO R3 Cp2102
  • Microcontroller: ATmega328P
  • USB-Serial IC: CP2102
  • USB connector: USB-B
  • Pins:
    - Built-in LED Pin: 13
    - Digital I/O Pins: 14
    - Analog input pins: 6
    - PWM pins: 6
  • Communication:
    - UART: Yes
    - I2C: yes
    - SPI: Yes
  • Power:
    - I/O Voltage: 5V
    - DC Jack input: 9V
    - DC Current per I/O Pin: 40 mA
  • Clock speed:
    - Main Processor: ATmega328P 16 MHz
  • Memory:
    - ATmega328P: 2KB SRAM, 32KB FLASH, 1KB EEPROM
  • Dimensions:
    - Width: 53.34 mm
    - Length: 68.58 mm



Compatibility

  1. Arduino IDE

Resources

  1. ATmega328P Datasheet

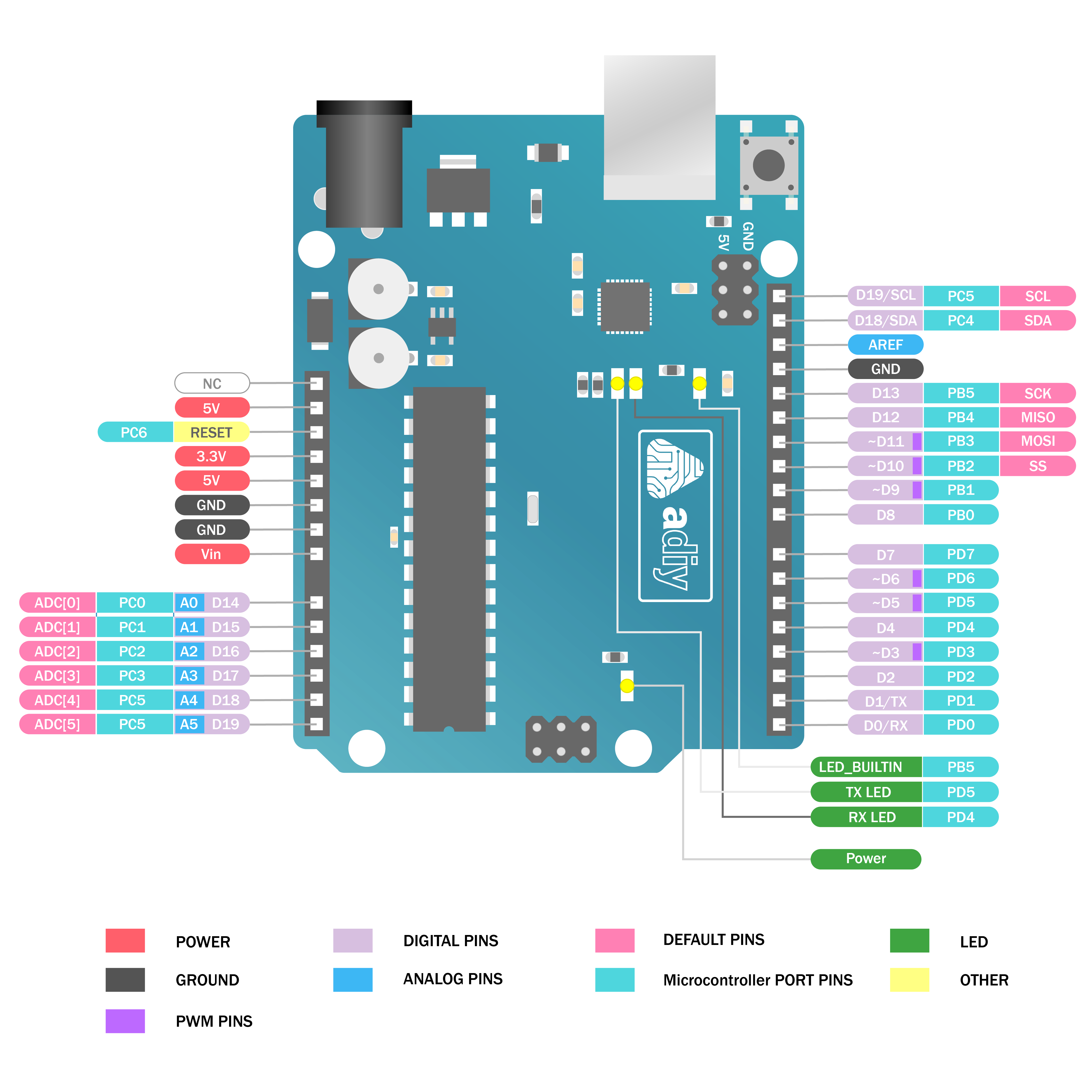

  2. Pinout
