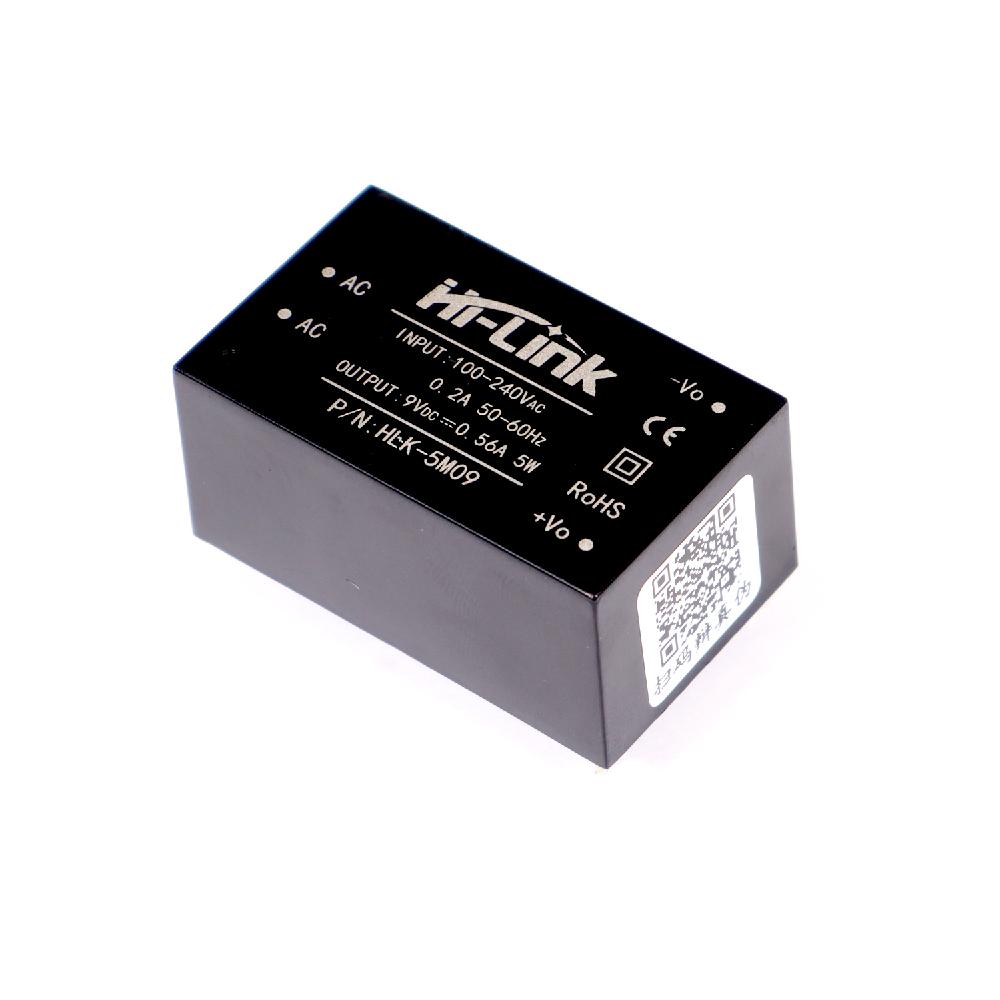

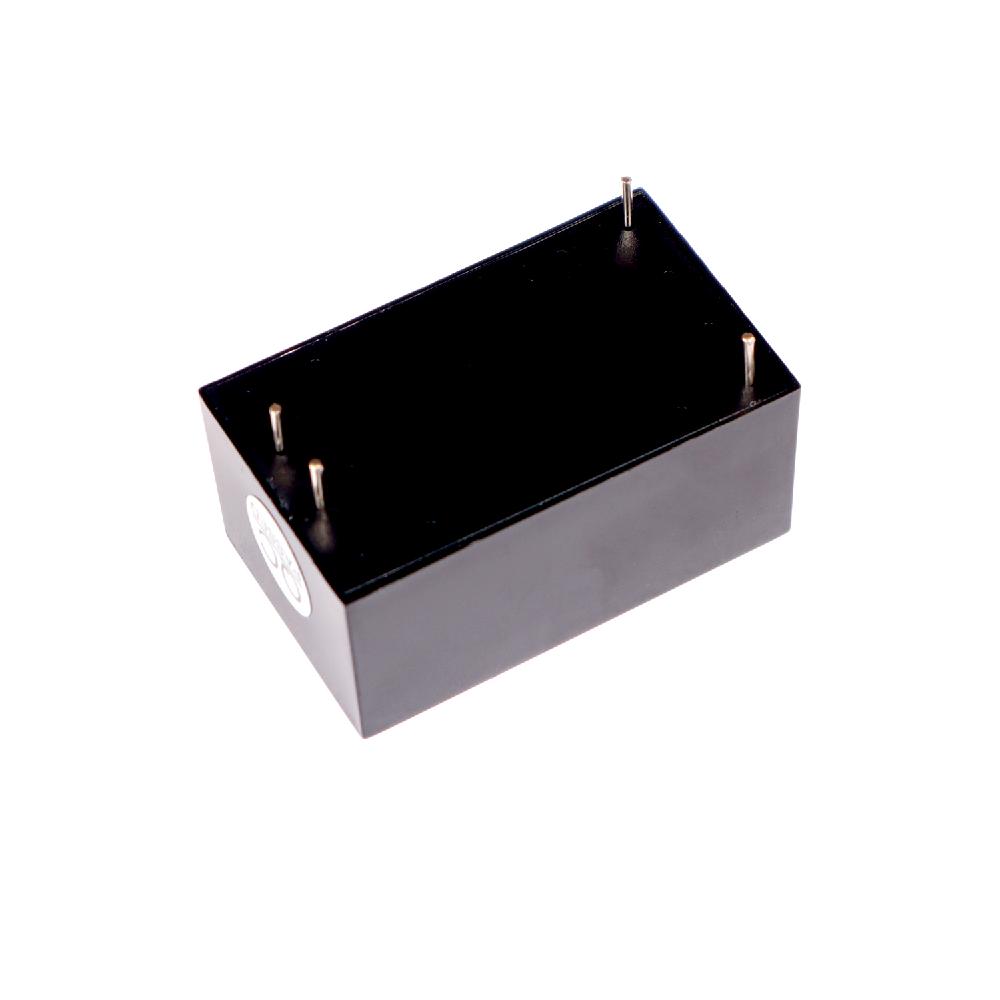

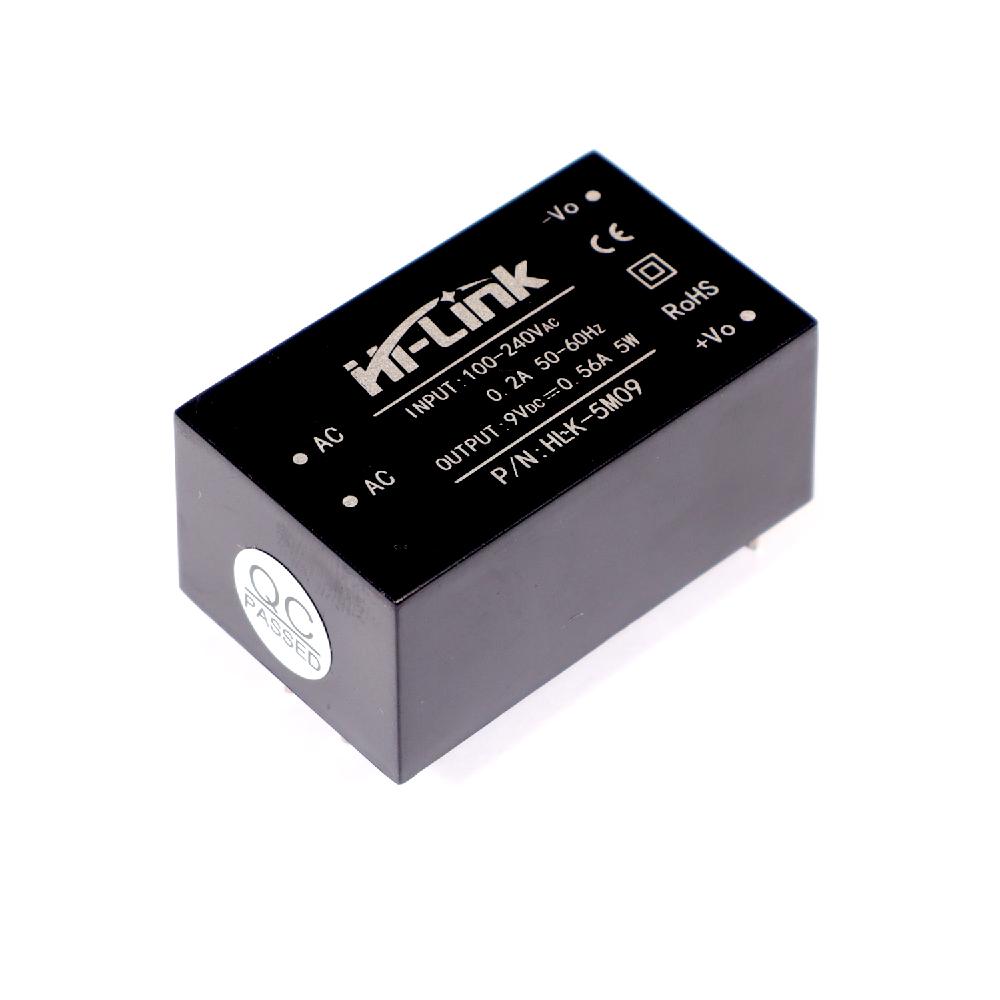

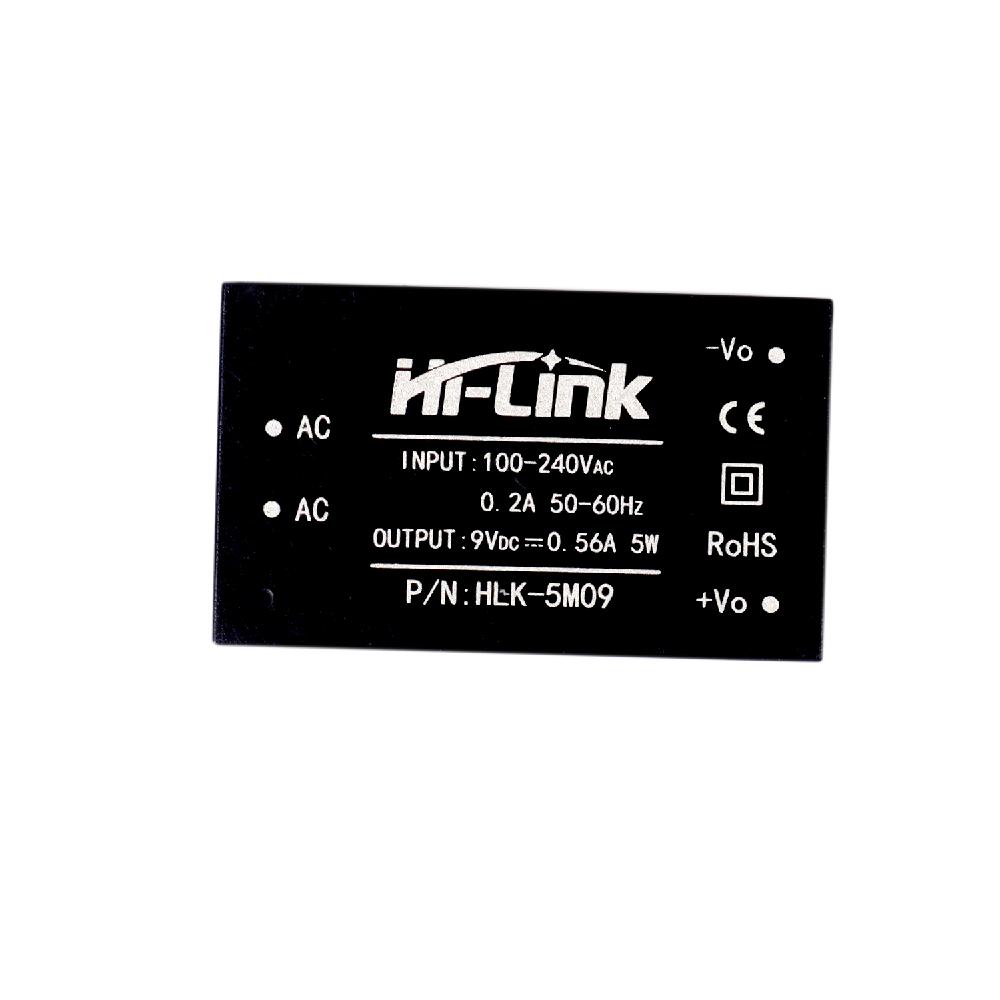

HLK-5M09 5W power 09V output Hi-Link AC-DC power module

HLK-5M09 5W power 09V output AC-DC power module

Features :  HLK-5M09 power module

  1. Ultra-thin, ultra-small, smallest volume in the industry
  2. Global universal input voltage (90~245Vac)
  3. Low power consumption, environmental protection, no-load loss <0.1W
  4. Low ripple and low noise

Applications:  HLK-5M09 power module

  • Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields

Price :  excl. GST
Qty Price
1 > 182.00
6 > 177.80
21 > 173.60
50 > 169.40
100 > 166.60
200 > 165.20
500 > 162.40

HLK-5M09 Hi-Link 9V 5W AC to DC Power Supply Module is a plastic enclosed PCB mounted isolated power supply module. It can supply 9V DC from 100V AC 240V AC and has a power rating of 5Watt. This makes it perfect for small projects that need a 9 volt supply from mains. This power supply module replaces lots of parts from the traditional power supply like diodes, voltage regulator and transformers. Therefore there are many advantages for these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.

You do not have to worry about fluctuations in the voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take. It is widely used in a smart home, automation and control, communication equipment, instrumentation, and other industries.


Features:Hi-link 5M09 - Power module

  1. Meet UL, CE requirements,
  2. Ultra-thin, ultra-small
  3. All voltage input (AC): 90 ~ 264V
  4. Low ripple and low noise
  5. Output overload and short circuit protection
  6. High efficiency, high power density
  7. The product is designed to meet the requirements of EMC and Safety Test
  8. Low power consumption, environmental protection, no-load loss <0.1W


Environmental conditions:Hi-link 5M09 - Power module

  1. Technical indicators: Single bit
  2. Working temperature: 20-60 +degree
  3. Storage temperature: -40-+80 Degree Celsius
  4. Relative humidity: 5-95%
  5. The cooling way: Natural cooling
  6. The atmospheric pressure: 80-106Kpa
  7. The altitude: 2000M or less.


Specifications:- Hi-link 5M09 - Power module

  1. AC Input Voltage Range - 100 ~ 240V
  2. Output DC Voltage - 9V
  3. Output Power - 5W
  4. Rated input voltage - 100-240VAc
  5. Operating Temperature: -20 to +60C
  6. Store Temperature -40 to +80C
  7. Maximum input current - <0.2A
  8. Input current surge - <10A
  9. Load rated output voltage :+50.1
  10. Color - Black
  11. Voltage Regulation : 0.2 %
  12. Load Regulation ; 0.5 %
  13. Weight(gm) - 30
  14. Dimensions in mm (LxWxH) 38 x 23 x19


Package Includes:Hi-link 5M09 - Power module

1 x HLK-5M09 Hi-Link 9V 5W AC to DC Power Supply Module
