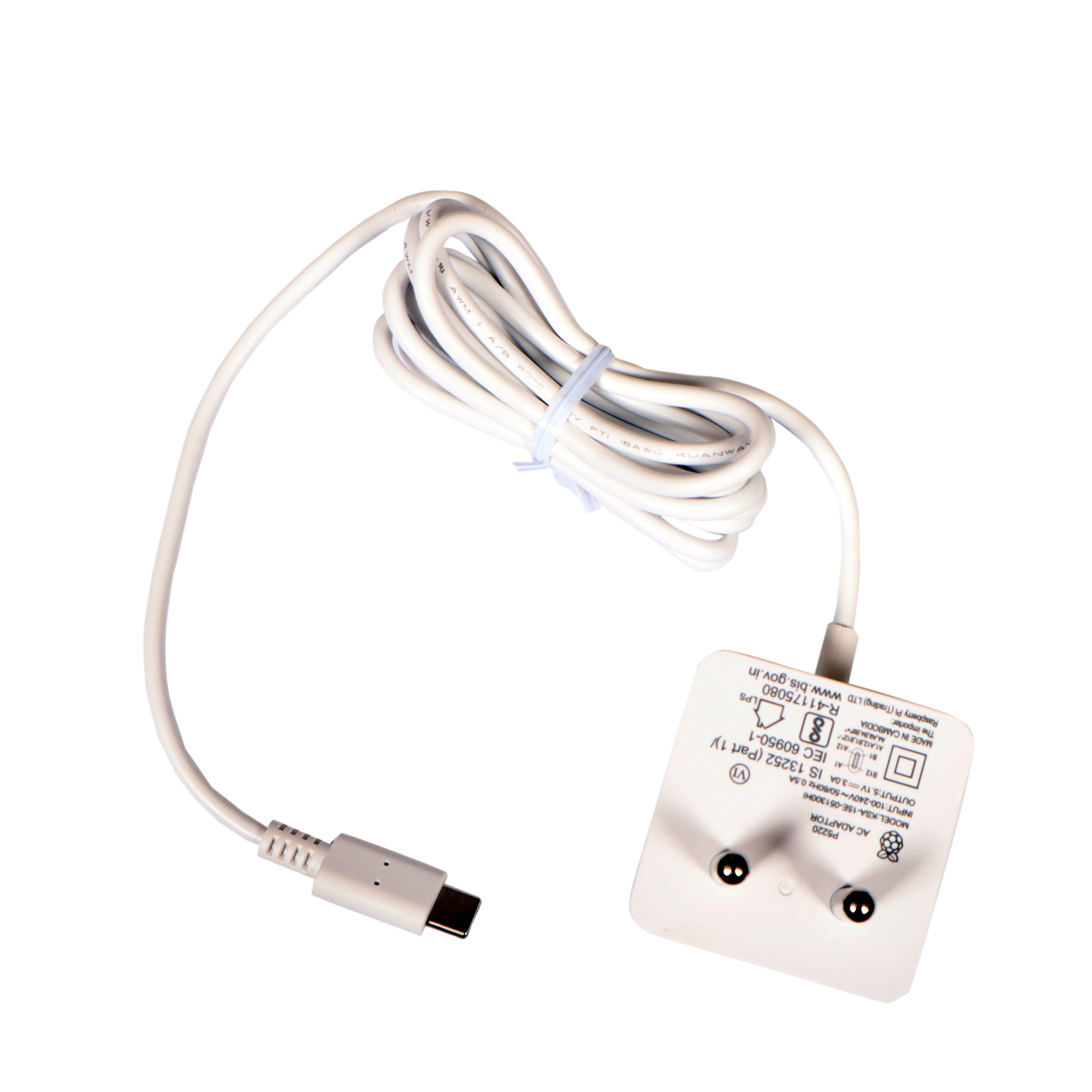

The official Raspberry Pi USB-C Power Supply is designed to power Raspberry Pi 4 Model B and Raspberry Pi 400 computers. Featuring a captive USB-C cable, the power supply is available in five different models to suit different international power sockets, and in two colours, white and black.
Specifications:
Output
- Output voltage: +5.1V DC
- Minimum load current: 0.0A
- Nominal load current: 3.0A
- Maximum power: 15.0W
- Load regulation: ±5%
- Line regulation: ±2%
- Ripple & noise: 120mVp-p
- Rise time: 100ms maximum to regulation limits for DC outputs
- Turn-on delay: 3000ms maximum at nominal input AC voltage
- and full load
- Protection: Short circuit protection
- Overcurrent protection
- Over temperture protection
- Efficiency: 81% minimum (output current from 100%, 75%,
- 50%, 25%)
- Output cable: 1.5m 18AWG
- Output connector: USB Type-C
Input
- Voltage range: 100–240Vac (rated)
- 96–264Vac (operating)
- Frequency: 50/60Hz ±3Hz
- Current: 0.5A maximum
- Power consumption (no load): 0.075W maximum
- Inrush current: No damage shall occur and the input fuse shall not blow
