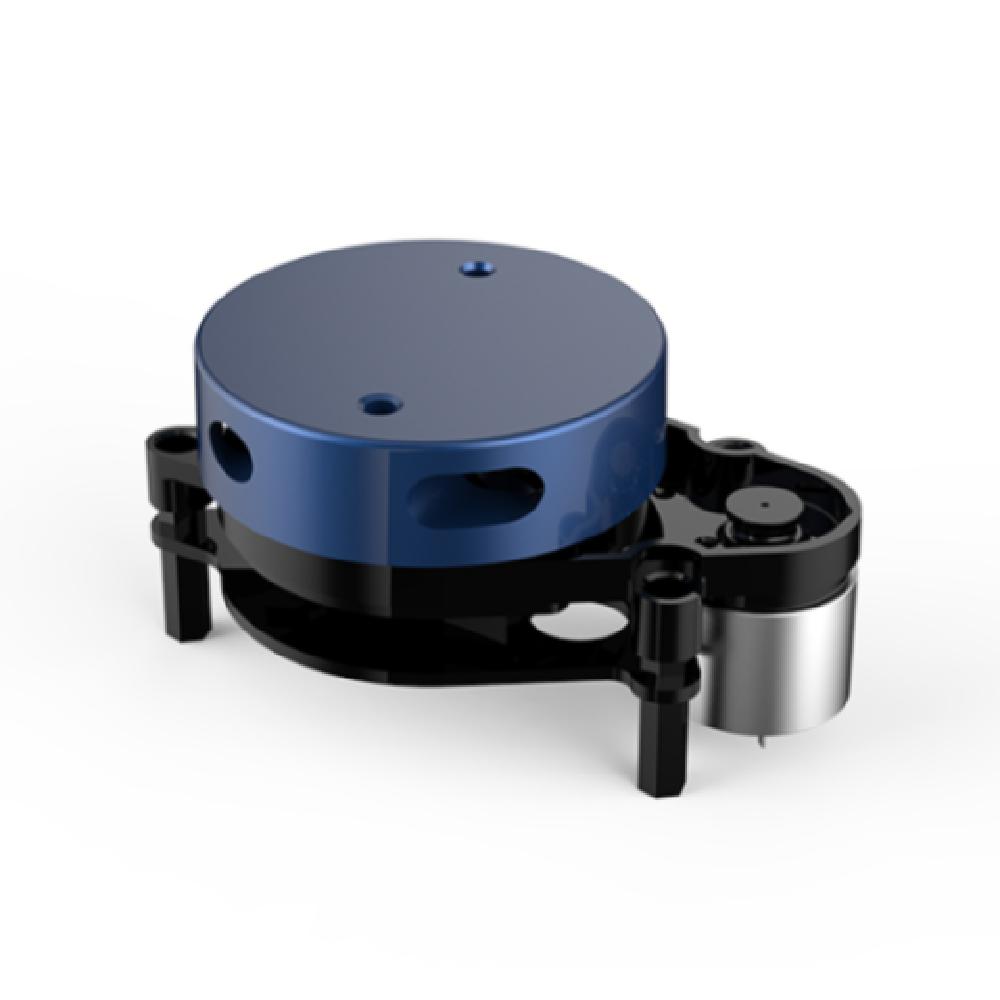

LiDAR Sensor - YDLIDAR X2 2D Image 1
LiDAR Sensor - YDLIDAR X2 2D Image 1

LiDAR Sensor - YDLIDAR X2 2D

The YDLIDAR X2 360° Laser Scanner is a 360-degree two-dimensional distance measurement product based on the principle of triangulation, and is equipped with relevant optics, electricity, and algorithm designed to realize high-frequency and high-precision distance measurement.At the same time as the distance measurement, 360 degrees of scanning distance measurement is achieved by continuously obtaining the angle information through the 360 degree rotation of the motor.

First connect the adapter board and X2, then connect the USB cable to the USB port of the adapter board and PC. Note that the Micro interface of the USB cable is connected to the USB_DATA.After X2 is powered on, it is in idle mode without turning its motor.The USB interface’s drive current in some development platforms or PCs is weak, so X2 needs a +5V auxiliary power supply to support its normal work.
Price :  excl. GST
Qty Price
1 > 6959.48
6 > 6707.32
21 > 6556.03
50 > 6455.17
100 > 0.00
200 > 0.00
500 > 0.00

LiDAR Sensor - YDLIDAR X2 2D

YDLIDAR X2 is a 360° 2D LiDAR(hereinafter referred to as X2) developed by YDLIDAR team. Based on the principle of Triangulation, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 ° to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.

Rajguru Electronics, Mumbai has various types of Modules. Check out our complete collection of Lidar Sensors

Features: YDLIDAR X2 2D

  • Scanning angle: 360°
  • Scanning range radius: 8 m
  • Ranging resolution: 2%
  • Scan frequency: 5-8 Hz
  • Sampling rate: 3000 Hz
  • Max current: 500 mA
  • Laser wavelength: 775-795 nm
  • Laser power: 3-5 mW
  • High accuracy, stable performance
  • Wide measuring range
  • Strong resistance to ambient light interference
  • Low power consumption, small size, stable performance and long life
  • Class I eye safety
  • Motor speed is adjustable, the proposed speed is 6Hz
  • Ranging frequency up to 3KHz
Ultra small size - Ultra small size design, low power consumption.

360° omnidirectional scanning -  Mechanical structures rotates 360° to continuously obtain angle data. It outputs point cloud data stably by omnidirectional scanning.

Compliant with FDA Class 1 safety standard - X2 adopts IR point pulse laser, is compliant with FDA Class I laser safety standard, thus guarantee the safety of children and pets.

Adjustable motor frequency - X2 is with PWM to adjust motor frequency.

Application: YDLIDAR X2 2D

  • Robot navigation and obstacle avoidance
  • Algorithm Verification
  • Makers education
  • Robot ROS teaching and research
  • Regional security
  • Environmental scanning and 3D reconstruction
  • Navigation and obstacle avoidance of home service robots/sweeping robo

Specifications: YDLiDAR X2 2D

  • Range Frequency 3000Hz
  • Scan Frequency 5-8Hz
  • Range Distance 0.12-8m
  • Scan Angle 360°
  • Angle Resolution 0.6°-0.96°
  • Size Φ60.5*50.3*96mm

What's Included - 1 x YDLIDAR X2 2D
