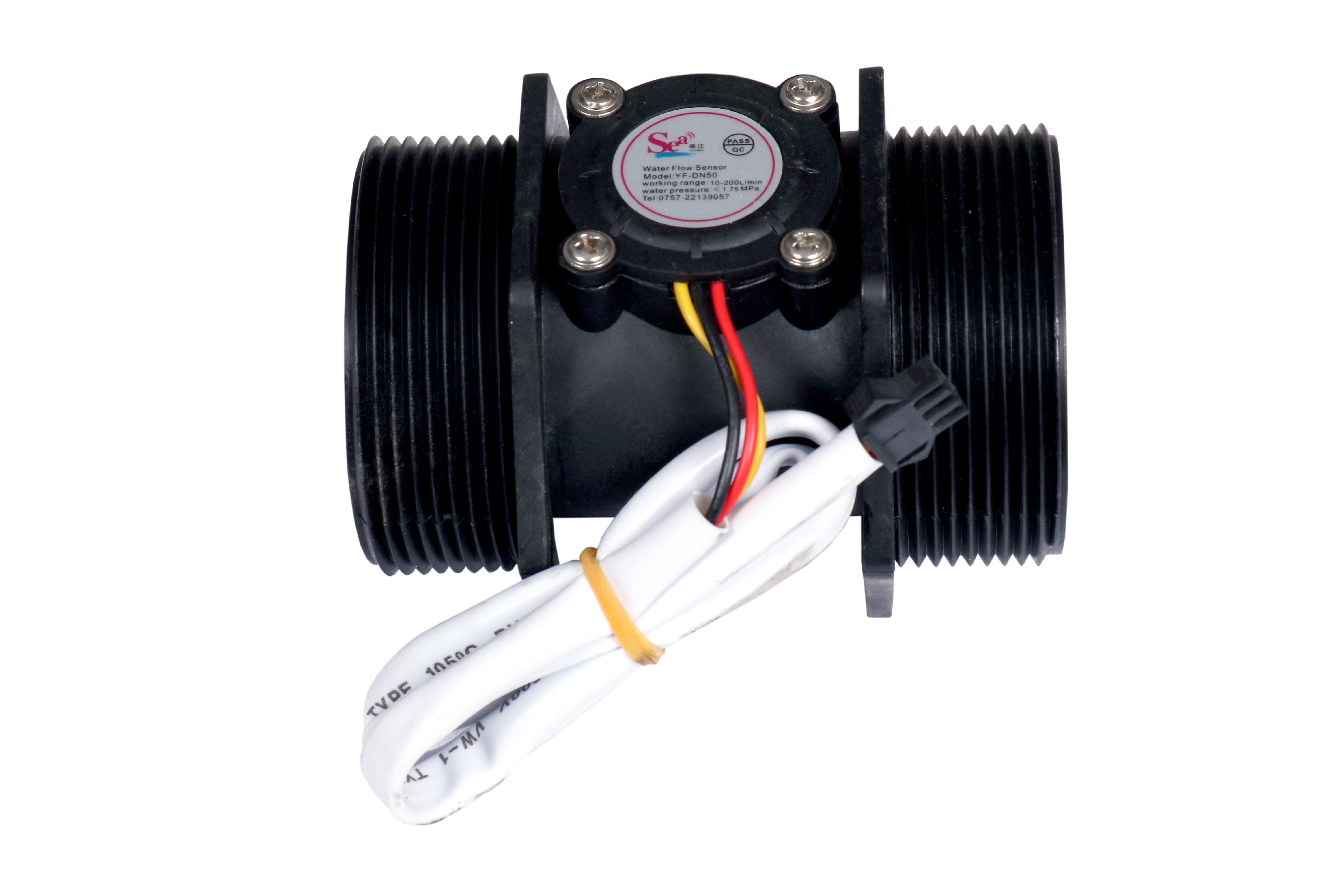

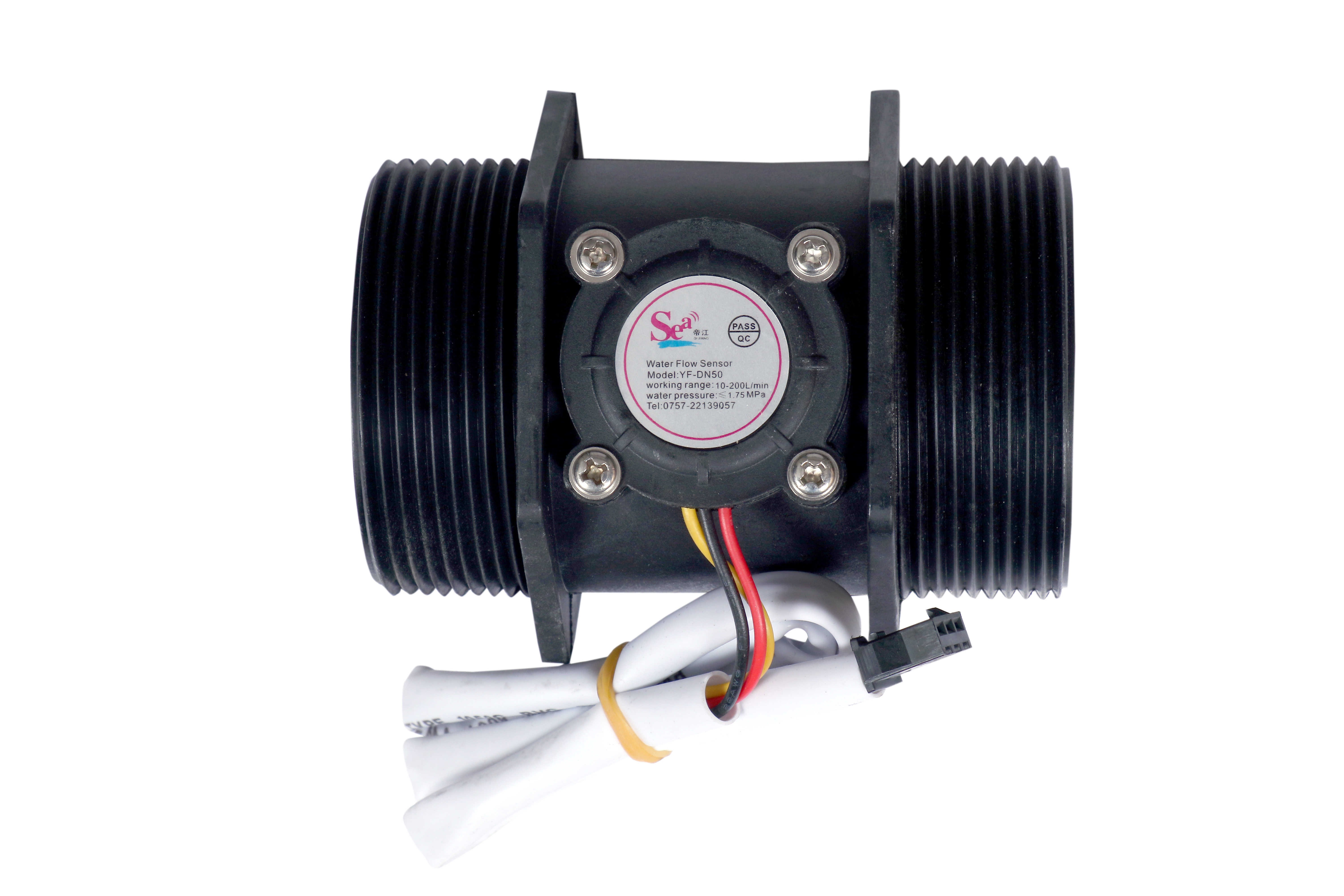

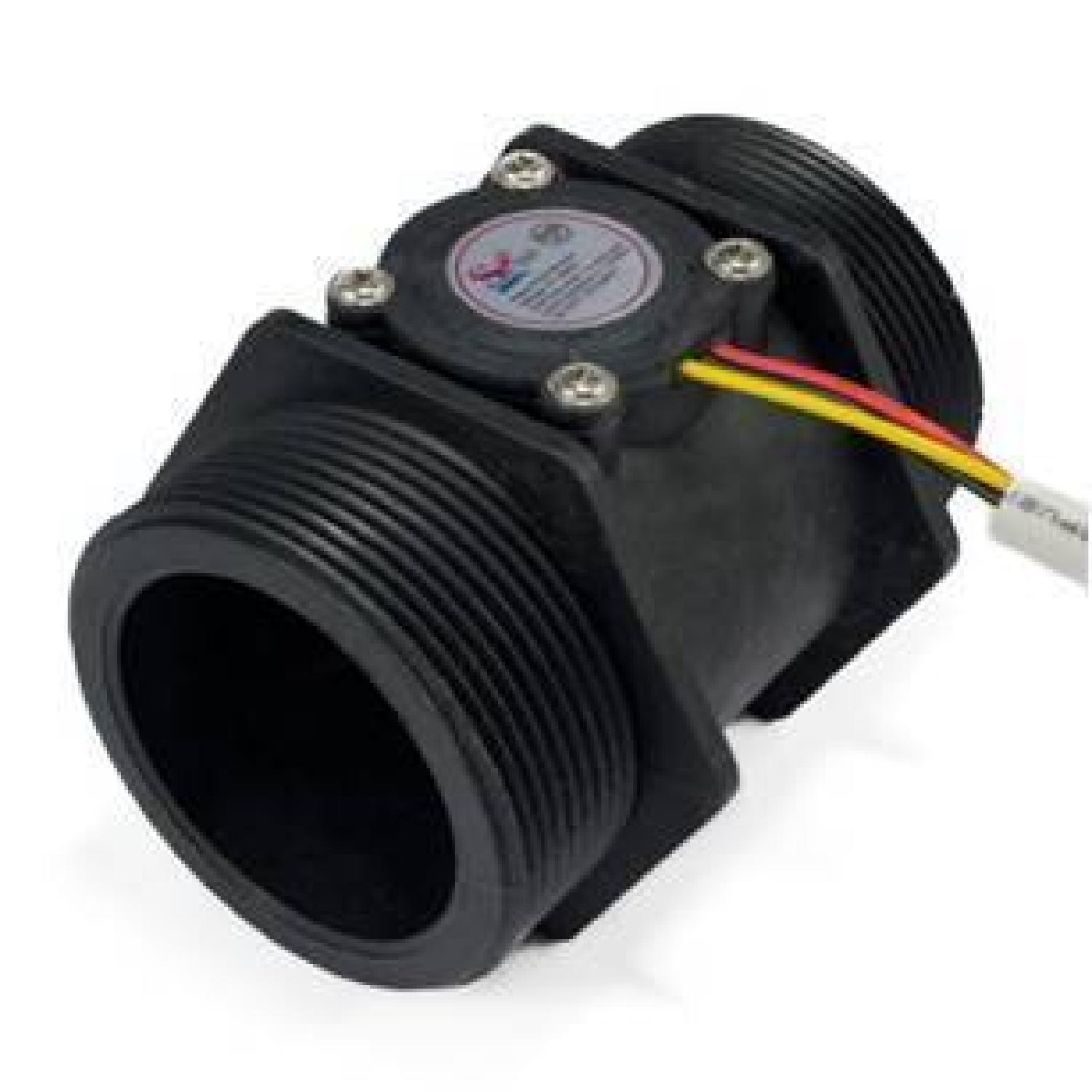

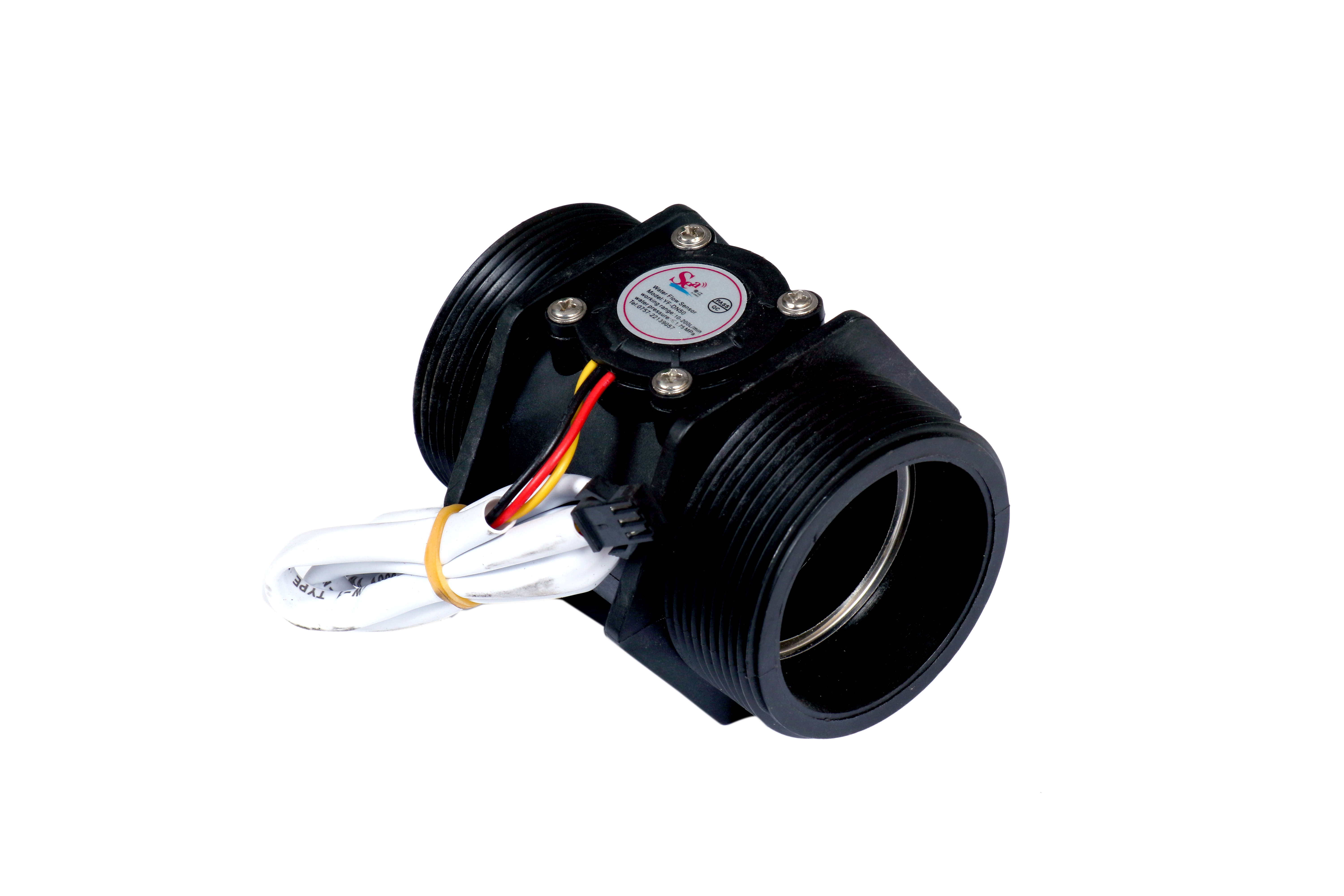

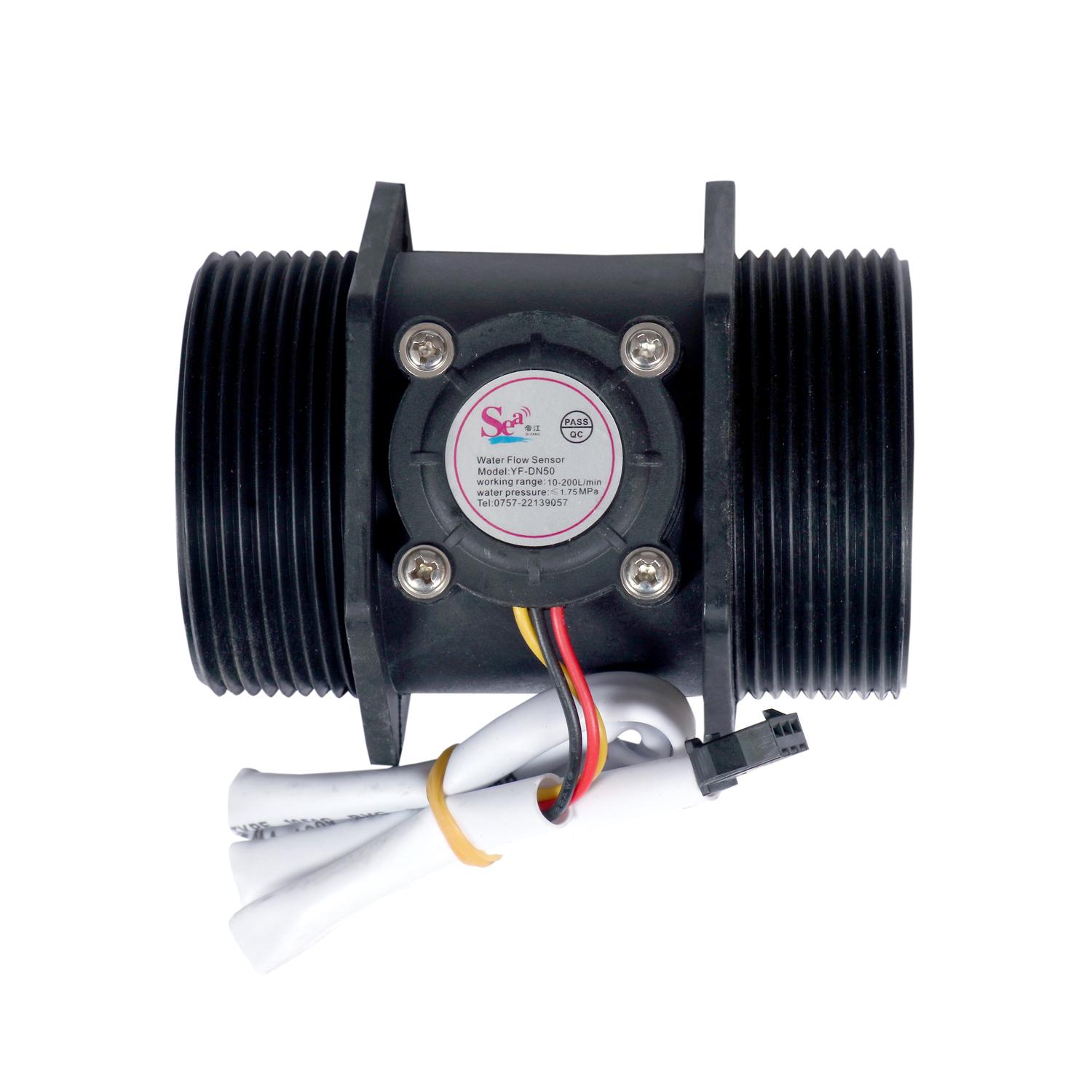

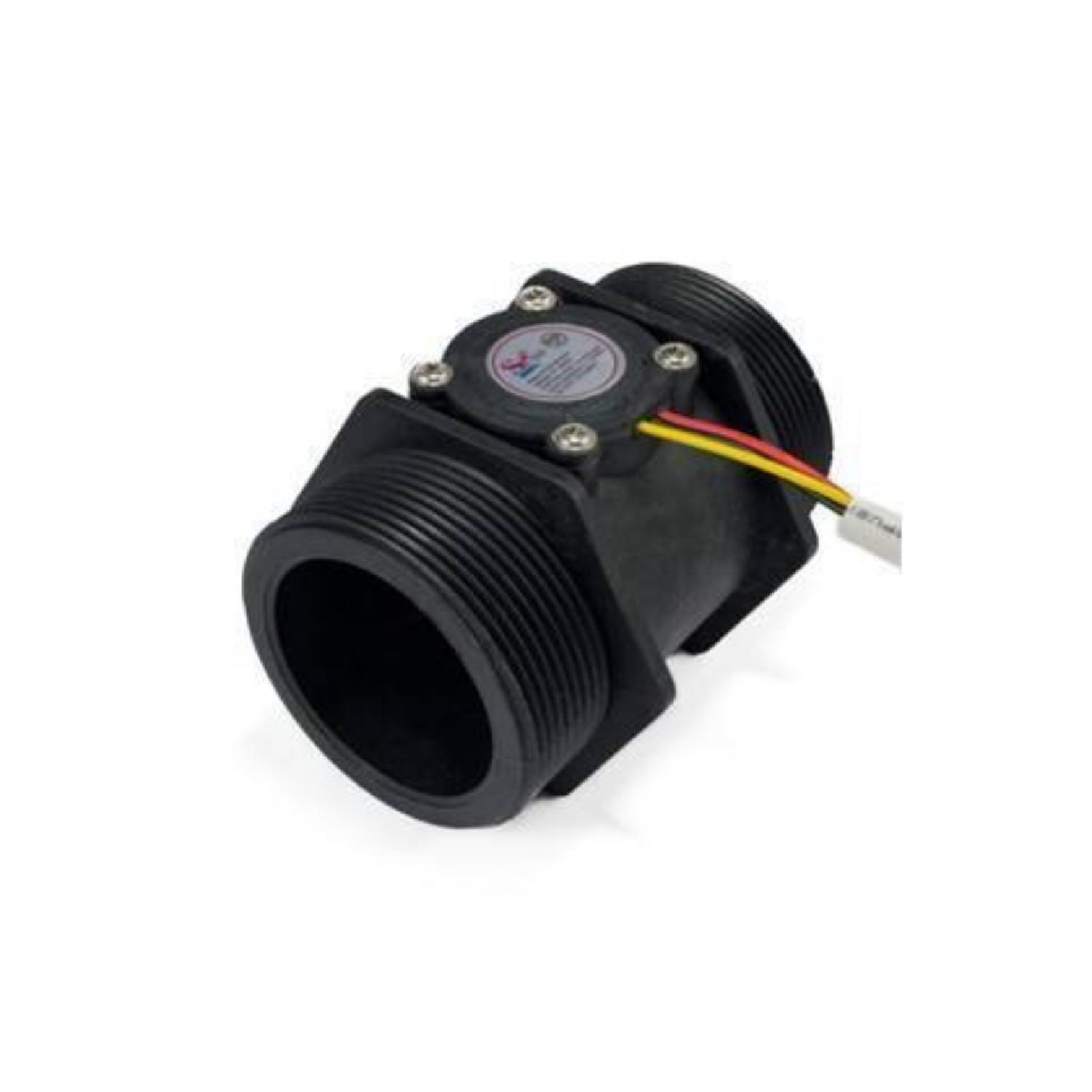

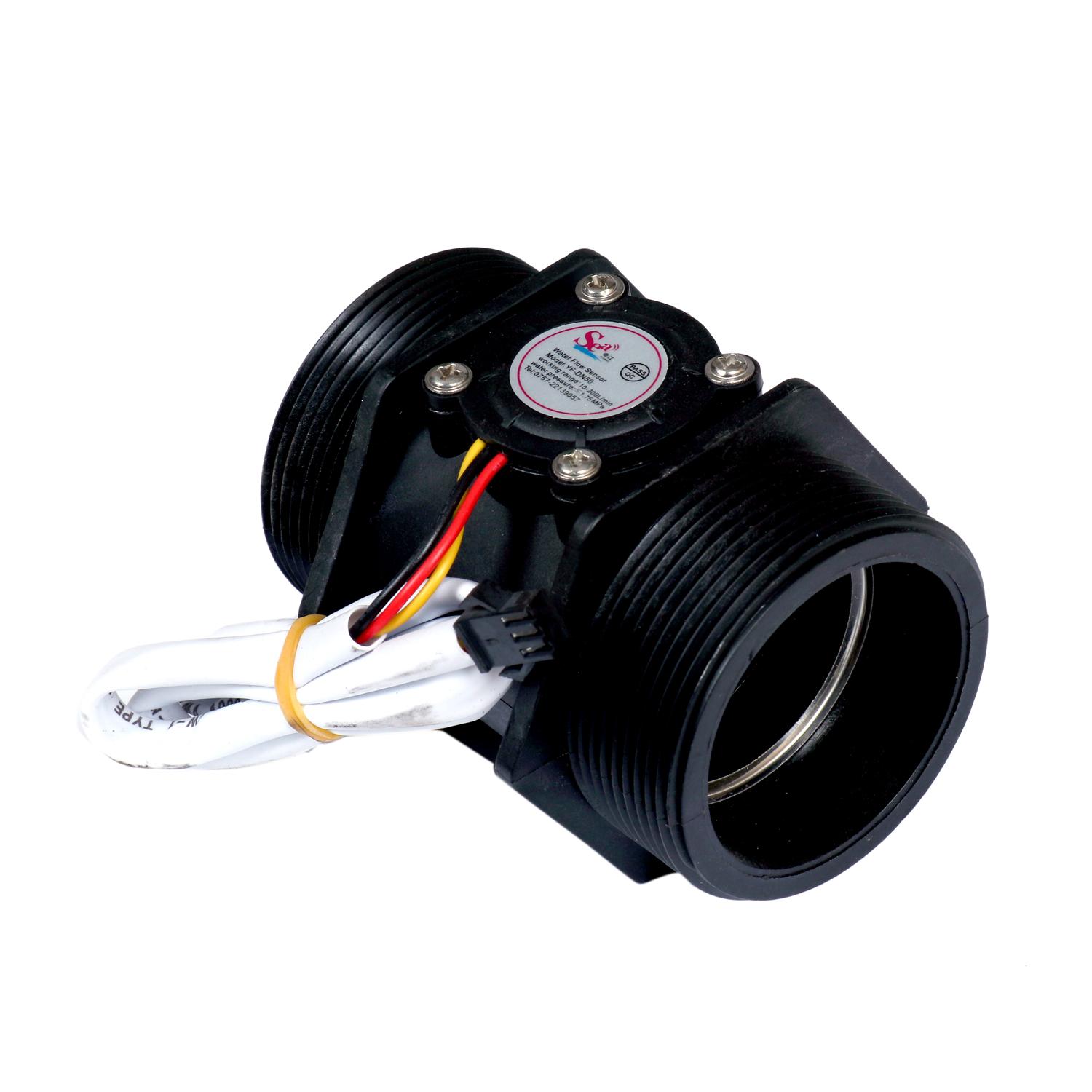

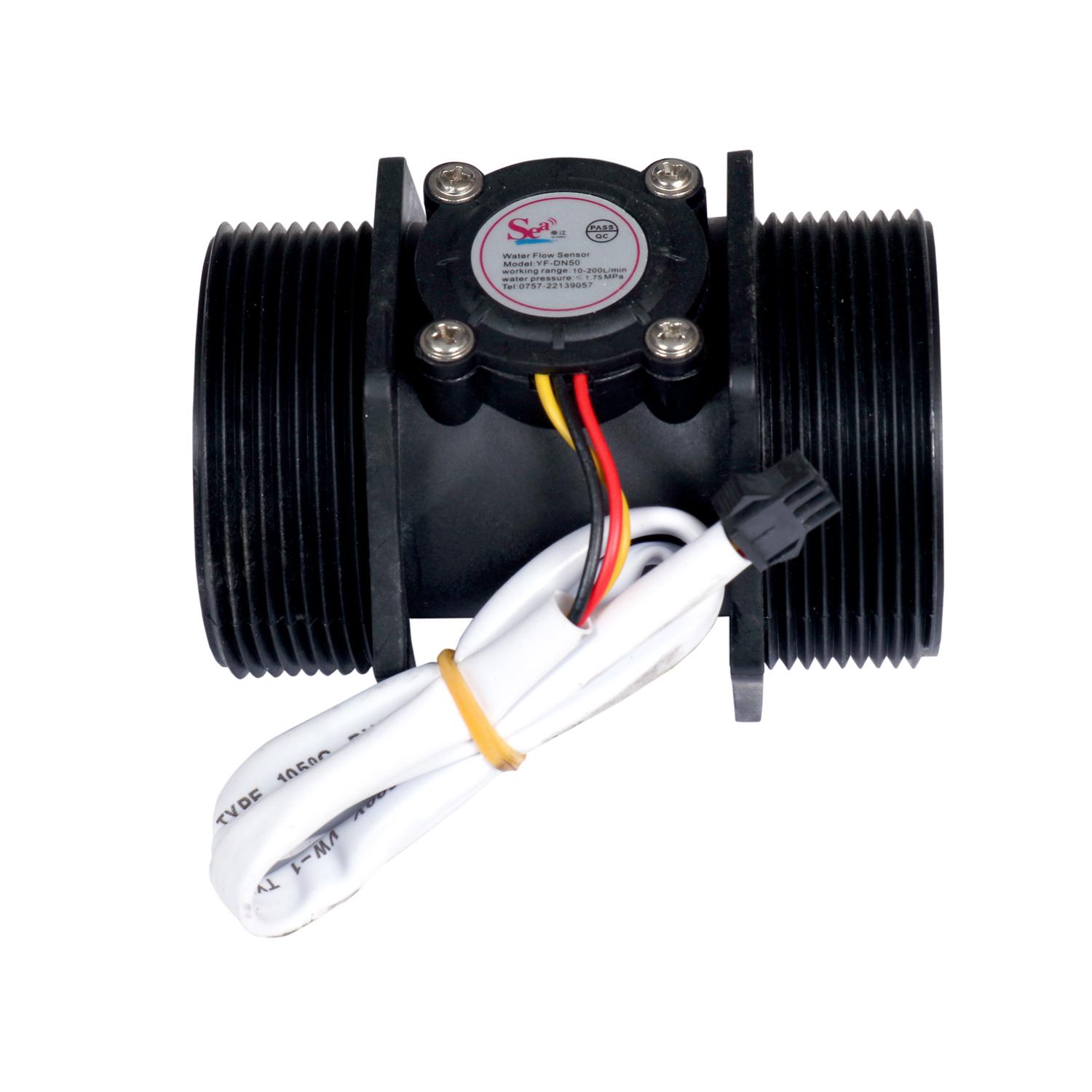

Rajguru Electronics presents the YF-DN50 water flow sensor, a robust 2-inch water flow meter meticulously crafted for the purpose of measuring water flow rates. This sensor operates through a turbine-style rotor, fully immersed within the water stream. As water courses through the sensor, it impels the rotor into motion. The sensor precisely assesses the rotor's velocity and translates it into a highly accurate flow rate reading. Notably, this sensor boasts a digital output, ensuring compatibility with an array of microcontrollers and host devices.
This versatile sensor finds its excellence in a wide spectrum of applications, including but not limited to irrigation systems, water treatment plants, and industrial process control. Its popularity stems from its user-friendly installation process and cost-effective nature.Rajguru Electronics' YF-DN50 water flow sensor is specifically designed for pipes with a 50mm or 1.97-inch diameter. This sensor excels at measuring flow rates ranging from 10 to 200 liters per minute.
Comprising a plastic valve body, a rotor assembly, and a Hall effect current sensor, this water flow sensor operates as follows: as water traverses through the sensor, the rotor rotates, and its rotation speed varies in direct correlation to changes in the water flow rate. The Hall effect sensor produces a corresponding pulse signal, which is indicative of the flow rate. In essence, the greater the volume of water passing through the sensor, the more pulses are generated, providing a precise measurement of the water flow rate.
Features : 2 inch Water Flow Sensor - YF-DN50
- Flow bereik: 10-200L/min
- State compression: Water pressure 1.75 Mpa below
- Work spanning: DC 5-18 v
- Output Waveform: Square wave, output pulse signal.
- Sensor: Hall effect
Discriprion : 2 inch Water Flow Sensor - YF-DN50
- Waterproof, heat resistance, pressure, cold resistance.
- Easy to install.
- Flow range: 10-200L / min
- Sensor: Hall effect
- Maximum current: 15 mA (DC 5 v)
- Working voltage: DC 5-18 v
- Load capacity: & iexcl; & Uuml; 10 mA (DC 5 v)
- Operating Temp: up to 80C, humidity: 35% -90% RH
- State compression: Water pressure 1.75 Mpa below
- Insulation resistance:> 100 m OHM
- Storage Temperature: -25-80C
- Storage humidity: 25% -95 % RH
- Output Waveform: Square wave, output pulse signal.
- Cable length: 480mm
- Max Size: 92mm * 68mm
Connection : 2 inch Water Flow Sensor - YF-DN50
- Red wire: +5V
- Black wire: GND
- Yellow wire: PWM output
Package Includes : 1 x 2 inch Water Flow Sensor - YF-DN50
