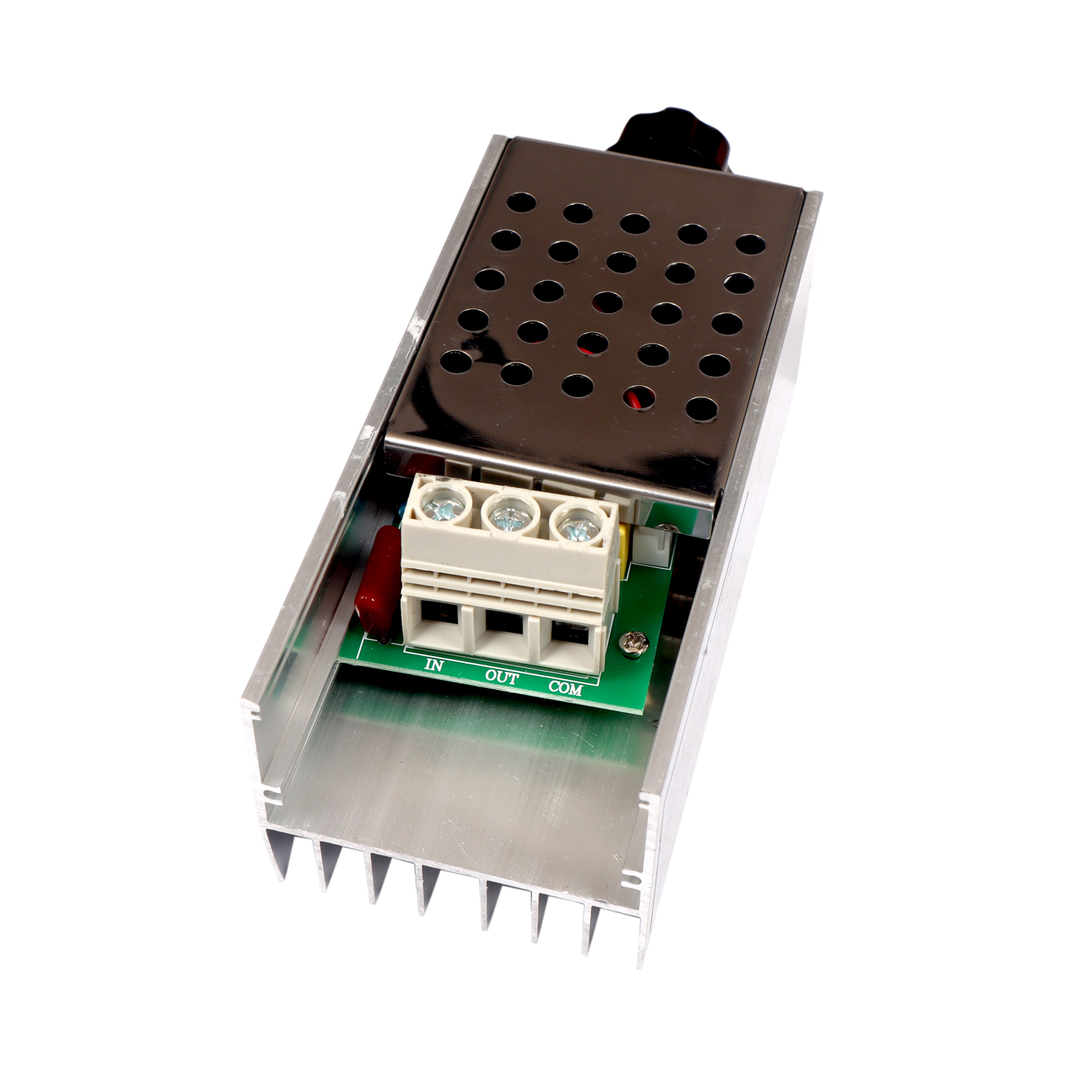

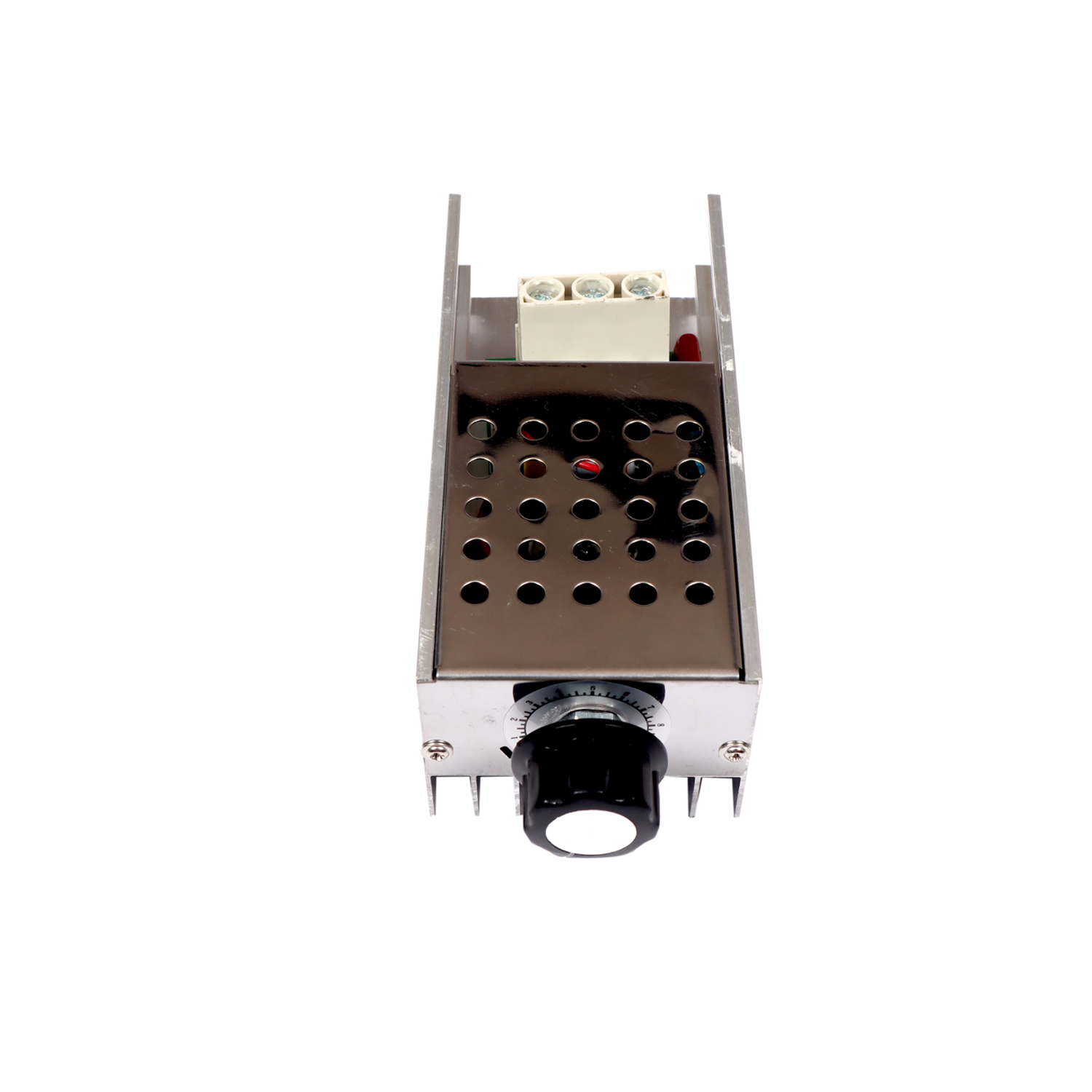

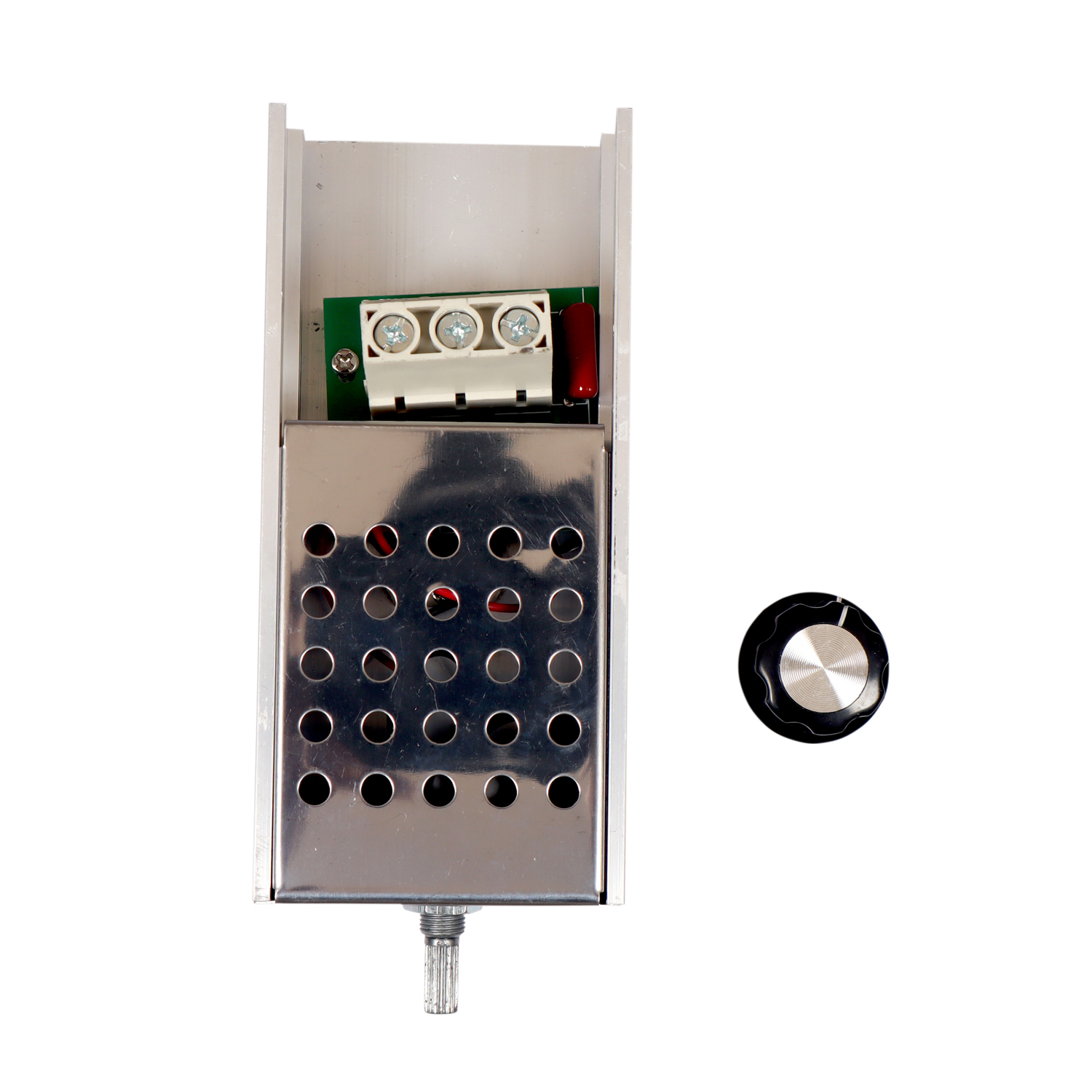

SCR Motor Controller 10000W - Thyristor SCR Voltage Regulator & Dimmer (AC 220V)
The SCR Motor Controller 10000W is a versatile Thyristor SCR Voltage Regulator designed to control speed, light, and temperature for AC 220V appliances. This high-power SCR dimmer is ideal for applications like light dimming, fan speed regulation, and stove temperature control, providing reliable and precise adjustment of power output up to 10,000W.Simply connect the AC input to the module, attach your appliance to the output, and adjust the power using the onboard potentiometer knob for effortless operation. Perfect for both household and small factory use!
Key Features: SCR Thyristor Module 10000W
- Robust Design: Dual-layer circuit board for enhanced durability.
- High-Performance Components: Includes high-voltage capacitors and ST trigger diodes for precision and efficiency.
- Efficient Heat Dissipation: Equipped with a large, thick heatsink for optimal cooling.
- Continuous Operation: Supports 5,000W usage at room temperature for extended periods.
- Wide Range of Applications: Can control electric stoves, water heaters, lamps, small motors, and more.
Specifications: SCR Thyristor Module 10000W
- Input Voltage: AC 220V
- Maximum Power: 10,000W
- Voltage Adjustment Range: AC 10V to 220V
- Dimensions (LxWxH): 150 x 60 x 47 mm
- Weight: 230 g
- Current Capacity: 57A with large current wiring terminal
Applications: SCR Thyristor Module 10000W
- Heat regulation for stoves, soldering irons, and water heaters.
- Light dimming for lamps.
- Speed control for small motors like fans or blowers.
- Temperature control for appliances.
Important Notes:
-
Not Suitable For:
- Electric bike battery chargers or appliances using switch power supplies (e.g., TVs, refrigerators, air conditioners, and energy-saving lamps).
- Devices lacking start capacitors or AC-to-DC motors.
-
Specific Usage Conditions:
- Can adjust voltage only when connected to a load.
- Works primarily for resistive loads.
-
Limitations:
- Not compatible with induction cookers or devices requiring positive and negative motor rotation.
Package Includes:
- 1 x 10000W High Power SCR BTA100-800B Electronic Voltage Regulator Module
Upgrade your appliance control with the SCR Motor Controller 10000W—a reliable, high-performance solution for your speed, light, and heat regulation needs. Shop now at Rajguru Electronics for quality components!
