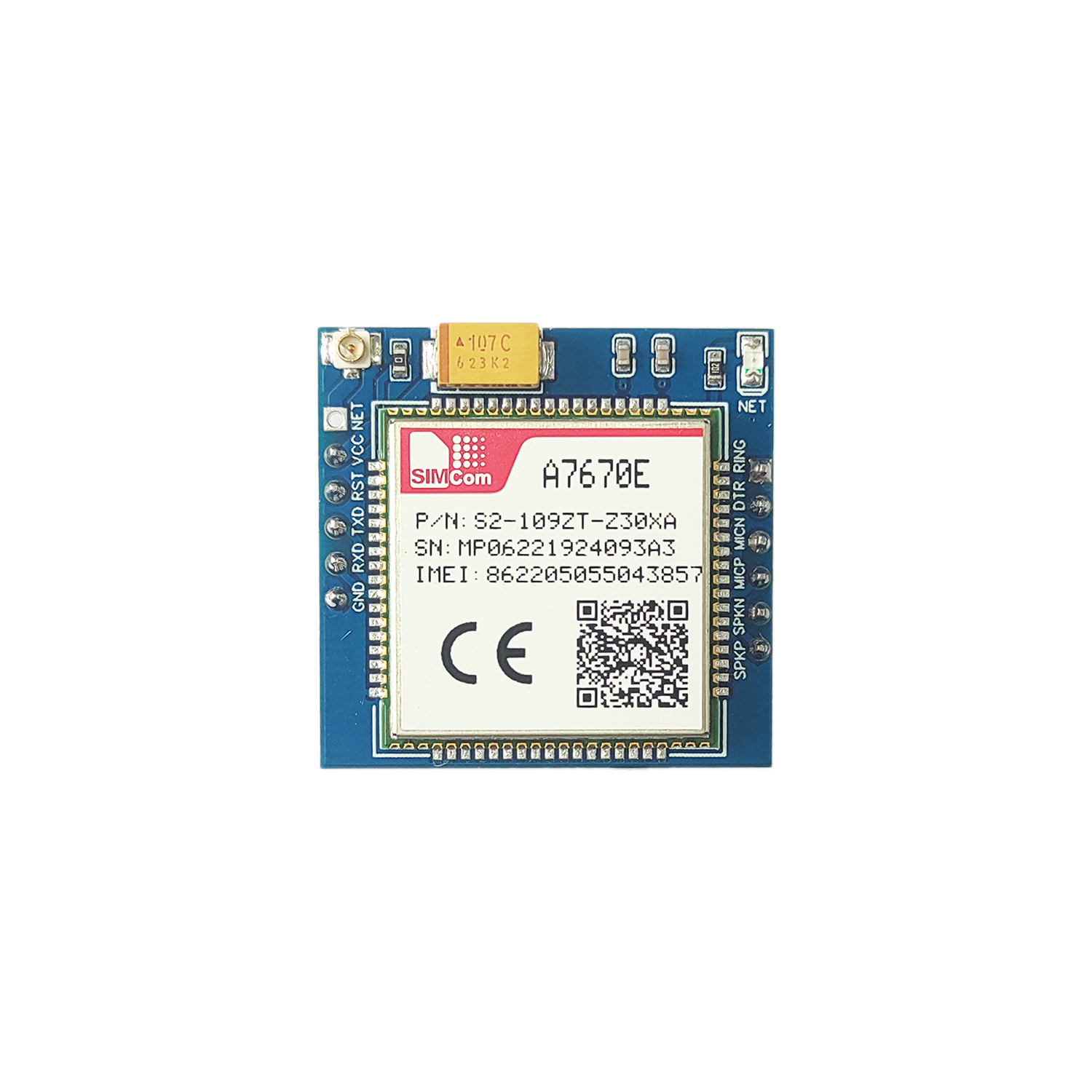

ADIY A7670E 4G/2G Breakout Board module supports wireless communication modes of LTE-FDD/GSM/GPRS/EDGE GSM/GPRS. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate. The ADIY SIM_A7670E is compatible with SIM7000/SIM7070 series, The ADIY SIM_A7670E module which enables smooth migration LTE Cat-1(4G)/2G products, and greatly facilitates more compatible product design for the customer needs.
General features:
- Power supply VBAT: 3.4V ~4.2V(Recommended VBAT: 3.8V)
- VDD_1V8 logic voltage
- Power saving Current in sleep mode :<2.5mA
- Operating temperature -40℃ ~ +85℃
- Supports protocols including TCP/IP, HTTP(s), FTP(s), multi-PDP and DNS.
- Supports dial-up, telephone calls, and SMS.
-
Frequency Band
- LTE Cat-1: LTE-FDD: B1, B3, B5, B7, B8, B20
- 2G: GSM/GPRS/EDGE: 900/1800 MHz -
Data Transmission Throughput
- GPRS multi-slot class 12
- EDGE multi-slot class 12
- LTE-FDD CAT1：10 Mbps (DL)，5 Mbps (UL)
- GSM/LTE Main antenna interface -
SMS
- MT,MO, CB, Text , PDU mode
- Short Message(SMS) storage device: USIM Card, CB does not support saving in SIM Card Support CS domain and PS domain SMS
- USIM application support SAT class 3, GSM 11.14 Release 98 Support USAT
- Support phonebook types : SM/FD/ON/AP/SDN -
Audio feature:
- PCM Digital Audio interface
- Analog audio MIC input interface(A7670E-LASE support only)
- Analog audio SPK output interface(A7670E-LASE support only)
Application:
- IOT applications
- Telematics
- Surveillance Devices
- POS, Industrial Routers
- Remote Diagnostics
- Power station monitoring and control.
- AMR (automatic meter reading).
- Weather station data transmission.
- Traffic signals monitor and control.
- Water, gas and oil flow metering.
- Parking meter and Taxi Monitor. Telecom equipment supervision (Mobile base station, microwave or optical relay station).
Package - 1 x A7670E 4G/2G Breakout Board module
