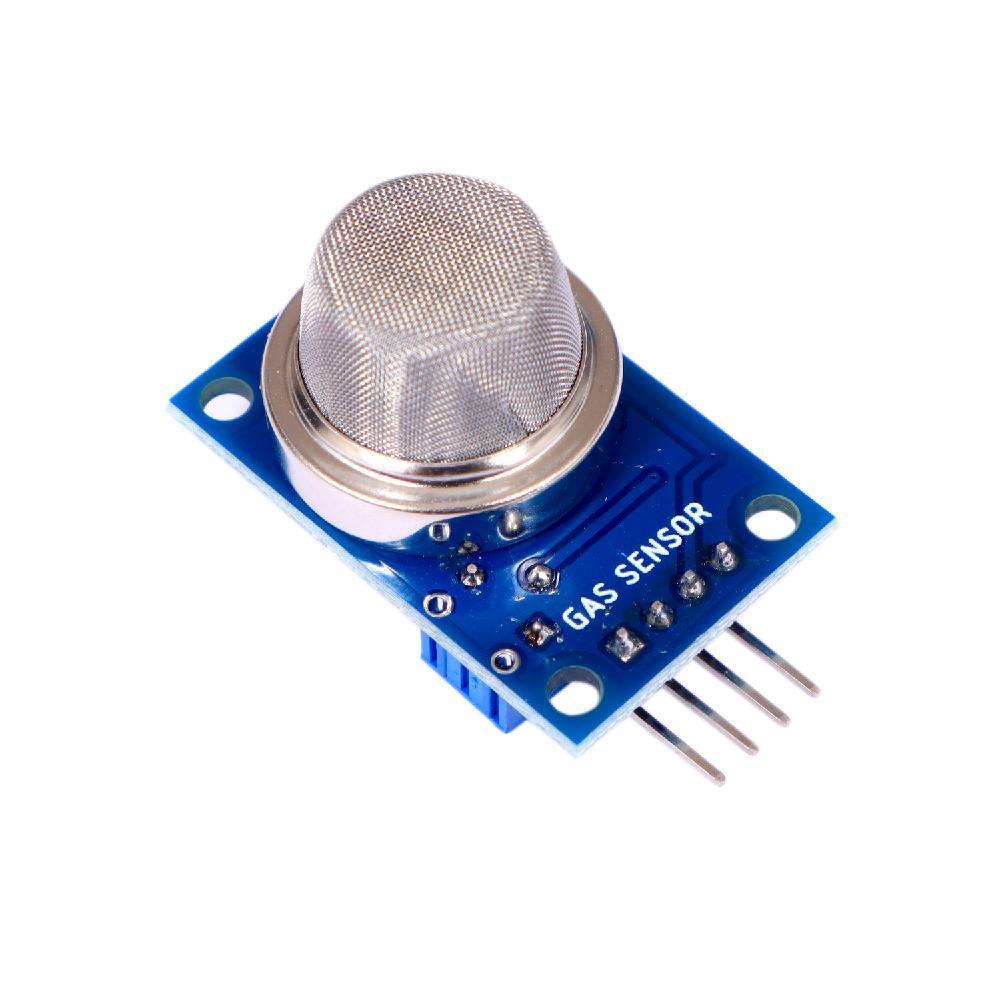

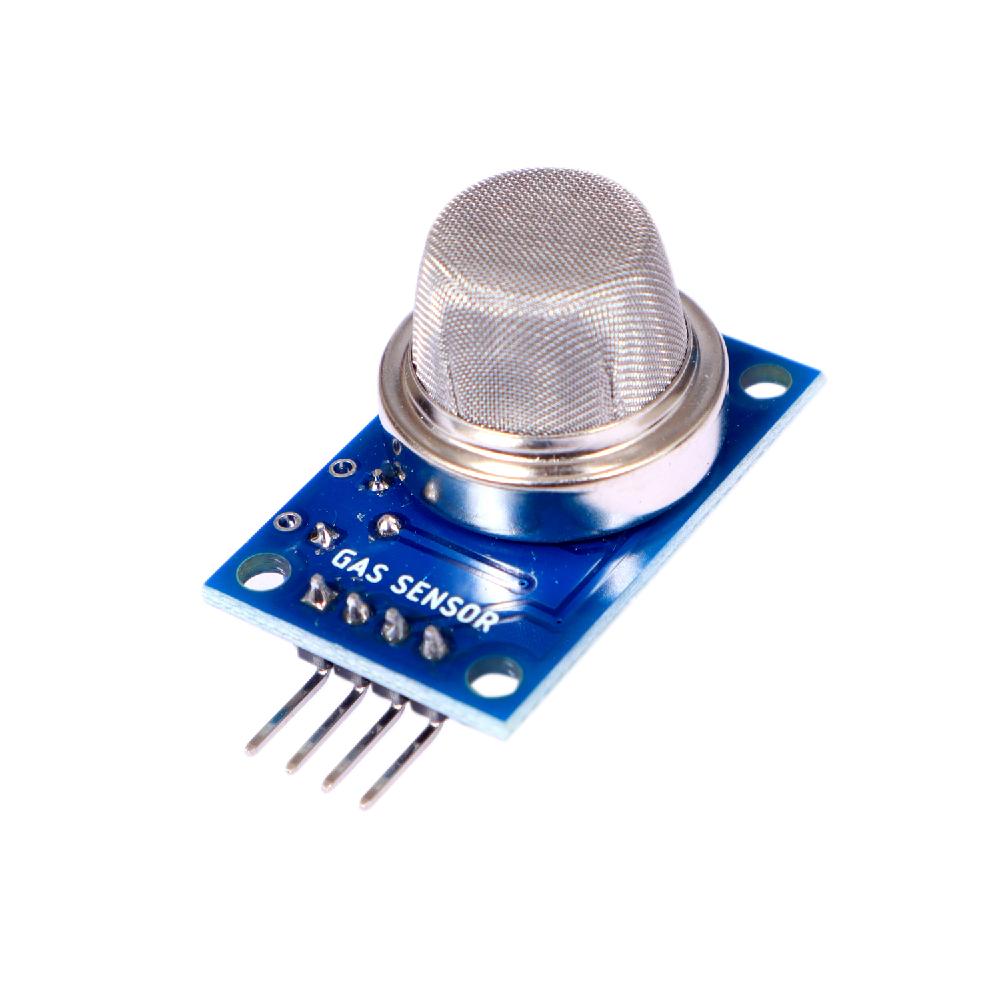

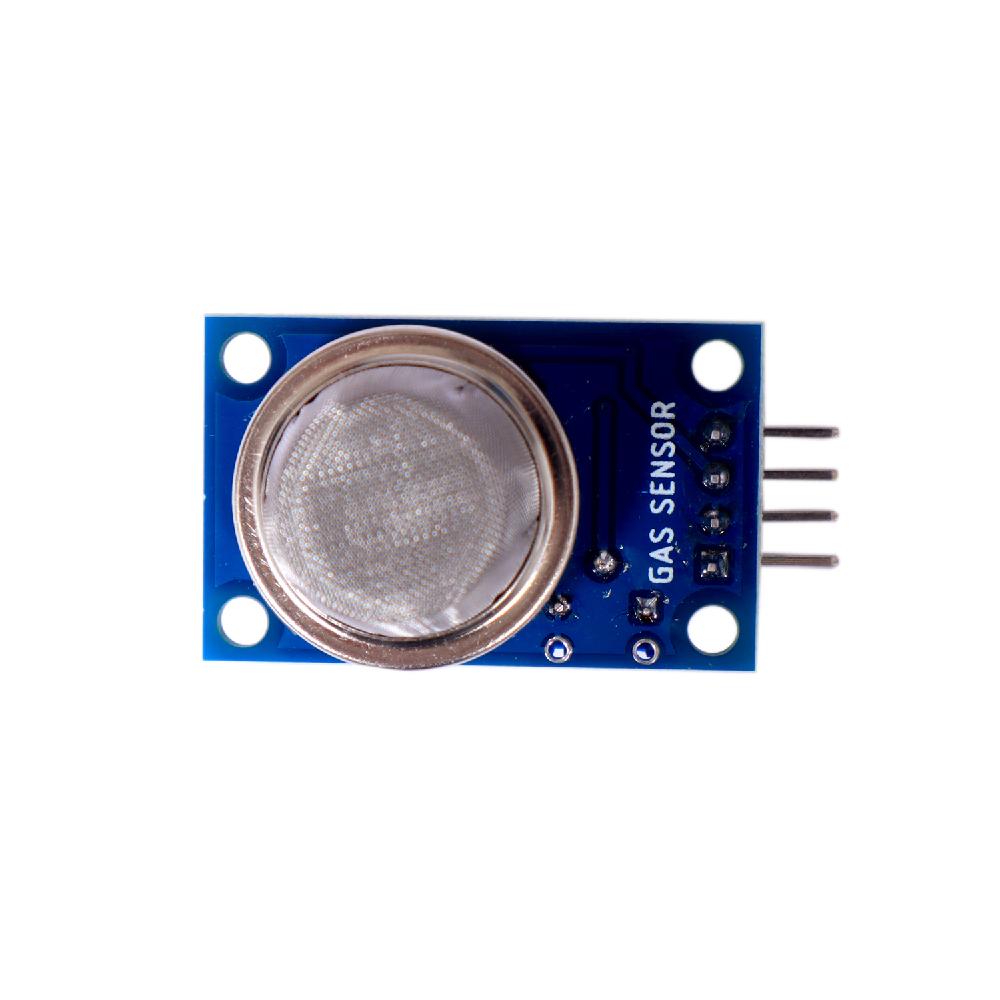

ADIY - Gas Sensor MQ9 Module is useful for gas leakage detection (in home and industry). It is suitable for detecting LPG, CO, CH4.

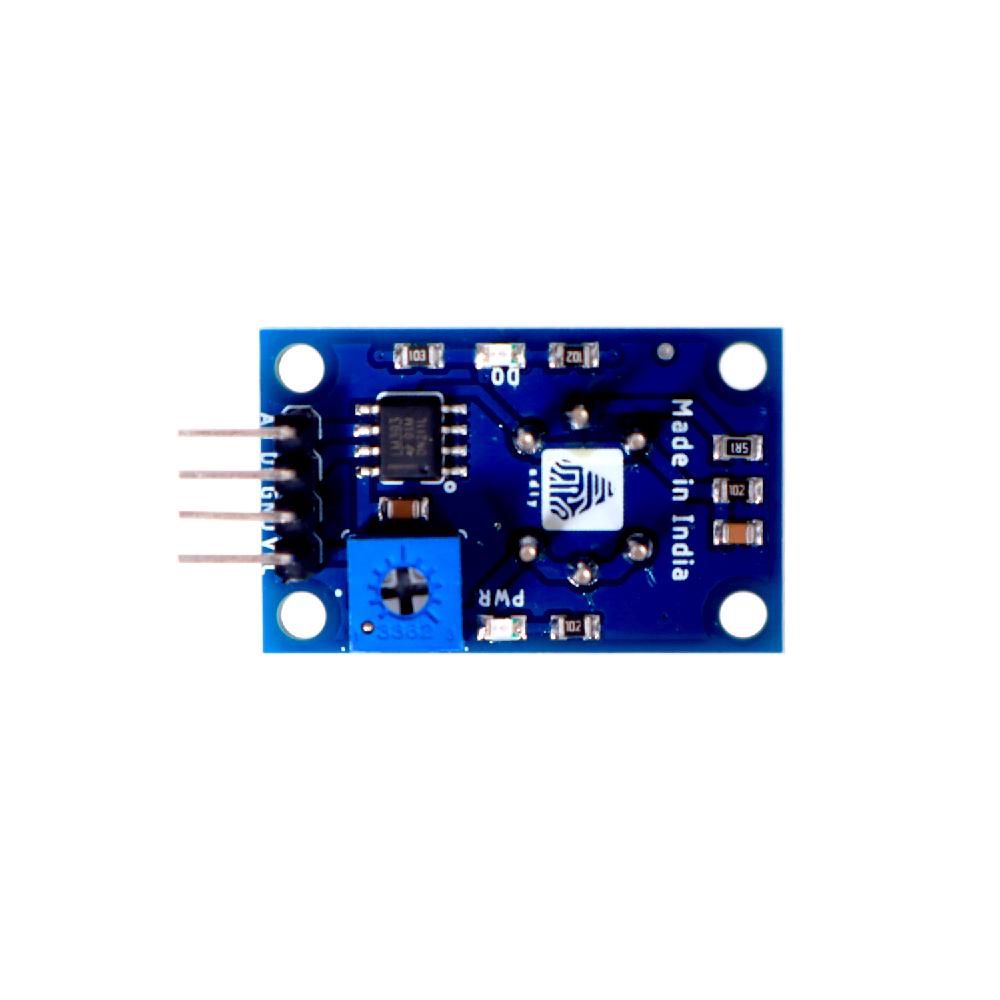

It provides an analog output corresponding to the concentration of the gases in the air and an easy-to-use digital output. The onboard potentiometer can be used to set the maximum gas concentration beyond which the digital output gets triggered.
Just power the module with 5V set the threshold and you can start getting the gas concentration of the air around the sensor! An onboard LED signals the presence of any gas.
The digital output can be easily interfaced to microcontrollers and other circuits. The analog output can be hooked up to an ADC of a microcontroller to get a wide range of sensor reading.
Features & Specifications: MQ9 Gas Sensor Module
- 5V operation
- LEDs for output and power
- Output sensitivity adjustable
- Analog output 0V to 5V
- Digital output 0V or 5V
- Low Cost
- Fast Response
- Stable and Long Life
- Both Digital and Analog Outputs
Package Includes : 1 x ADIY - MQ9 Carbon Monoxide, Methane, and LPG Gas Sensor Module
