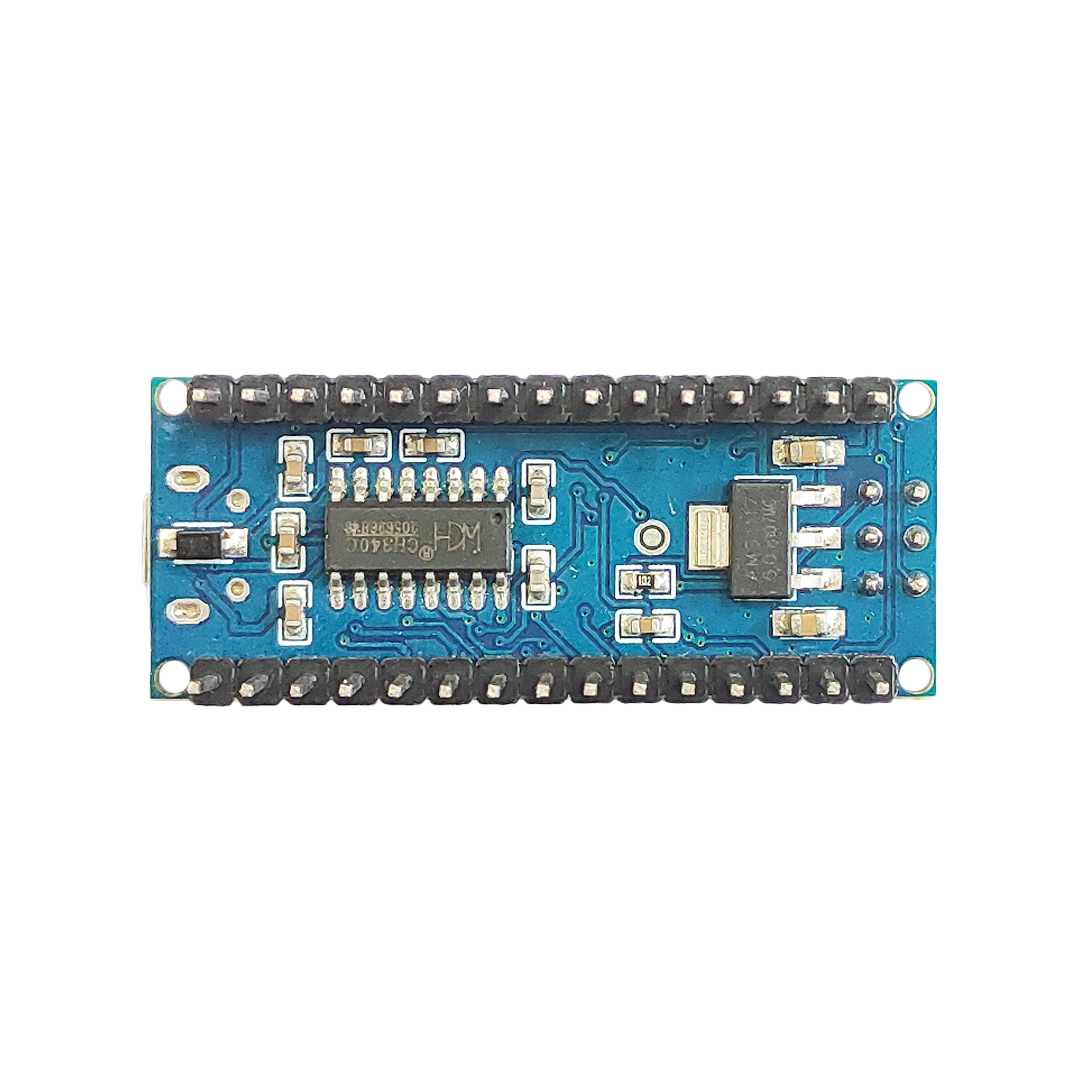

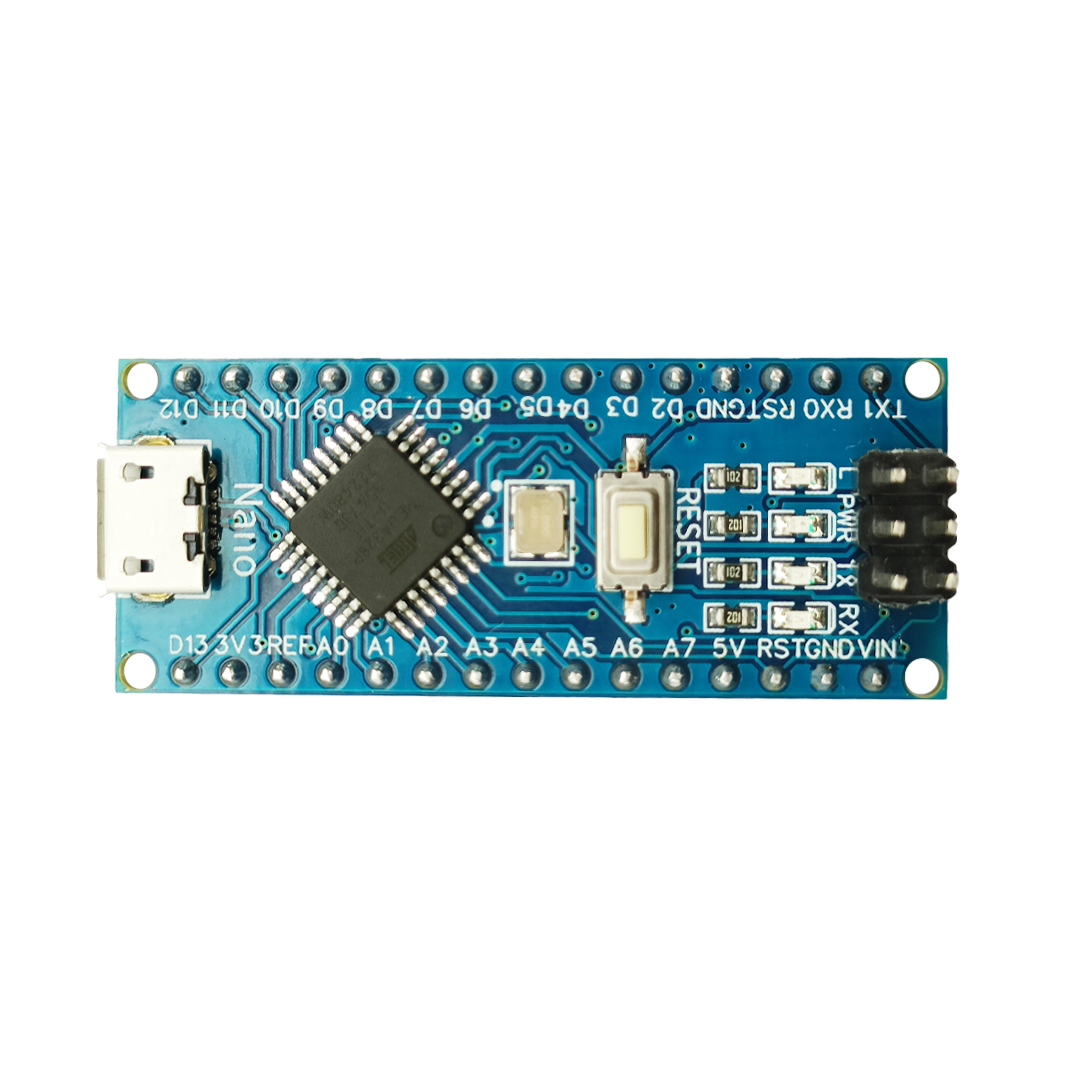

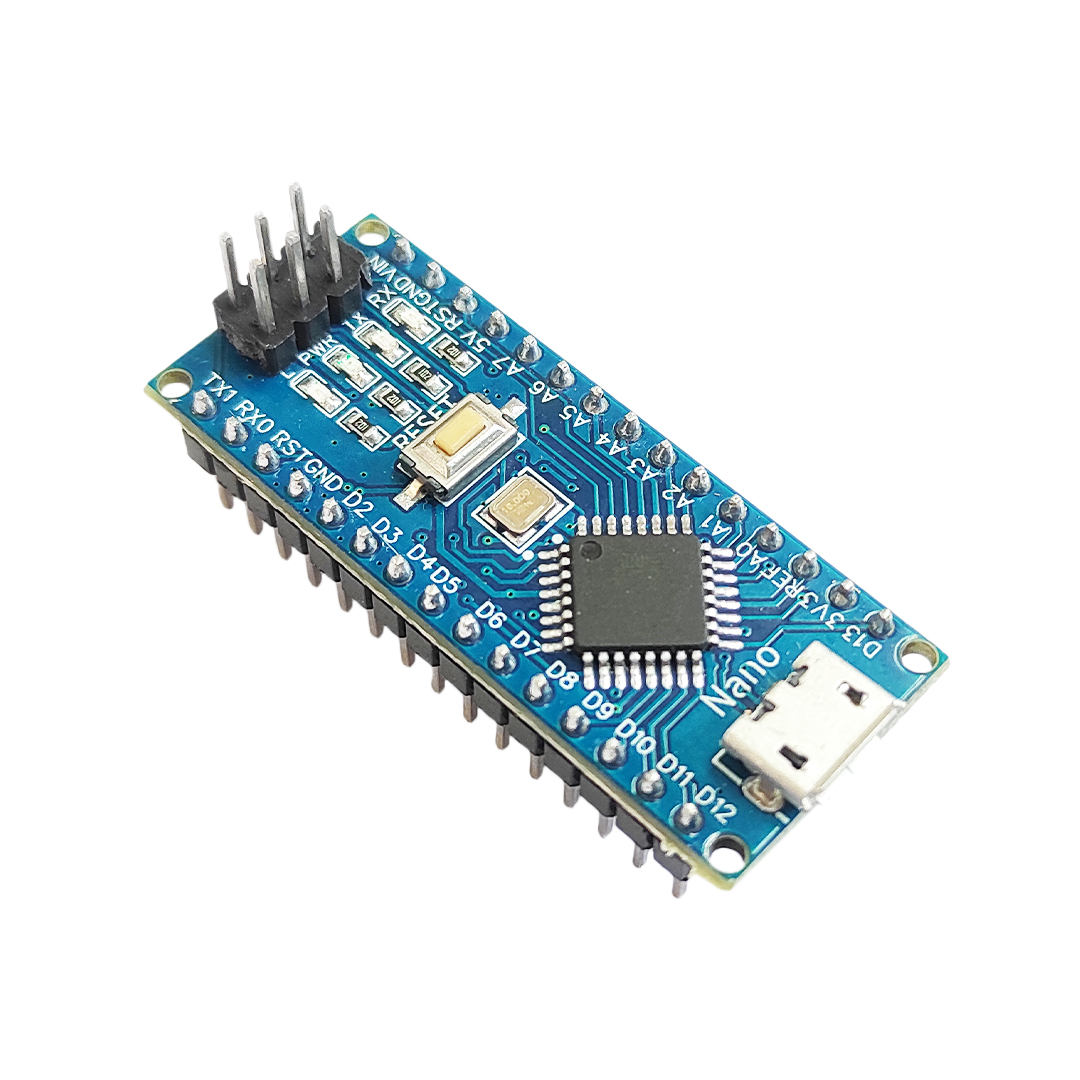

ADIY Nano board is fully as compatible as Arduino Nano. It is based on the ATmega328p-AU from the Atmel, the SMD version of one used in Arduino Uno. The advantage of this module, is that is very small in size as compared to Arduino Uno. It has integrated USB, and is breadboard friendly. It does not have any power jack but still 9V DC can be provided to Vin pin.
ADIY Nano can be said to be a smaller version of Arduino Uno, as its using the same MCU with smaller package. It also provides same functions as provided by Arduino Uno. Apart from that, it has 8 analog input pins instead of 6 analog inputs in Arduino Uno. It also has pinout for the programmer to be connected to the board directly, in case USB is not used for programming. It also has 1 x UART, 1 x SPI, 1 x I2C peripherals.
The ADIY Nano has 2 digital interrupt pins, and almost all pins can be used for pin change interrupt. Any pin can wake up MCU on interrupt from sleep mode. It works on a 16 MHz frequency.
ADIY Nano: Specifications
- Micro controller: ATMega328p-AU
- Input Voltage: 7 V to 9 V
- Operating Voltage: 5 V
- Flash Memory: 32 KB (out of which 2 KB used by bootloader)
- SRAM: 2 KB
- EEPROM: 1 KB
- Clock Speed: 16 Mhz
- Analog Input Pins: 8
- Digital I/O pins: 14
- PWM pins: 6
- Max Current Per I/O pins: 40 mA
- Onboard 5V Regulator
Applications of ADIY Nano
ADIY Nano boards are used to build Arduino Nano projects by reading inputs of a sensor, a button, or a finger and giving an output by turning the motor or LED ON, or some of the applications are listed below.
- Samples of electronic systems & products
- Automation
- Several DIY projects
- Control Systems
- Embedded Systems
- Robotics
- Instrumentation
Package Includes :
1 x ADIY Nano Board
