Product Details:
|
Model Name/Number |
ESP 8285 M1 |
|
Brand |
DOIT |
|
Working Temperature |
-40 DegreeC-125 5 DegreeC |
|
Support |
802.11n (2.4 GHz) |
|
Support 802.11 i security |
Pre-certification and TSN |
|
Packaging Type |
Box |

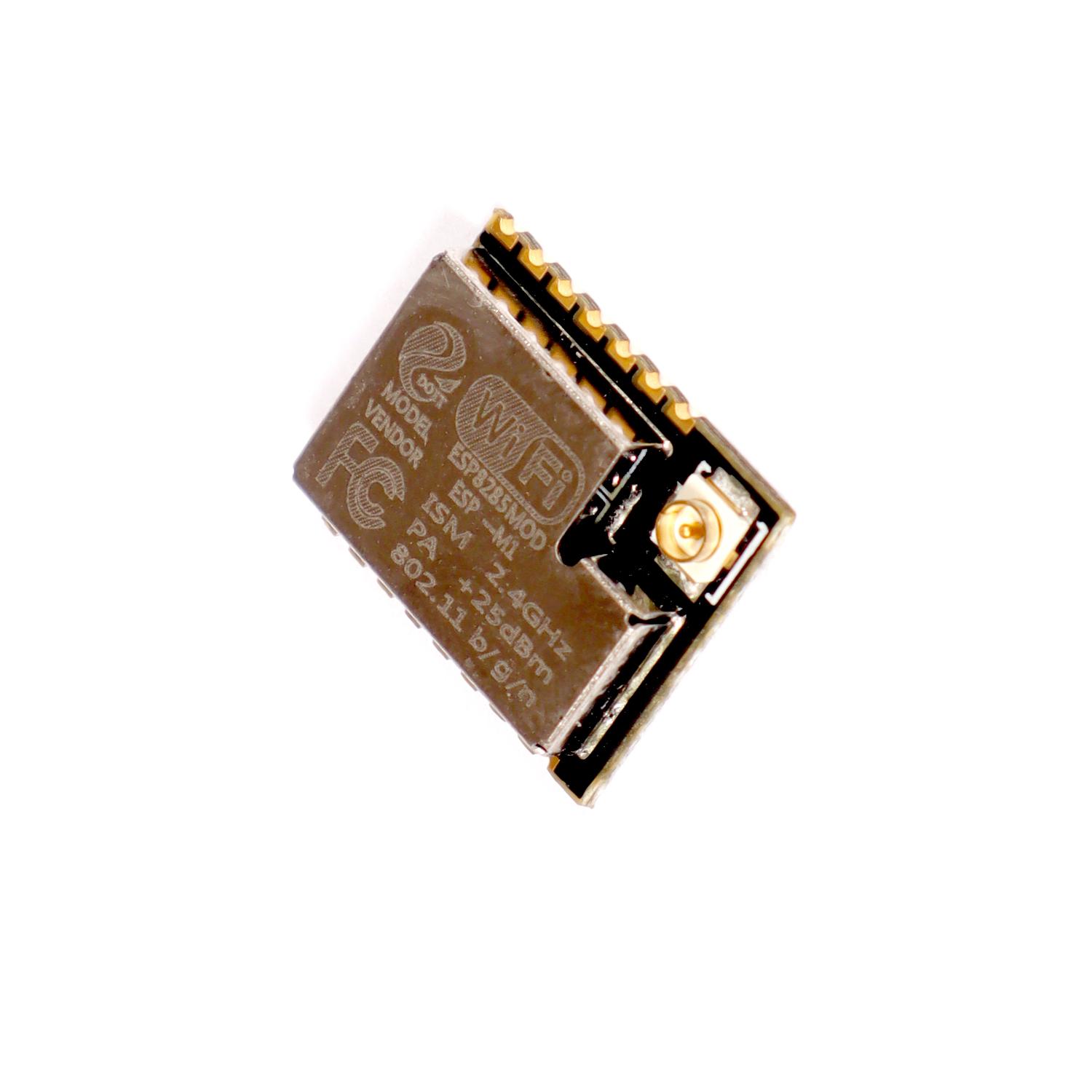

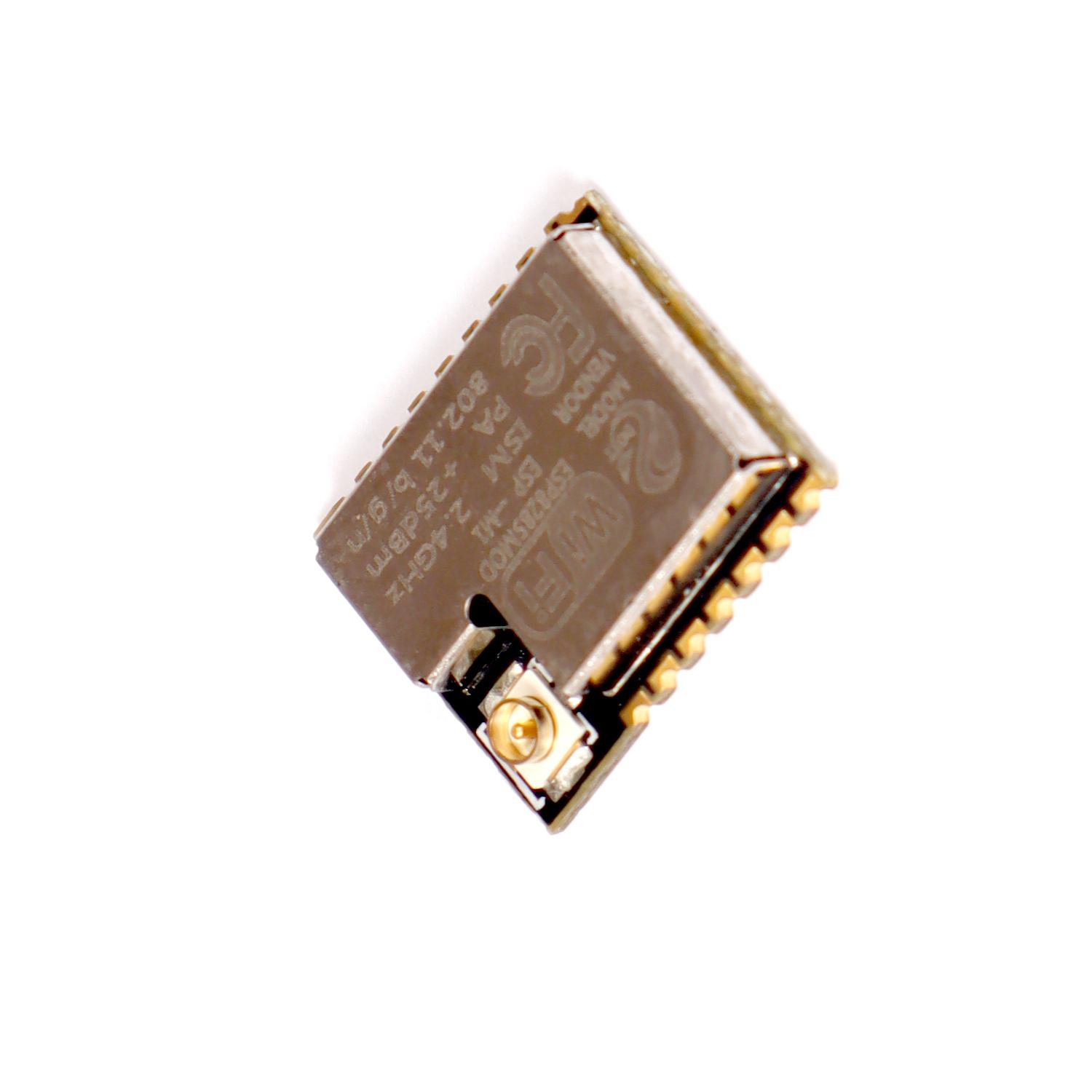

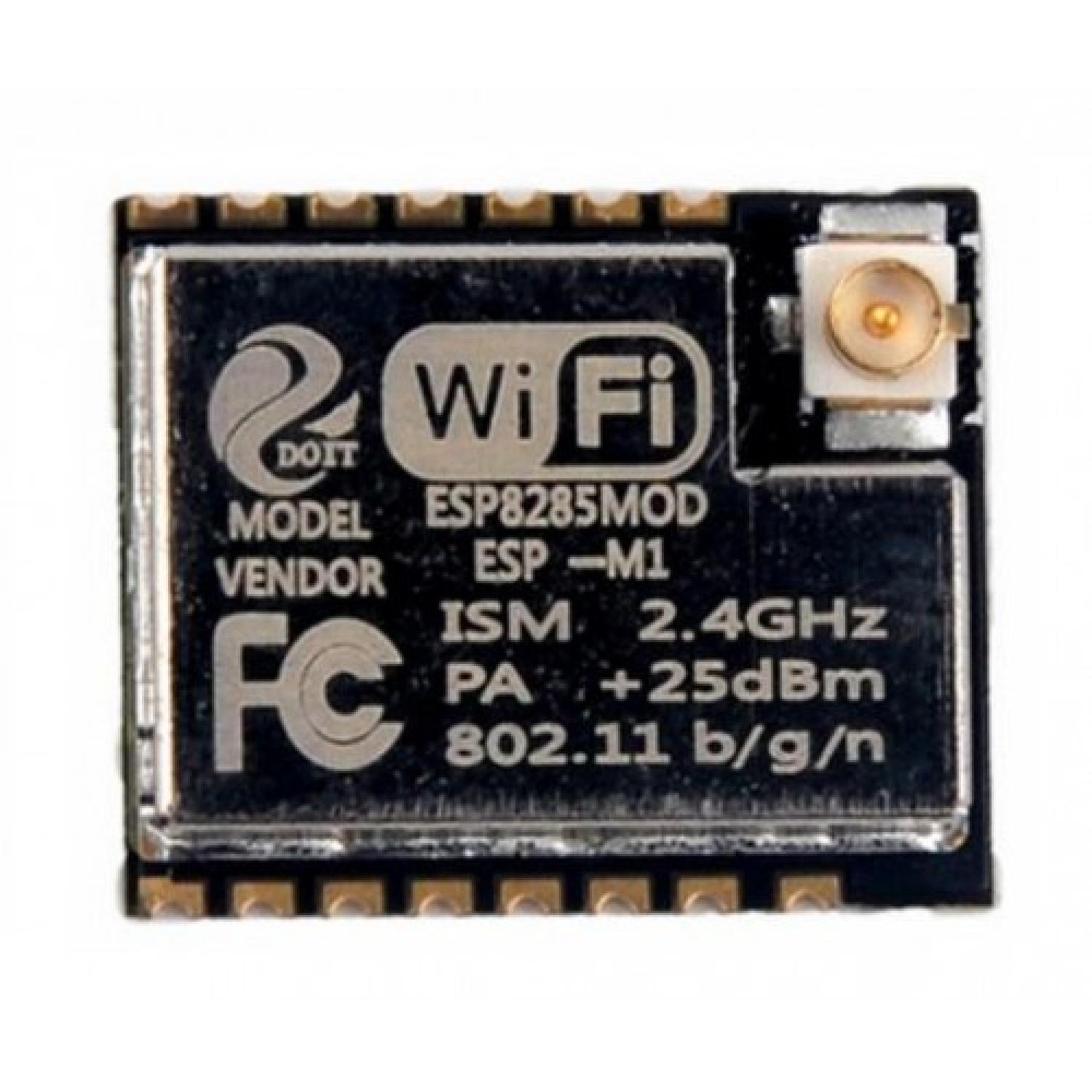

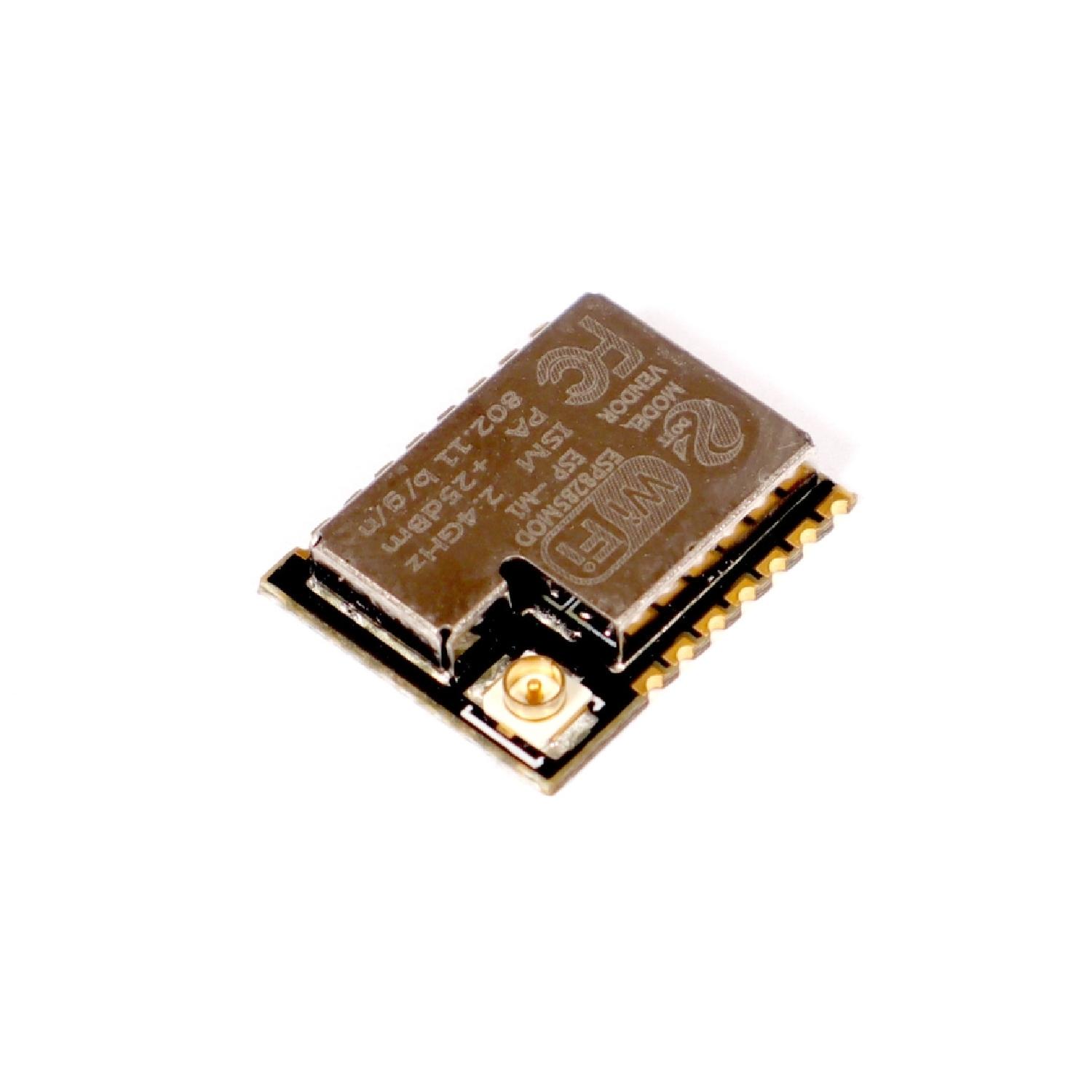

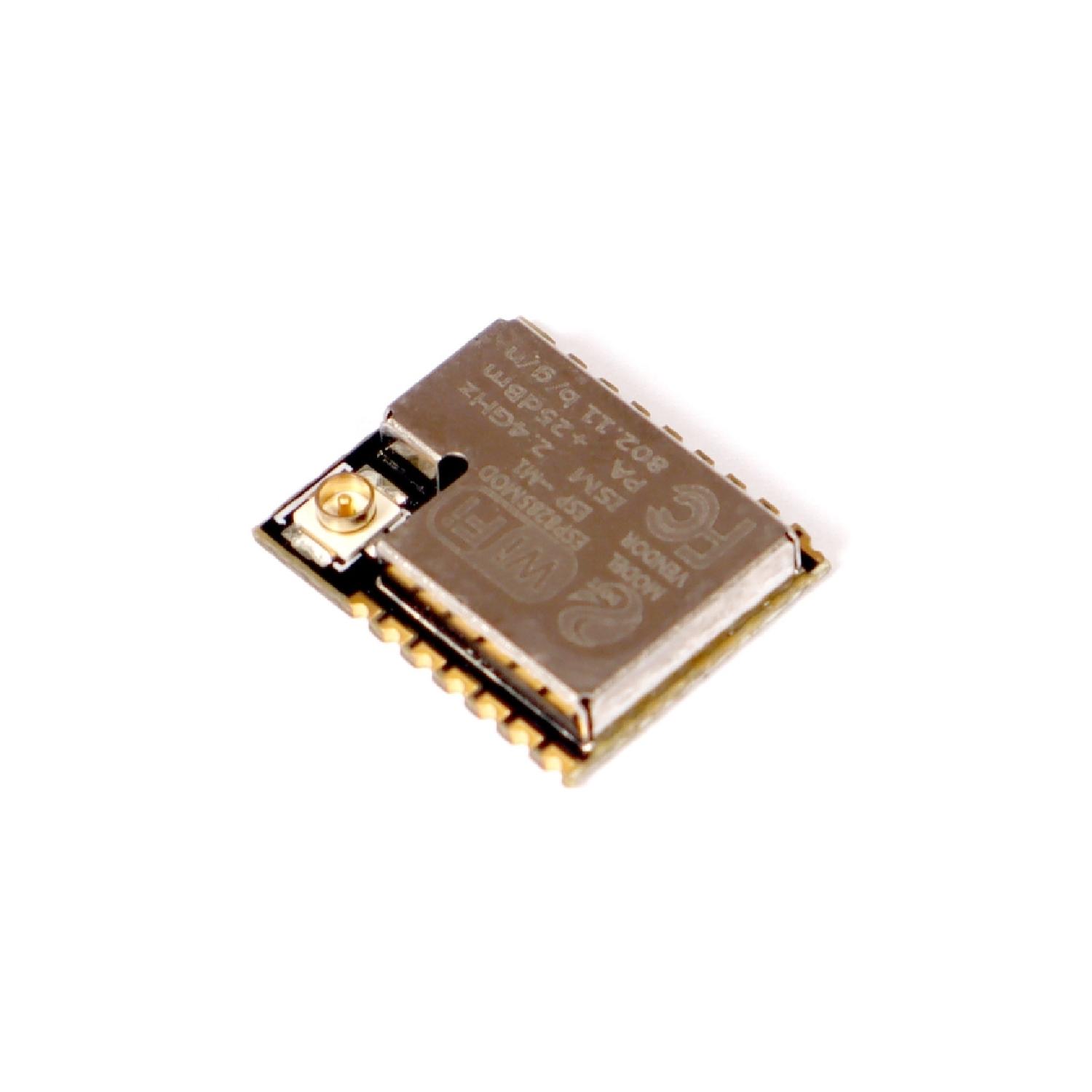

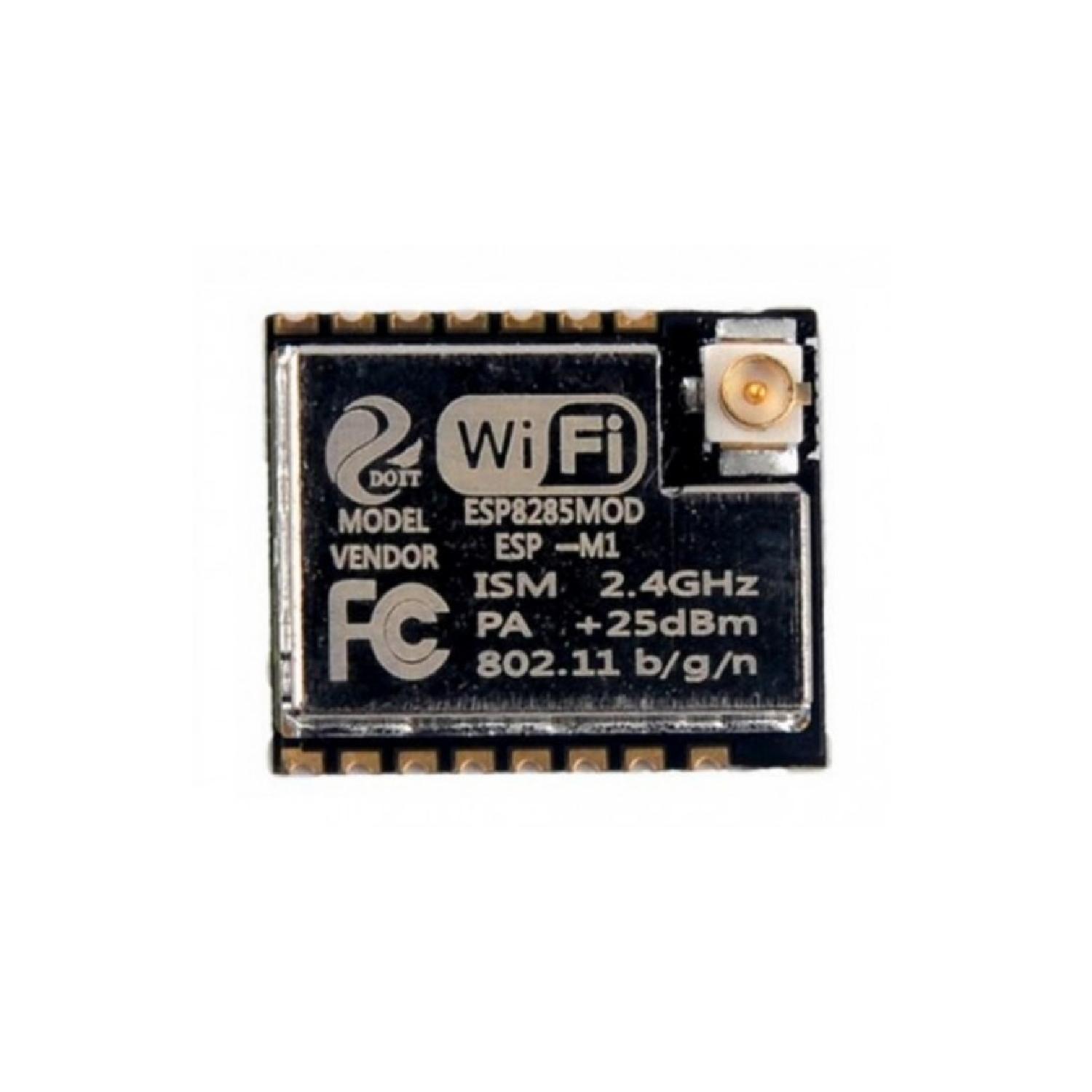

The WiFi module ESP-Mis manufactured by using a high-performance chip ESP8285. This small chip isencapsulated an enhanced Tensilica L106 diamond series 32-bit kennel CPU witha SRAM. Thus, ESP8285 has the complete function Wi-Fi function; it not only canbe applied independently, but can be used as a slaver working with other hostCPU. When ESP8285 is applied as a slaver, it can start from the onboard Flash.The built-in high-speed buffer is not only benefit to improve the systemperformance, but optimize the store system. In addition, ESP8285 can be used asWi-Fi adapter by SPI/SDIO or I2C/UART interface, when it is applied to otherMCU design. The ESP-M module supports the standard IEEE802.11 b/g/n/e/iprotocol and the complete TCP/IP protocol stack. User can use it to add the WiFifunction for the installed devices, and also can be viewed as a independentnetwork controller. Anyway, ESP-M module provides many probabilities with thebest price.
ESP8285 is encapsulated in an advanced Tensilica’s L106 32-bit CPU, together with SRAM. ESP8285 has the complete and complete WiFi function, which may be used independently and also used as a slaver with other Hoster MCU, which may start directly from the out-built Flash. In addition, the built-in high-speed buffer is beneficial for the system's performance. Especially, ESP8285 are often used as a WiFi adapter by SPI/SDIO and/or I2C/UART interface, when it's applied to the opposite MCU design.
Features of Esp8285-M1 Wifi Module: Ultra-small size; Onboard UFL connector for external antenna Support serial to WiFi; Wireless transparent transmission; Long-distance transmission with ultra-low power; Support outboard antenna; Bearing high temperature to 125 ℃, compared to the 85℃ for ESP8266.
SOC characteristics:
Built-in Tensilica L106 ultra-low power 32-bit CPU, main frequency supports 80MHz and160MHz and RTOS;

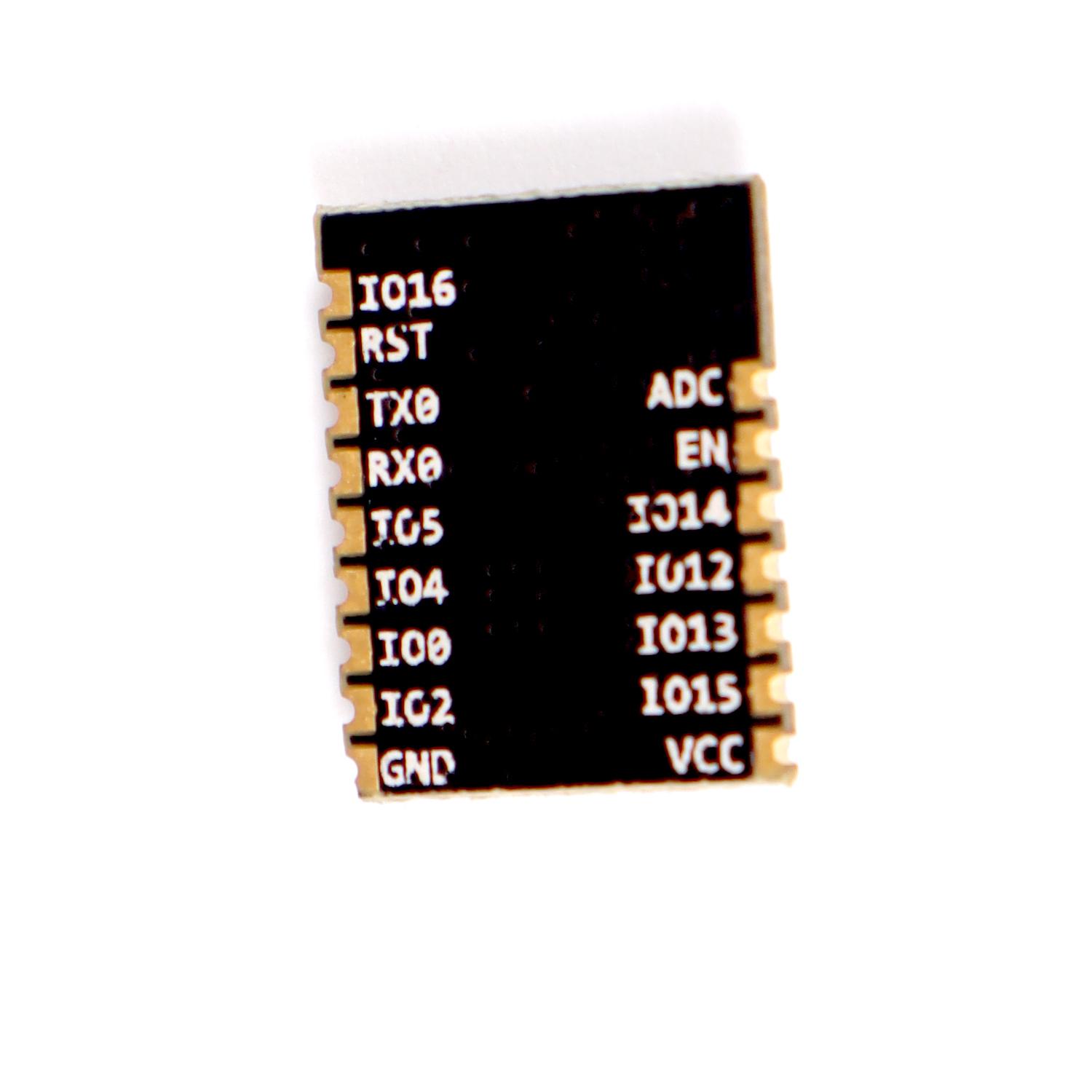

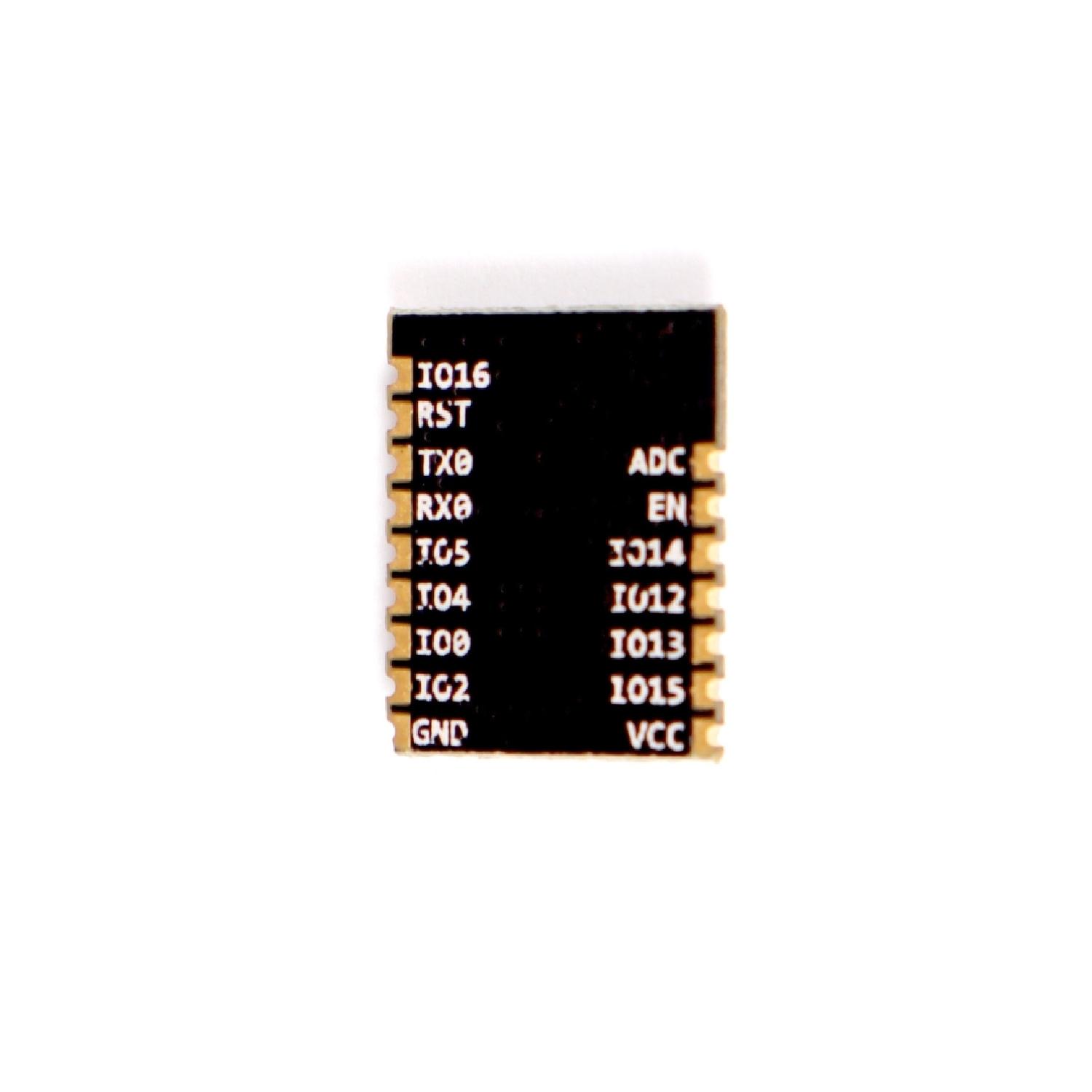

Built-in TCP/IP protocol; Built-in one-channel 10-bit high precision ADC; Outboard interface: HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO; Deep sleep current is 10uA, the cut-off current is smaller than 5uA; Wake, connect and transmit data package within 2ms; They consume power is smaller 1.0Mw (DTIM3) when at stand by status; Built-in 1M byte for SPI Flash.
WiFi characteristics: Support 802.11 b/g/n/e/I; Support Station, Soft AP, Soft AP+STA mode; Support WiFi Direct (P2P); Support CCMP (CBC-MAC, computation mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC etc., for hardware acceleration. P2P finding, P2P GO mode/ GC mode and P2P power manage. WPA/PA2PSK and WPS; 802.11 security certification: pre-certification and TSN, Support 802.11n (2.4GHz); 802.1h/RFC1042 frame encapsulation; Support seam less roaming; Support AT remote update and cloud update (OTA);, Support Smart Config function (including Android and Ios device). Because of the ultra-small size, ESP-M1/ESP-M2 is now very popular for many people. Moreover, this two modules are supported ESP8285 chip.
The WiFi module ESP-Mis manufactured by employing a high-performance chip ESP8285. This small chip isencapsulated an enhanced Tensilica L106 diamond series 32-bit kennel CPU witha SRAM. Thus, ESP8285 has the entire function Wi-Fi function; it not only canbe applied independently, but are often used as a slaver working with other hostCPU. When ESP8285 is applied as a slaver, it can start from the onboard Flash.
