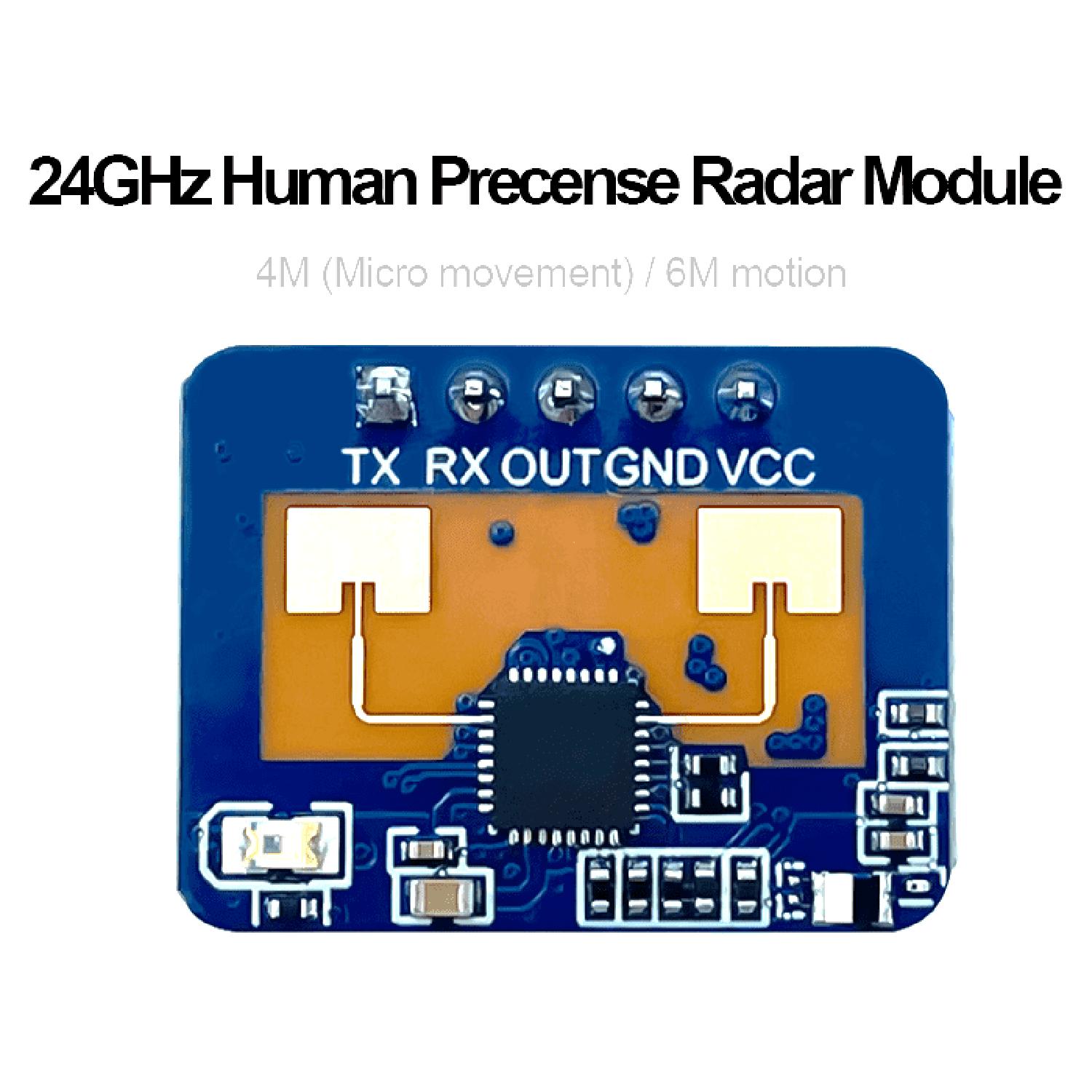

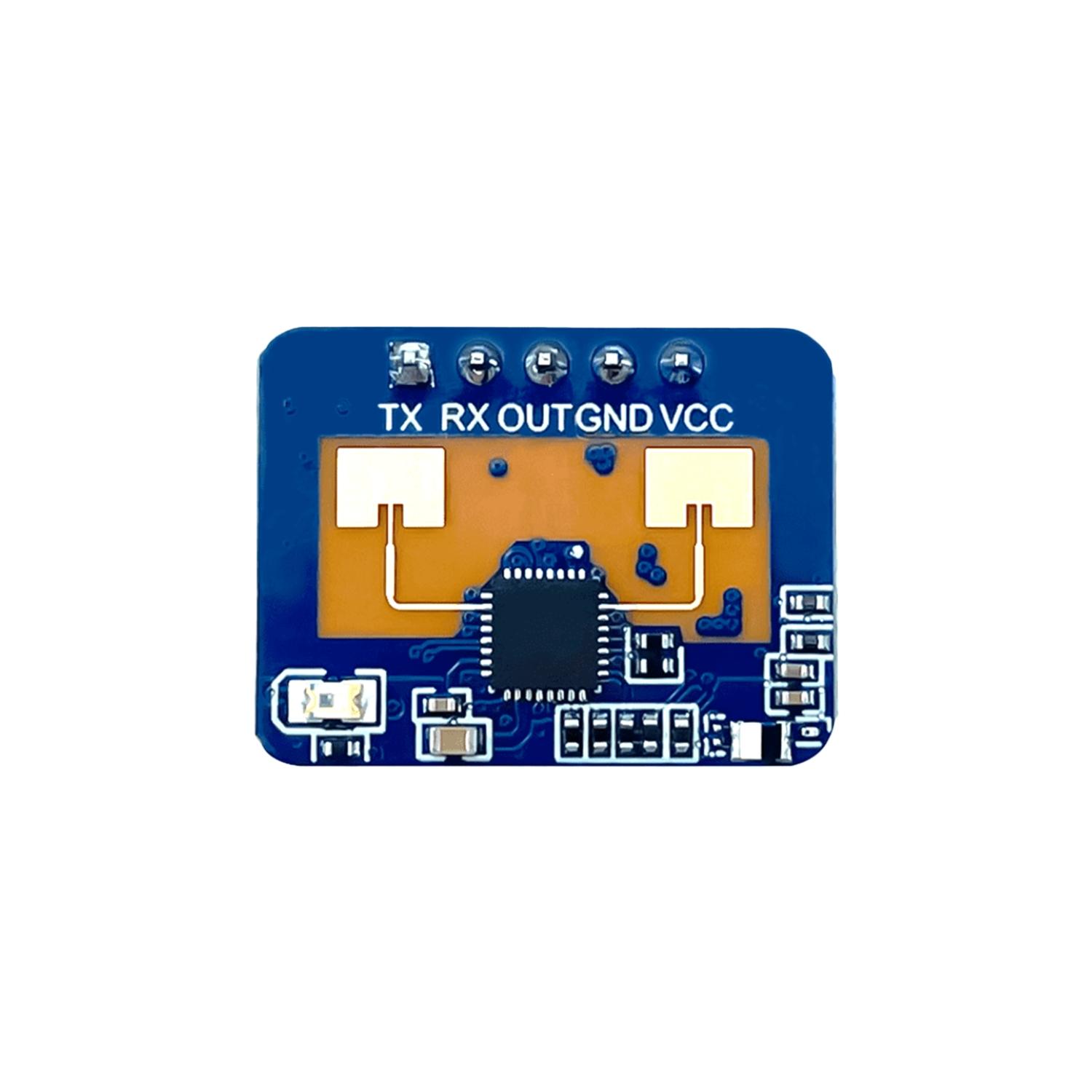

24Ghz Human Presence Body Induction Distance Detection Radar Sensor Module support GPIO and UART ports

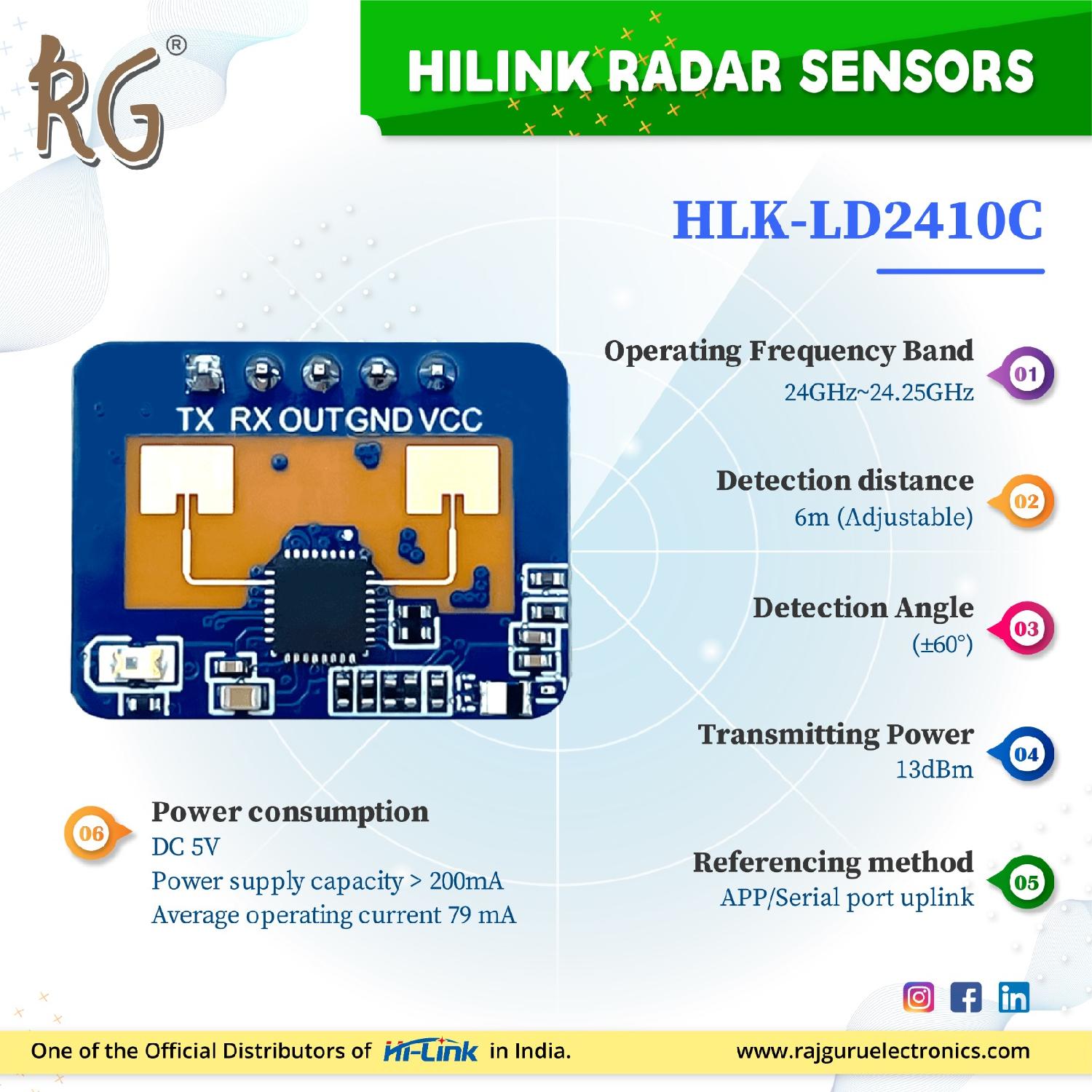

LD2410C is a high-sensitivity 24GHz human presence status sensing module developed by Hi-link. Its working principle is to use FMCW frequency-modulated continuous waves to detect human targets in the set space. Combined with radar signal processing and precise human body sensing algorithms, it realizes high-sensitivity human presence status sensing, and can identify human bodies in motion and stationary states. And auxiliary information such as the distance of the target can be calculated.
This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area and output the detection results in real time. The farthest sensing distance can reach 5 meters, and the distance resolution is 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals and unmanned delay time, etc., to adapt to different specific application needs.
Support GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.
Features:
- Plug and play, easy assembly
- The longest sensing distance is up to 5 meters
- Large detection angle, coverage up to ±60 degrees
- Accurate identification within the interval, support the division of the sensing range, and shield the interference outside the interval
- Multi-level intelligent parameter adjustment to meet the needs of scene changes
- Visual debugging and configuration tools
- Small and simplified, the minimum size is only 16mmx22mm
- Supports various installation methods such as ceiling hanging and wall hanging
- 24GHz ISM band, compliant with FCC and CE spectrum regulations
- 5～12V wide voltage power supply
- The ultimate cost-effective choice
