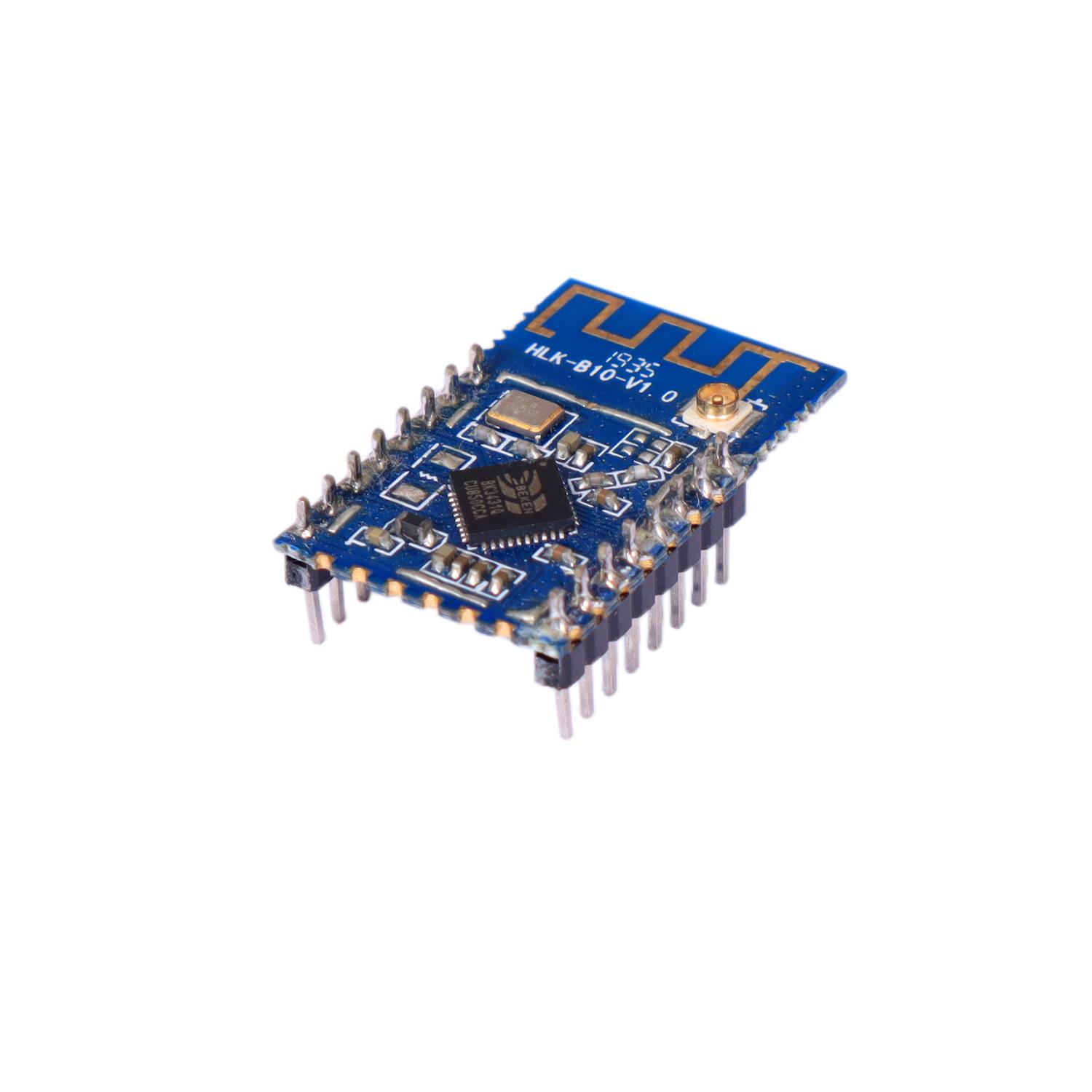

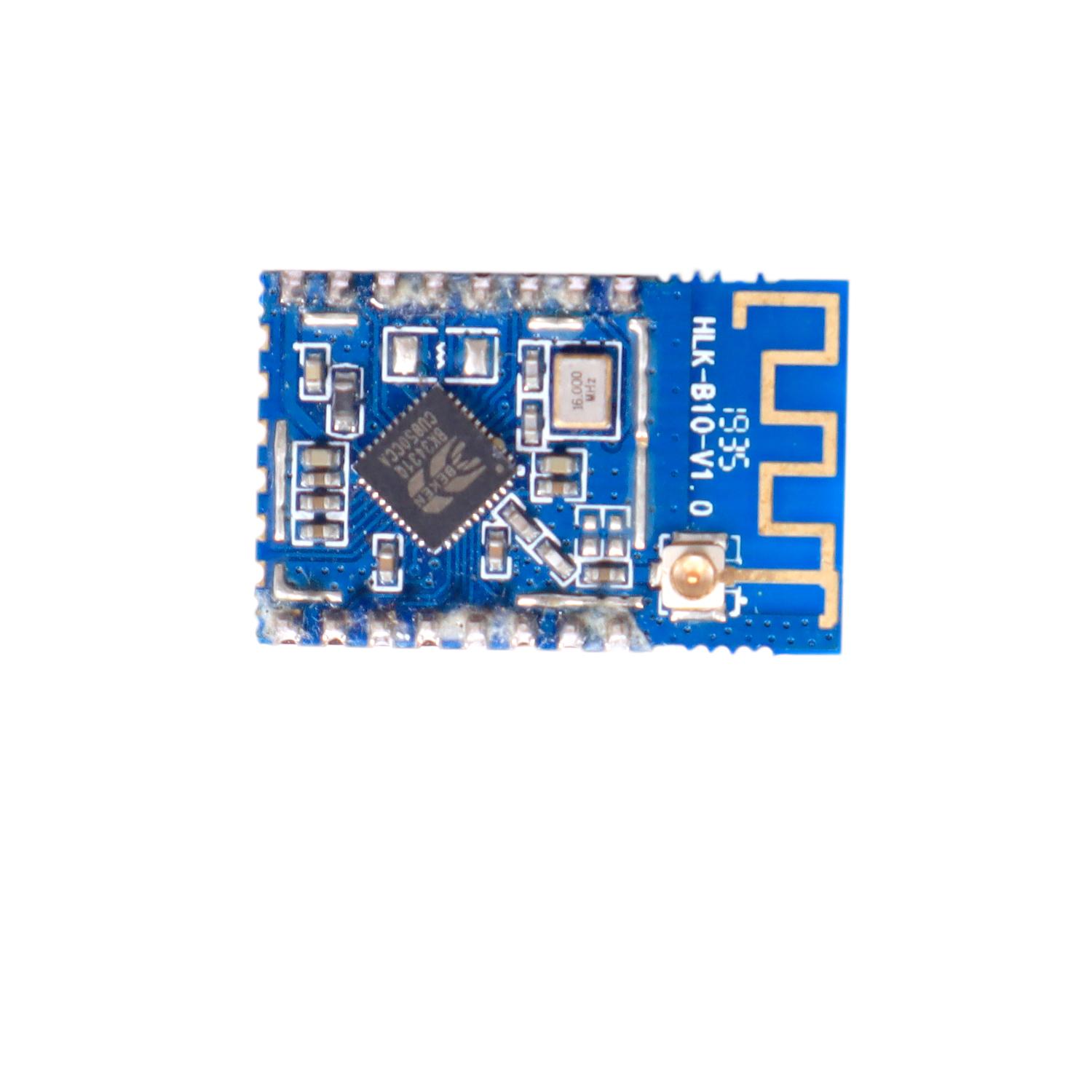

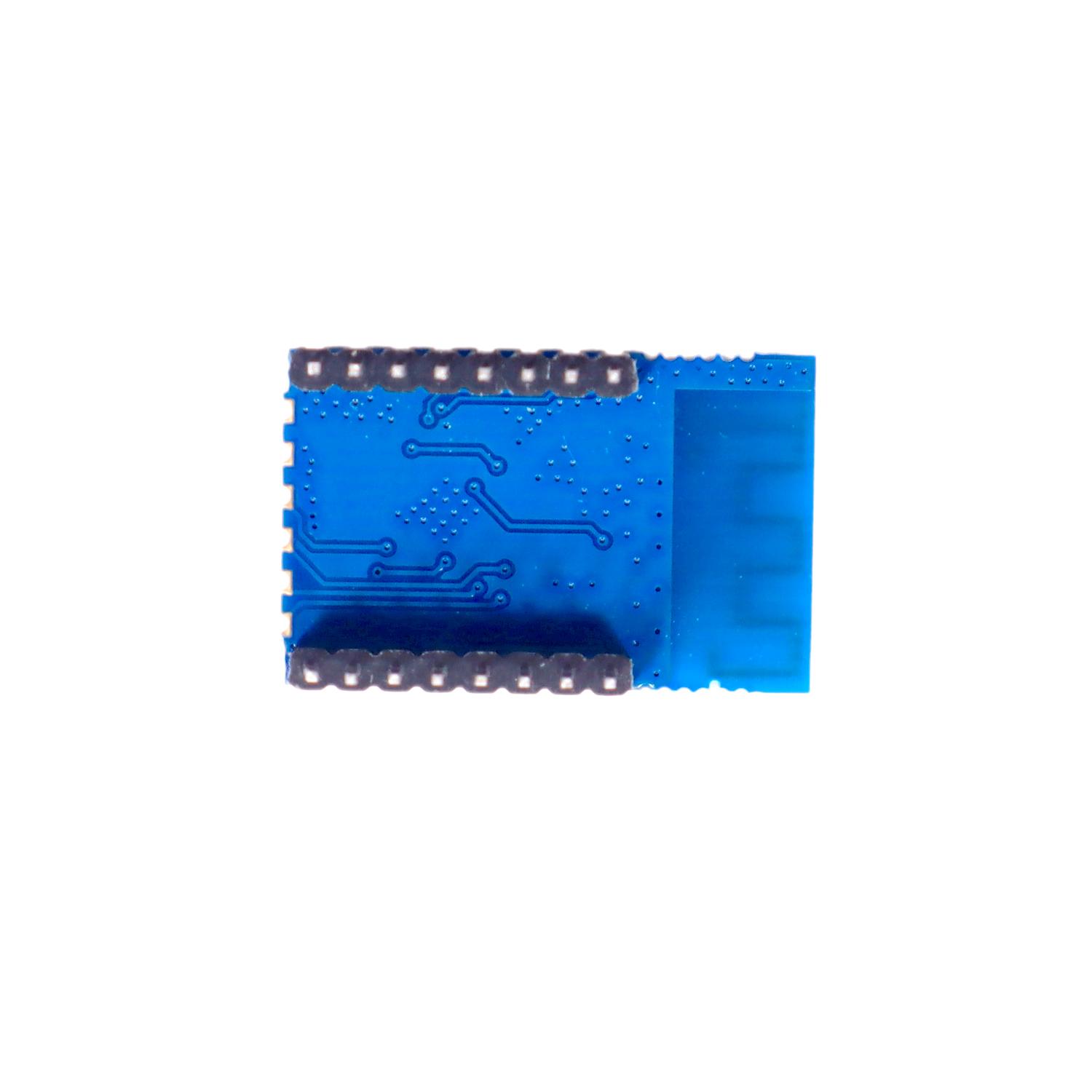

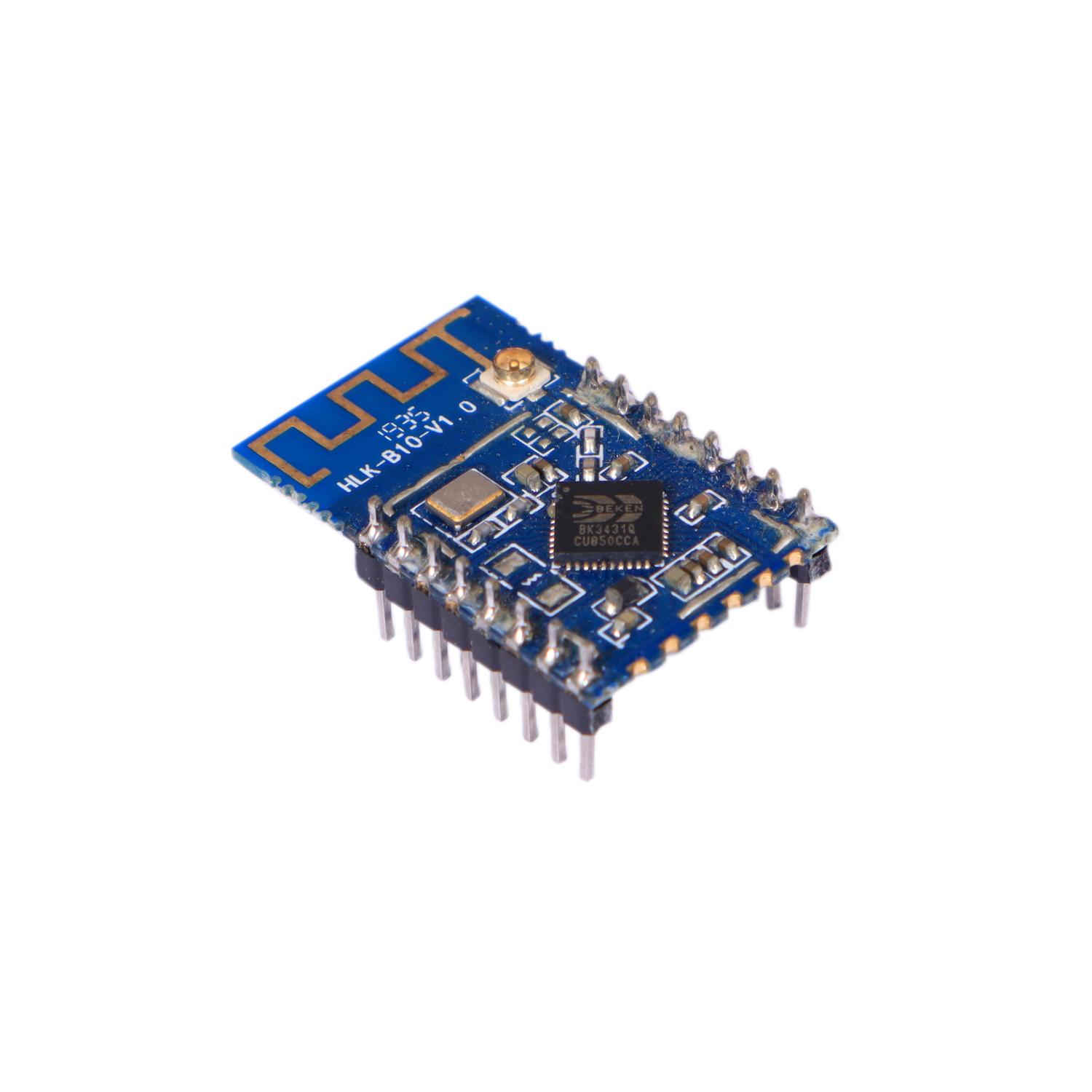

Specifications and Features of HLK B10 Bluetooth Module
The HLK B10 Bluetooth Module is a high-performance, low-power BLE 5.0 module designed for seamless serial data transmission. Developed by Hi-Link Electronics, it integrates a Bluetooth radio frequency chip, a 32-bit MCU, and multiple peripheral interfaces. The module is optimized for ease of use, allowing users to implement wireless communication without the need for in-depth knowledge of Bluetooth protocols.
This module is ideal for IoT applications, industrial automation, smart home devices, and embedded system development. It provides a simple two-way transparent transmission function, where users can connect their MCU’s serial port to the module, enabling automatic data forwarding between Bluetooth and the serial interface.
Additionally, it supports AT command mode, allowing users to configure essential parameters like device name and baud rate with ease. The HLK B10 also includes a high-precision temperature sensor, multiple ADCs, and PWM outputs, making it a versatile solution for various wireless applications.
With an operating voltage range of 2.5V to 3.6V and a wide temperature tolerance from -40°C to 105°C, this module is built for reliability in diverse environments.
Features: HLK B10 Bluetooth Module
- • Bluetooth Version: BLE 5.0
- • Built-in 32-bit MCU: Ensures efficient processing with low power consumption.
- • High-Speed Communication: Serial port baud rate up to 3.2 MHz.
- • Memory: 500KB Flash & 64KB SRAM for smooth operation.
- • Peripheral Interfaces:
- o Up to 17 GPIOs
- o 2x UART
- o 5x PWM
- o Multiple 10-bit ADC
- • Temperature Sensor: Built-in high-precision sensor.
- • Antenna Options: PCB antenna or external antenna support.
- • Operating Voltage: 2.5V – 3.6V.
- • Operating Temperature: -40°C to 105°C.
- • AT Command Support: Easy configuration of module parameters.
Specifications: HLK B10 Bluetooth Module
- • Bluetooth Version: BLE 5.0
- • Microcontroller: 32-bit MCU
- • Flash Memory: 500KB
- • RAM: 64KB
- • GPIOs: Up to 17
- • UART Ports: 2 (Baud rate up to 3.2 MHz)
- • PWM Channels: 5
- • ADC: Multiple 10-bit ADCs
- • Temperature Sensor: Yes
- • Antenna: PCB or external antenna
- • Operating Voltage: 2.5V – 3.6V
- • Operating Temperature: -40°C to 105°C
Package Details: HLK B10 Bluetooth Module
What’s Included?
• 1 x HLK B10 Bluetooth Module
• 1 x User Guide
• 1 x Testing App Demo (Downloadable)
FAQs - HLK B10 Bluetooth Module
1. What makes the HLK B10 Bluetooth Module different from other BLE modules?
The HLK B10 offers BLE 5.0 support, a built-in 32-bit MCU, AT command configuration, and low power consumption, making it ideal for IoT and industrial applications.
2. Can I configure the HLK B10 without programming knowledge?
Yes, the module supports AT command mode, allowing users to set parameters like device name and baud rate without extensive programming.
3. Does the module support external antennas?
Yes, it supports both PCB and external antennas for flexible usage.
4. What is the power supply range for this module?
The HLK B10 operates within a voltage range of 2.5V to 3.6V.
5. Is there any testing tool or app available for this module?
Yes, the module comes with an app demo for testing serial transmission and wireless communication.
