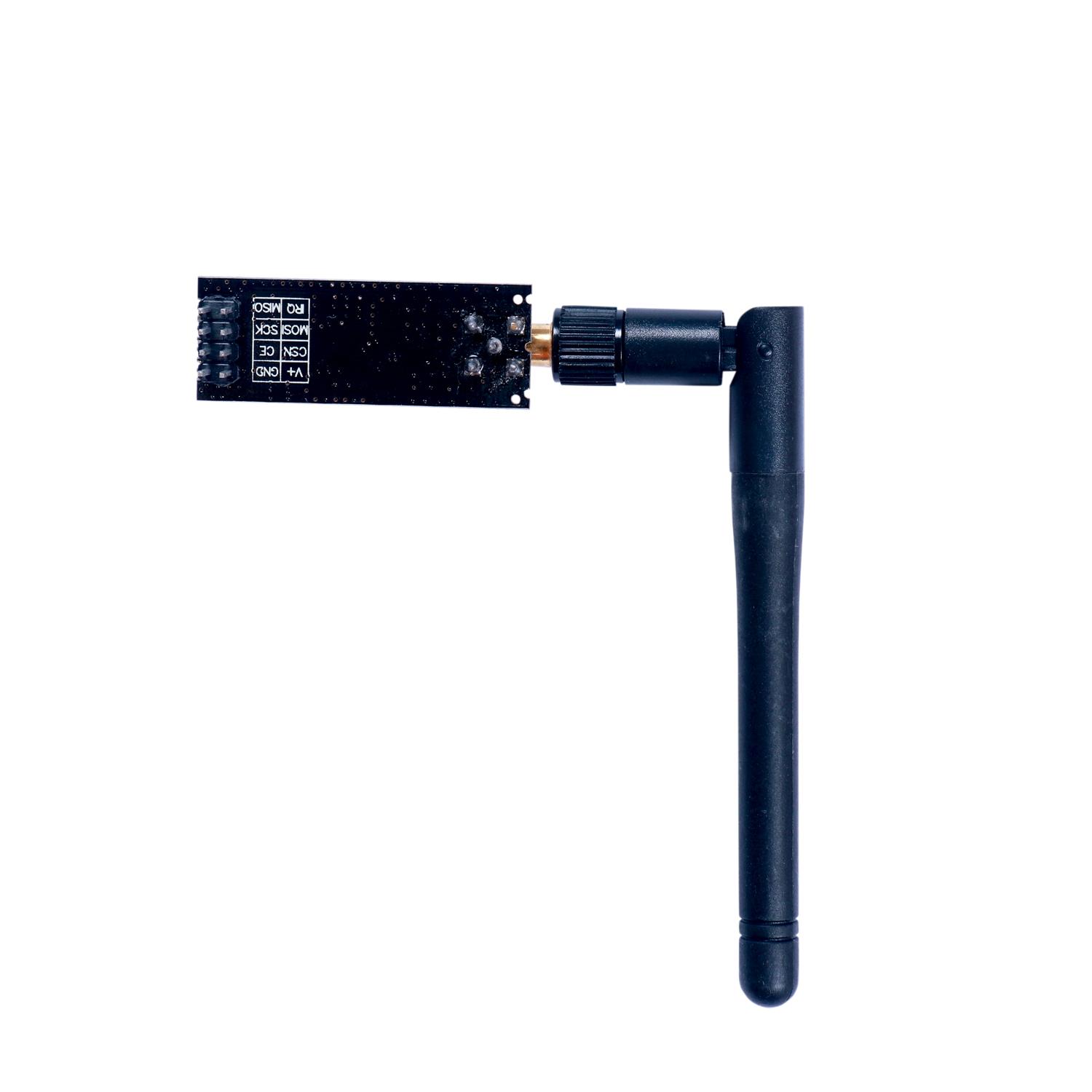

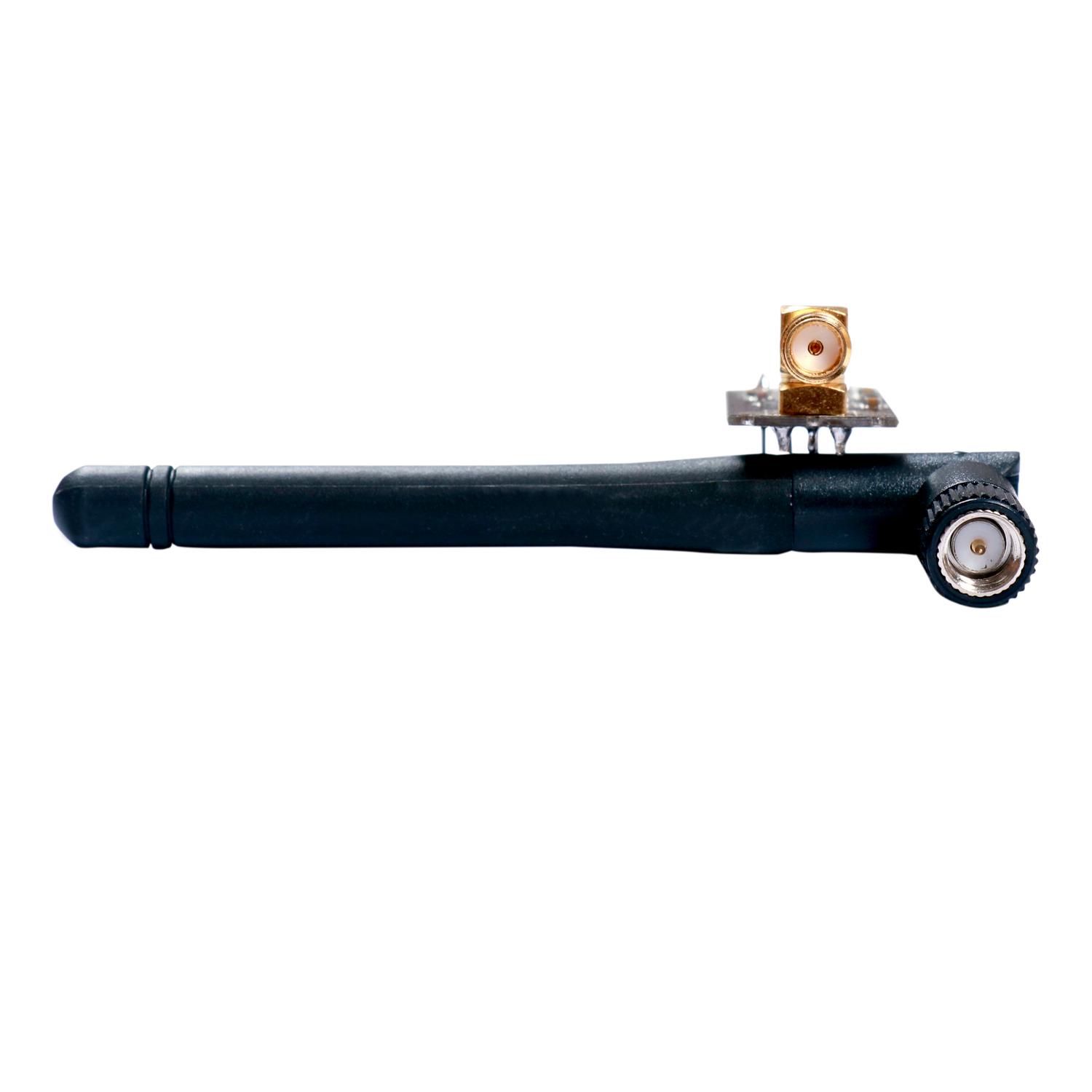

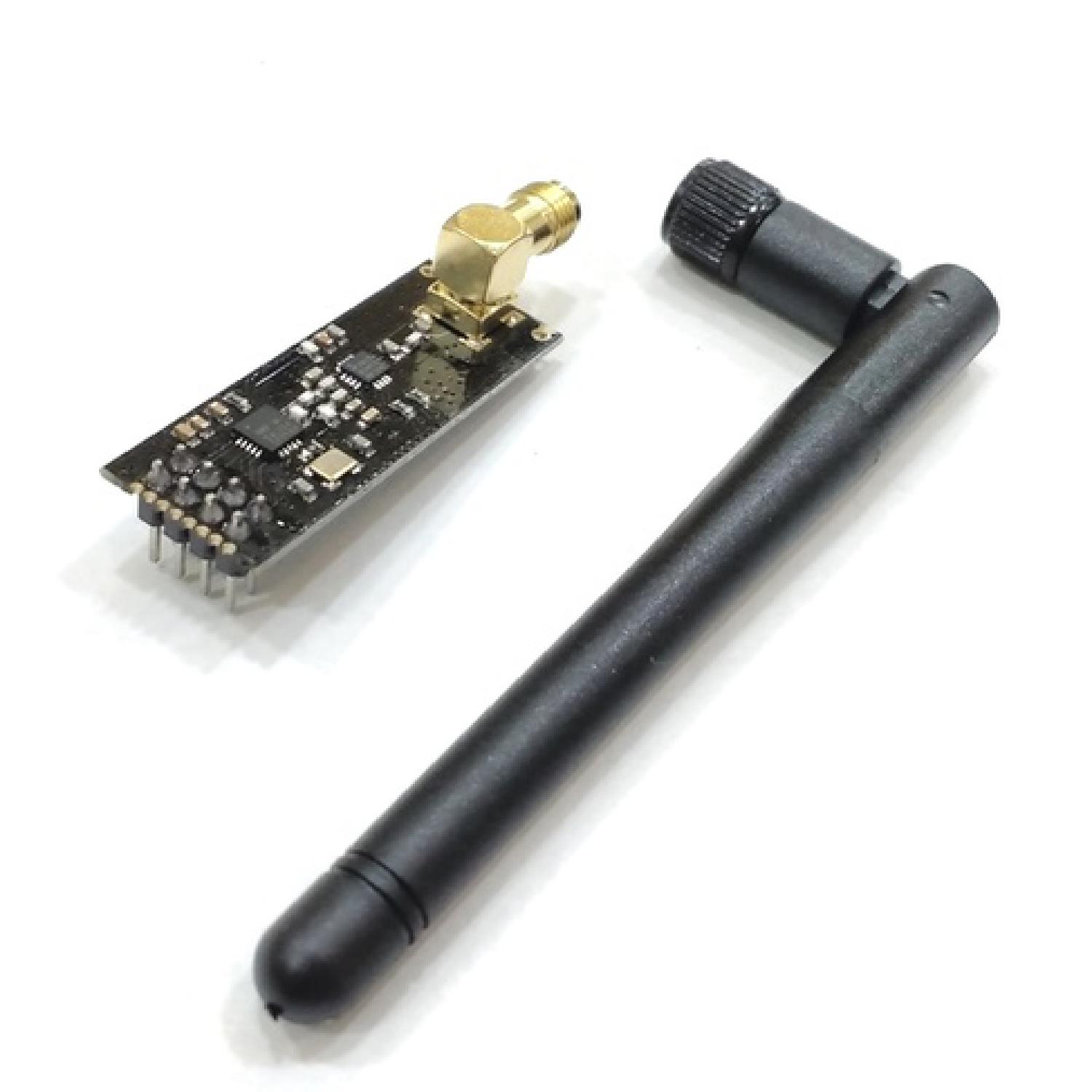

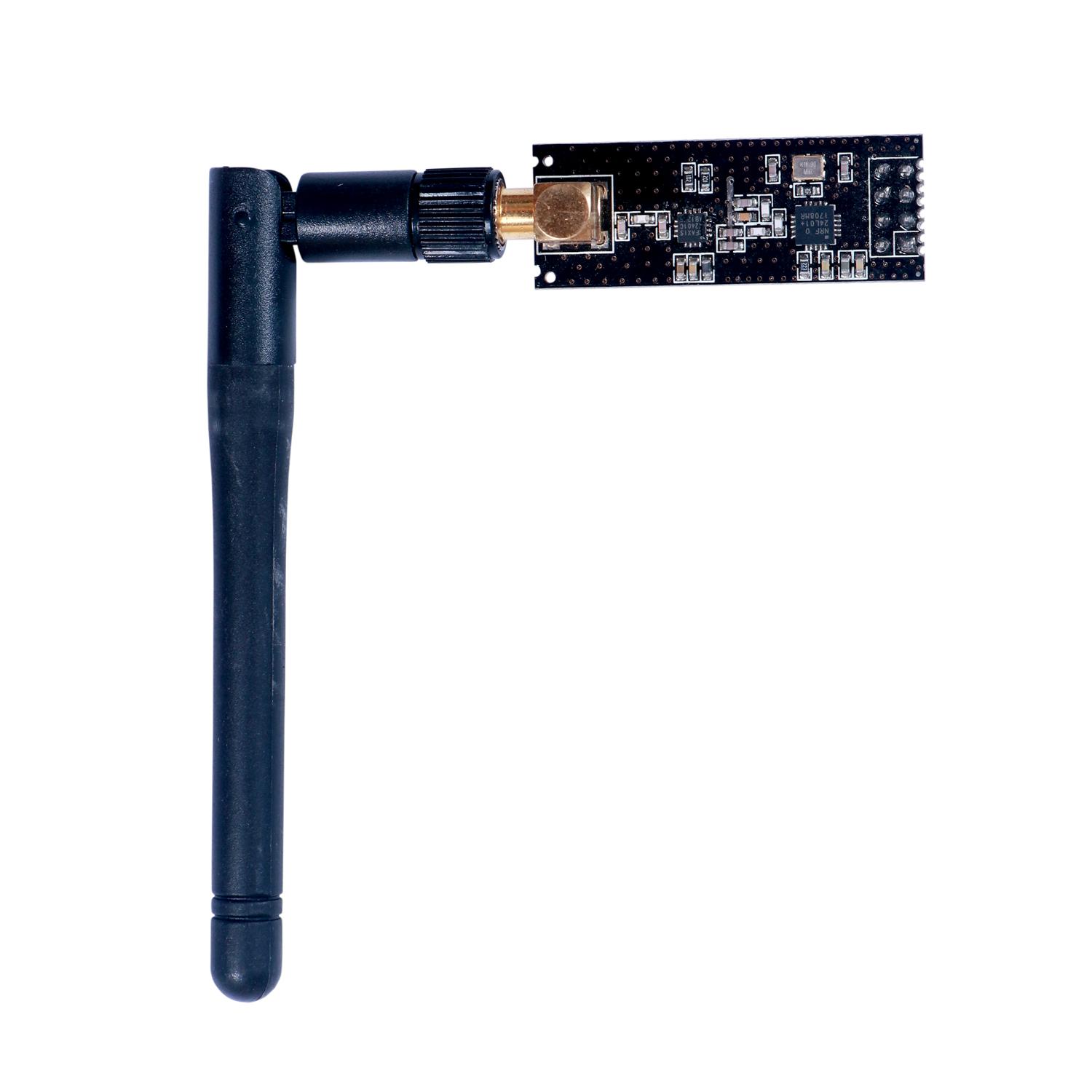

NRF24L01 Transreceiver Module With Antenna


This NRF24L01+PA+LNA Wireless transceiver module is based on 2.4Ghz transceiver NRF24L01+ from Nordic Semiconductors. This board contains a reverse polarized SMA Connector to maximize the RF Range, and there is PA and LNA circuit on board. With the use of external antenna, the range of the device can be very long as compared to a module without this. The antenna is a 2.4 Ghz Antenna with 2 dbi gain. After the use of external antenna, the communication range increases to 800-1000 meters.

The NRF24L01+PA+LNA module is easily attachable to any MCU. This module is designed with power amplifier and SMA Antenna. And that allows it to be used for wireless communication of up to 1000 meters (No Barrier).




Price :  excl. GST
Qty Price
1 > 137.00
6 > 133.00
21 > 129.00
50 > 127.00
100 > 125.00
200 > 124.00
500 > 123.00

FEATURES:

  • It uses 2.4GHz global open ISM band, with license-free.
  • Transmit power is greater than +20 dBm.
  • Support six-channel data reception.
  • 2Mbit/s speed makes high-quality VoIP possible
  • Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping.
  • Low cost: integrated with high-speed signal processing parts associated with RF protocol, such as: automatically re-send lost packets and generate acknowledge signal;
  • SPI interface facilitates the communication with MCU I/O port.
  • Facilitate the development for customers, without development RF part.
  • Software programming is fully compatible with NRF24L01 modules.
