Product Details:
| Minimum Order Quantity | 50 Piece |
| Brand | Bonens |
| Resistance Range | 100 ohm to 1 m ohm |
| Application | Automotive, Telecommunication Equipment, Alarm Systems, Electronics Appliances, Measurement and Test Equipment |
| Rated Power | 1/2 watt |
| Model Name/Number | 3296W |
| Packaging Type | Box |

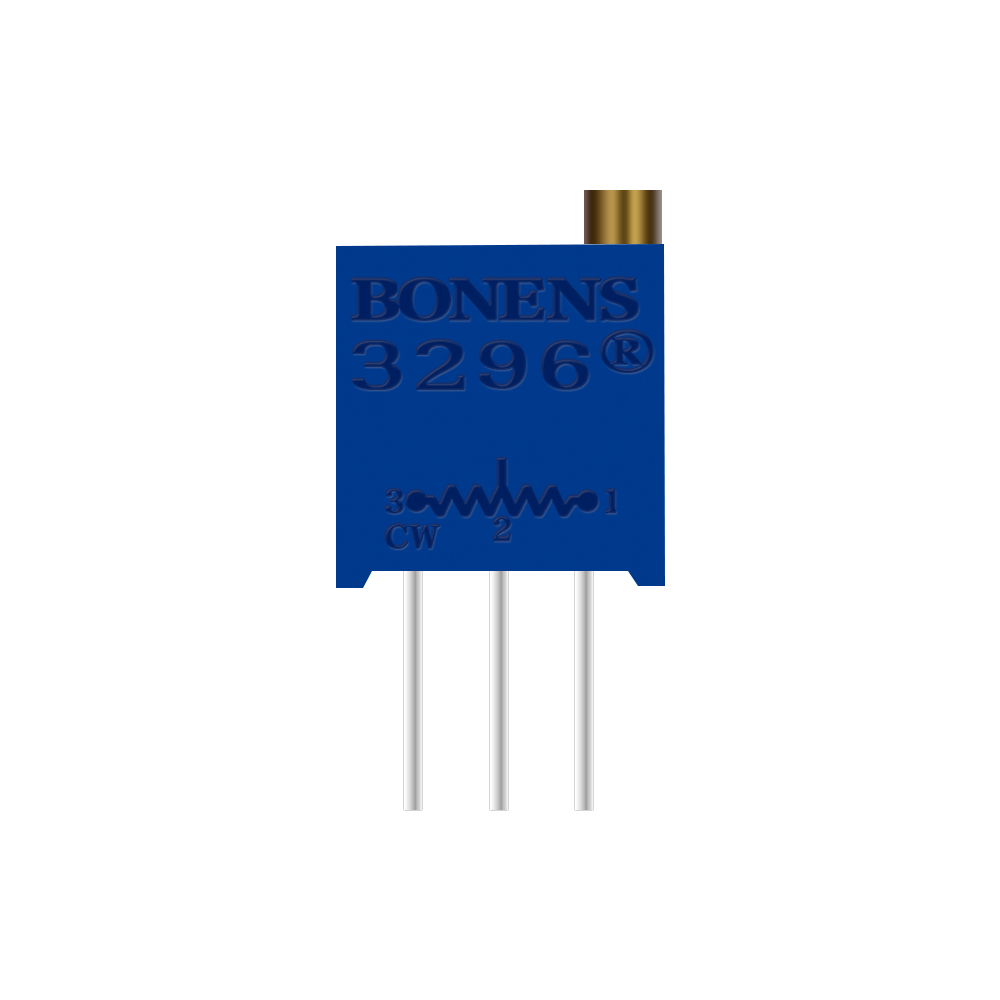

Bonens 3296W 500LF is a Multi-turn / Cermet / Industrial / Sealed with 5 terminal styles, Tape and reel packaging available. It has a Chevron seal design and Mounting hardware available (H-117P) with RoHS compliant. The principle of a potentiometer is that the potential dropped across a segment of a wire of uniform cross-section carrying a continuing current is directly proportional to its length. The potentiometer may be a simple device wont to measure the electrical potentials (or compare the e.m.f of a cell).
A trimpot or trimmer potentiometer may be a small potentiometer which is employed for adjustment, tuning and calibration in circuits. When they're used as a variable resistance (wired as a rheostat) they are called preset resistors. A trimmer potentiometer, also referred to as a trim pot, may be a sort of rheostat or adjustable potentiometer which will adjust, tune, and calibrate circuits. These trimmer resistors are often wont to initially calibrate equipment after manufacturing. Trim pots also are referred to as preset potentiometers used for adjustment, calibration and tuning purpose in circuits. They are easily mountable on PCB boards and adjusted by a screwdriver. The resistive track is made up of carbon composition or cermet. When replacing with normal potentiometers, remember their lifetime isn't goodbye. There are differing types of trimmer pots available in market like through hole, smd, single and multi-turn variation.
To use a Trimpot potentiometer simply connect the CCW and CW terminal with positive supply and ground terminal respectively and get variable output voltage from the wiper terminal. To change the output voltage rotate the screw on the highest of the Trim pot. This screw rotate the wiper placed inside the pot, which varies the resistance. It is used in Voltage and Current Control Circuits, Used as volume control knobs in radios, Tuning or controlling circuits, Analog input control knobs. No. of Turns:25.Potentiometer Mounting: Through Hole. Power Rating: 500mW. Resistance Tolerance: 10%.SVHC:No SVHC ).Temperature Coefficient: 100ppm/C. Track Resistance:20ohm
