RFID RC522 Reader Writer

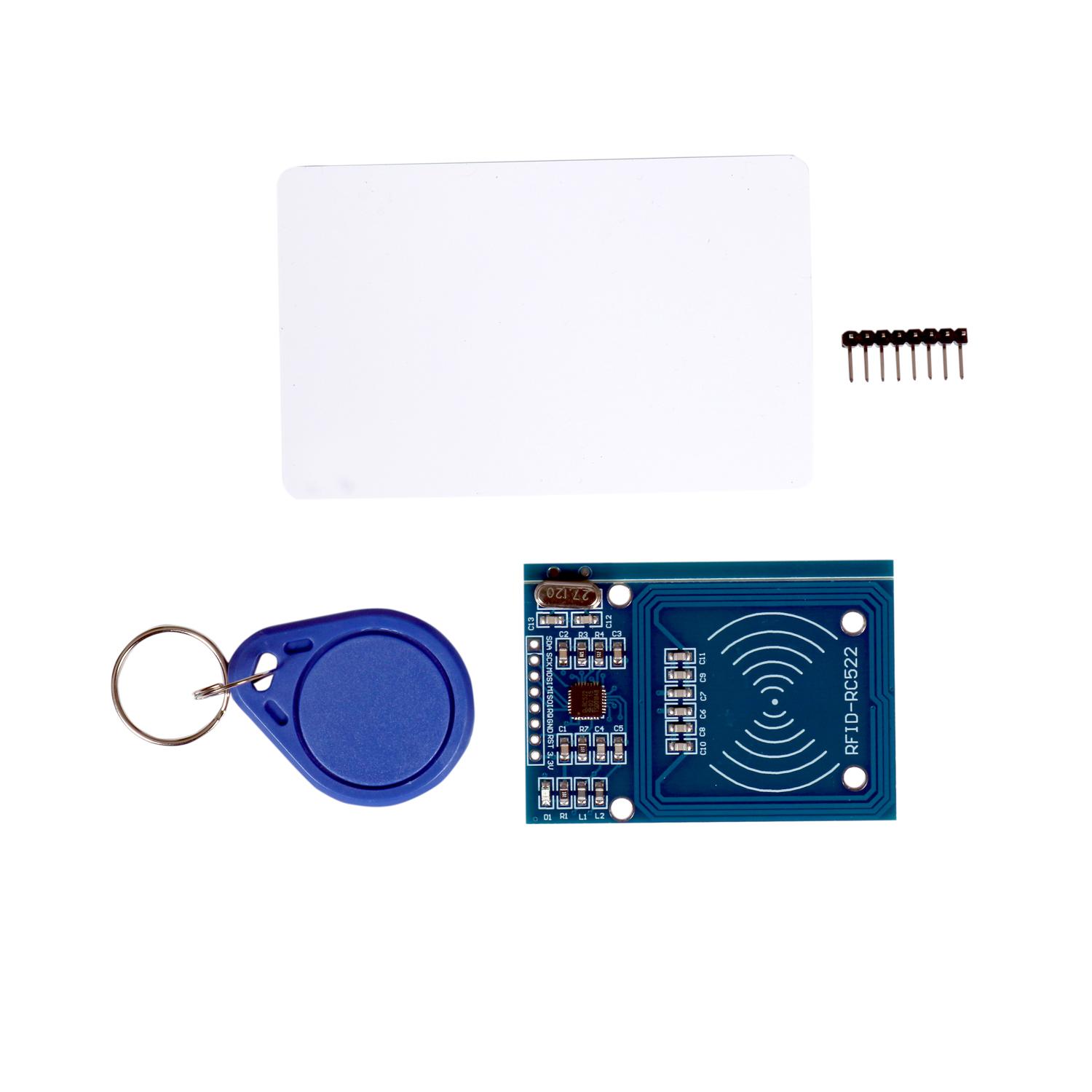

RC522 is a 13.56MHz RFID module that is based on the MFRC522 controller from NXP semiconductors. The module can support I2C, SPI and UART and normally is shipped with a RFID card and key fob. It is commonly used in attendance systems and other person/object identification applications
Features : RFID RC522 Reader Writer
- 13.56MHz RFID module
- Operating voltage: 2.5V to 3.3V
- Communication: SPI, I2C protocol, UART
- Maximum Data Rate: 10Mbps
- Read Range: 5cm
- Current Consumption: 13-26mA
- Power down mode consumption: 10uA (min)
