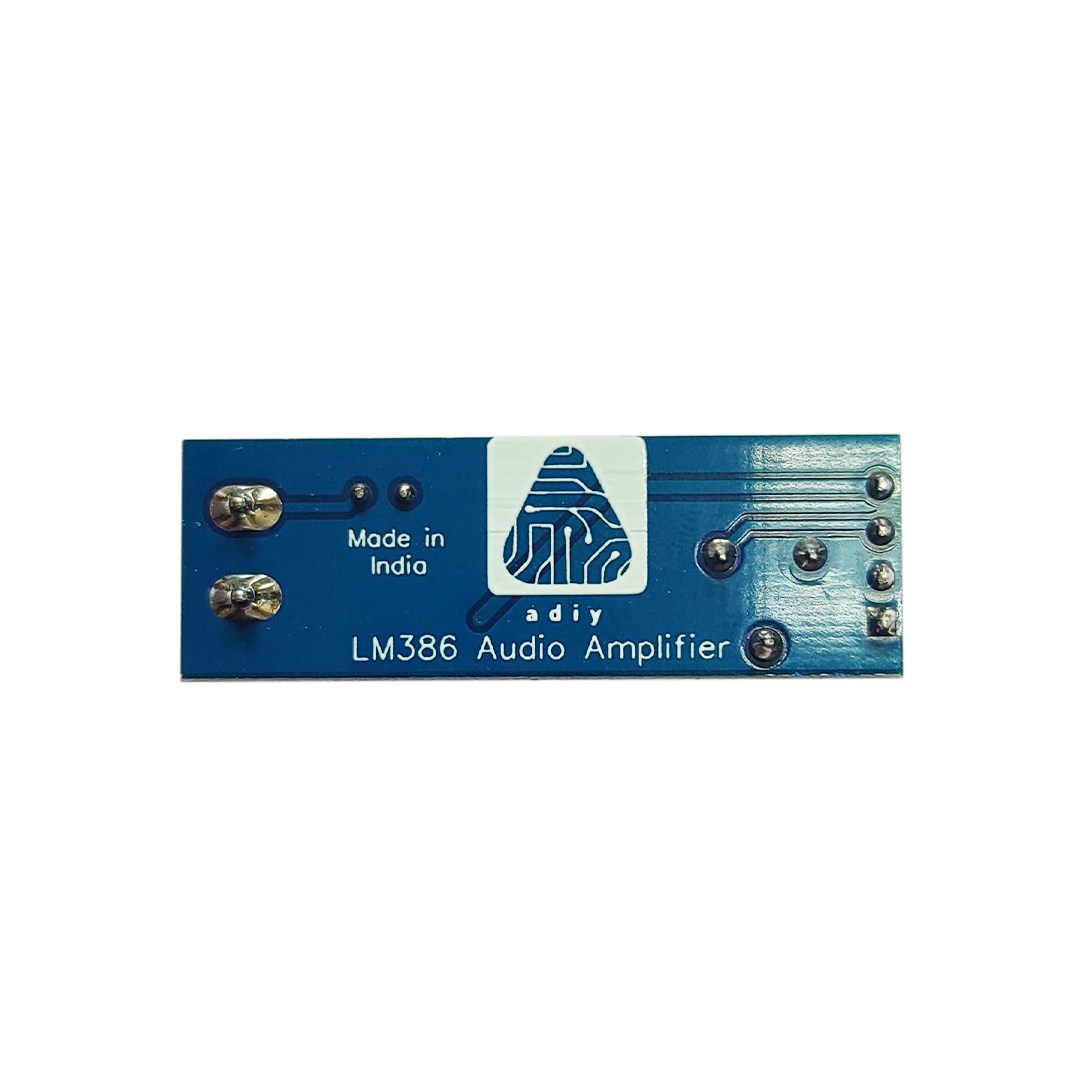

LM386 Audio Amplifier Module - ADIY Image 1

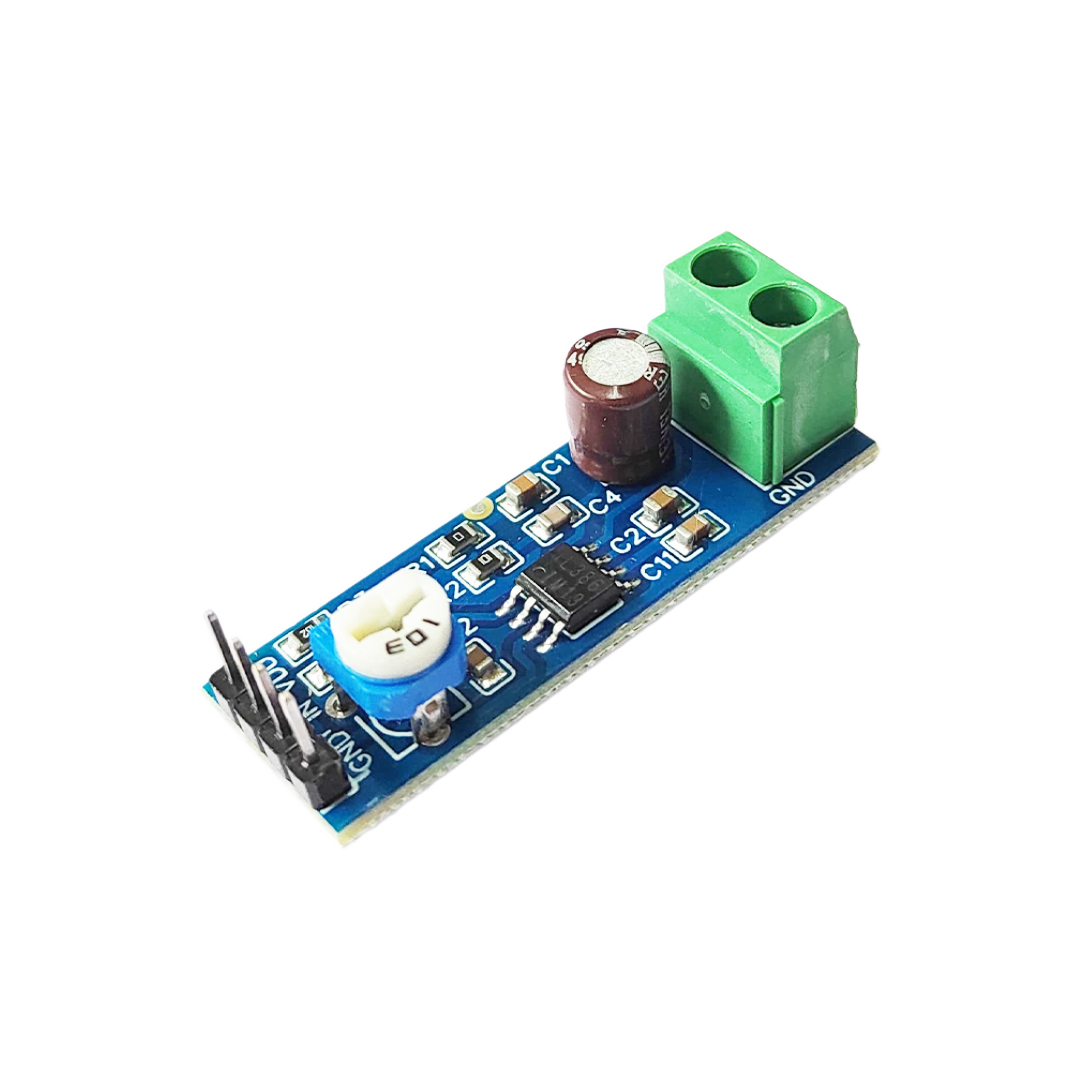

LM386 Audio Amplifier Module - ADIY Image 2

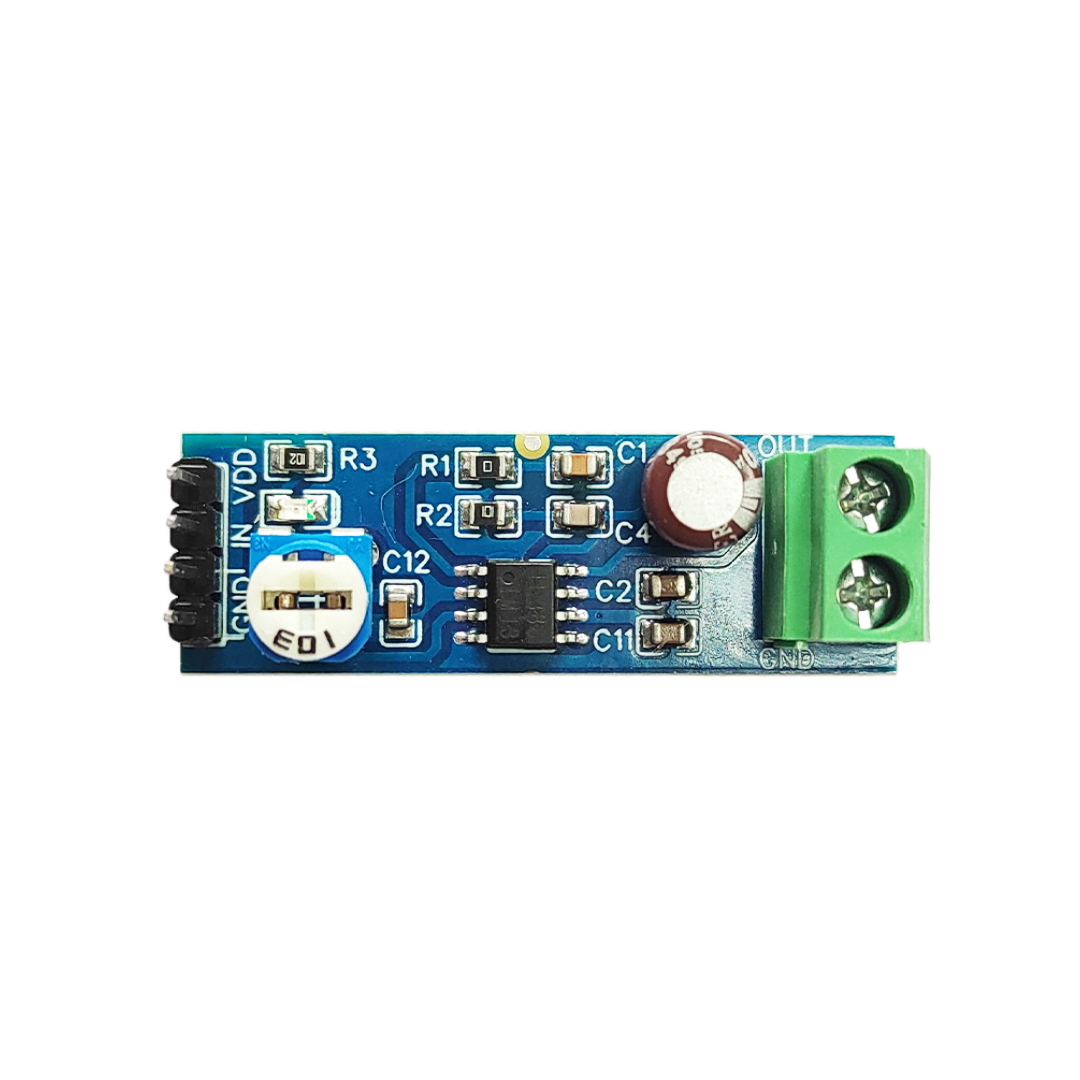

LM386 Audio Amplifier Module - ADIY Image 3

LM386 Audio Amplifier Module - ADIY Image 4

LM386 Audio Amplifier Module - ADIY

Empowering Your Low Voltage Consumer Projects: Explore the LM386M Power Amplifiers.Introducing LM386 Audio Amplifier Module for Enhanced Sound Boost manufactured by ADIY with a vision of Make in India

Engineered with precision for low voltage consumer applications, the LM386M Audio amplifiers stand as exceptional choices for your projects. These amplifiers come preset with an internal gain of 20, minimizing the need for external components. However, for those seeking to tailor their amplification needs, a simple addition of an external resistor and capacitor between pins 1 and 8 offers the flexibility to achieve gains ranging from 20 to an impressive 200.

Unlock the potential of your projects with these versatile power amplifiers. Whether you're working on consumer electronics, audio gadgets, or innovative DIY creations, the LM386M-Audio Amplifier Module amplifies not just sound, but also your creative capabilities.

LM386 Audio Amplifier Module

Onboard LM386 Chip.
200 multiplier benefits circuit design.
On-board speaker wiring Block.
On-board 10K variable resistor, you can adjust the volume of the enlarged.
Onboard power indicator.

Price : 35.00 excl. GST

Qty	Price
1 >	35.00
6 >	33.00
21 >	31.00
50 >	31.00
100 >	30.00
200 >	30.00
500 >	29.00

Description
Datasheet

Introducing LM386 Audio Amplifier Module for Enhanced Sound Boost manufactured by ADIY with a vision of Make in India

When your project demands an audio amplifier solution, look no further than our ADIY LM386 Audio Amplifier Module. Crafted to cater to a myriad of audio enhancement needs, this compact module stands as the perfect companion for amateur projects. With a straightforward setup, all you need to do is connect a 4-8 Ohm speaker, and watch as your sound gains new life.

Brought to you by Rajguru Electronics, a name synonymous with quality, this module opens up a world of possibilities. Seamlessly integrate it into your FM receiver kit or pair it with the WTV020SD-16P music module for an audio experience like no other. But that's not all – the versatility of this module extends to various musical projects, making it an invaluable asset in your creative arsenal.

Thanks to the ingeniously designed chip pin leads, feeding audio signals directly into the module is a breeze. And if you're wondering what sets the LM386 audio amplifier apart, allow us to explain. At its core, the LM386 is an integrated circuit boasting a low-voltage audio power amplifier. Engineered with a focus on compatibility with battery-powered devices, it seamlessly integrates into radios, guitar amplifiers, and an array of hobby electronics projects.

Upgrade your audio endeavors with the ADIY LM386 Audio Amplifier Module – where enhanced sound meets effortless integration.

Features and Specifications: LM386 Audio Amplifier Module

Chip: LM386
Operating Voltage: 4~12V
200 multiplier benefits circuit design
On-board speaker wiring Block
On-board 10K variable resistor, you can adjust the volume of the enlarged
Onboard power indicator
Length: 41mm
Width: 13.7mm
Height: 10mm
Country of origin : INDIA

Applications: LM386 Audio Amplifier Module

AM-FM Radio Amplifiers
Portable Tape Player Amplifiers
Intercoms
TV Sound Systems
Line Drivers
Ultrasonic Drivers
Small Servo Drivers
Power Converters

Package Includes: 1 x LM386 Audio Amplifier Module
