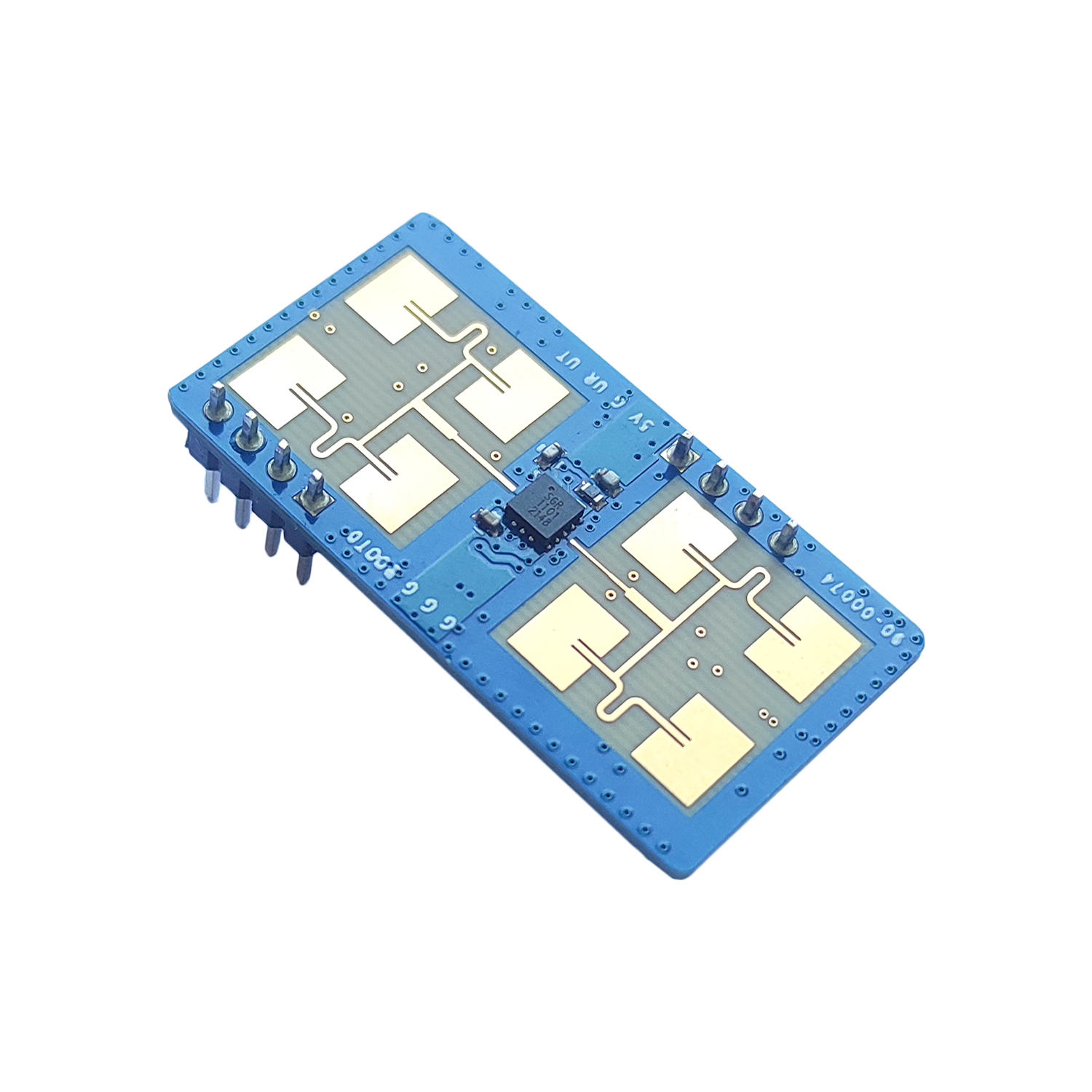

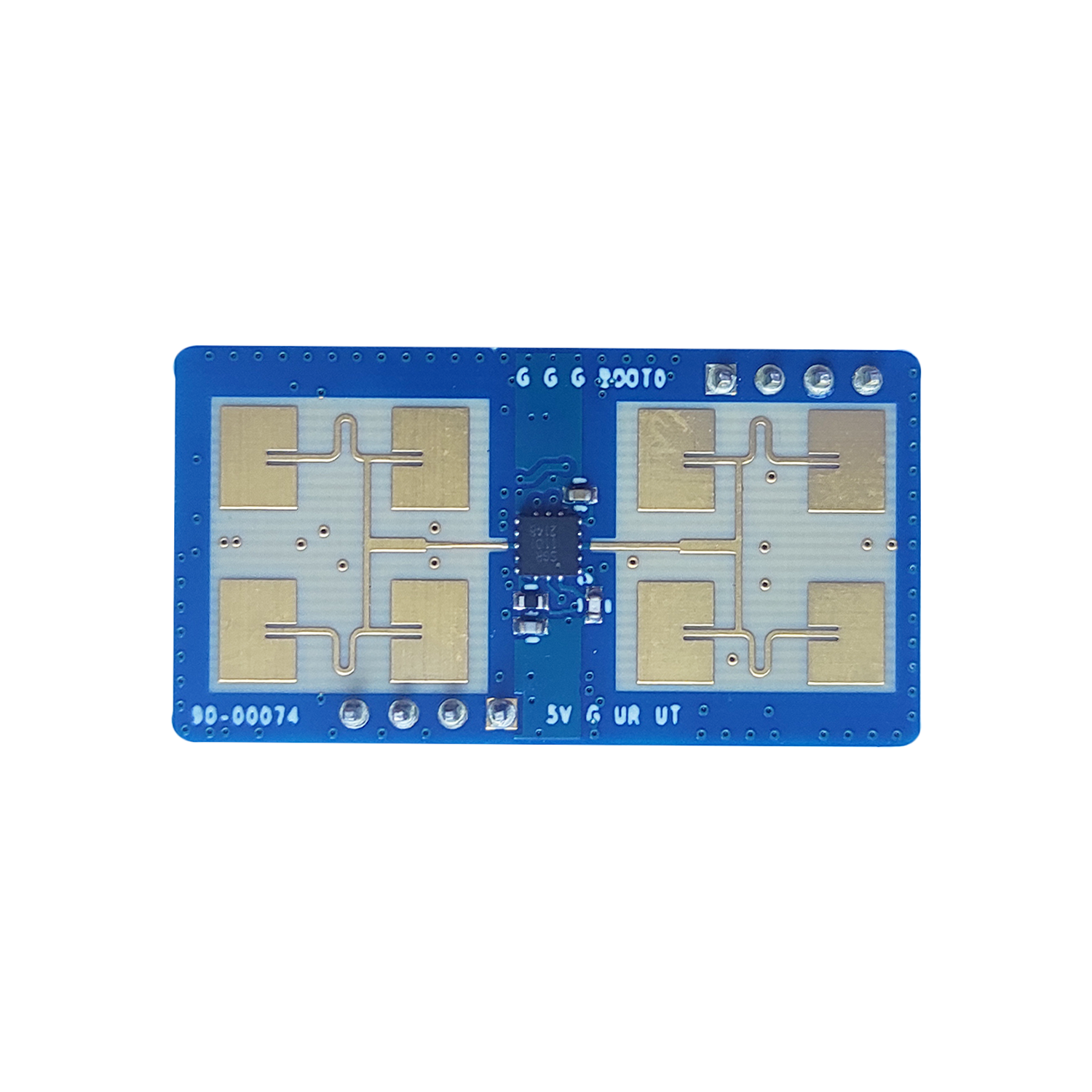

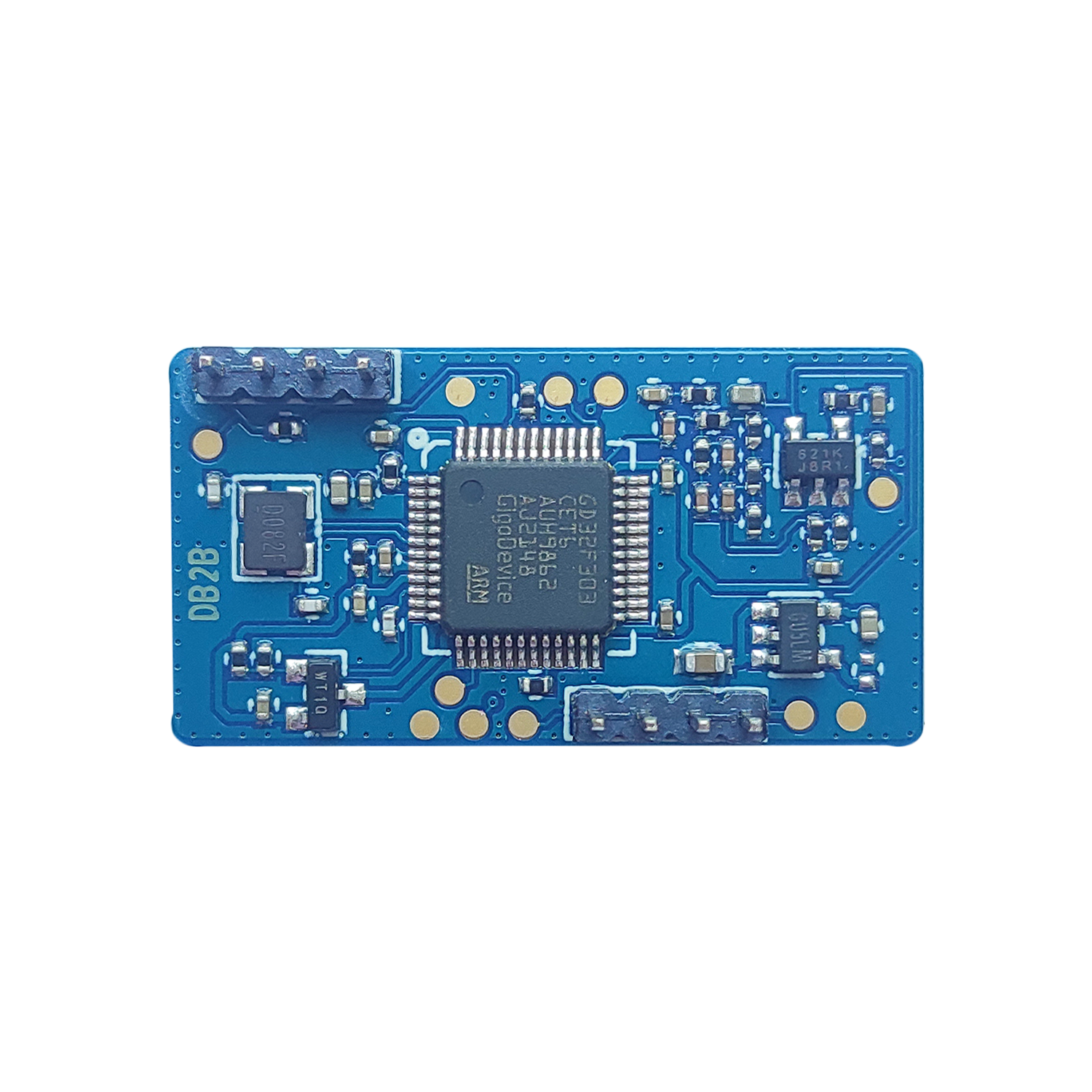

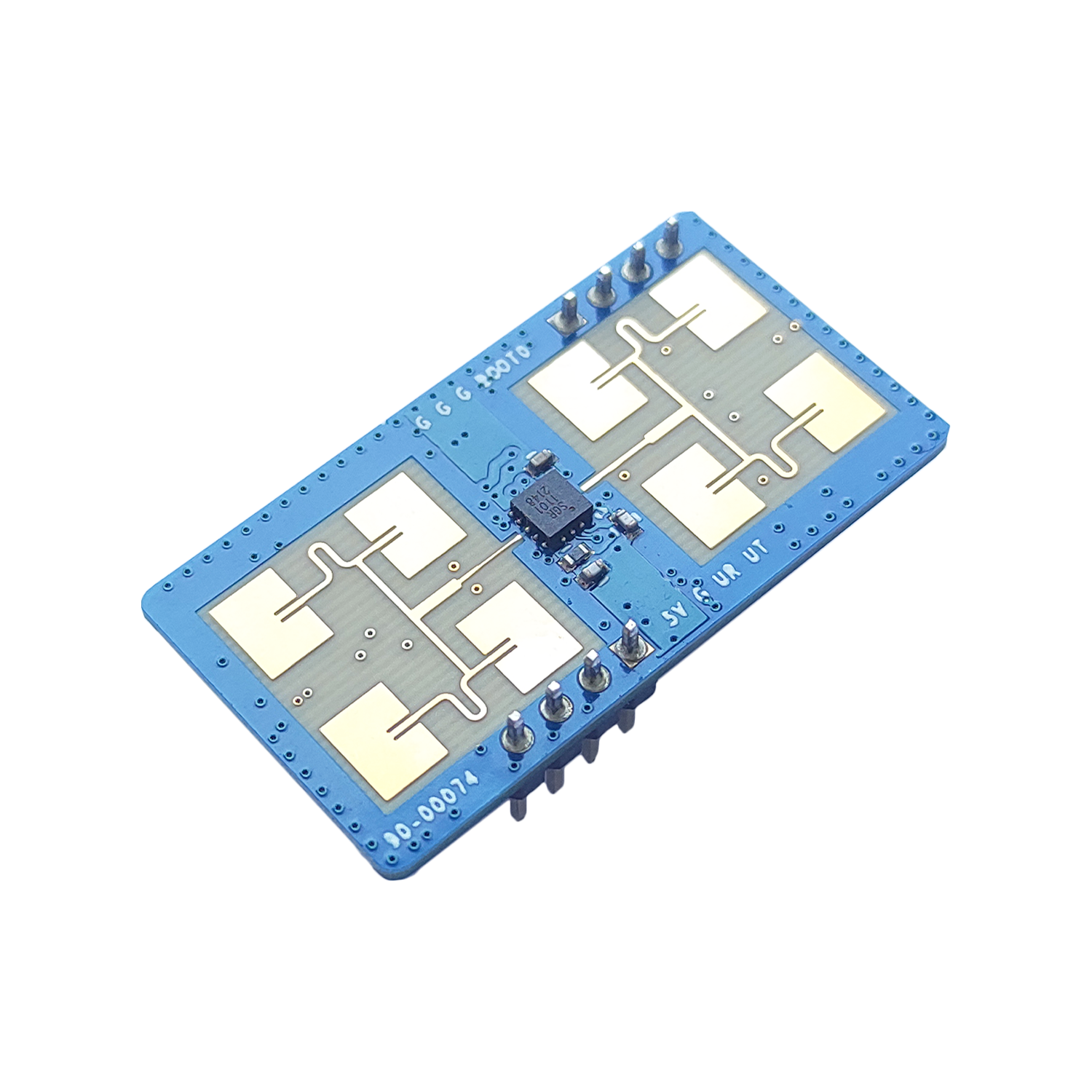

HLK-LD1125H-24G Radar Sensor is a high sensitivity 24GHz millimeter wave human presence detection radar module. The main feature of this module is to judge the existence of the human body by detecting and accumulating tiny movements such as human respiration. Therefore, the detection of human presence is more accurate than traditional mobile detection radars. Not easy to miss. 24G millimeter wave human presence detection radar sensor module LD1125H breathing induction ranging detector
Specifications: HLK-LD1125H-24G Radar Sensor
- Frequency: 23.5G-24.5GHz
- Modulation method: FMCW
- Detection distance: > 4m static detection, > 8m moving detection
- Range: hanging height 3m, static body detection coverage radius ＞2m,
- Power supply: 3.3-5V
- Current: 80mA
- Output serial level: 3.3V
- Detection cycle: adaptive
- Antenna half power angle: horizontal ±22°, vertical ±24°
- Data format: Serial port ASCII output
Appllications : HLK-LD1125H-24G
- In security devices
- In home automation
- In Industrial devices
Product Schematic: HLK-LD1125H-24G Radar Sensor
