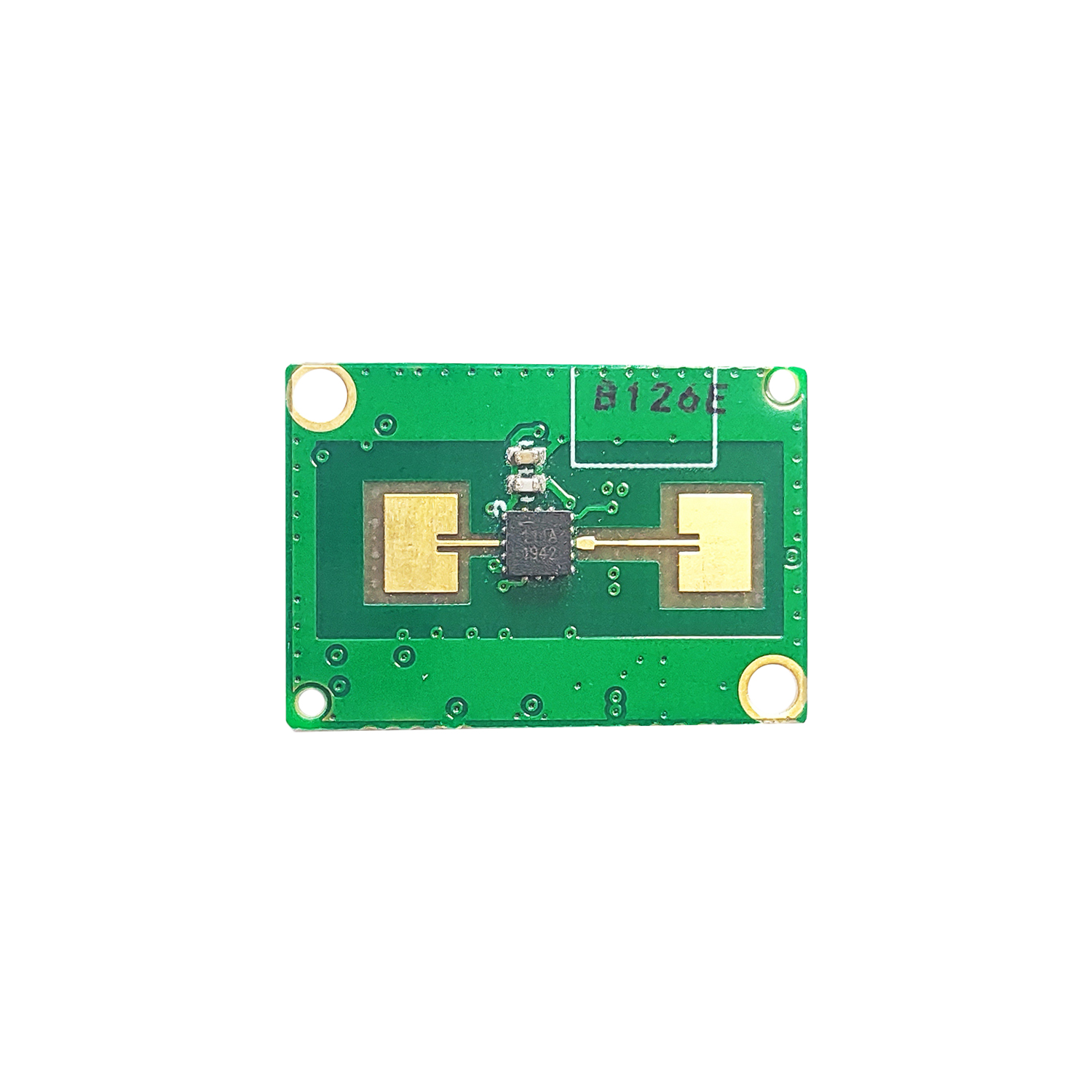

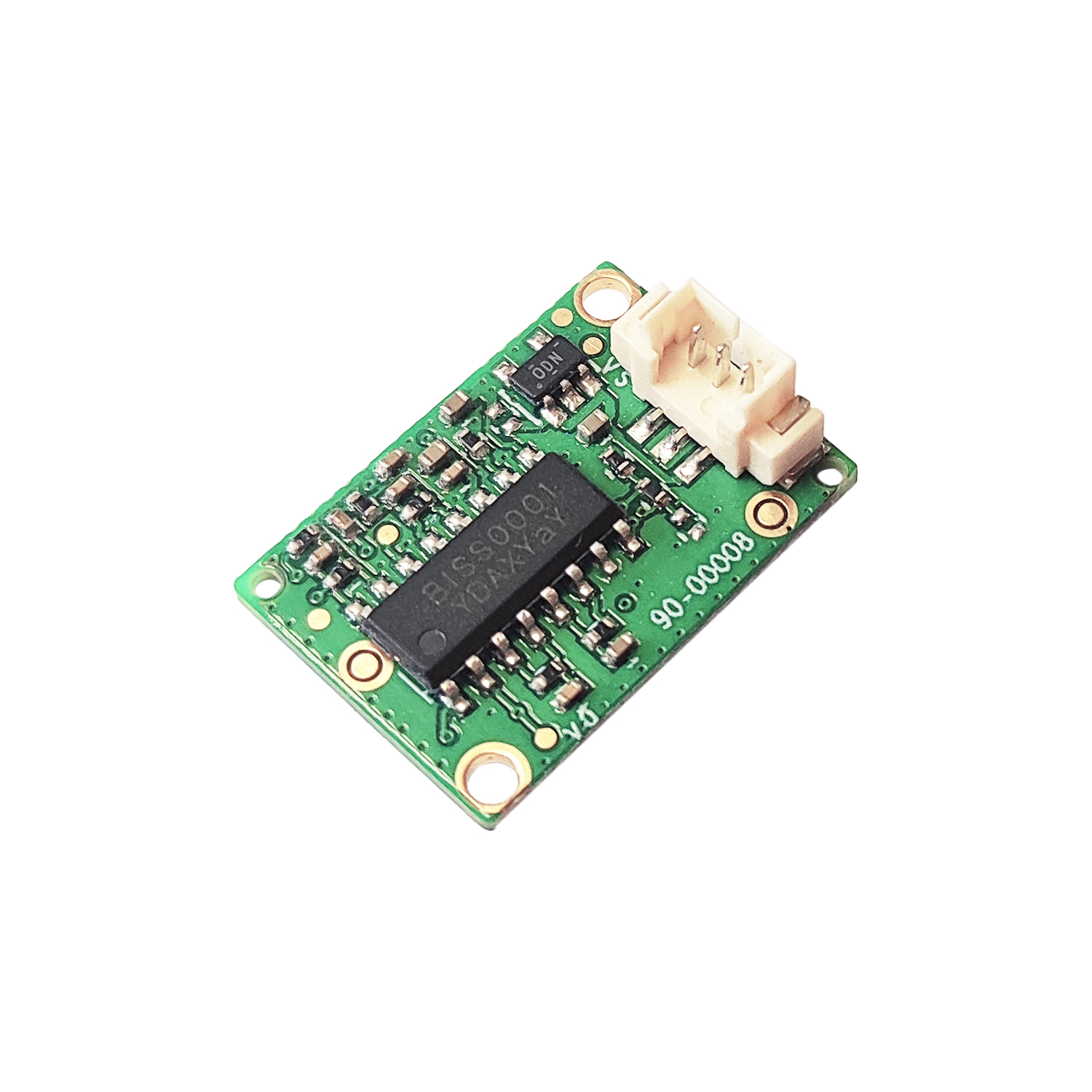

HLK LD116 Radar Sensor - 24GHz millimeter wave radar sensor PIR motion monitoring module LD116 small size, low power consumption, wide detection
HLK-LD116-24G IoT millimeter wave radar module, which can be used to detect moving targets in a small range, and output high and low level information, and is not affected by temperature, humidity, airflow, dust, noise, brightness, etc., anti-interference Strong ability to penetrate acrylic, glass, plastic and other thin non-metal materials.HLK-LD116-24G has industry-leading excellent performance, small size, low cost, and low power consumption. It can provide customers with ideal and better performance object movement monitoring solutions.
Features:HLK LD116 Radar Sensor
- TX frequency range: 24~24.25GHz
- TX EIRP: 6dBm
- Phase noise: -96dBc/Hz@1MHz offset
- RX noise figure: 10 dB DSB
- Power consumption: 55mA@Vcc=5V
- Effective linear detection distance: 6m
- Detection angle (3dB): horizontal ±41°, vertical ±38°
- Small size: 22.95mm×20mm
Sensor features: HLK LD116 Radar Sensor
- Working frequency：24G-24.25GHz
- Equivalent isotropic radiation efficiency（EIRP）：6dBm
- Phase noise：-96dBc/Hz@1MHz offset
- Receive noise figure：10dB DSB
- Power consumption 55mA@Vcc=5V
- Effective linear detection distance：6m
- Detection angle (3dB): horizontal ±41°, vertical ±38°
- Not affected by temperature, humidity, airflow, dust, noise, brightness, etc., strong anti-interference ability
- Can transfer through acrylic, glass, plastic and other thin non-metallic materials
Electrical characteristics (at 25°C)
Connection instructions:
The pin is 2mm, and the 3-pin connector is connected.
Module dimensions
