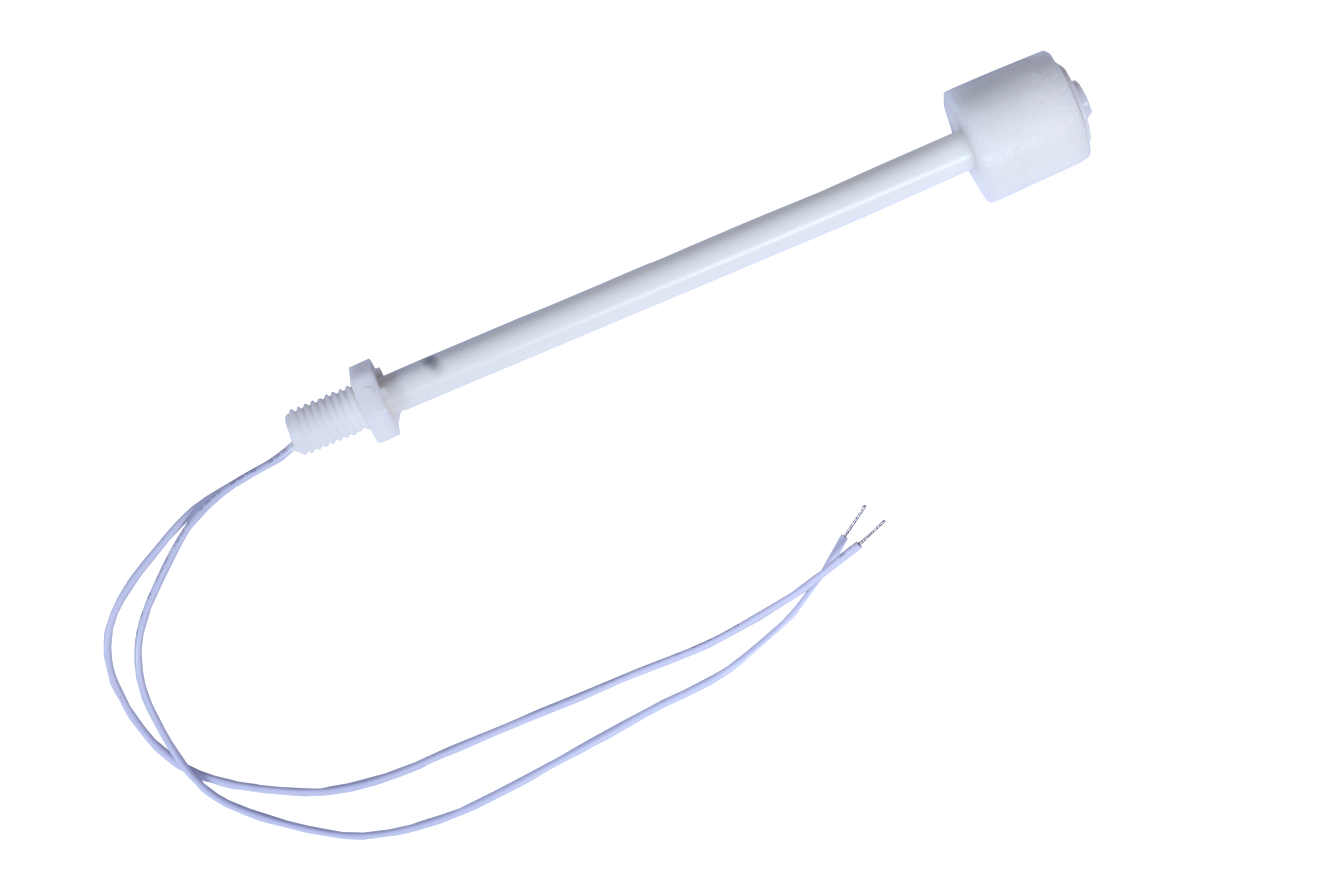

SEN-PPI150 Water Float Sensor – Features, Specifications & Package Details
The SEN-PPI150 Water Float Sensor is a durable and reliable float switch sensor designed for precise liquid level monitoring. It is commonly used in water dispensers, humidifiers, air conditioners, and storage tanks to prevent overflow and automate water level control. This float switch sensor operates by detecting the rising or falling water levels, triggering a switch mechanism that can control pumps, alarms, or automated systems. Made of high-quality PP plastic, it is waterproof, corrosion-resistant, and built for long-term use.
The sensor has a switching voltage of DC2000V and can handle up to 0.5A current, ensuring efficient performance across various applications. It can also be customized for specific installation requirements, such as wire harness specifications and switching point adjustments.
Key Features & Benefits:SEN-PPI150:PP Water Float Sensor
- • High-Precision Liquid Level Detection – Detects water levels accurately for effective pump control.
- • Durable & Waterproof Design – Made from PP plastic, ensuring longevity in humid and wet environments.
- • Customizable Configuration – Supports custom wire harness setups for different applications.
- • Fast Switching Response – Activates within 0.2 ms for real-time detection.
- • Easy Integration – Ideal for water tanks, humidifiers, and automatic liquid level monitoring systems.
Specifications:SEN-PPI150:PP Water Float Sensor
- • Switching Power: 10W (Normally Open - NO)
- • Operating Voltage: DC2000V
- • Switching Current: Up to 0.5A
- • Operating Temperature Range: 0-60°C
- • Switching Response Time: 0.2 ms
- • Material: PP Plastic
- • Installation Method: Side mounting or vertical entry
Product Details:
| Fix Screw | M 10 |
| Switching Response Time | 0.2 ms |
| Switching Power | 10 W, normally open, (NO), double alarm point |
| Switching Life | 108 times |
| Rated Voltage | Less Than DC24V(for high voltage use, access intermediate relay) |
| Insulation Resistor | 108 Ohm |
| Installation Method | Vertical entry 150 mm |
| Floating Diameter | 24 mm |
Package Includes:
• 1 x SEN-PPI150 Water Float Sensor
• Installation Guid
The SEN-PPI150 Float Switch Sensor is an essential tool for ensuring accurate liquid level monitoring. Whether for water dispensers, air conditioning systems, or industrial tanks, this sensor provides reliable performance. Order now for efficient liquid level control!
