MUP-C7801-2 Sim Card Holder

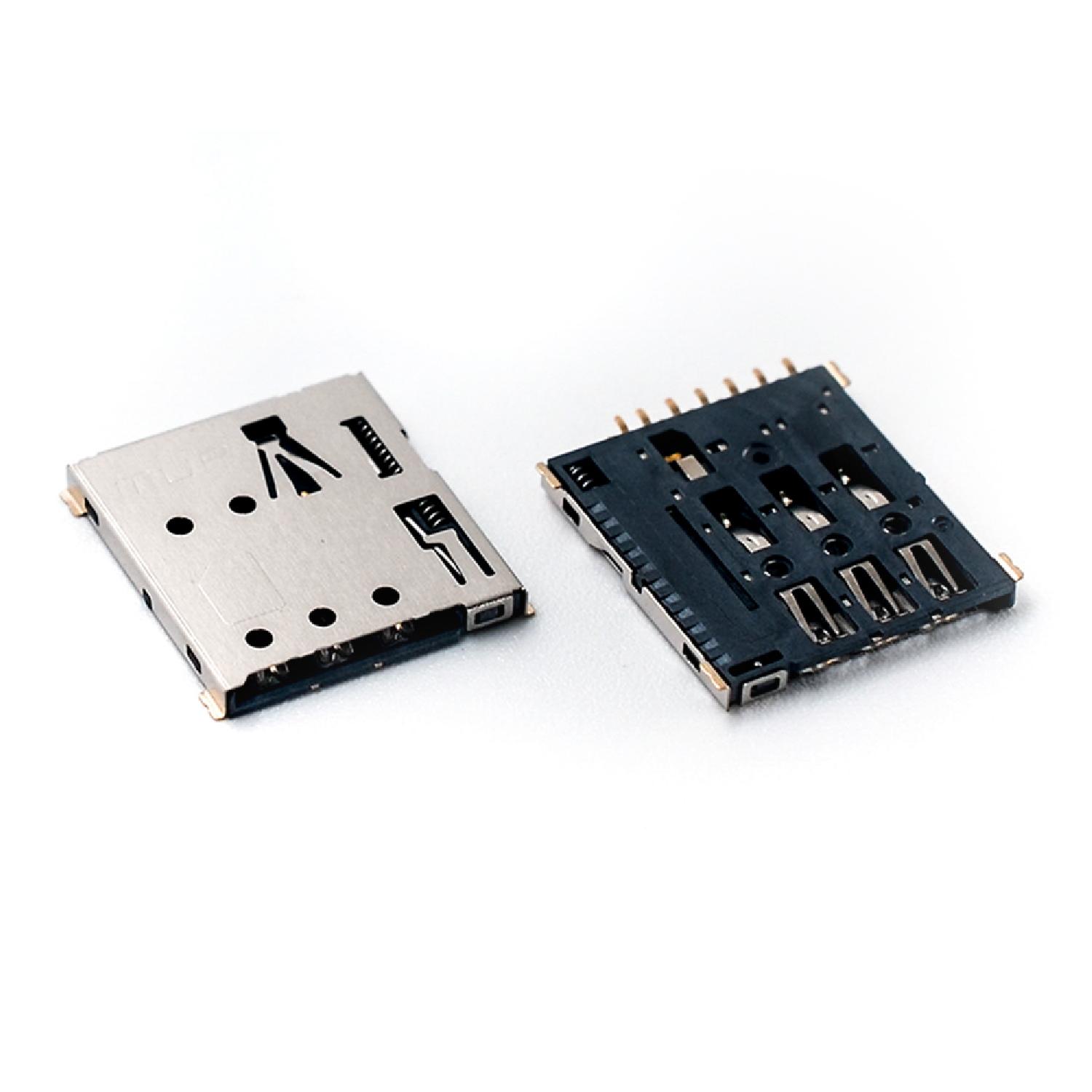

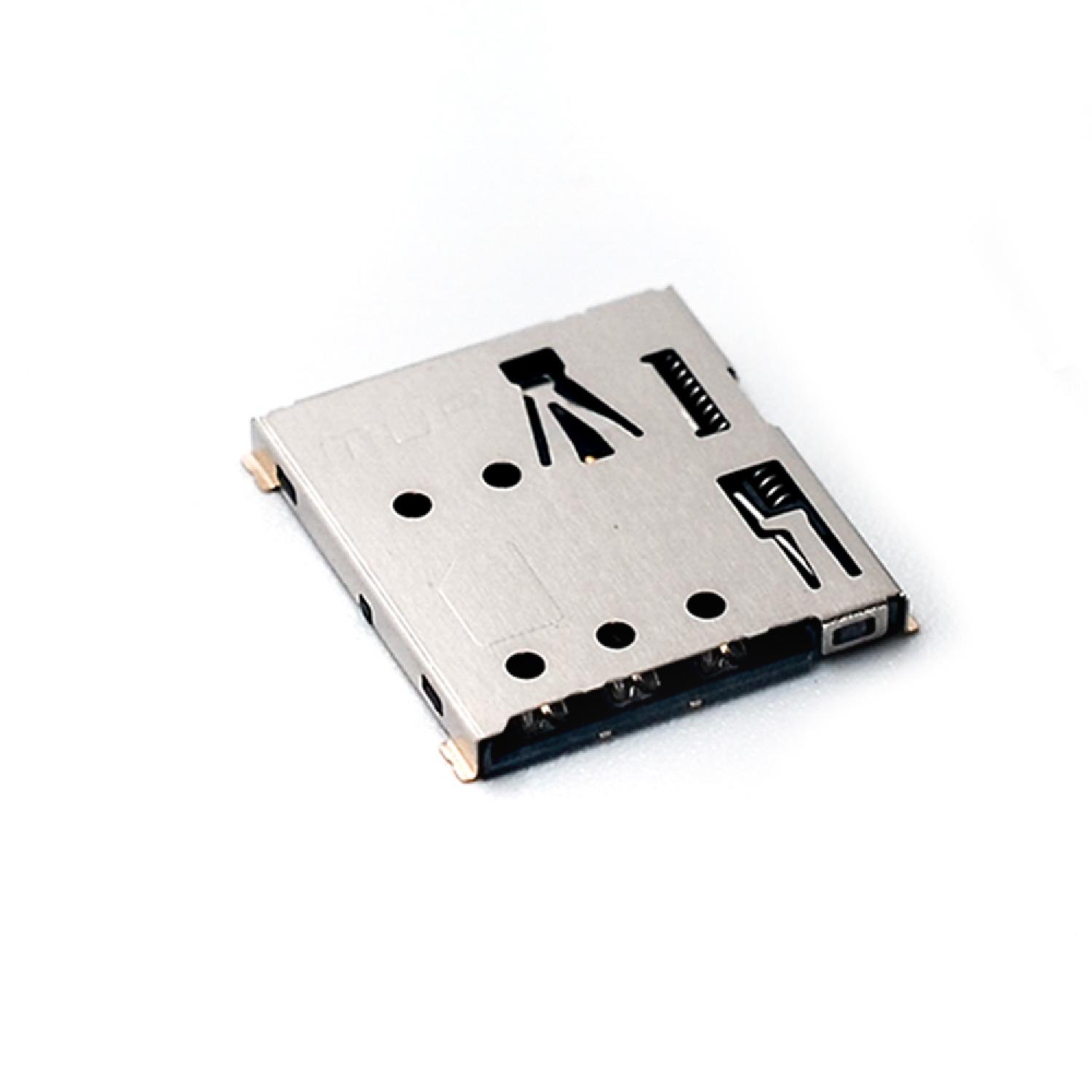

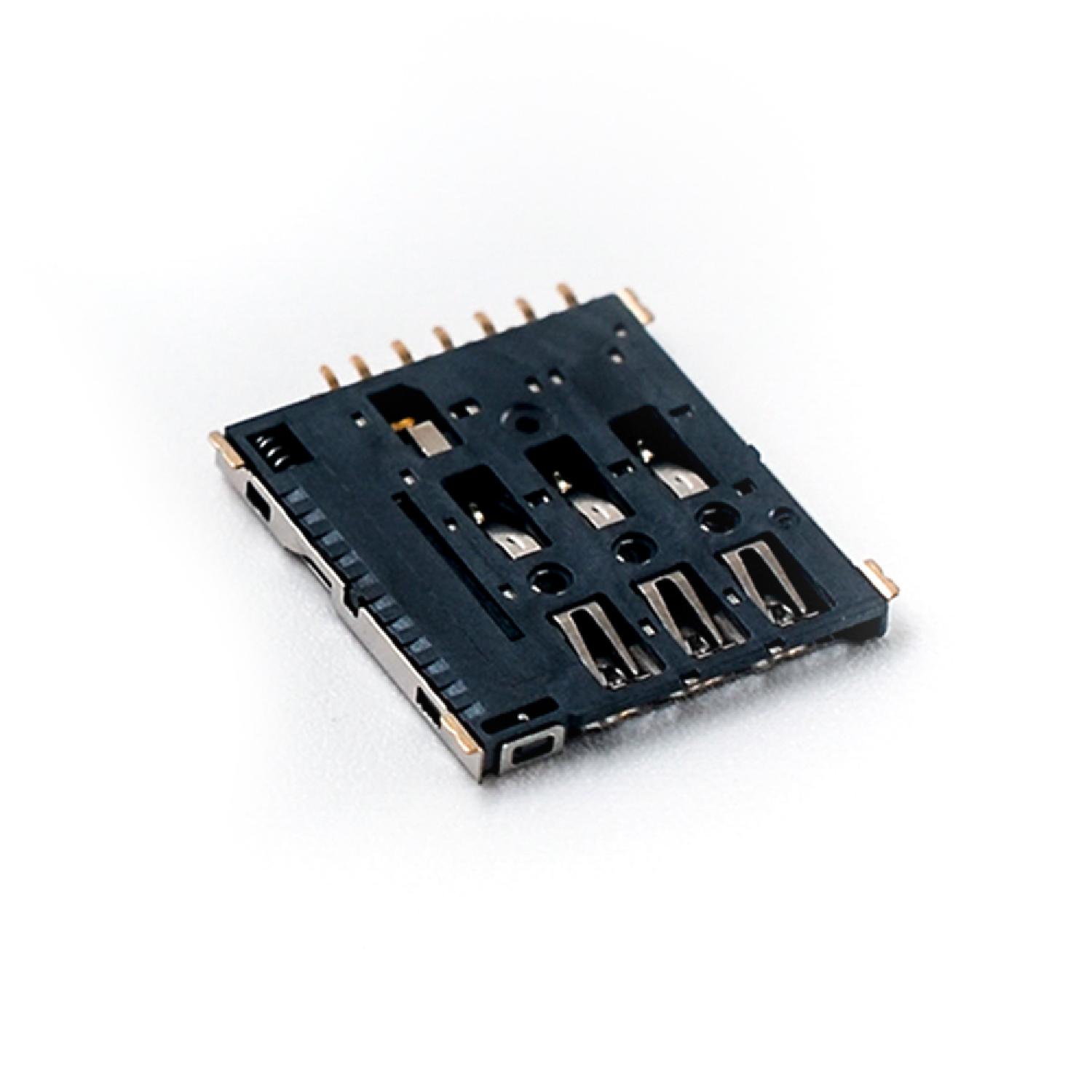

This is MUP-C7801-2 - Push-Push Nano Sim Card Connector 7Pin without Post Normally Closed fro, MUP Industrial. The connector contains 7 pins for nano sim card with SMT mount


This is MUP-C7801-2 - Push-Push Nano Sim Card Connector 7Pin without Post Normally Closed fro, MUP Industrial. The connector contains 7 pins for nano sim card with SMT mount

Technical Specification:

  • Brand: MUP
  • Mount: Surface Mount
  • Number Of Pins: 7
  • Rated Voltage: 50V max
  • Rated Current: 1A max, 10uA min
  • Max Operating Temperature: 85 C
  • Min Operating Temperature: -40 C
  • Insulator: Thermoplastic
  • Contact Material: Phosphor bronze
  • Contact Plating: Gold over nickel
  • Contact Principle: Friction Technology
  • Contact Resistance: 50 mohm typical
