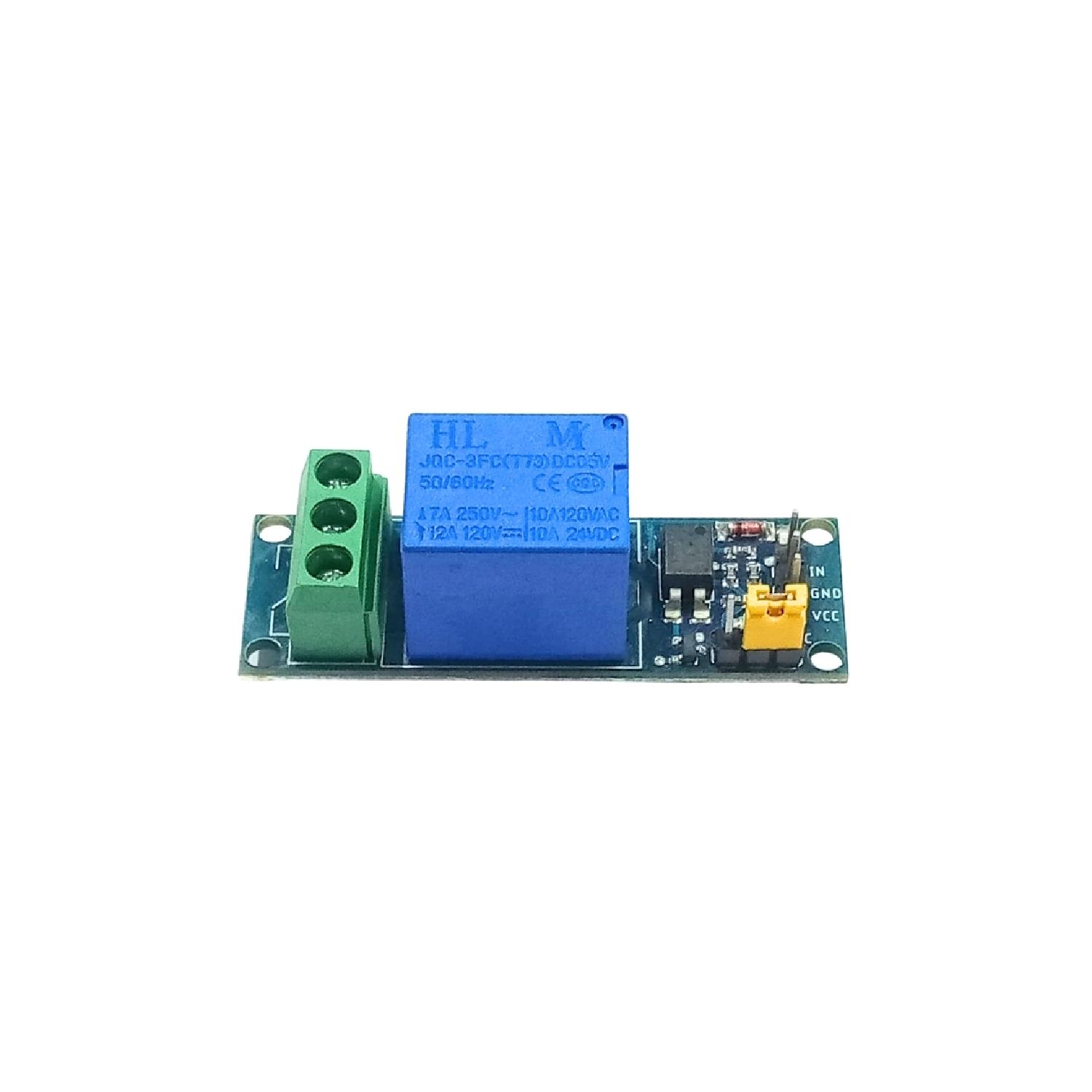

Relay Module 5V 1 Channel Image 1

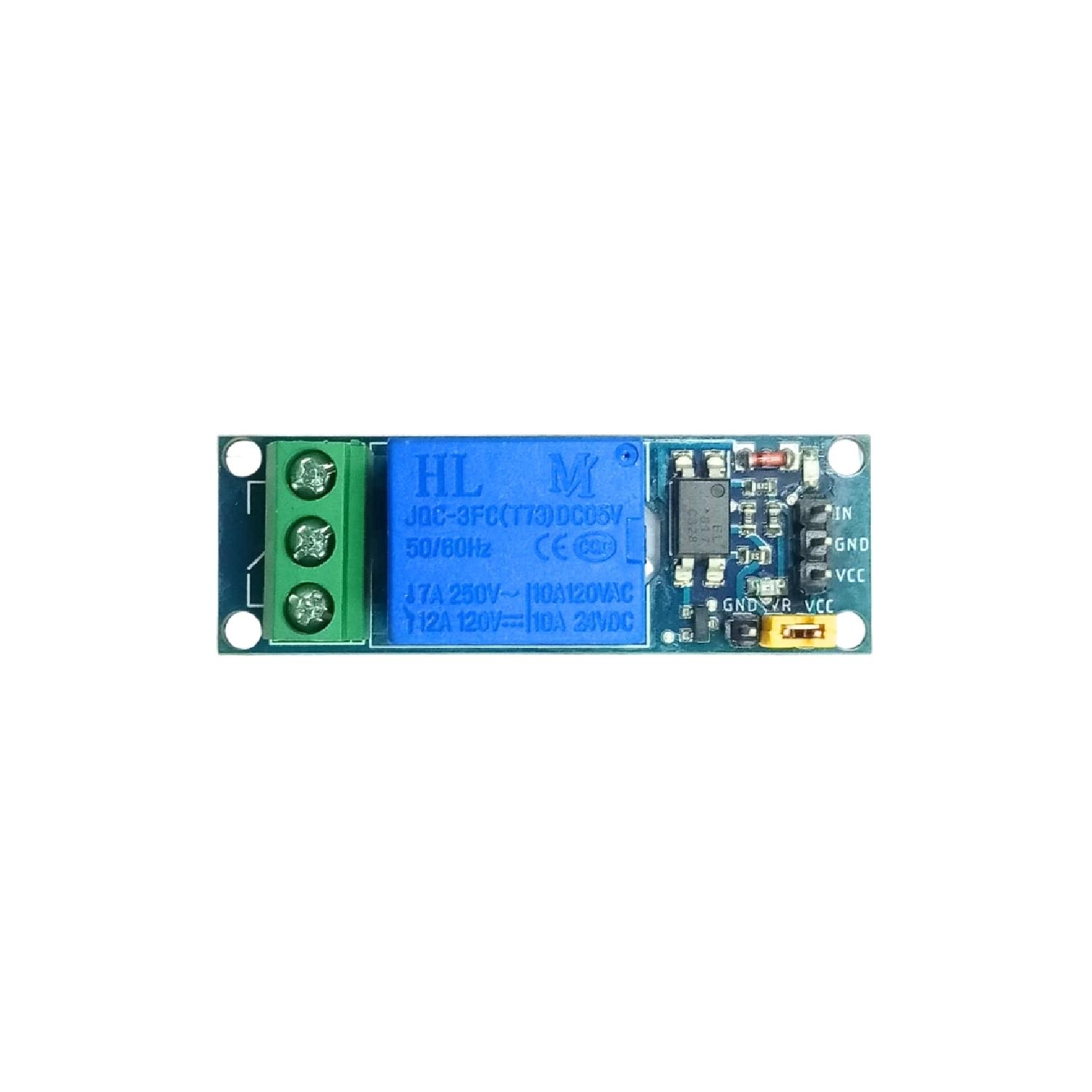

Relay Module 5V 1 Channel Image 2

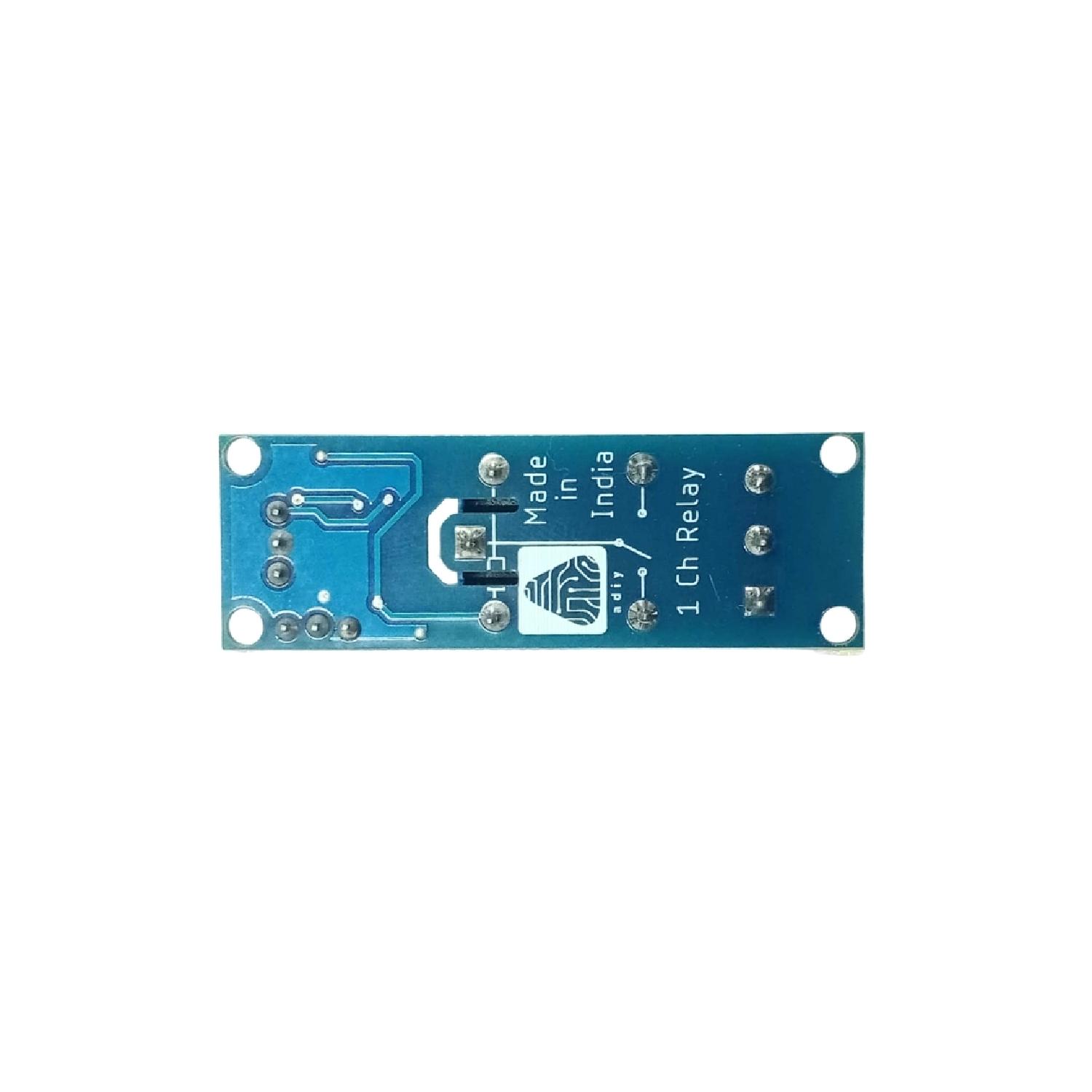

Relay Module 5V 1 Channel Image 3

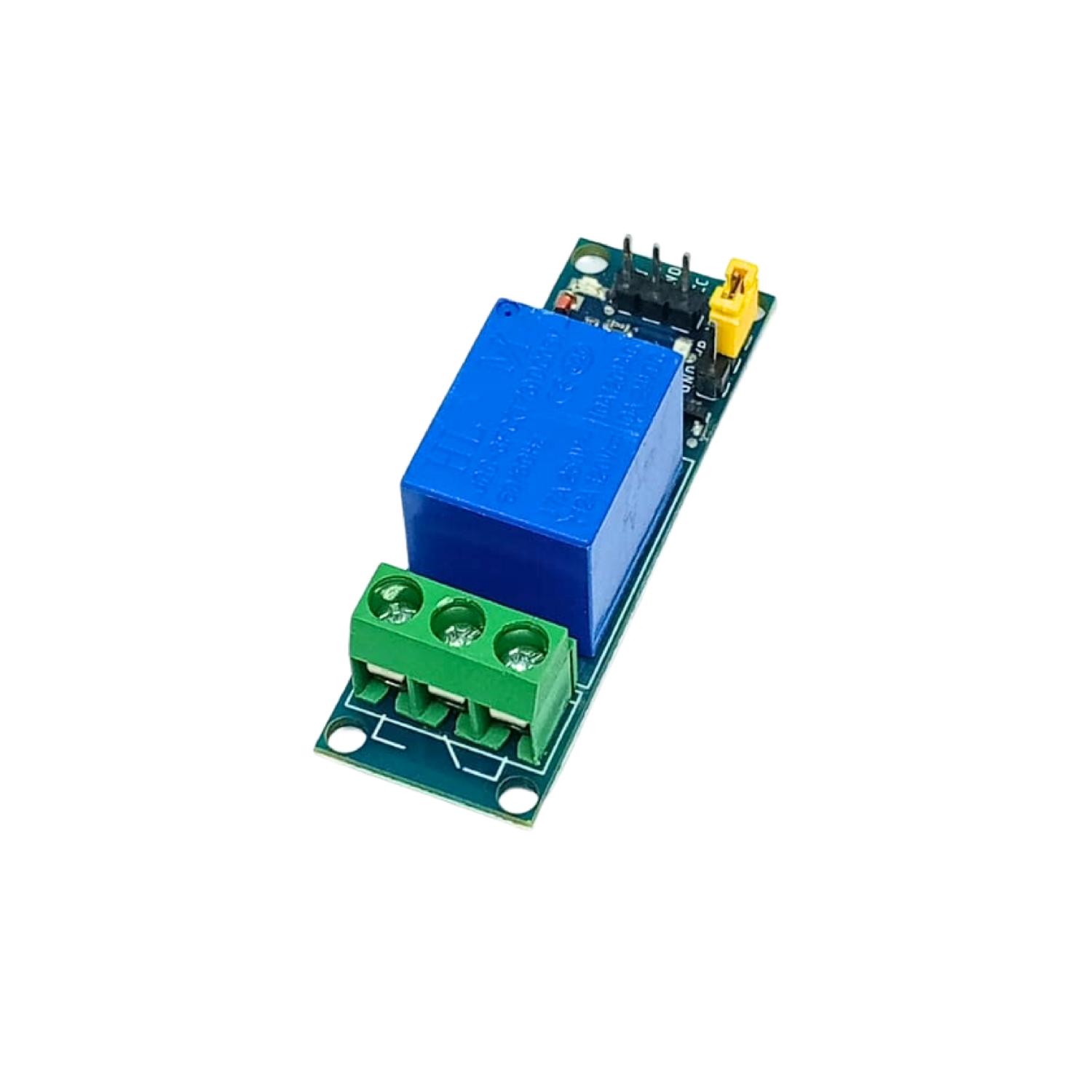

Relay Module 5V 1 Channel Image 4
Relay Module 5V 1 Channel Image 1
Relay Module 5V 1 Channel Image 2
Relay Module 5V 1 Channel Image 3
Relay Module 5V 1 Channel Image 4

Relay Module 5V 1 Channel

Relay Module 5V 1 Channel offers a simple and effective solution for controlling one device with ease. With its 5V operating voltage and versatile design, this relay module is perfect for various electronics projects and automation applications.

5V Single Channel Relay Module with Optocoupler is designed for switching only a single high-powered device from your Arduino. It has a relay rated up to 10A per channel at 250VAC or 30VDC. There are two LEDs on the relay module indicating the position of the relay. We have three channels of the relay broken out to screw pin terminals.The channels are labelled for their function: common (COM), normally closed (NC), and normally open (NO). On the other side of the module, there are three pins – a Ground pin and a VCC pin to power the module and an input pin IN to control the relay. The input pin is active low, meaning the relay will be activated when you pull the pin LOW, and it will become inactive when you pull the pin HIGH.

FEATURES : Relay Module 5V  1 Channel

  • Supply voltage – 3.75V to 6V
  • Quiescent current: 2mA
  • Current when the relay is active: ~70mA
  • Relay maximum contact voltage – 250VAC or 30VDC
  • Relay maximum current – 10A
Price :  excl. GST
Qty Price
1 > 47.25
6 > 43.20
21 > 39.15
50 > 37.80
100 > 37.26
200 > 36.45
500 > 35.91

Relay Module 5V 1 Channel is an essential component for any electronics enthusiast or automation project. This versatile relay module provides a reliable and efficient means of controlling a single device, making it a valuable asset for DIY enthusiasts and professionals alike.Operating at 5V, this relay module is compatible with most microcontrollers, Arduino boards, Raspberry Pi, and other development platforms. Its low voltage operation ensures energy efficiency and simplifies power supply requirements.

With one independent channel, this relay module allows precise control over one device, enhancing the flexibility of your projects. Whether you're working on home automation, robotics, IoT applications, or industrial setups, this relay module delivers outstanding performance.The Relay Module 5V 1 Channel is designed for easy integration, featuring clear labeling and user-friendly connectors. The compact and straightforward design streamlines the setup process, saving you time and effort during installation.

With its high switching capacity, the relay module can handle various loads, making it suitable for controlling lights, motors, appliances, and other electronic devices. Additionally, the module incorporates built-in protection mechanisms to safeguard your valuable components from voltage spikes and damages.Experience seamless device control and elevate your electronics projects to new heights with this reliable and durable Relay Module 5V 1 Channel.


Product Features: Relay Module 5V  1 Channel

  • One independent channel for device control
  • Operating voltage: 5V DC
  • Low power consumption for energy efficiency
  • Compact and user-friendly design
  • High switching capacity for versatile applications
  • Built-in protection against voltage spikes


Specifications: Relay Module 5V  1 Channel

  • Operating Voltage: 5V DC
  • Number of Channels: 1
  • Supply voltage – 3.75V to 6V
  • Quiescent current: 2mA
  • Current when the relay is active: ~70mA
  • Relay maximum contact voltage – 250VAC or 30VDC
  • Relay maximum current – 10A

Applications: Relay Module 5V  1 Channel

  • Home Automation Systems
  • Robotics and DIY Projects
  • Internet of Things (IoT) Applications
  • Smart Home Devices
  • Lighting Control Systems
  • Consumer Electronics
Package Information: 1x Relay Module 5V 1 Channel
