The 12V 4-channel relay module is an essential component for various electronic and automation applications. With the ability to control up to four separate devices, this module offers unmatched flexibility and convenience. Whether you're working on home automation, robotics, IoT projects, or industrial automation, this relay module proves to be a valuable asset.
Built with precision engineering, the 4-channel relay module guarantees stable and secure switching of connected devices. Its low power consumption and high switching capacity make it suitable for a wide range of electronic setups. Additionally, the module is equipped with protection mechanisms, safeguarding it from voltage spikes and other potential risks.Experience seamless integration and smooth operation with this high-performance 4-channel relay module. Simplify your project setup and take full control over your devices with ease. Invest in this reliable solution and elevate your automation projects to new heights.

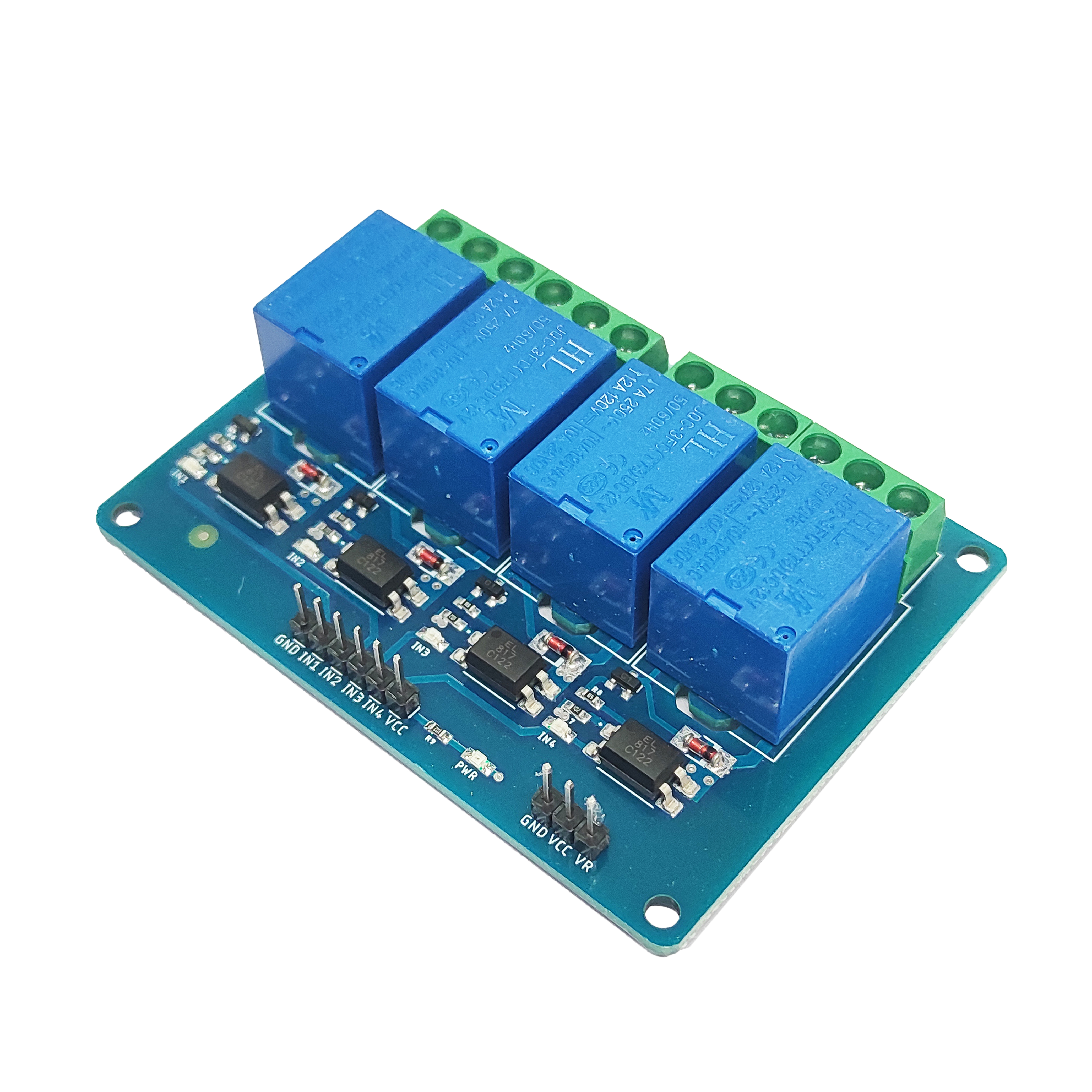

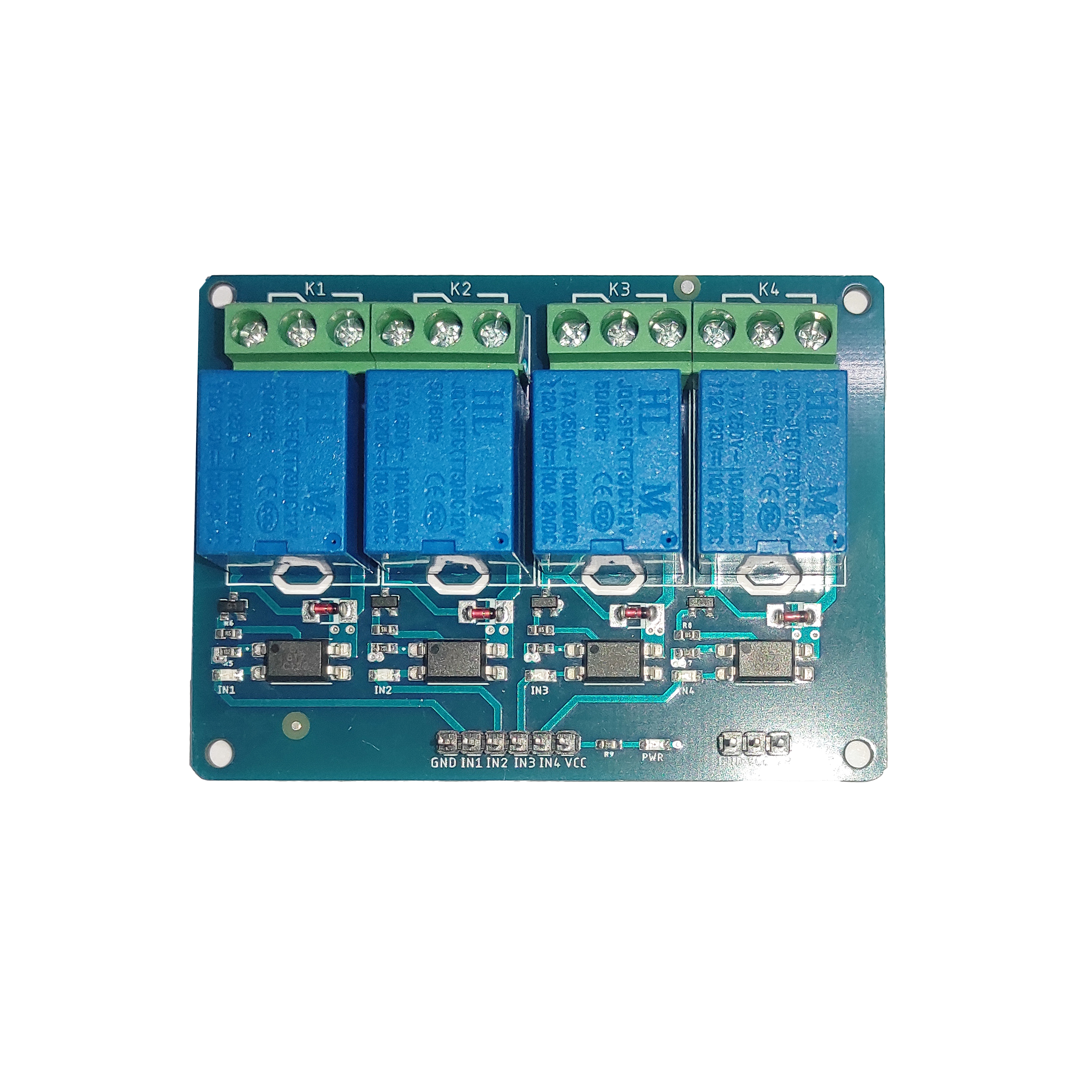

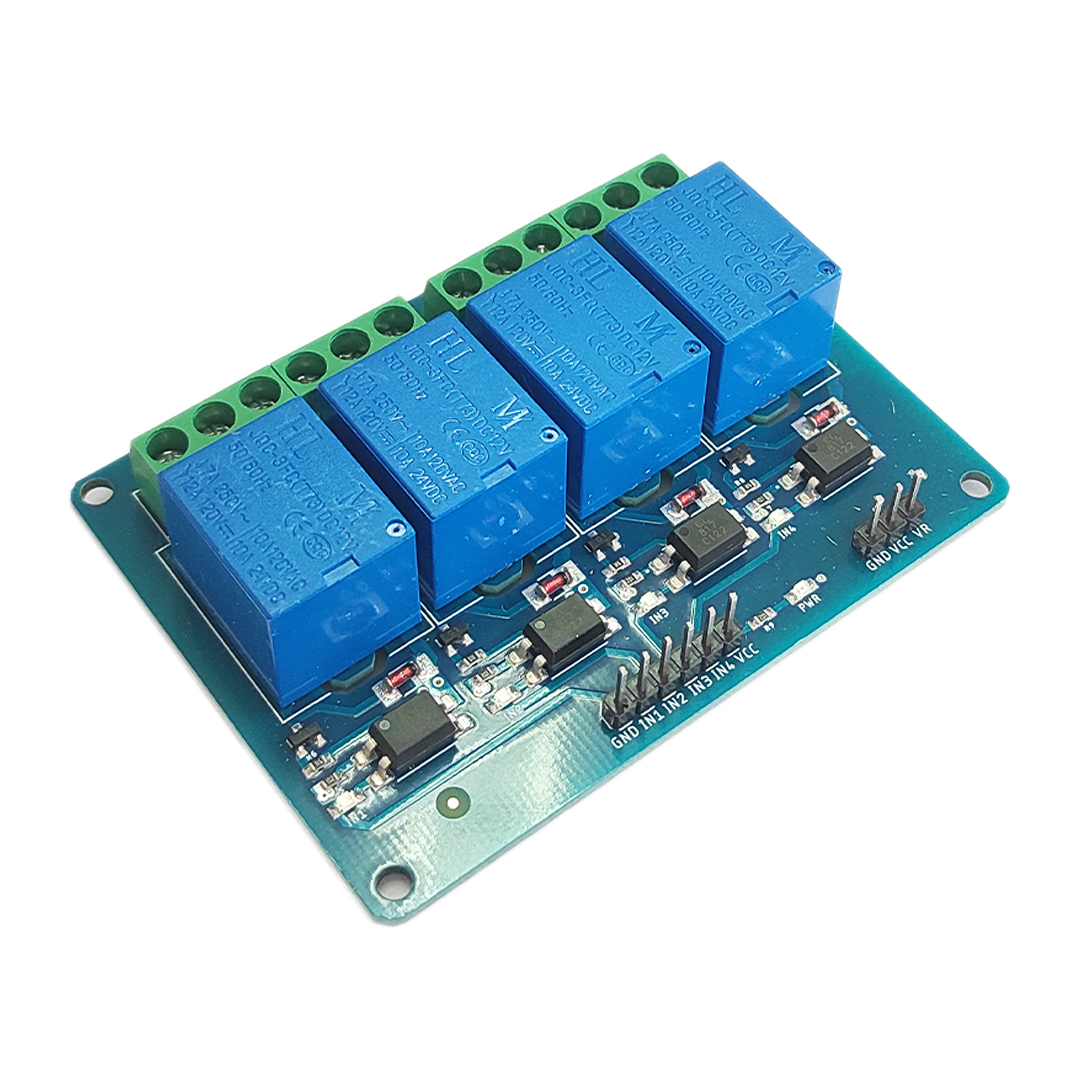

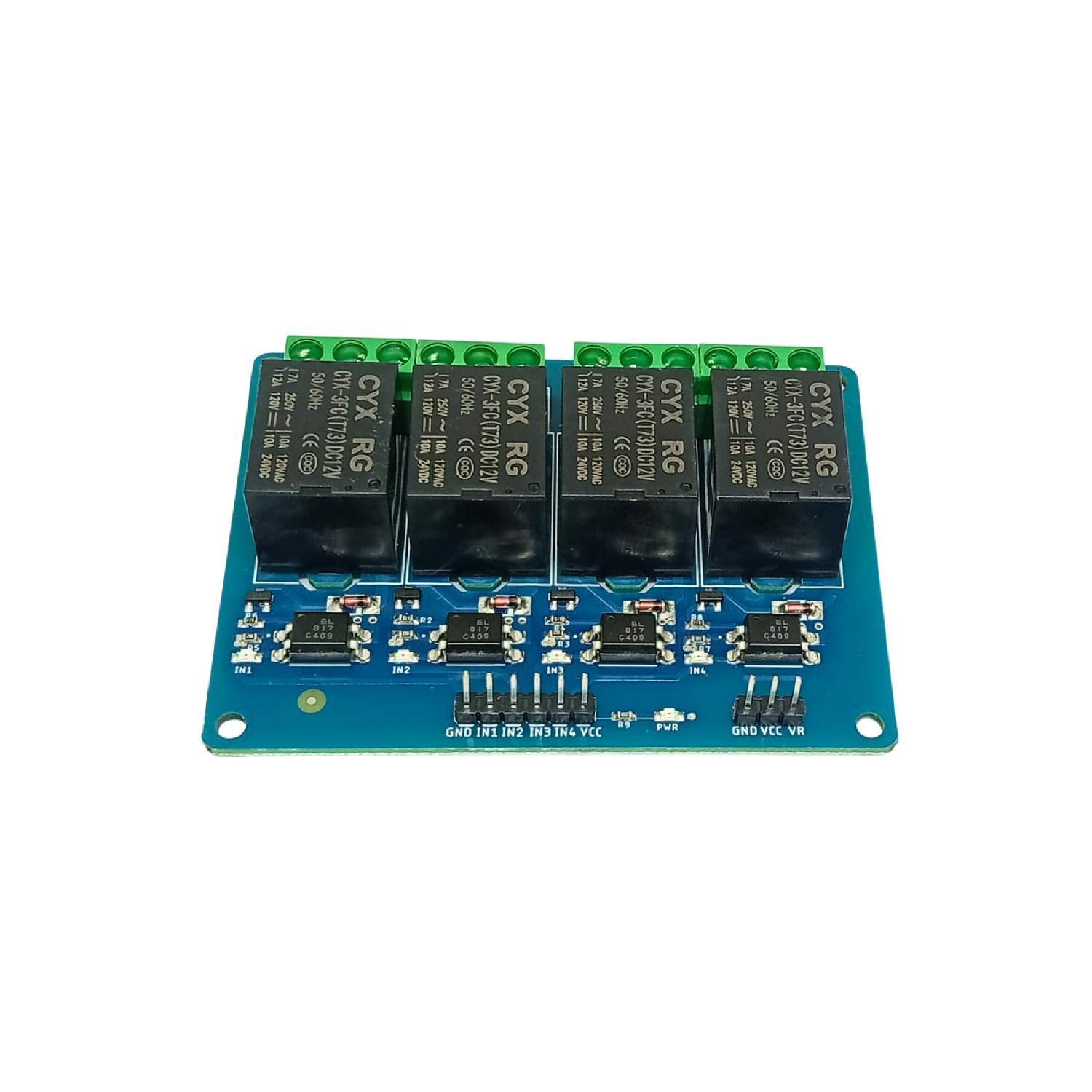

4-Channel 12V Relay Board by ADIY - This 4 channel 12 V relay module is a low pull, high release relay module and features energization status indicator light, release status led is off. By default, this is a 5V relay module and uses jd-vcc for the relay power and is compliant with international safety standards, control, and load areas isolation trenches.The 4 channel relay module can be used to control various appliances and other types of equipment with large currents. The maximum output of the relay module is AC250V 10A and DC5V 10A.The four-channel can be used to switch multiple loads at the same time since there are four relays on the same module. This is useful in creating a central hub from where multiple remote loads can be powered. It is useful for tasks like home automation where the module can be placed in the main switchboard and can be connected to loads in other parts of the house and can be controlled from a central location using a microcontroller.
Note: either of the relays does not turn on:
- The contacts might be welded due toovercurrent/arcing. Shaking the module firmly might help unstick the contacts
- The driver circuitry might have been damaged due to overvoltage.
- Input polarity might be incorrect.
- Jumper might not have been moved to the correct position.
Product Features: 4 Channel Relay Module
- Control up to four devices simultaneously
- Reliable and precise switching action
- Low power consumption for energy efficiency
- High switching capacity for diverse applications
- Built-in protection against voltage spikes
- Easy to integrate into various projects
- Durable and long-lasting design
- 4-Channel Relay interface board and each one needs 15-20mA Driver Current.
- Both controlled by 12V and 5V input Voltage.
- Equipped with high-current relay, AC250V 10A ; DC30V 10A.
- Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low).
Specifications: 4 Channel Relay Module
- Number of Channels 4
- Operating Voltage 12V
- MAx Output AC250V 10A and DC5V 10A
- Dimensions 5 x 3 x 1cms
- Weight 5 grams
-
Trigger Current (mA): 20
-
Switching Voltage (VAC): 250@10A
-
Switching Voltage (VDC):30@10A
Applications: 4 Channel Relay Module 12V
- Home Automation Systems
- Robotics and DIY Projects
- Internet of Things (IoT) Applications
- Industrial Automation
- Smart Home Devices
- Security Systems
- Lighting Control Systems
- Switching mains loads
- Battery backup
- High current load switching
Package Includes: 4 Channel Relay Module 12V : 1 x 12V 4 Channel Relay Module
