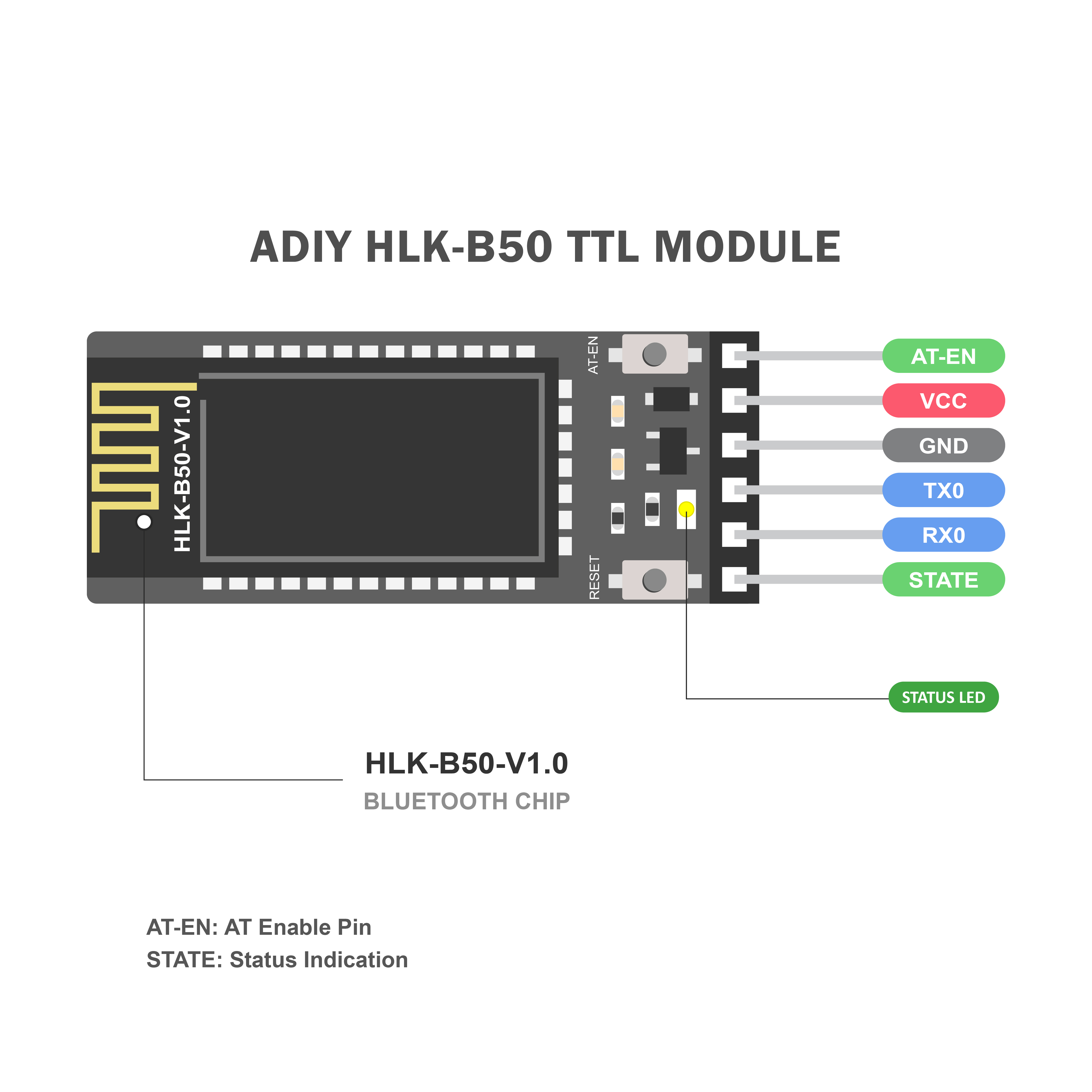

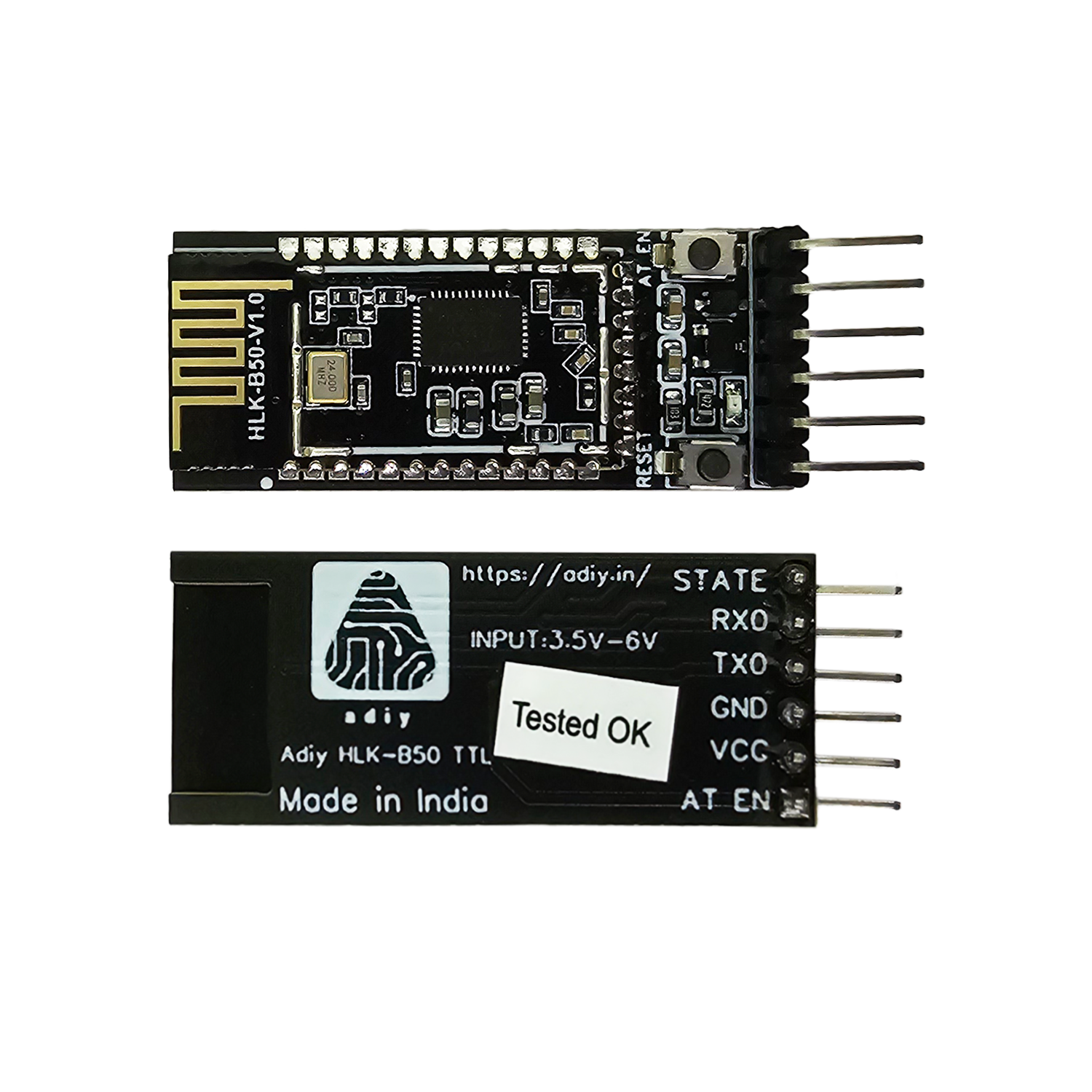

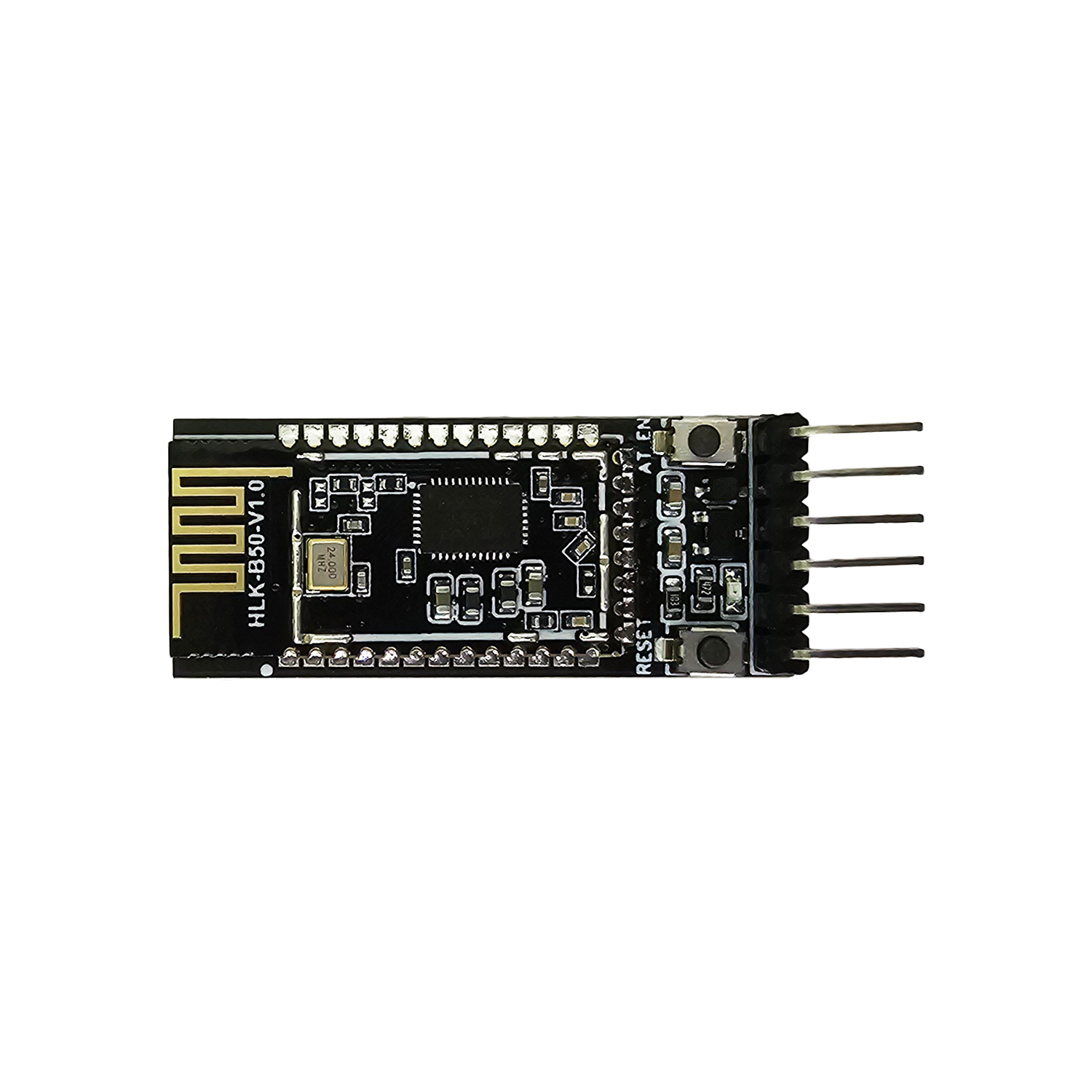

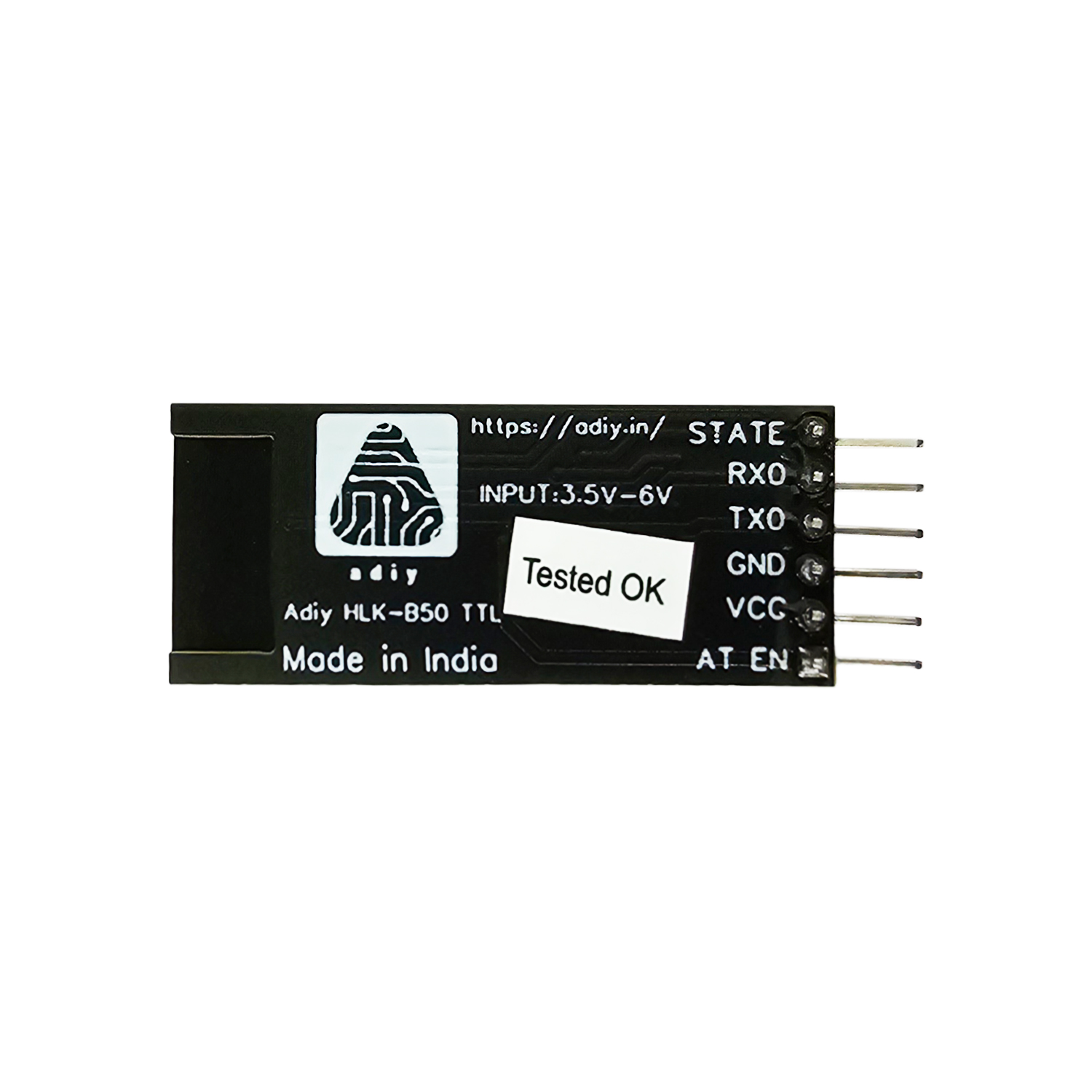

ADIY HLK-B50 TTL Module

The ADIY HLK-B50 TTL MODULE is a high-performance, dual-mode Bluetooth (BLE 5.0 and Classic SPP) serial-port transparent-transmission module. It is built around a 32-bit ARM Cortex-M3 core running at up to 48 MHz and is designed to bridge a user’s serial device to a Bluetooth network with minimal firmware effort. The module supports simultaneous SPP and GATT transparent transmission, allowing embedded devices to exchange data wirelessly with high stability and throughput. Firmware version V1.17 (Build 26052010) adds enhanced AT-command compatibility. In addition to the native HLK-B50 command set, the module accepts many of the commonly used AT commands from the HC-05 and BT986 modules, which simplifies migration and improves software reuse for existing designs. While most frequently used commands are supported, full command compatibility is not guaranteed — always refer to the AT Command Reference (Section 8) for the authoritative list of supported commands.

Price : 226.00 excl. GST

Qty	Price
1 >	226.00
50 >	217.00
200 >	208.00
500 >	205.00
1000 >	201.00
1001 >	200.00

Description
Datasheet

Features:

Wide operating voltage 3.5~6V.
Built-in 32-bit ARM Cortex M3 core, the main frequency can reach 48MHz,
Fast and stable Bluetooth-serial port transparent transmission, the serial port baud rate can reach 921600 by default 115200 baud rate.
Master-slave integrated Bluetooth BLE 5.0 can be set as master or slave mode, support binding encryption.
Dual-mode Bluetooth, data can be transparently transmitted through GATT or SPP, and can be connected at the same time.
Built-in Watchdog, reliable operation for a long time.

210826104439.17 (1).pdf
