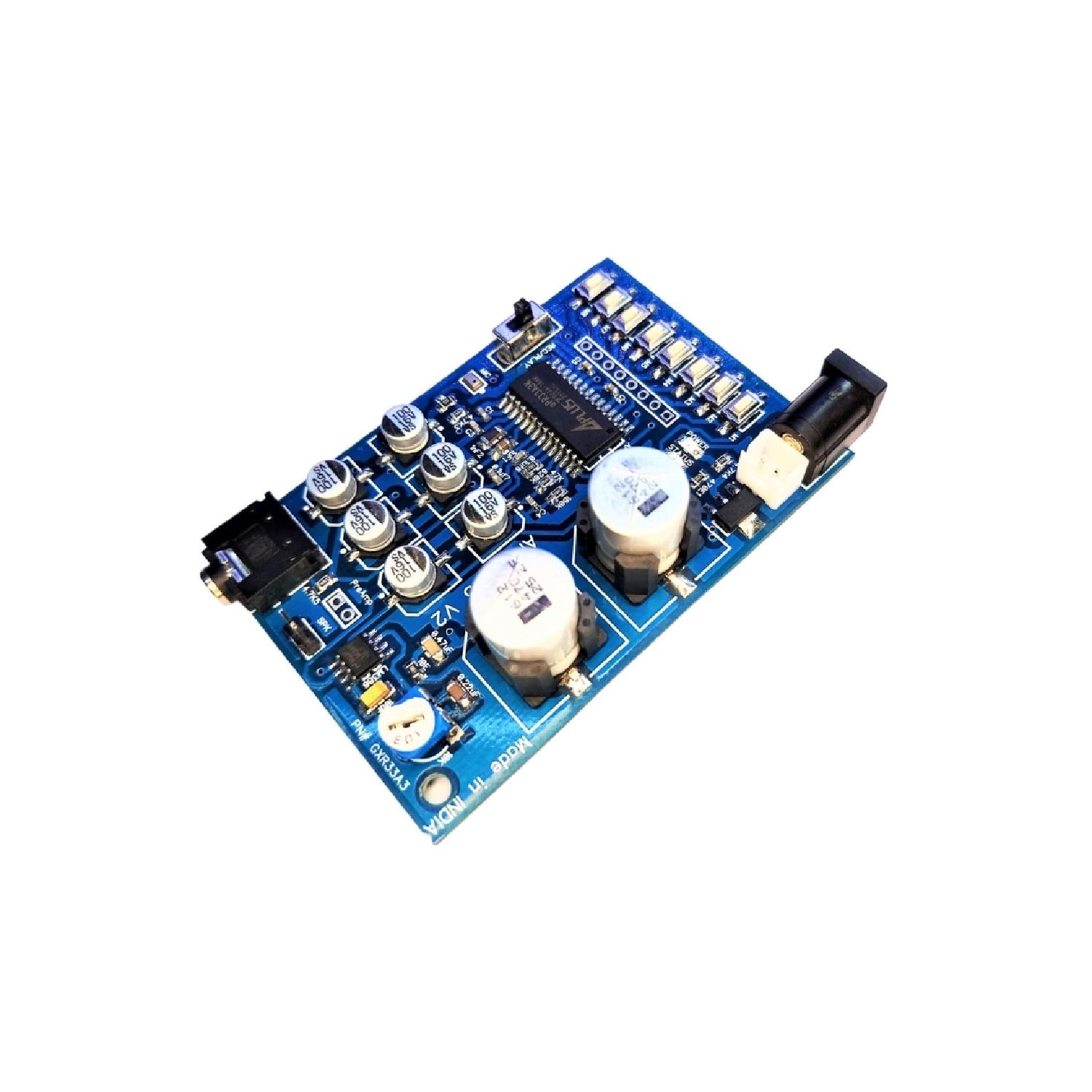

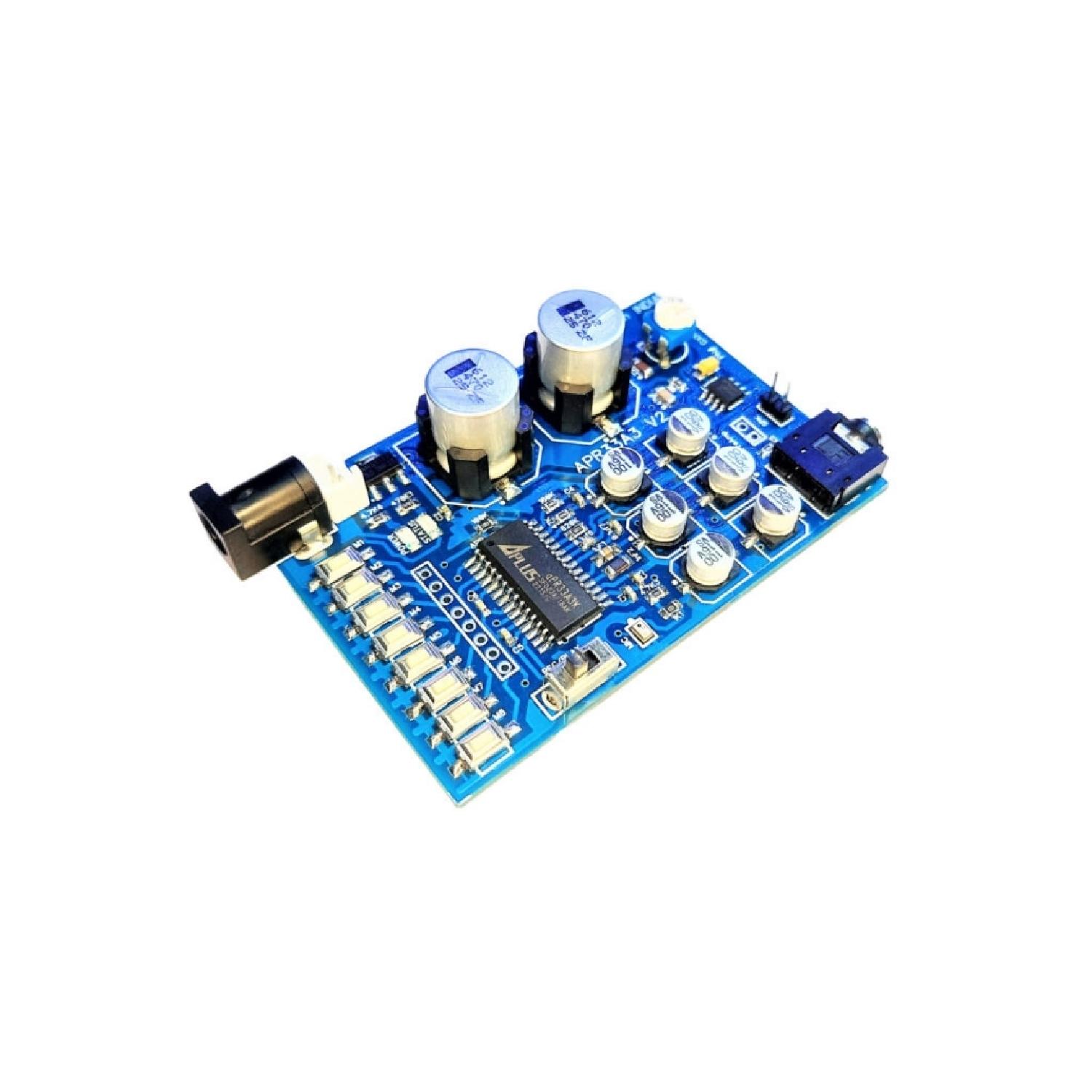

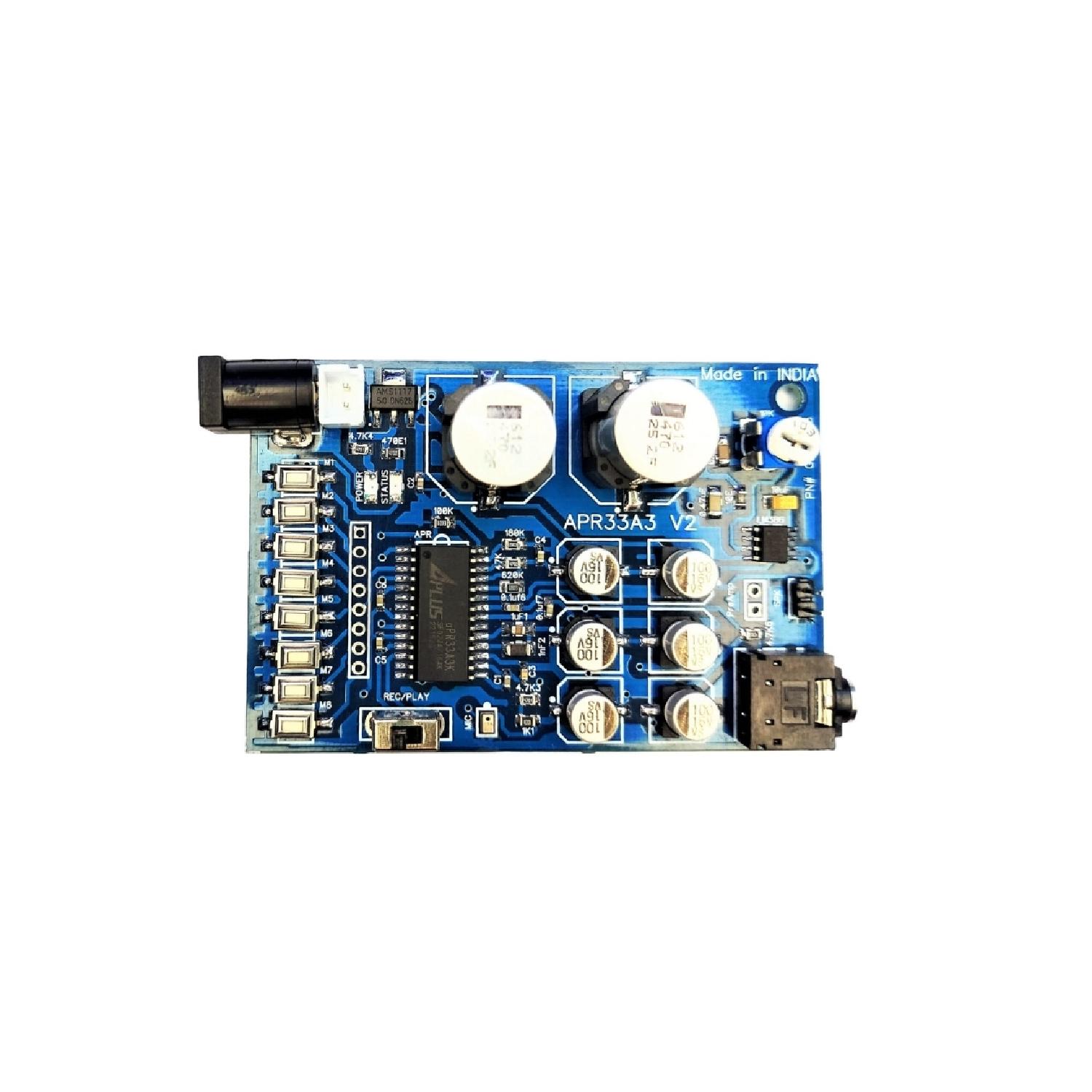

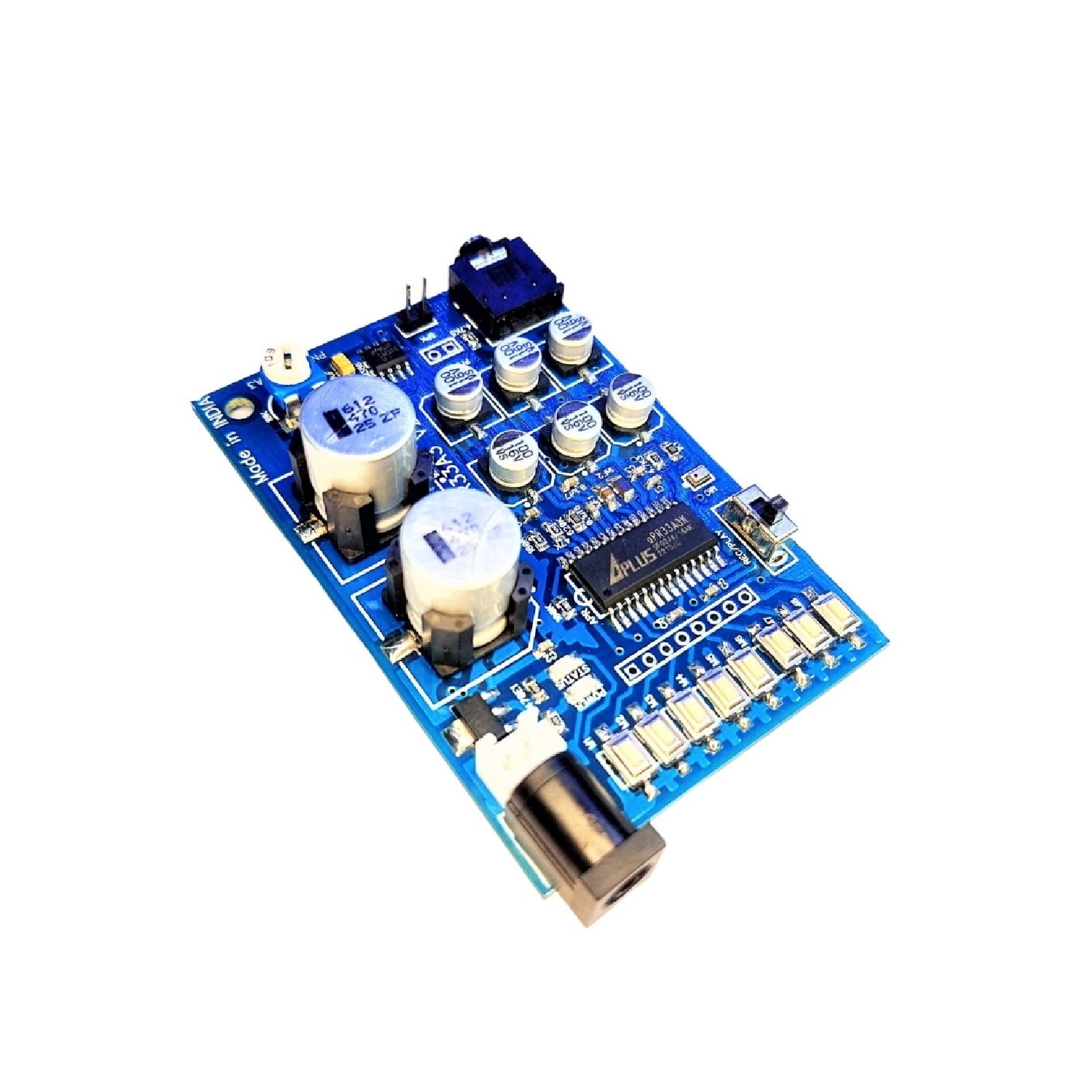

The APR33A3 Voice Recorder and Playback Module is a remarkable device designed for effortless audio recording and playback. It comes equipped with an integrated microphone, supports various audio formats, and includes a 3.5mm headphone jack. This module is an excellent option for anyone seeking a fast and simple way to capture voice recordings and enjoy them with superior audio clarity.
Features:
- Current: 500mA.
- APR33A3 Voice Recorder and Playback Module specifically has 8 Channel recording and playback functions inbuilt.
- Working voltage: 5V DC on White RMZ Connector or straightaway 7 to 12V DC on Power Supply Connector.
- Number of Channels: 8 Channel
- Surprisingly recording time on all the 8 Channels: 10 min
- Mic: On Board
- Speaker: 1/2W Speaker ( Not included)
- Output: Amplified Speaker Output through LM386 Audio Amplifier
- Playback and Recording Switch
- Status Indicator
- Microcontroller TTL Interface Pins with respect to Ground (not soldered on Board).
- On board AUX Jack for the easy interface of the Mobile Phone and Laptop.
- On Board Gain controller.
