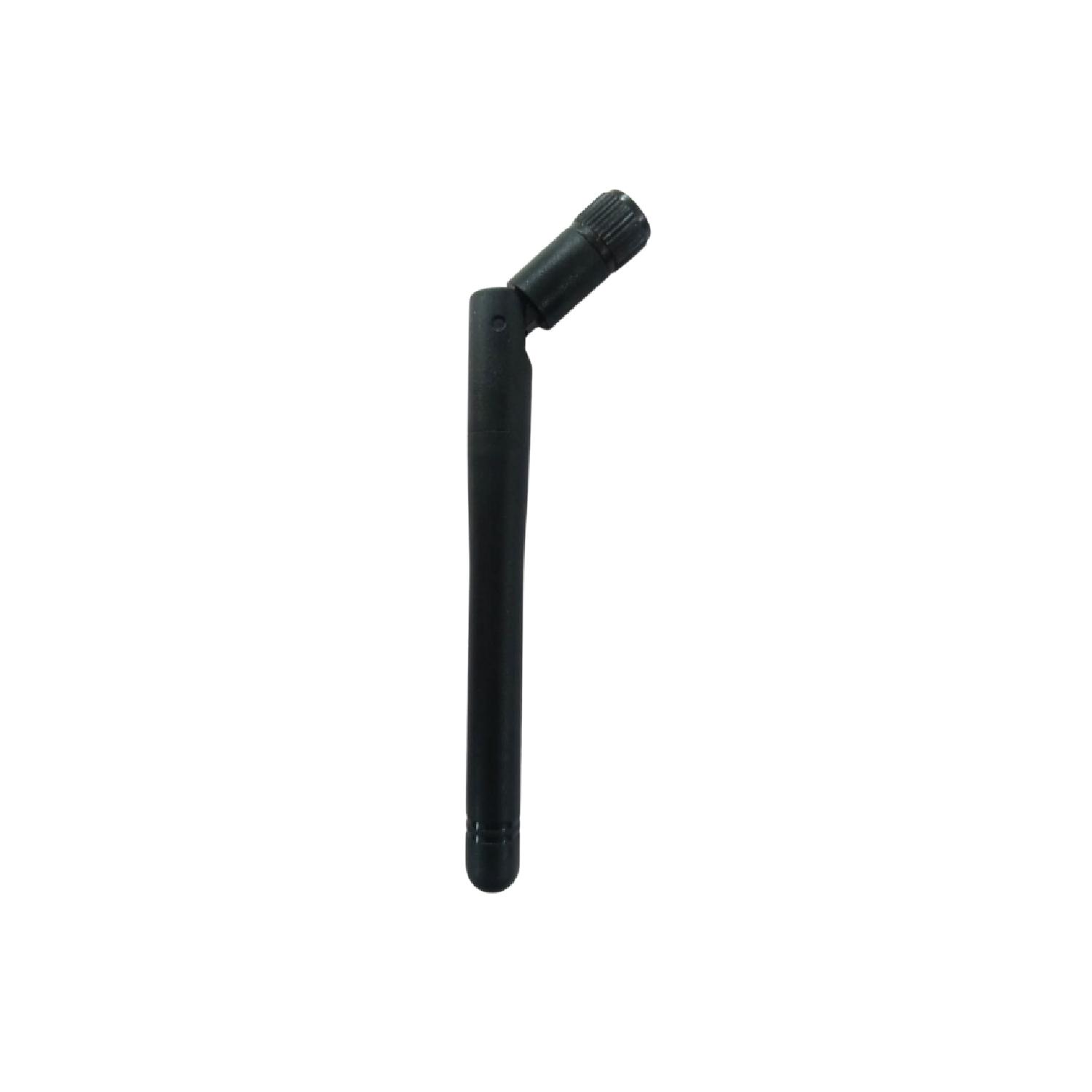

Antenna - 2.4ghz Foldable MALE SMALL Image 1

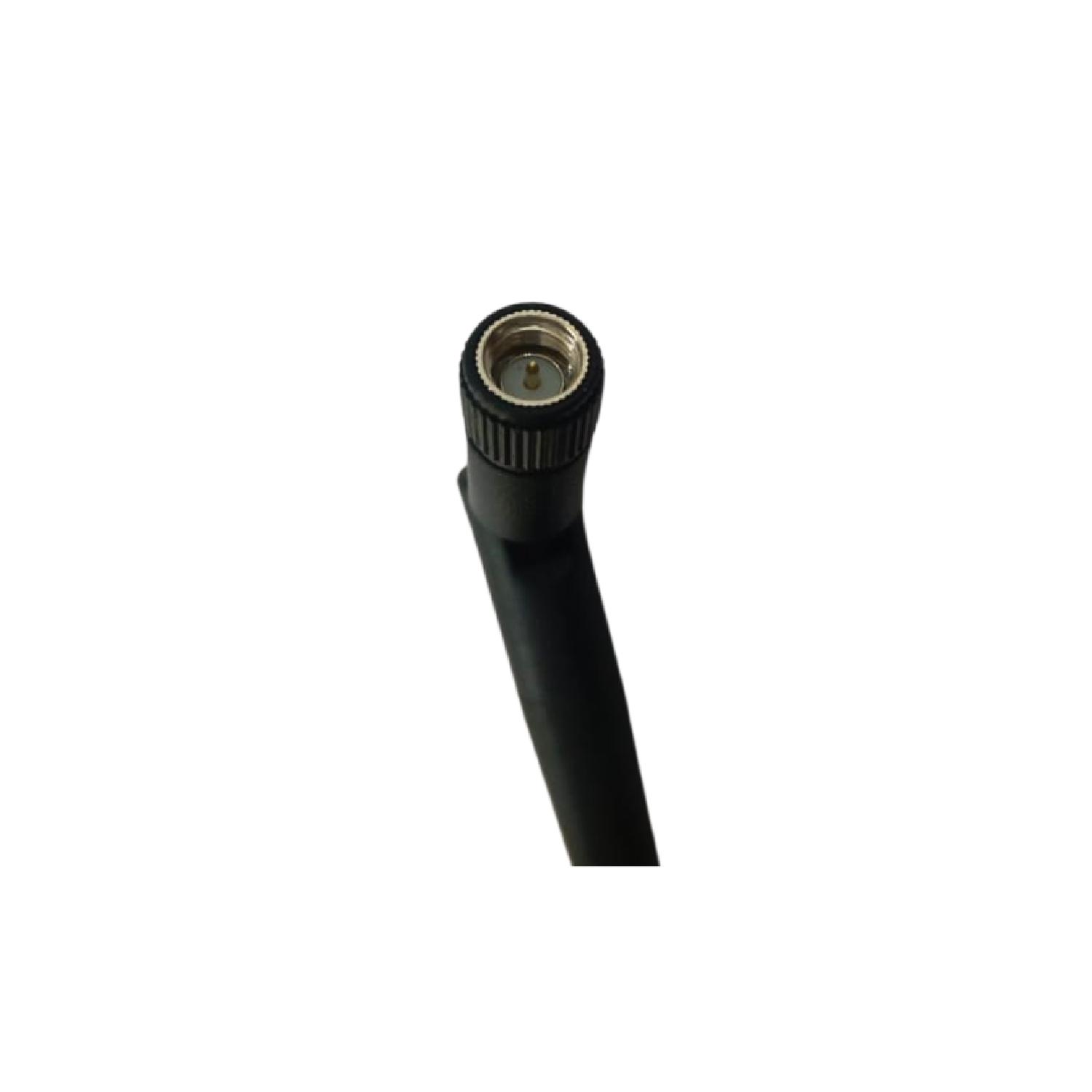

Antenna - 2.4ghz Foldable MALE SMALL Image 2

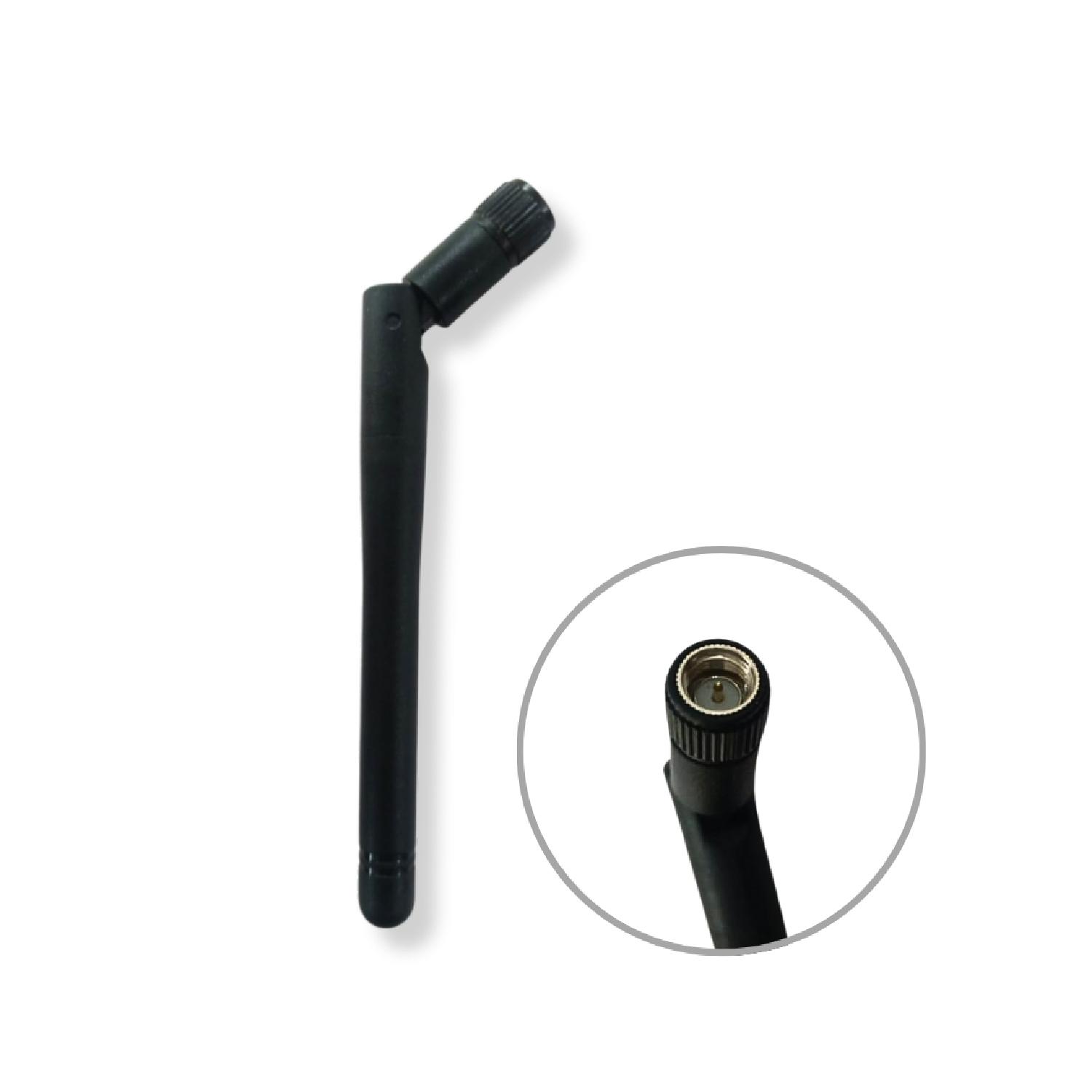

Antenna - 2.4ghz Foldable MALE SMALL Image 3

Antenna - 2.4ghz Foldable MALE SMALL

This 2.4GHz 3.2dBi RP-SMA Male Omni antenna is intended for use for all 2.4GHz applications. The antenna is fitted with an RP-SMA male connector and a blade, made of a flexible material that can be rotated 360 degrees. Suitable for telemetry and WIFI transmissions on lightweight unmanned platforms. This 2.4GHz 3.2dBi Gain indoor antenna provides high gain and provides tilt and swivel functions for full flexibility. It is fully compatible with Zigbee XBee Pro S2C. This antenna can be used for a variety of other applications within the specified frequency range. When used as the access point, the antenna is ideally located at the center of the coverage area This antenna mates nicely with the SMA female connector.

Price : 29.00 excl. GST

Qty	Price
1 >	29.00
50 >	25.00
200 >	24.00
500 >	24.00
1000 >	23.00
1001 >	23.00

Description
Datasheet

SPECIFICATIONS:

• Frequency (Center/Band): 2.4GHz

• Frequency Range: 2.4GHz ~ 2.5GHz

• Antenna Type: Whip, Tilt

• Number of Bands: 1

• Antenna Connector: RP SMA Male

• VSWR: 1.9

• Gain: 3.2dBi

• Applications: WLAN, Zigbee

• Body Material: Plastic and Rubber

• Color: Black

• Height (Max): 19 cm.

• Weight(g): 17

210225173257.4GHz foldable male small antenna.pdf

Antenna - 2.4ghz Foldable MALE SMALL

Share Inquiry :

Price : 29.00 excl. GST
