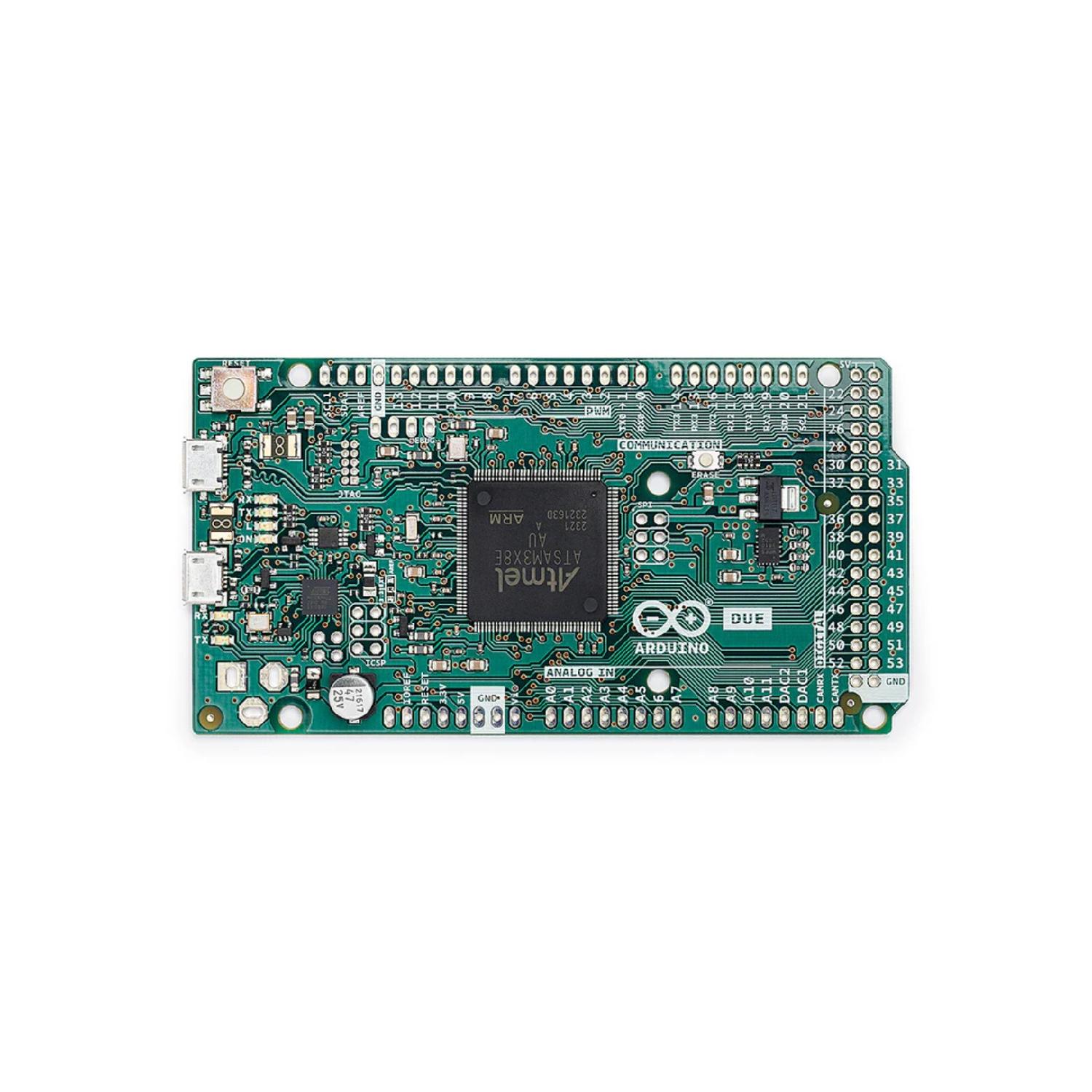

Arduino Due without Headers A000056 Original Image 1

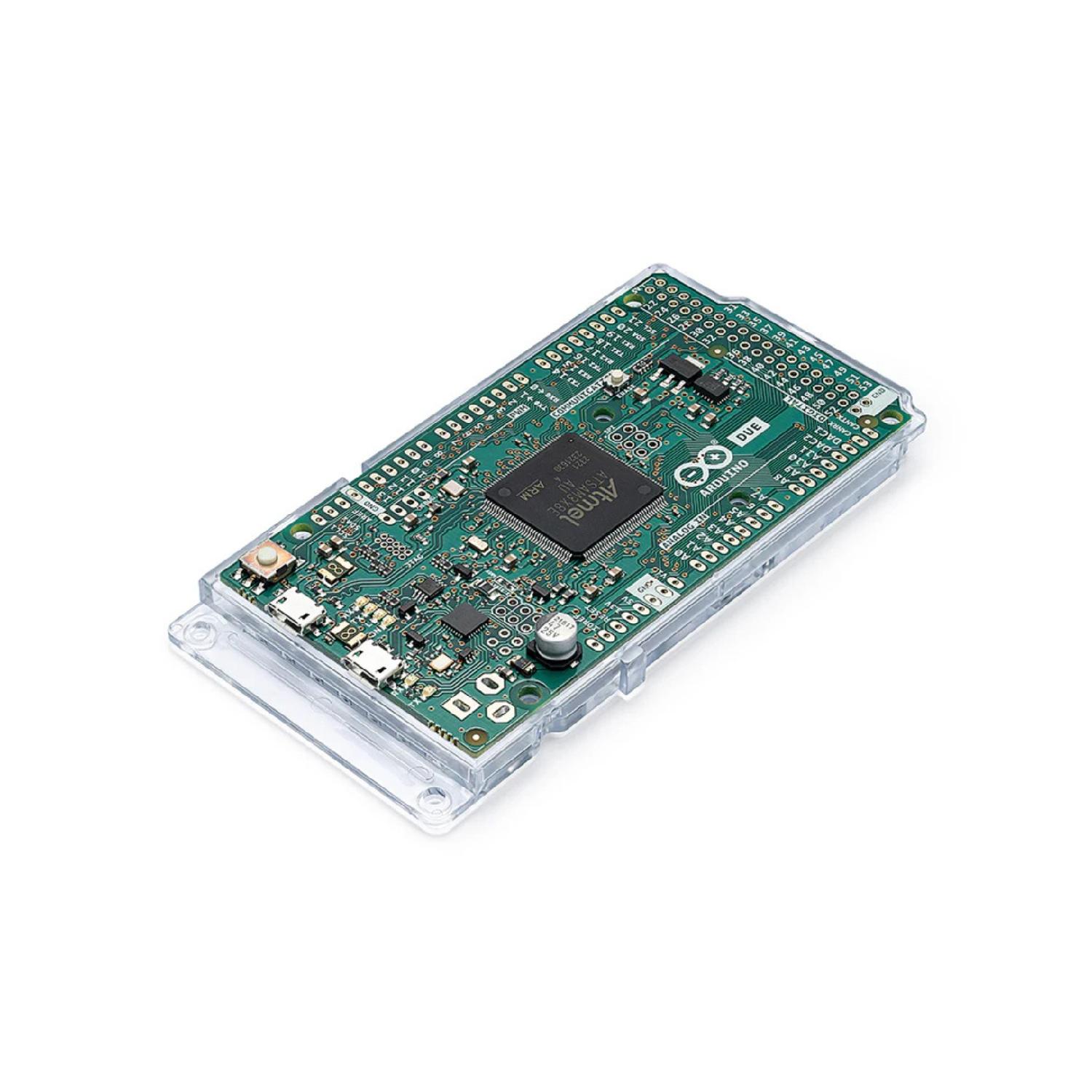

Arduino Due without Headers A000056 Original Image 2

Arduino Due without Headers A000056 Original Image 3

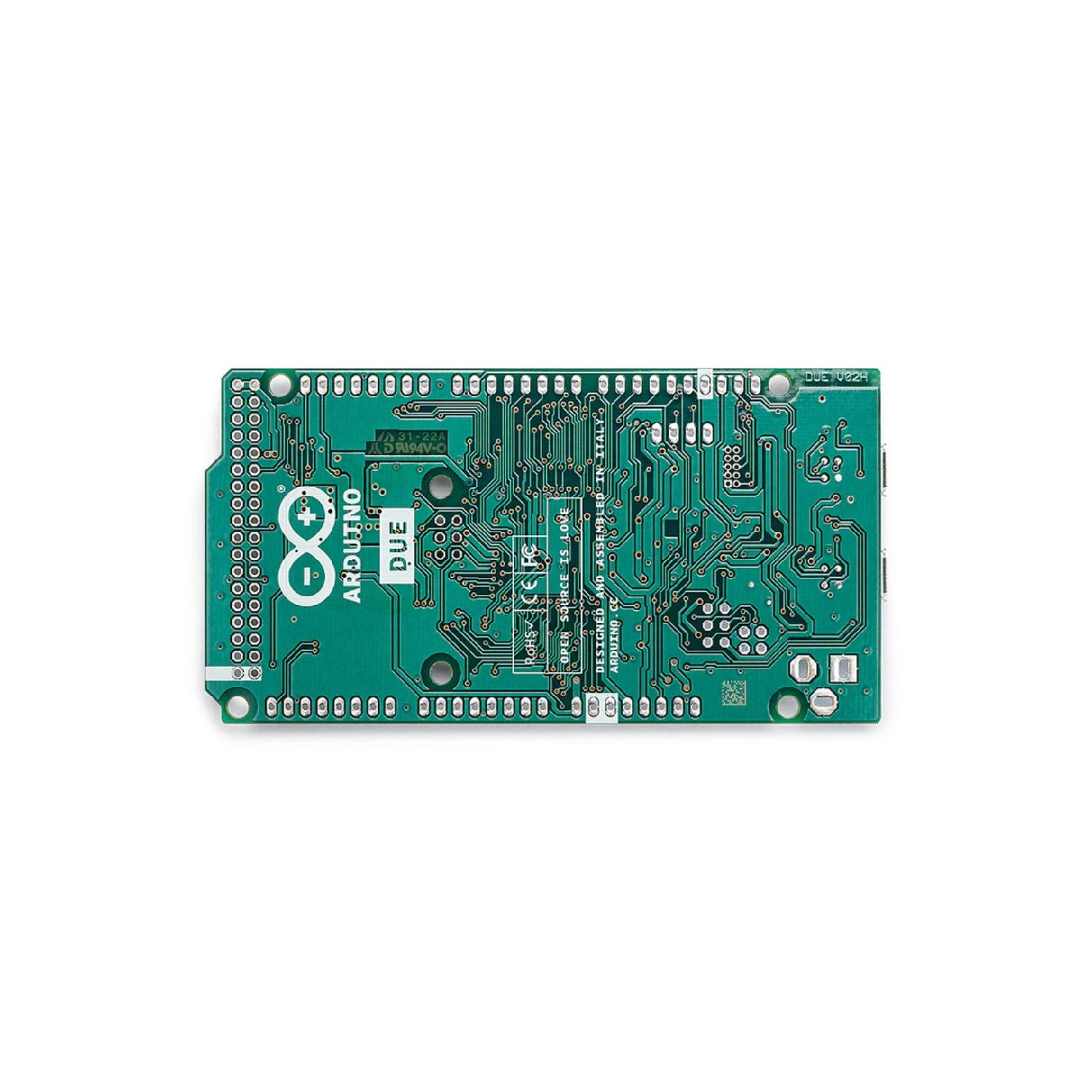

Arduino Due without Headers A000056 Original Image 4

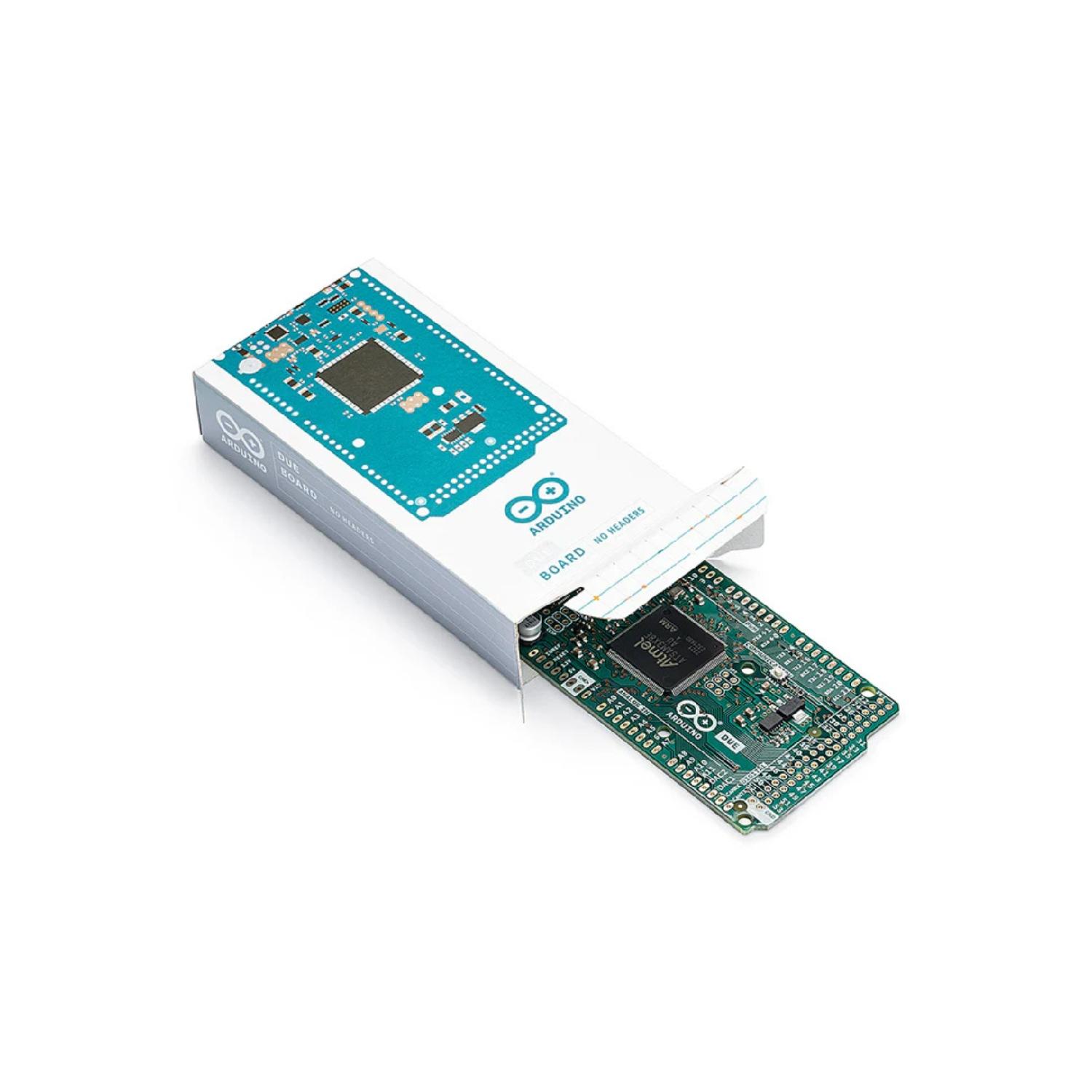

Arduino Due without Headers A000056 Original Image 5

Arduino Due without Headers A000056 Original

The Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU. It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.

Warning: Unlike most Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board.

The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with a AC-to-DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout.

Price : 3,140.00 excl. GST

Qty	Price
1 >	3,140.00
50 >	3,112.00
200 >	3,085.00
500 >	3,058.00
1000 >	3,030.00
1001 >	3,003.00

Description
Datasheet

The Due follows the 1.0 pinout:-

TWI: SDA and SCL pins that are near to the AREF pin.
IOREF: allows an attached shield with the proper configuration to adapt to the voltage provided by the board. This enables shield compatibility with a 3.3V board like the Due and AVR-based boards which operate at 5V.
An unconnected pin, reserved for future use.
