Key Features (Based on Similar Models)
-
Display Type: TN TFT LCD
-
Resolution: 800 × 480 pixels
-
Brightness: 250 nits
-
Color Depth: 16.7 million colors (24-bit)
-

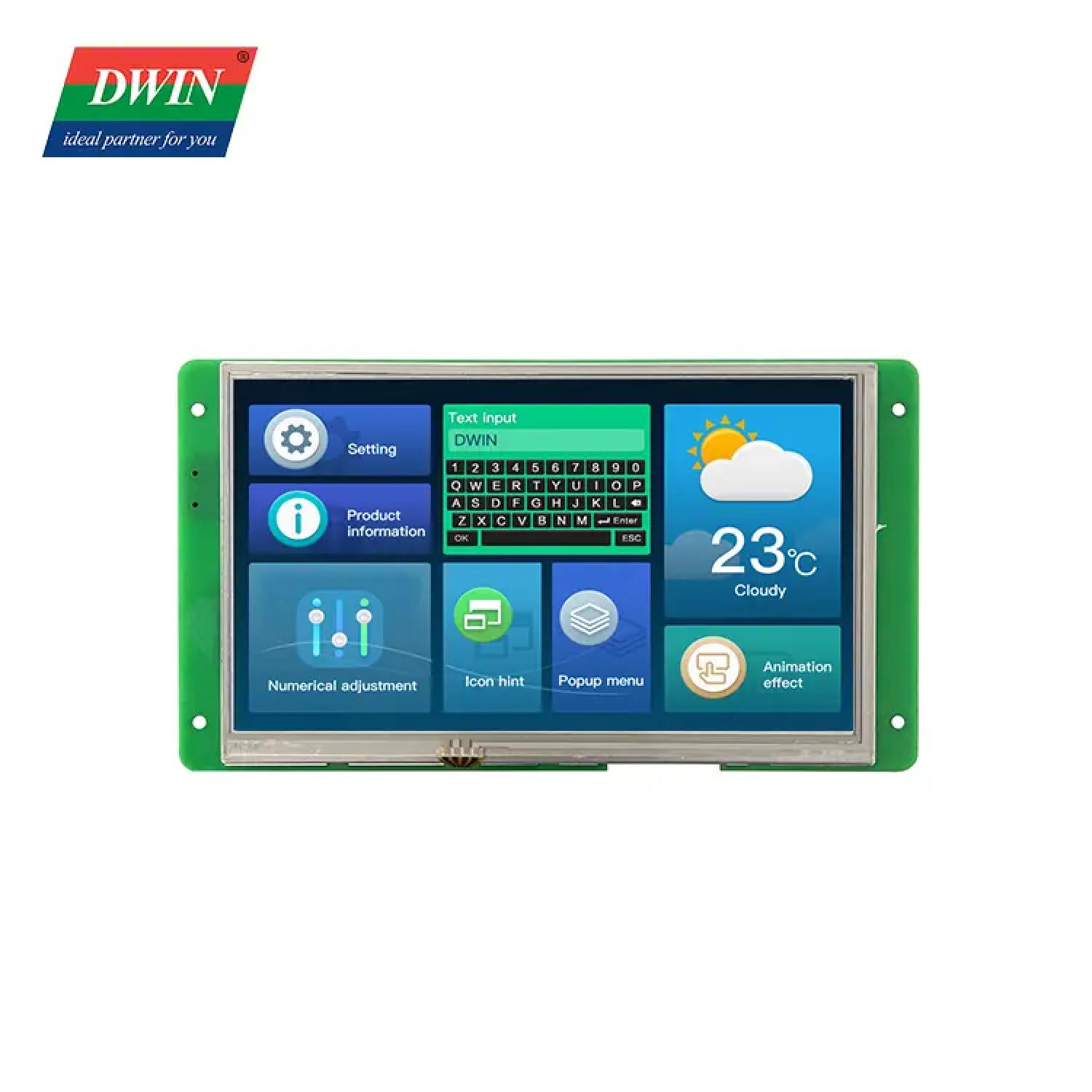

Touch Panel: Resistive Touch Panel
-
Interface: RGB 24-bit, 50-pin, 0.5mm pitch
-
Driver IC: T5L ASIC developed by DWIN
-
Backlight: LED
-
Backlight Lifetime:
30,000 hours
-
Viewing Angle: 70°/70°/50°/70° (L/R/U/D)
-
Operating Voltage: 4.5V to 5.5V
-
Operating Temperature: -20°C to 70°C
-
Storage Temperature: -30°C to 80°C
-
Interface Options: RS232, RS485, TTL
-
Development Tools: DGUS II (no coding required), TA (Instruction set)
-
Flash Storage: 16MB NOR Flash (expandable)
-
Additional Features: Built-in speaker, photosensitive sensor, super-capacitor for RTC
