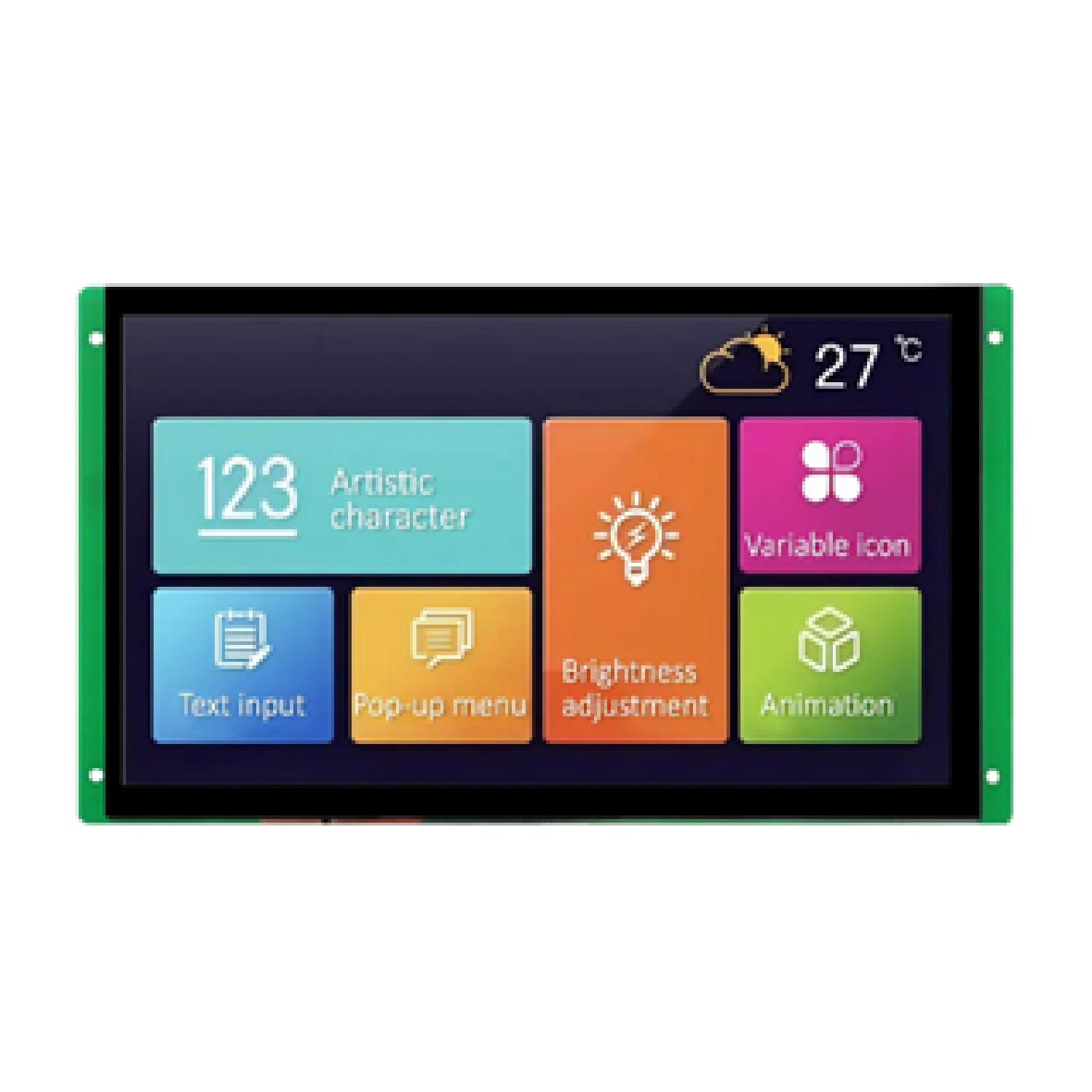

DWIN DMG10600C101_04WTC 10.1 Inch HMI Display Image 1
DWIN DMG10600C101_04WTC 10.1 Inch HMI Display Image 2

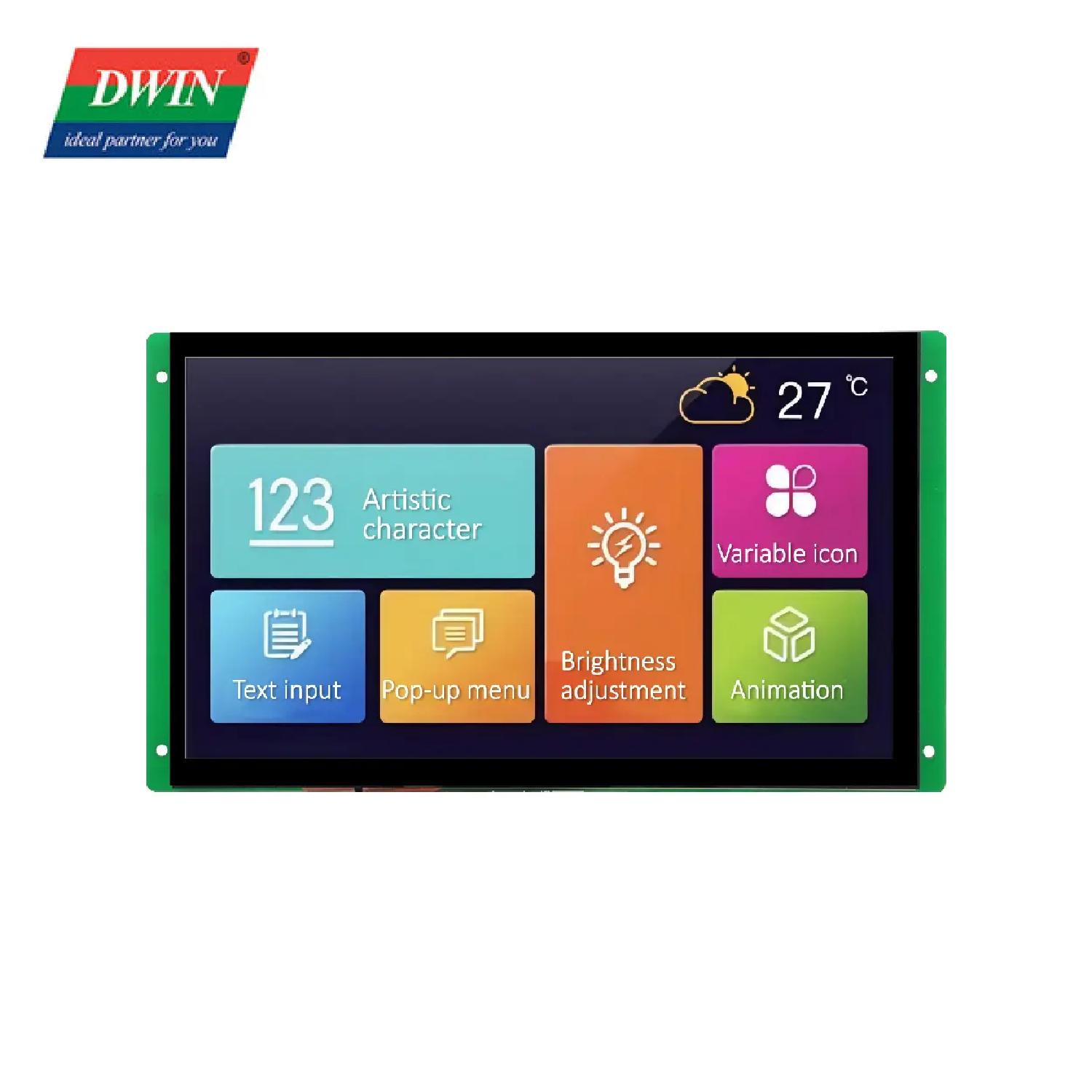

DWIN DMG10600C101_04WTC 10.1 Inch HMI Display Image 3
DWIN DMG10600C101_04WTC 10.1 Inch HMI Display Image 1
DWIN DMG10600C101_04WTC 10.1 Inch HMI Display Image 2
DWIN DMG10600C101_04WTC 10.1 Inch HMI Display Image 3

DWIN DMG10600C101_04WTC 10.1 Inch HMI Display

SKU: 325287

The DWIN DMG10600C101_04WTC is a 10.1-inch commercial-grade HMI (Human-Machine Interface) display module, designed for embedded applications requiring a compact and efficient interface.



Features:

  • Based on self-designed T5L ASIC, 10.1 Inches, 16.7M Colors, 1024*600 Pixel TFT LCD;
  • 8Pin_2.0mm connection wire,TTL/RS232 available;
  • Download via SD card or on-line serial port;
  • Dual Development System: DGUS II/ TA(Instruction set);
  • No coding skills required, easy-to-use DWIN DGUS V7.6 GUIs Development;
  • Widely used witd Arduino,STM32,Microchip ,ESP8266 and so on .
Currently unavailable.

Thank you!

We will notify once stock available.
Price :  excl. GST
Qty Price
1 > 5,005.00
50 > 4,961.00
200 > 4,917.00
500 > 4,873.00
1000 > 4,829.00
1001 > 4,829.00

Specifications -

  • Display Type: IPS TFT LCD

  • Resolution: 1024 × 600 pixels

  • Brightness: 200 nits

  • Color Depth: 24-bit (8R8G8B)

  • Viewing Angle: 85°/85°/85°/85° (L/R/U/D)

  • Touch Panel: Capacitive Touch Panel (G+G structure with tempered glass)

  • Backlight: LED

  • Backlight Lifetime: 20,000 hours

  • Operating Voltage: 6–15V (12V recommended)

  • Operating Current: 310mA (max backlight), 100mA (backlight off)

  • Power Consumption: <5W

  • Interface: UART2 and UART4 (TTL/CMOS or RS232)

  • Storage: 1MB NOR Flash on-chip (expandable to 64MB NOR Flash or 48MB NOR Flash + 512MB NAND Flash)
