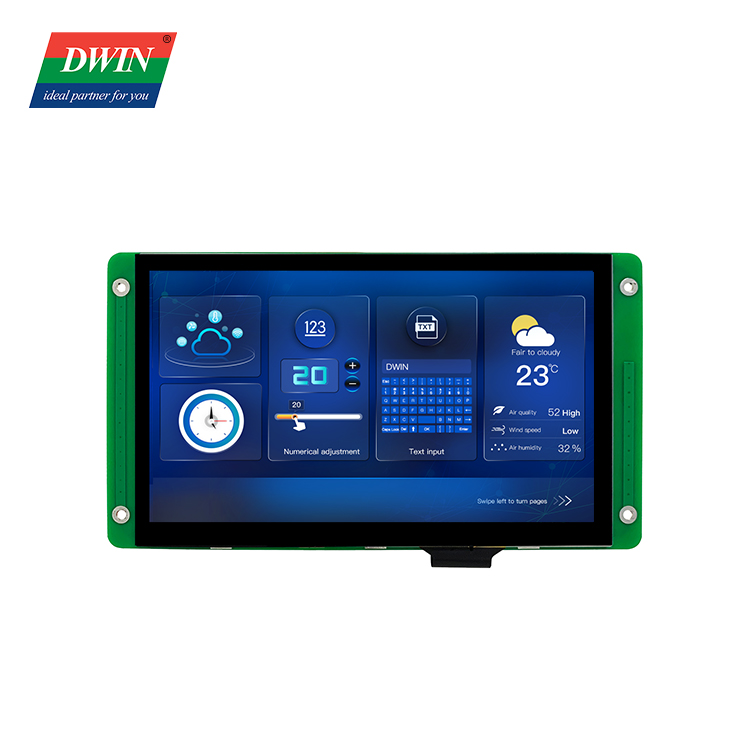

DWIN DMG10600T070_01WTC 7 Inch HMI Display

DWIN 7 Inch DMG10600T070_01W LCD Touch Screen Display
DWIN 1024*RGB*600, 7 inch UART Display

Based on T5L ASIC 7.0 Inch,1024xRGBx600,16.7M Colors, IPS Touch Module
No touch screen/Resistive touch screen/Capacitive touch screen Optional
TTL interface with 8Pin_2.0mm connection wire
Download via SD card or on-line serial port
Software DWIN DGUS V7.6 GUIs Development.do not need skillful technology
Development System: DGUSⅡ/TA(Instruction set)
IPS View Angle:85/85/85/85(L/R/U/D)
With GUI&OS dual-core, GUI with different controls, DWIN OS kernel open to the second-development, via DWIN OS language or KELI C51

Features:

Based on T5L ASIC 7.0 Inch,1024xRGBx600,16.7M Colors, IPS Touch Module
No touch screen/Resistive touch screen/Capacitive touch screen Optional
TTL interface with 8Pin_2.0mm connection wire
Download via SD card or on-line serial port
Software DWIN DGUS V7.6 GUIs Development.do not need skillful technology
Development System: DGUSⅡ/TA(Instruction set)
IPS View Angle:85/85/85/85(L/R/U/D)
With GUI&OS dual-core, GUI with different controls, DWIN OS kernel open to the second-development, via DWIN OS language or KELI C51

120923174946.pdf
