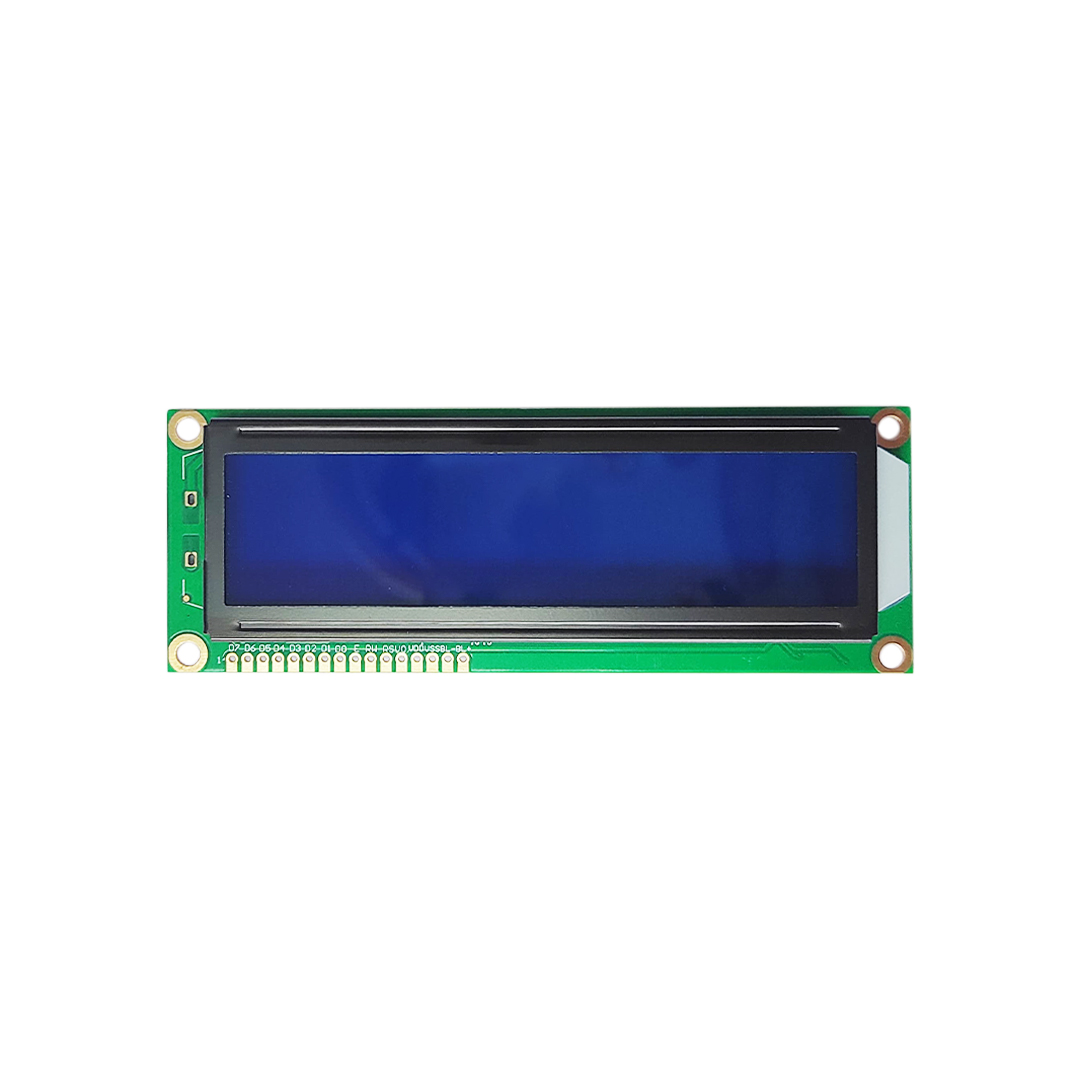

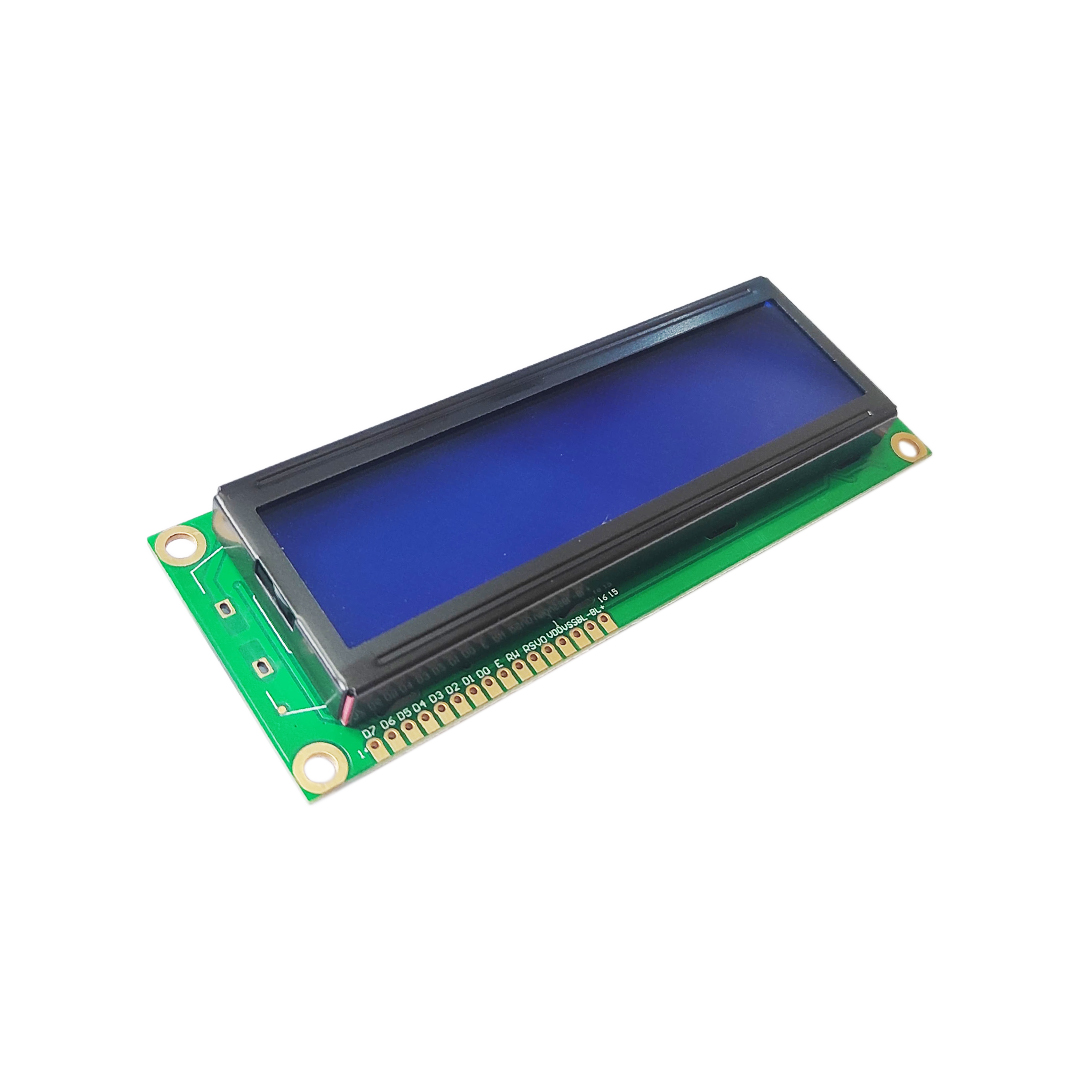

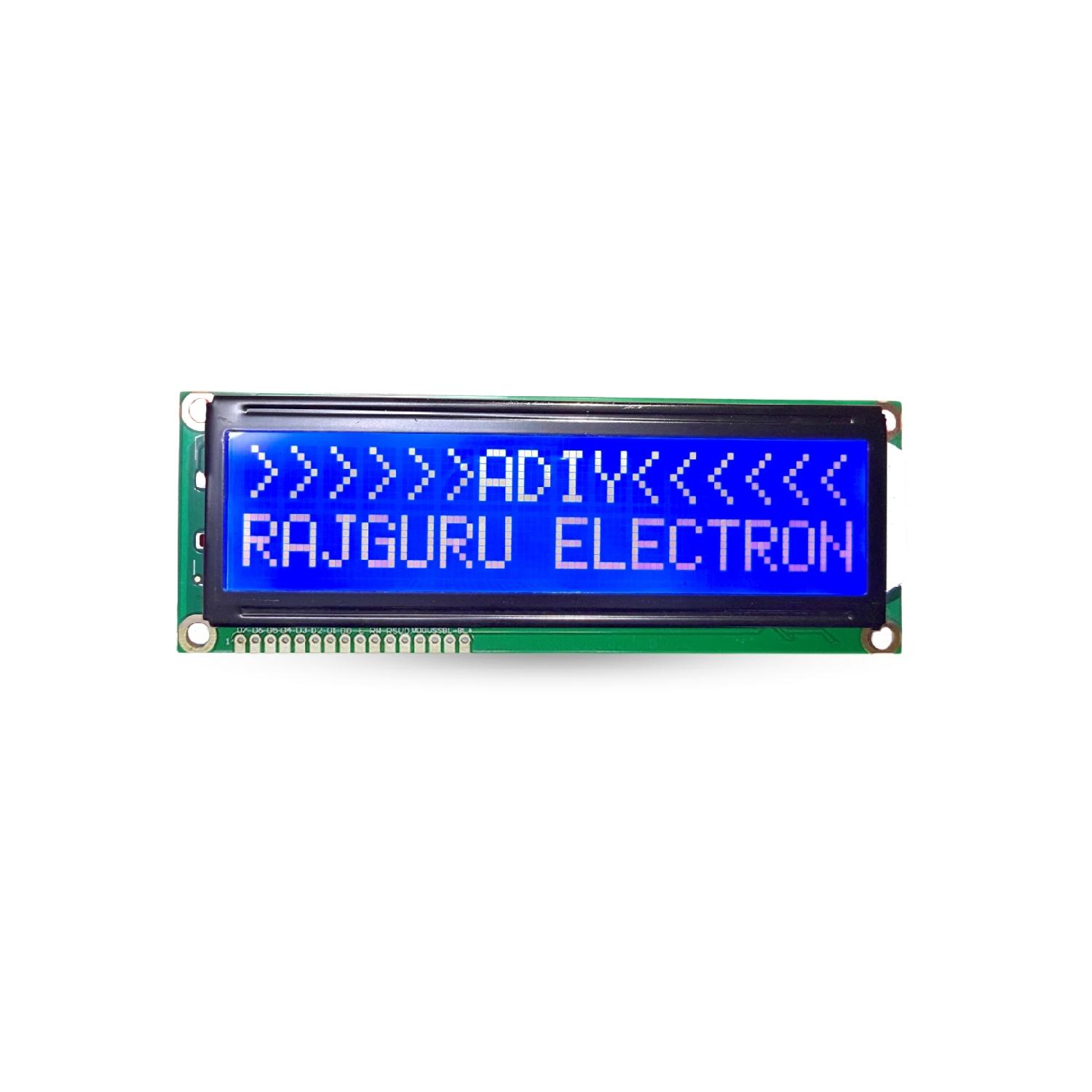

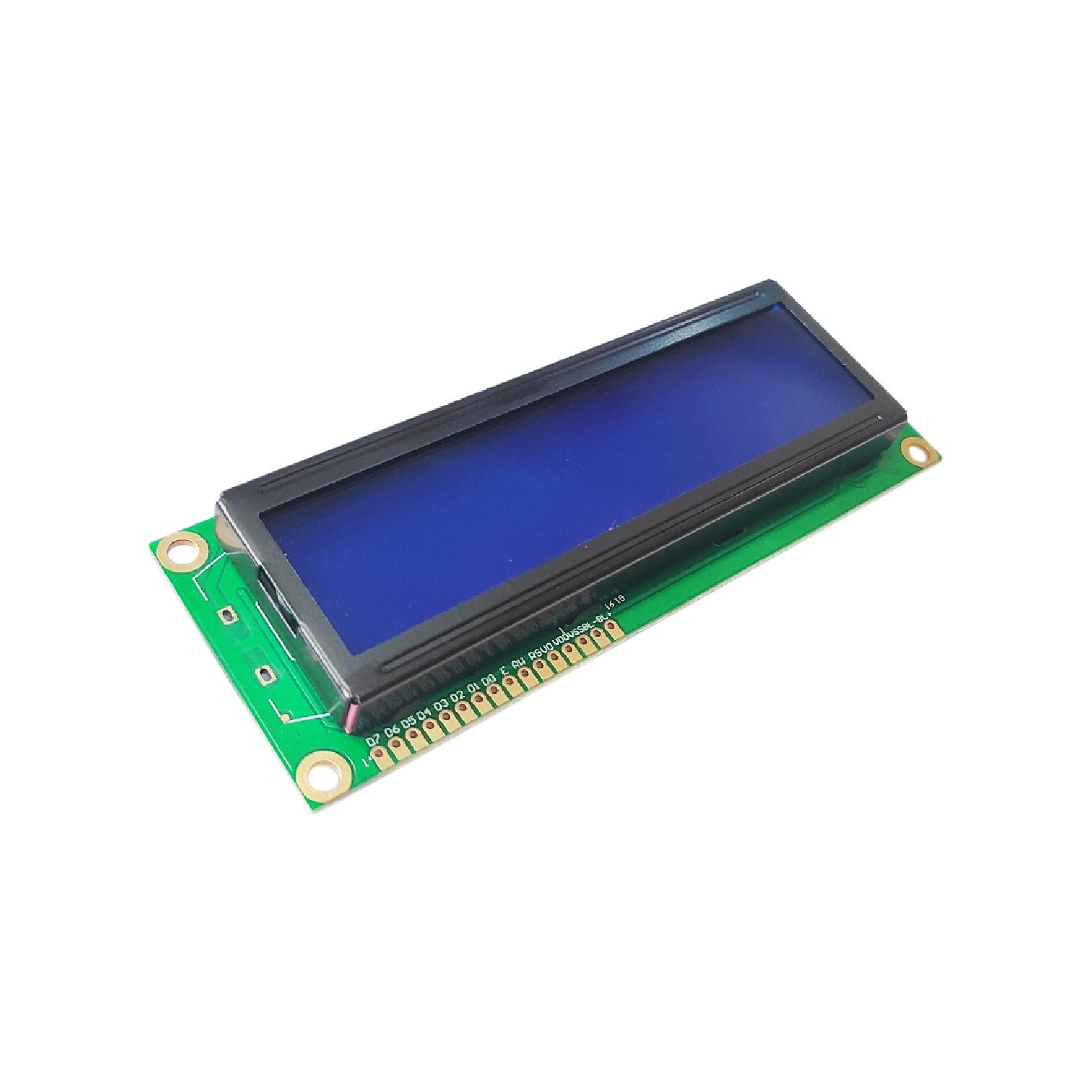

LCD Display 16x2 - The display is 16 character by 2 line display that has a very clear and high contrast white text upon a blue background/backlight.The 16x2 LCD Display is an ideal choice for both hobbyists and manufacturers seeking a reliable and straightforward alphanumeric display solution. This module boasts a compact design with 16 characters displayed per line and 2 lines available, offering ample space for showcasing essential information. For hobbyists, this LCD display serves as a fantastic tool for creating personalized electronic projects. Whether you're building a digital clock, temperature monitor, or data logger, the 16x2 LCD Display provides a clear and easy-to-read interface for your project.
Manufacturers will appreciate the versatility and compatibility of this display module. It can be seamlessly integrated into various product designs, especially those that require a simple and efficient textual interface. Its backlight feature ensures readability in diverse lighting conditions, making it suitable for a range of industrial applications.The values shown on the display can be either simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing.One thing to consider is you’ll waste about 8 Pins on your Arduino for the display to get working. Luckily there exists an I2C adapter that you can solder right onto the pins of the display. So all you need to connect are the I2C pins, which show a good library and little of coding. We have the same LCD module with a pre-assembled I2C adapter, click on the name below to check it
It interfaces smoothly with microcontrollers and development boards through standard communication protocols like I2C and SPI, simplifying the integration process.
Features of LCD Display 16x2 are as follows:
- Display mode : STN /BLUE, NEGATIVE, TRANSMISSIVE
- Colour : Display dot: WHITE
- Background: BLUE
- Display Format : 16 (characters) ×2 (line)
- IC : 7066 7065
- Interface Input Data : 8 Bits
- Driving Method : 1/16 Duty, 1/4 Bias
- Viewing Direction: 6 O’clock
- Backlight : LED (WHITE)
Mechanical Specifications of LCD Display 16x2 are as follows:
- Module Size 122.00(W) X43.69(H) X13.4(T) mm
- Viewing Area 99.00(W) X 23.99(H) mm
- Effective Display Area 95.02(W) X 20.18(H) mm
- Number of Dots 16(characters) ×2(line) -
- Dot Size 1.08(W) X 0.94(H) mm
- Dot Pitch 1.16(W) X 1.02(H) mm
Packaging: 1 x LCD Display 16x2 (Blue Jumbo)
For hobbyists, the 16x2 LCD Display is available individually, ensuring safe delivery with foam or bubble wrap in small boxes or envelopes. Manufacturers can benefit from antistatic packaging for bulk orders to prevent damage during transportation and storage. For automated assembly, it may be packed in reels or trays.
Hobbyists: Enthusiasts, makers, and hobbyists working on their electronic projects, seeking an easy-to-use and reliable display module for a variety of applications.
Manufacturers: Companies and industries integrating LCD displays into their product designs, especially those requiring a simple and efficient alphanumeric interface for industrial applications.
