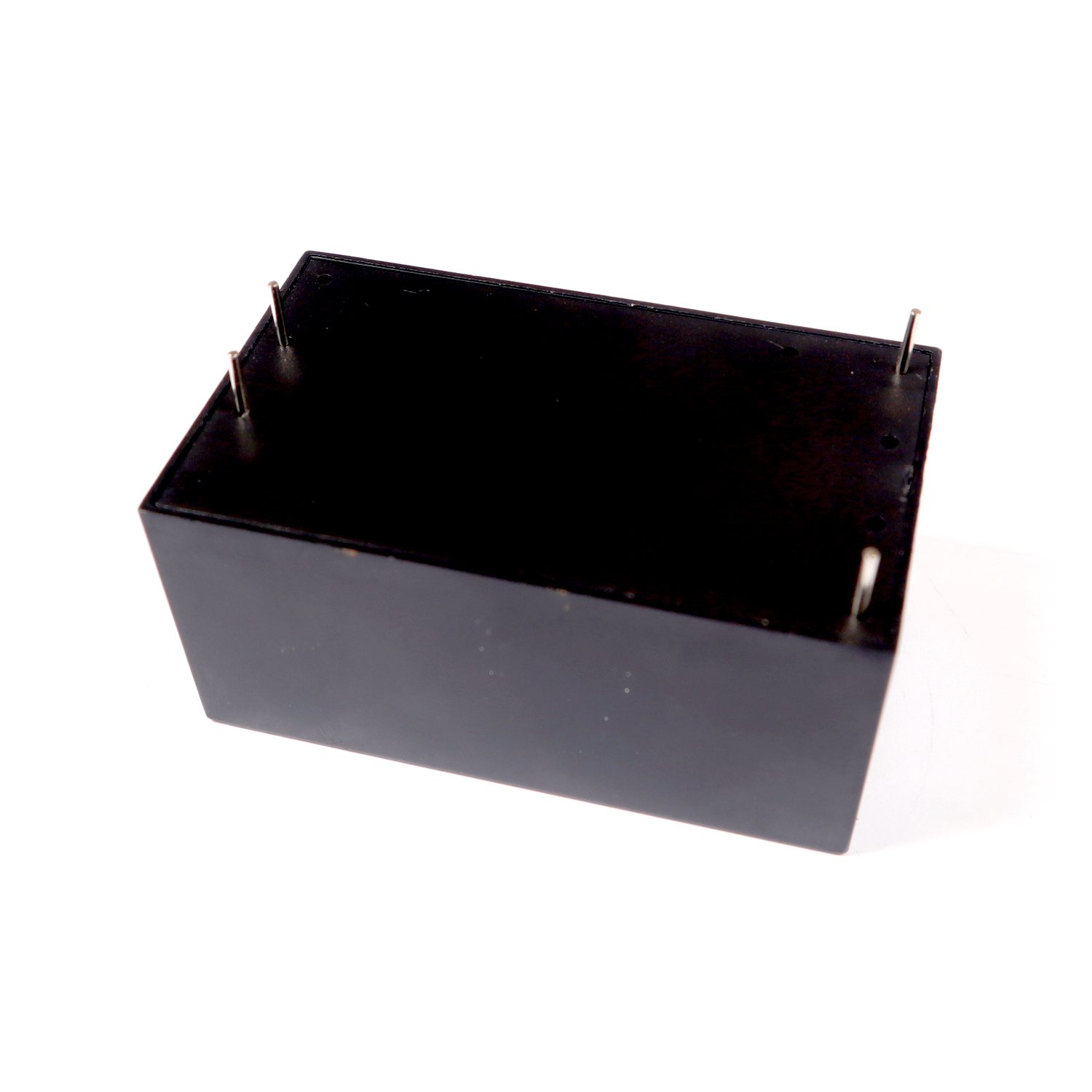

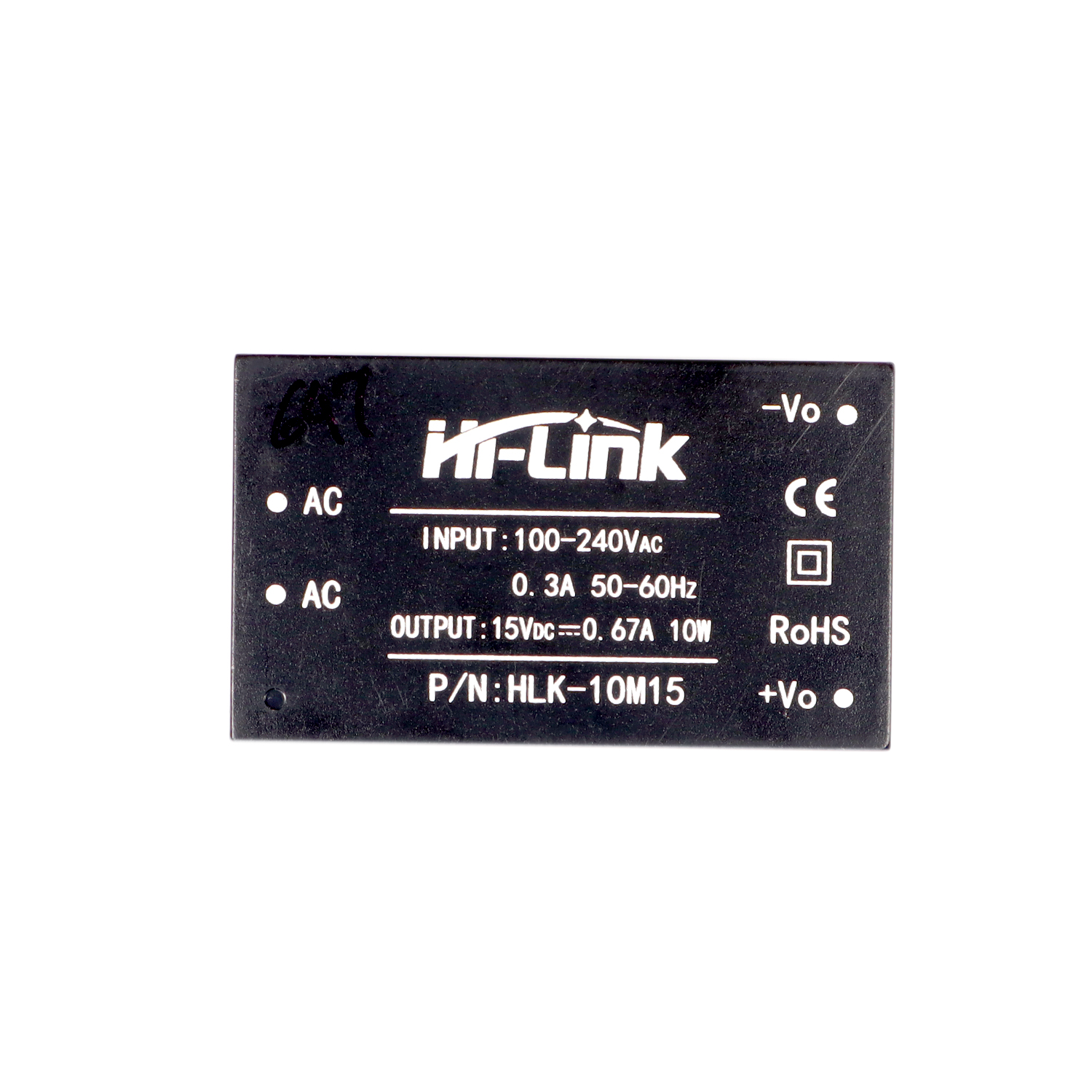

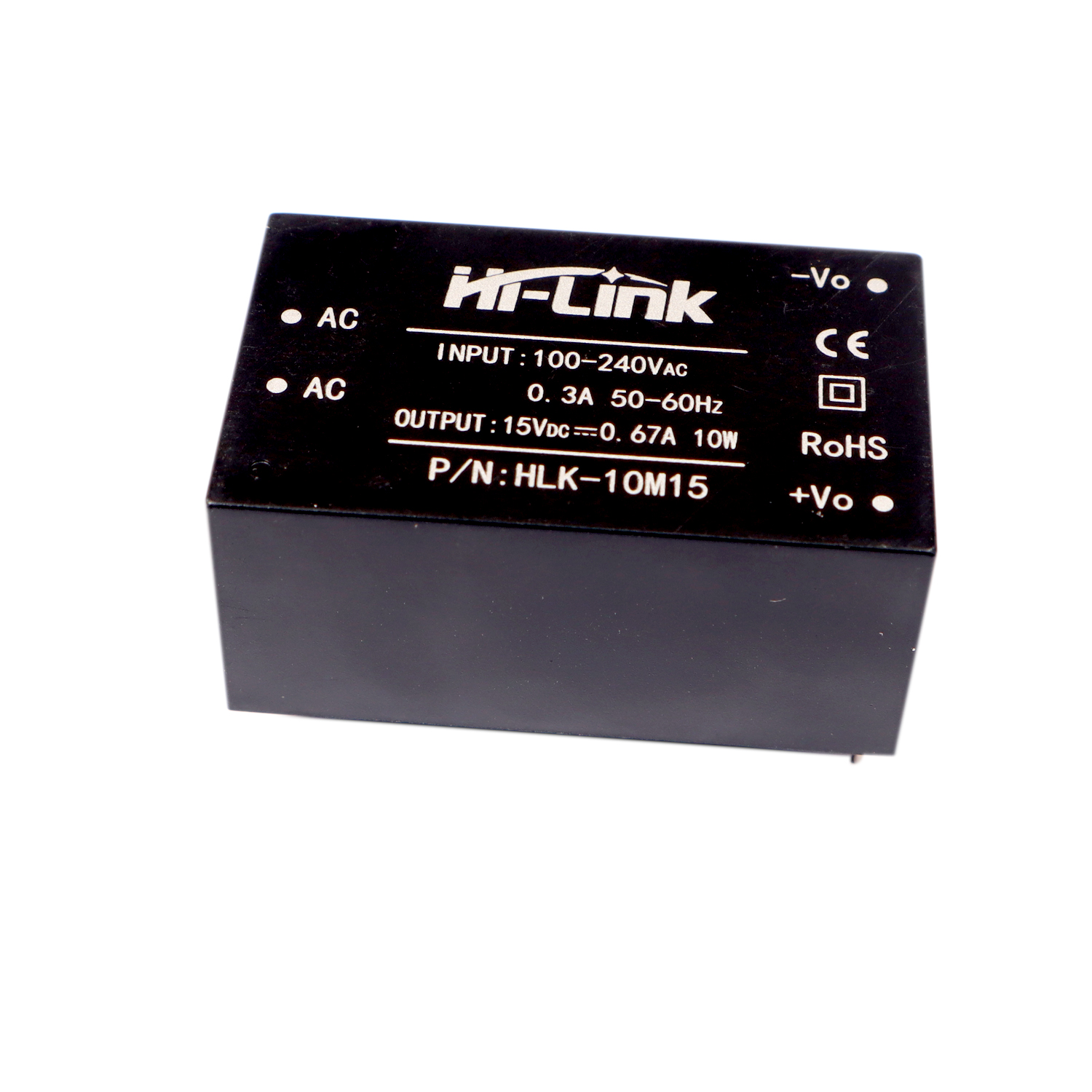

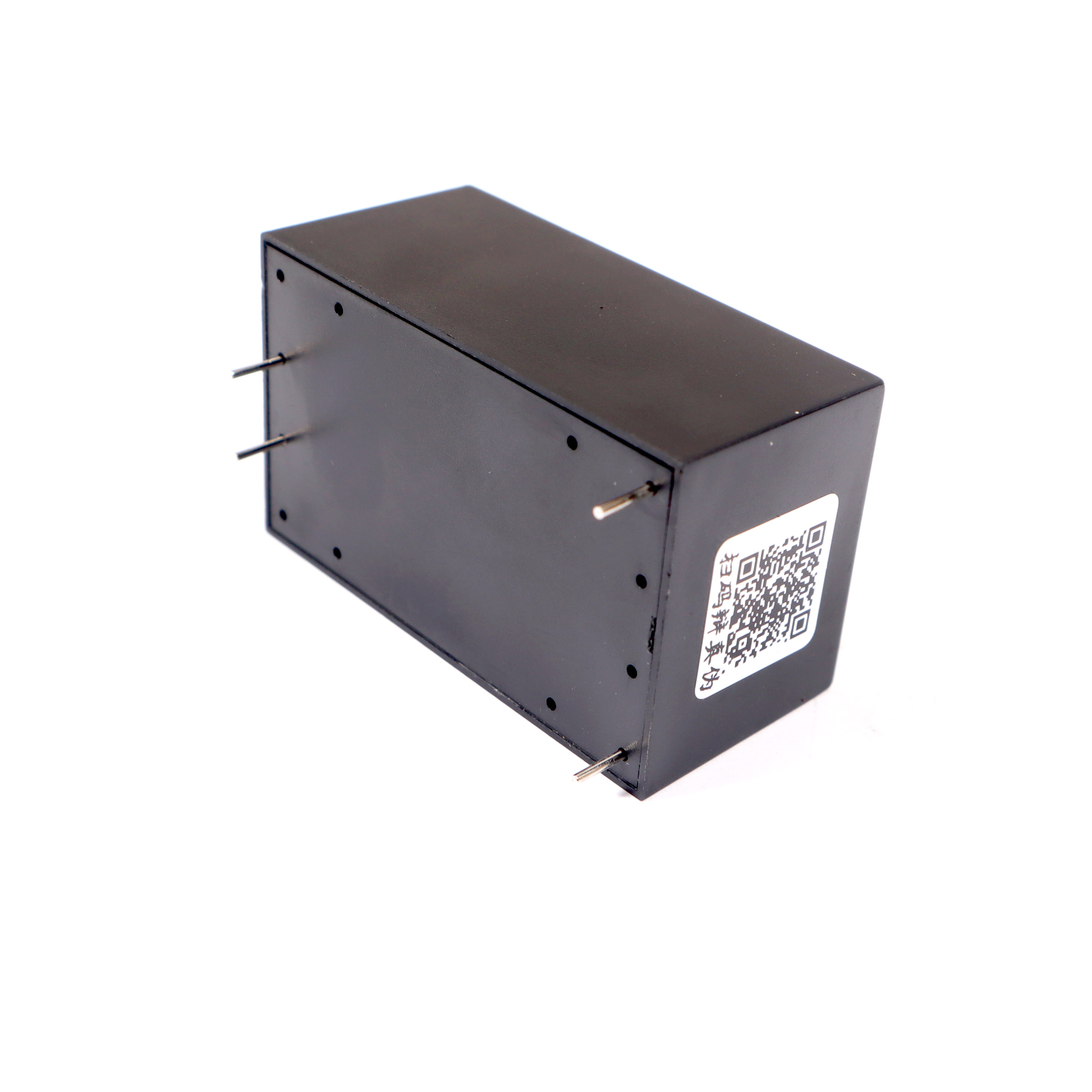

HLK-10M15 Hi-Link 15V 10W AC to DC Power Supply Module is a plastic enclosed PCB mounted power supply module. It can supply 15V DC from 100V AC 240V AC and has a power rating of 10 Watt. This makes it perfect for small projects that need a 5 volt supply from mains. There are many advantages to these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.The 10W ultra-small series power supply module is a small volume, high-efficiency power module for customers designed by Hi-Link. It has the advantage of the global input range, low-temperature rise, low power consumption, high efficiency, high reliability, etc. It has been widely used in smart homes, automation control and other industries.
It is designed to be mounted on the PCB and is the ideal solution to power pads that you take. It is widely used in a smart home, automation and control, communication equipment, instrumentation, and other industries.
Specifications : HLK-10M15 power module
- Model Number - HLK-10M15
- Output Power(W) - 10
- Output Type - Single
- Input Voltage(V) - 100-240
- Output Voltage(V) - 15
- Output Current(mA) - 667mA
- Working Temp(C) -25 +60
- Working Humidity - 5-95
- Output DC voltage 15V
- Colour black
- dimension 46.9x 27.8x 21.8mm (+-0.5mm)
- weight 30gm
Features : HLK-10M15 power module
- Meet UL, CE requirements,
- Ultra-thin, ultra-small
- All voltage input (AC: 100 ~ 240V)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- The product is designed to meet the requirements of the EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
PRODUCT FEATURES
- Wide range input: 85-264VAC/70-350VDC
- Input and output isolation withstand voltage 3000VAC
- No-load power consumption ≤0.1W
- Operating temperature range: -25°C~+60°C
- Fully enclosed plastic housing, in line with UL94V-0 level
- Good output short circuit and over current protection and self-recovery
- Potting and sealing with high-quality environmentally friendly waterproof and thermal conductive glue, dustproof, moistureproof, shockproof and flame retardant
- Meet UL/CE/EMC and safety testing requirements
- Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields
Input part
- Fuse/fuse: protection circuit when the module is abnormal (recommended: 0.5A/250Vac slow blow)
- Varistor/ Varistor: Protection module during cumulative surge (recommended: 10D561K)
- C1/Safety capacitor: filter, safety protection (EMC certification) (recommended: 0.1uF/275Vac)
- L1/Common mode inductor: EMI filtering (recommended: inductance 10-15mH, current 70-500mA)
SAFTEY FEATURES
- Product design meets UL/CE and safety certification requirements.
- (UL/CE certification must be completed by the customer)
- Safety and electromagnetic compatibility
- The input end design adopts UL certification 0.5A insurance
- The PCB board is made of double-sided copper clad laminate, and the fire rating of the material is 94-V0
- Safety standards comply with UL1012, EN60950, UL60950
- Insulation voltage I/P-O/P: 2500Vac
- Insulation resistance I/P-O/P>100M Ohms/500Vdc 25℃ 70% RH
- Conduction and radiation comply with EN55011, EN55022 (CISPR22)
- Safety standards comply with UL1012, EN60950, UL60950
- Electrostatic discharge IEC/EN 61000-4-2 level 4 8kV/15kV
- Radio frequency radiation immunity IEC/EN 61000-4-3 See application note for details
- Temperature rise safety design
- The maximum temperature rise of the inner surface of the power supply capacitor, main converter, etc. does not exceed 90℃ at room temperature;
- The maximum temperature rise of the shell surface shall not exceed 60℃.
Size error:
- Length, width, height and lead pitch error ±8%
- Lead length error ±1mm
- Lead diameter error -0.2mm
Environmental conditions:
- Technical indicators: Single bit
- Working temperature: 20-60 +degree
- Storage temperature: + 80-40 -degree
- Relative humidity: 5-95%
- The cooling way: Natural cooling
- The atmospheric pressure: 80-106Kpa
- The altitude: 2000M or less.
Package Includes: 1 x HLK-HLK-10M15 Hi-Link 15V 10W AC to DC Power Supply Module
