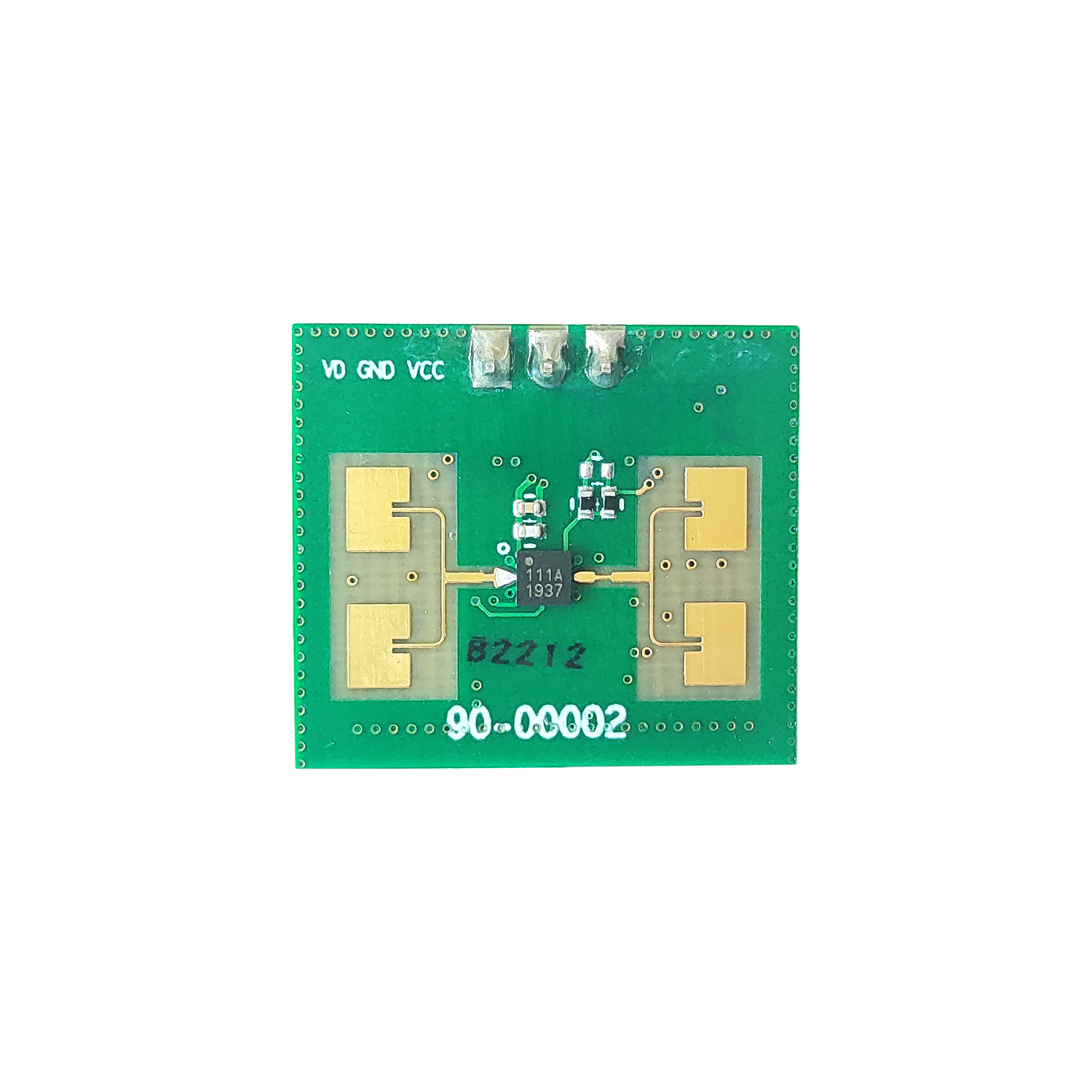

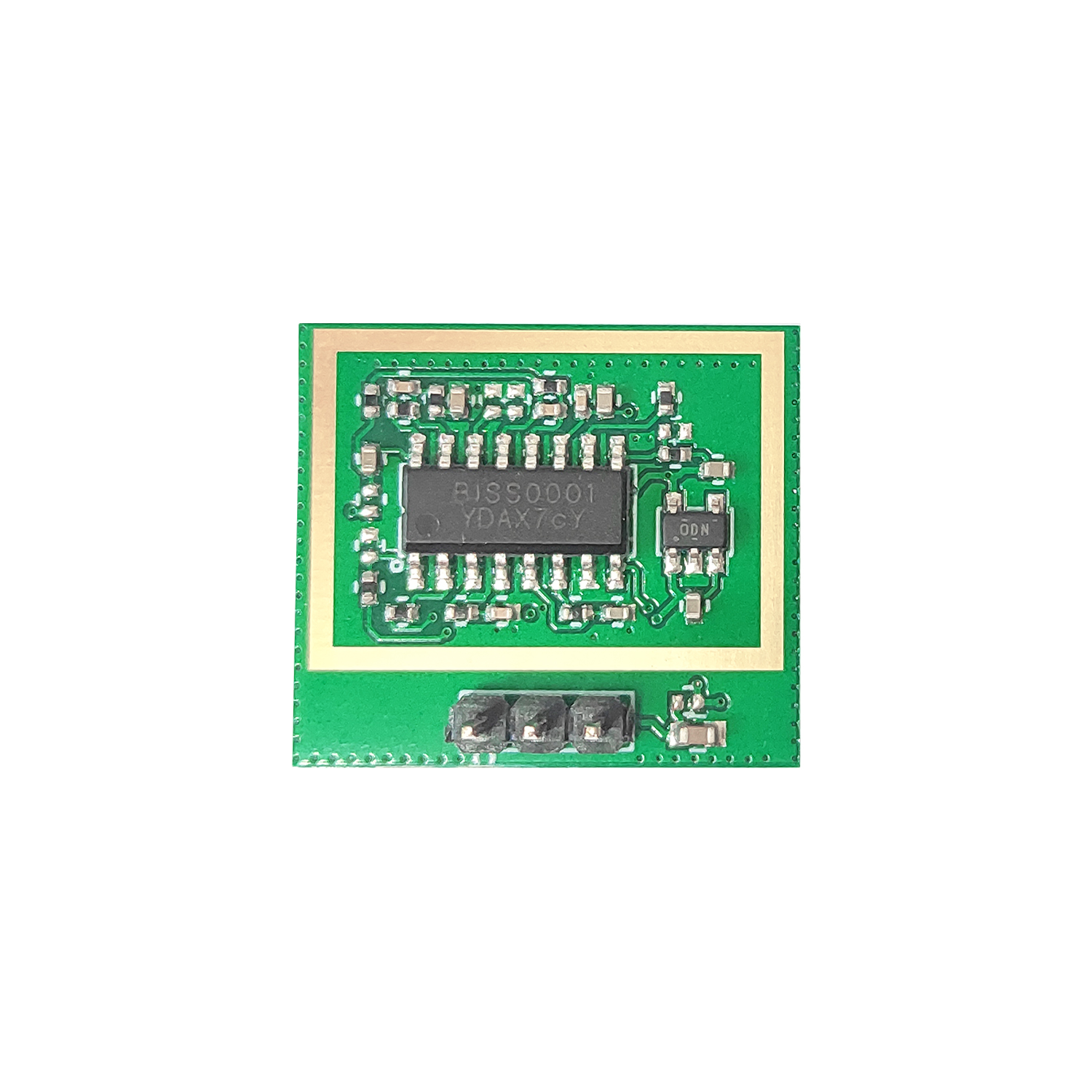

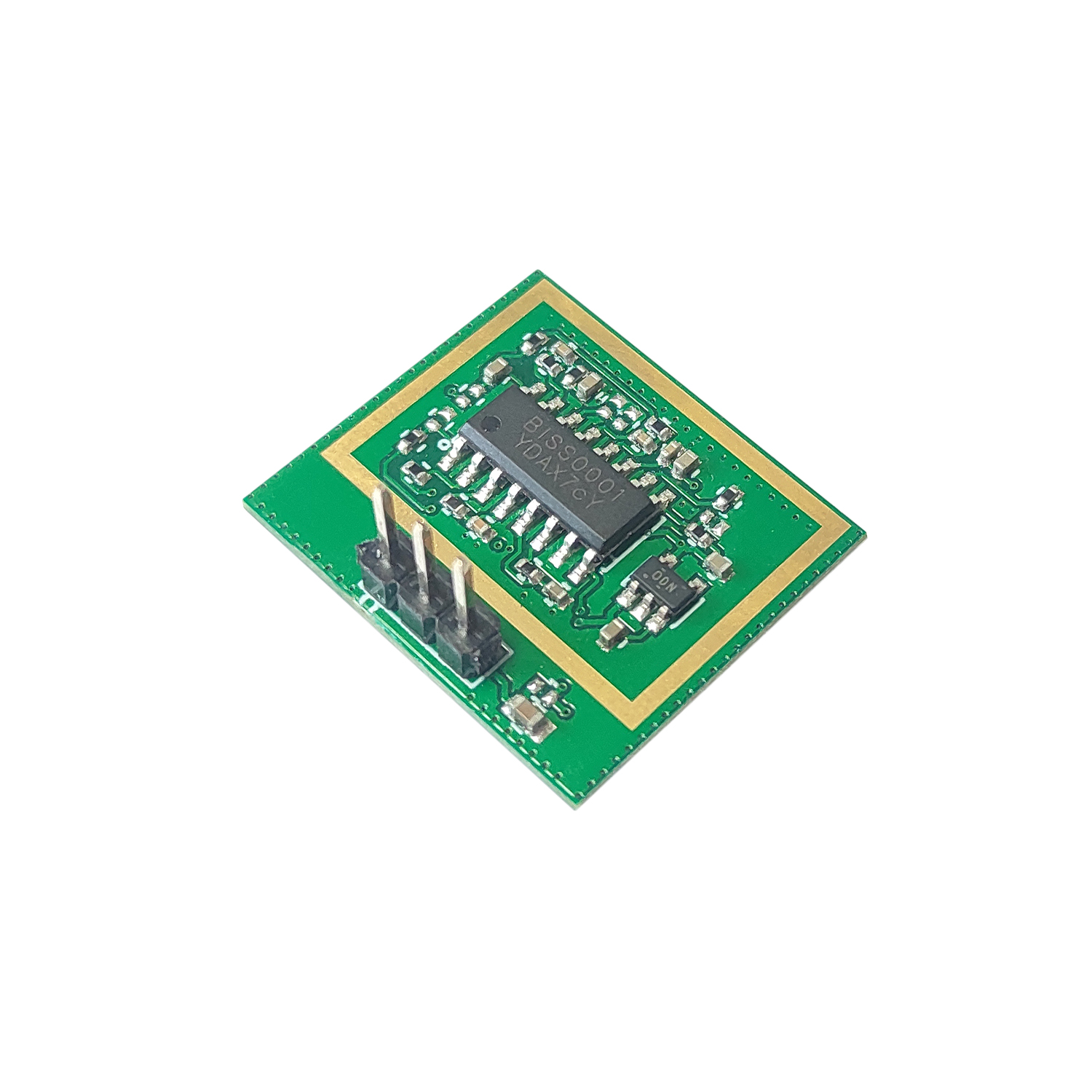

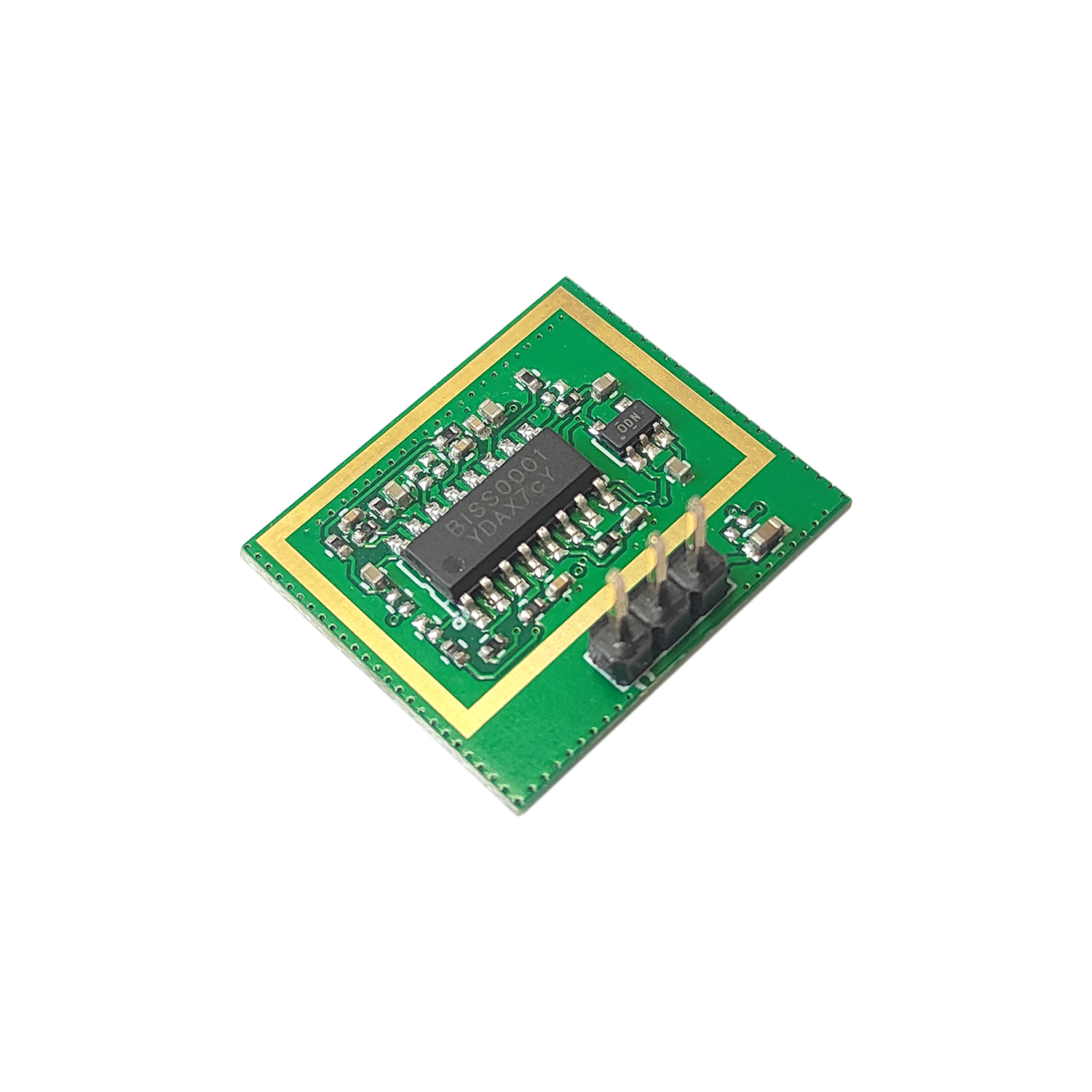

24GHz millimeter wave radar sensor motion detection sensor PIR module LD112 low power consumption and small size
HLK-LD112-24G Internet of Things microwave radar module, which can be used to detect moving targets in a small range, and output high and low level information, and is not affected by the installation environment. It can automatically filter various debris (still life) in the environment, Such as tables, mops, etc.HLK-LD112-24G has industry-leading excellent performance, small size, low cost, and low power consumption. It can provide customers with ideal and better performance object movement monitoring solutions.
- Intelligent transportation
- industrial applications
- sign detection
- automotive applications
Features & Specifications:
- TX frequency range: 24~24.25GHz
- TX EIRP: 9dBm
- Phase noise: -96dBc/Hz@1MHz offset
- RX noise figure: 10 dB DSB
- 5V power supply current: 55mA
- Small size: 22.95mm×20mm
Electrical characteristics (at 25°C):
Connection instructions:
The pin is 2.54mm 1×3 pin connector connection.
Module dimensions:
Product includes : 1x HLK-LD112 Radar Sensor Module
