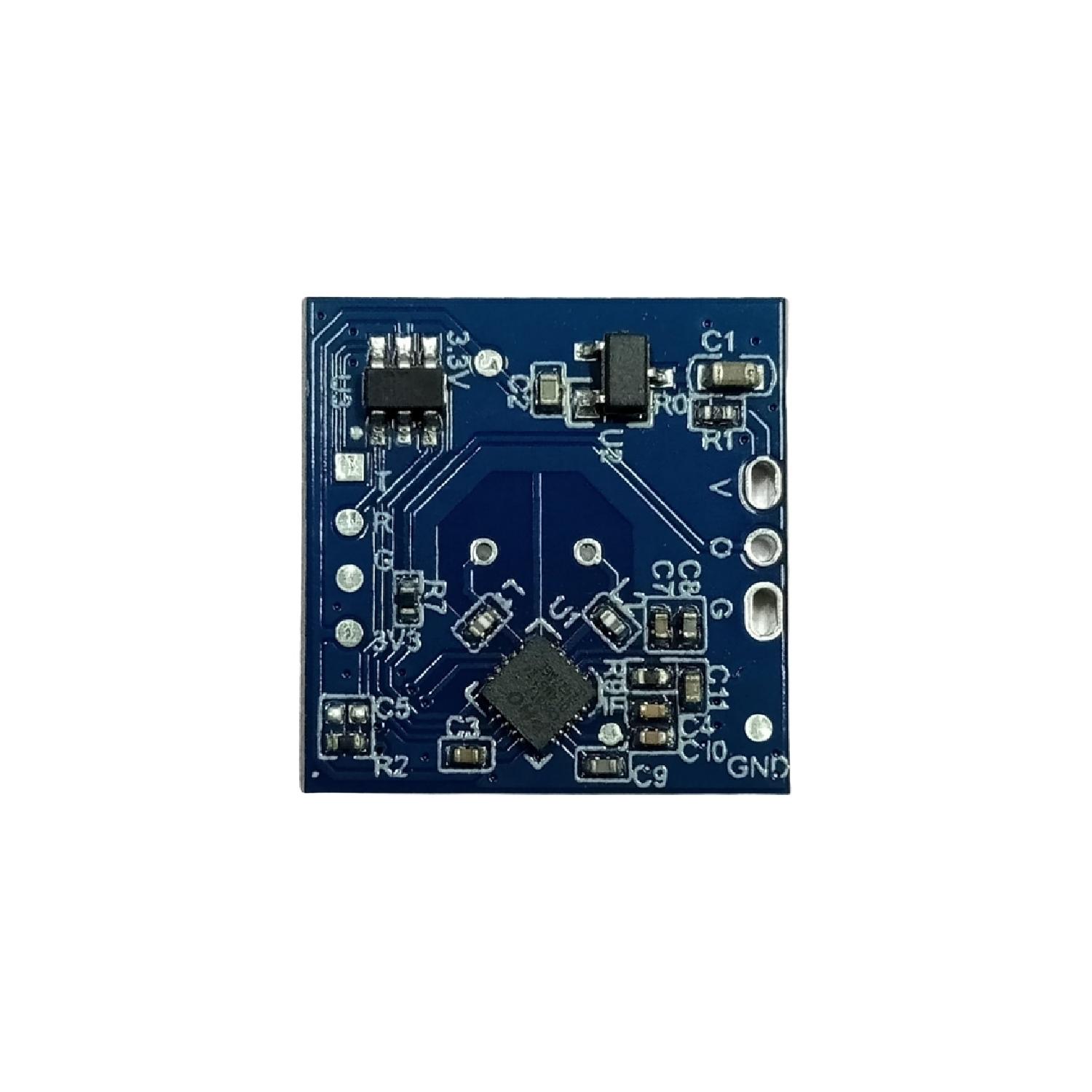

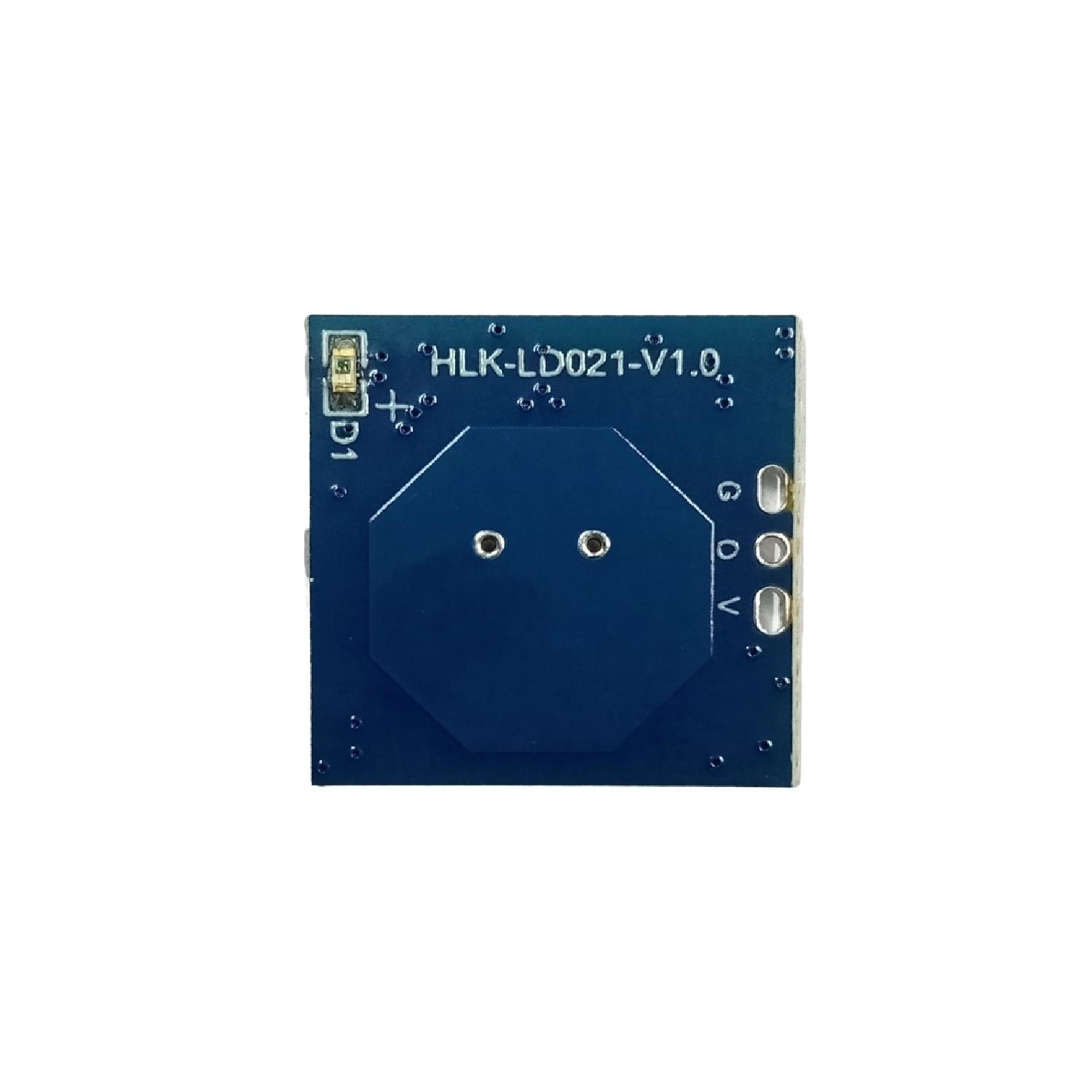

Hi-link HLK-LD021-5G Radar Sensor Module
The Hi-Link HLK-LD021-5G is a 5.8GHz microwave Doppler radar sensor module designed for motion detection and presence sensing in embedded and automation applications. Operating in the 5.725–5.875 GHz ISM band, it uses fixed-frequency Doppler radar technology to detect movement by analyzing frequency shifts in reflected microwave signals.
It is important to note that the “5G” in HLK-LD021-5G refers to the 5GHz radar frequency band, not cellular 5G networks. This module delivers stable and accurate motion detection without relying on heat signatures, making it more reliable than traditional PIR sensors in many environments.
With a wide detection angle (~110°) and a typical detection range of 3 to 10 meters, the HLK-LD021-5G is ideal for smart lighting, occupancy detection, security systems, and industrial automation. Its compact design allows easy integration into various electronic systems.
Key Features : Hi-link HLK-LD021-5G Radar Sensor Module
- 5.8GHz Doppler radar motion sensing
- Wide frequency band: 5.725 – 5.875 GHz
- Reliable non-contact motion detection
- Wide detection angle: approx. 110° ±10°
- Detection range: approx. 3–10 meters (environment dependent)
- More reliable than PIR sensors in complex environments
- Works without line-of-sight limitations
- Compact and easy-to-integrate module
- Stable performance across varying environmental conditions
Technical Specifications : Hi-link HLK-LD021-5G Radar Sensor Module
- Operating Frequency: 5.725 – 5.875 GHz
- Radar Technology: Doppler microwave radar
- Detection Type: Motion / presence detection
- Detection Range: Approx. 3 – 10 meters
- Detection Angle: ~110° ±10°
- Detection Method: Frequency shift (Doppler effect)
- Output Type: Digital signal (motion detection)
- Form Factor: Compact PCB module
- Installation: Ideal for ceiling or wall mounting
(Refer to the datasheet for detailed electrical parameters, pin configuration, and installation guidelines.)
Applications : Hi-link HLK-LD021-5G Radar Sensor Module
- Smart lighting & motion-activated systems
- Occupancy sensing in smart buildings
- Security and intrusion detection
- Energy-saving automation systems
- Industrial motion detection
- Embedded IoT motion sensing solutions
Package Includes : Hi-link HLK-LD021-5G Radar Sensor Module
1 × Hi-Link HLK-LD021-5G 5.8GHz Radar Sensor Module
