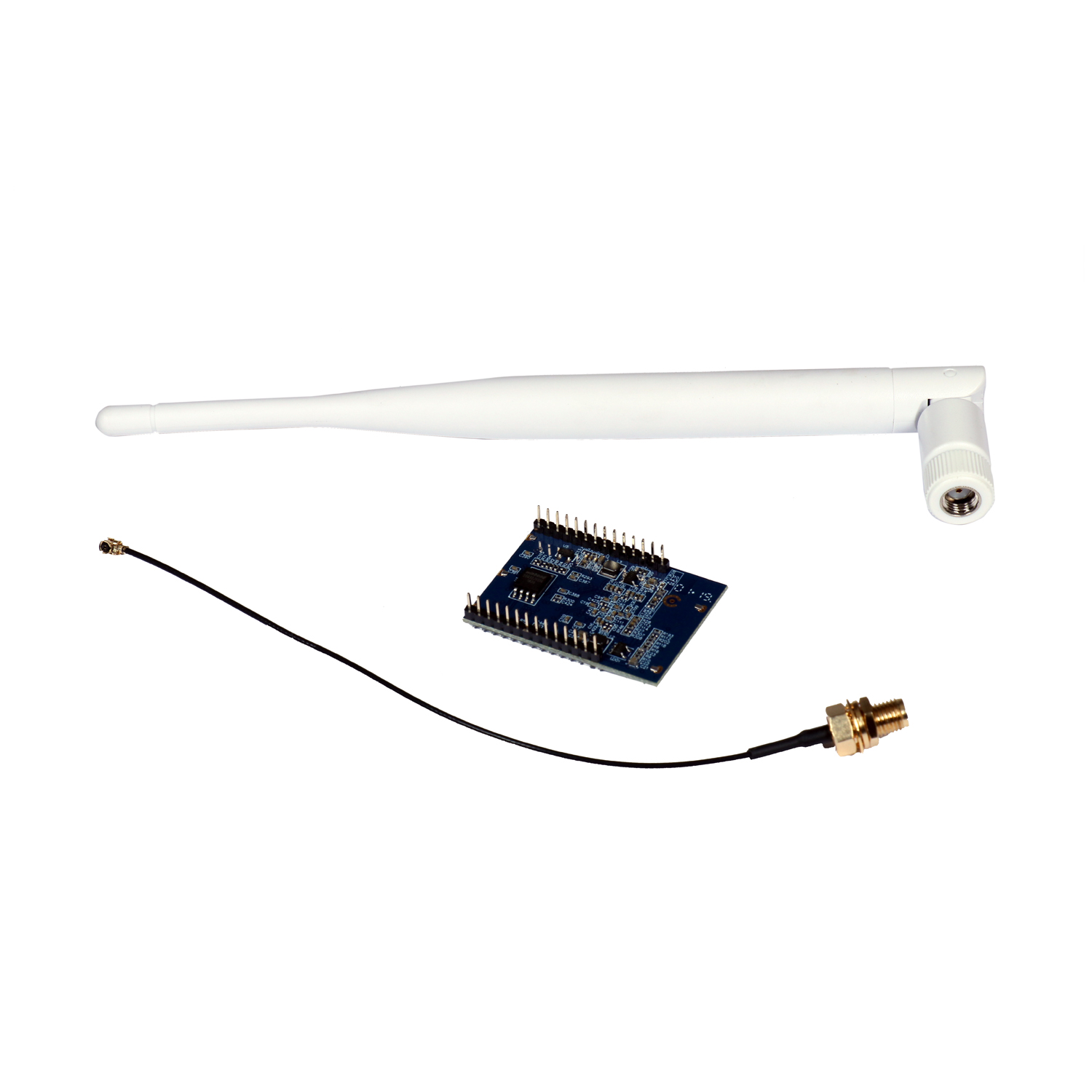

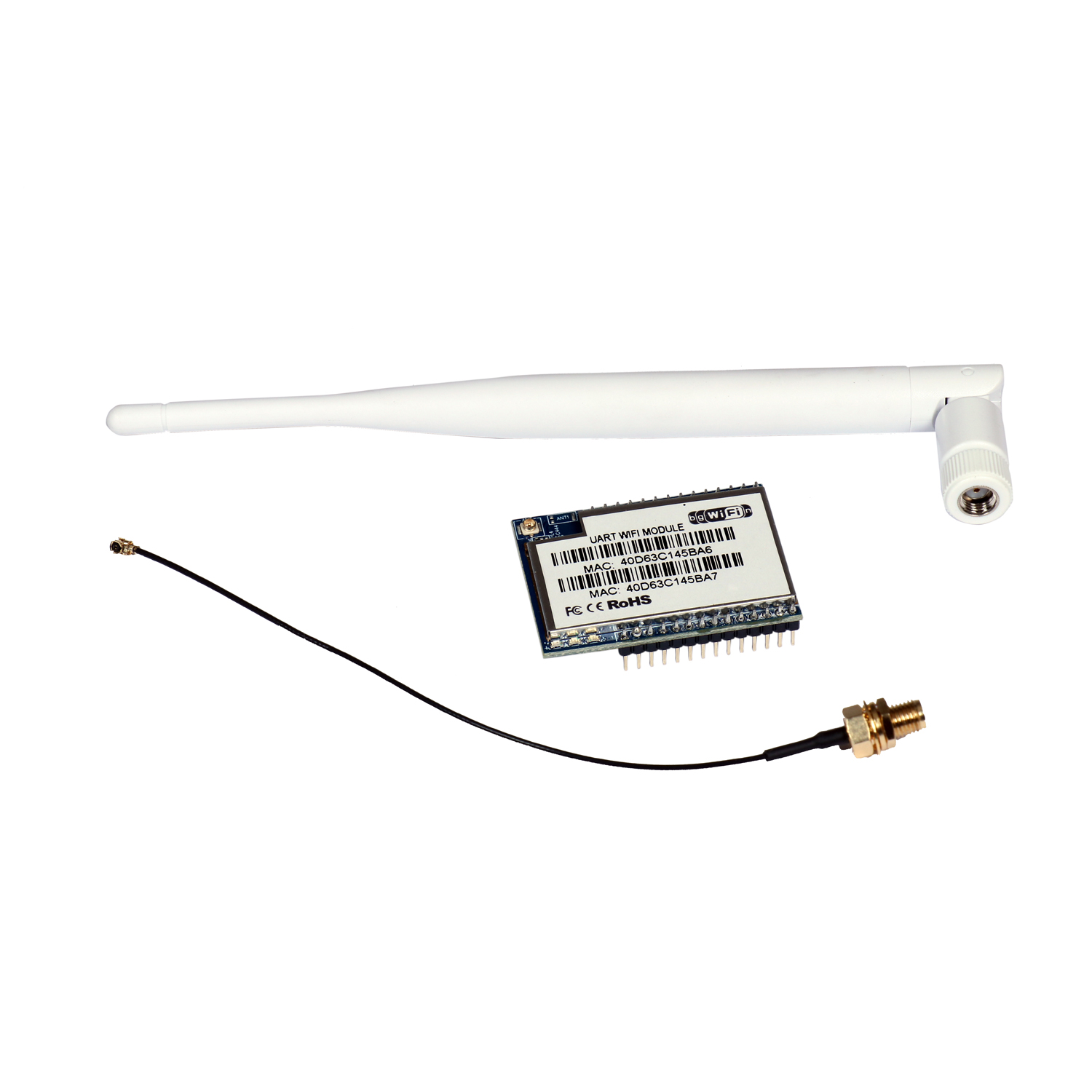

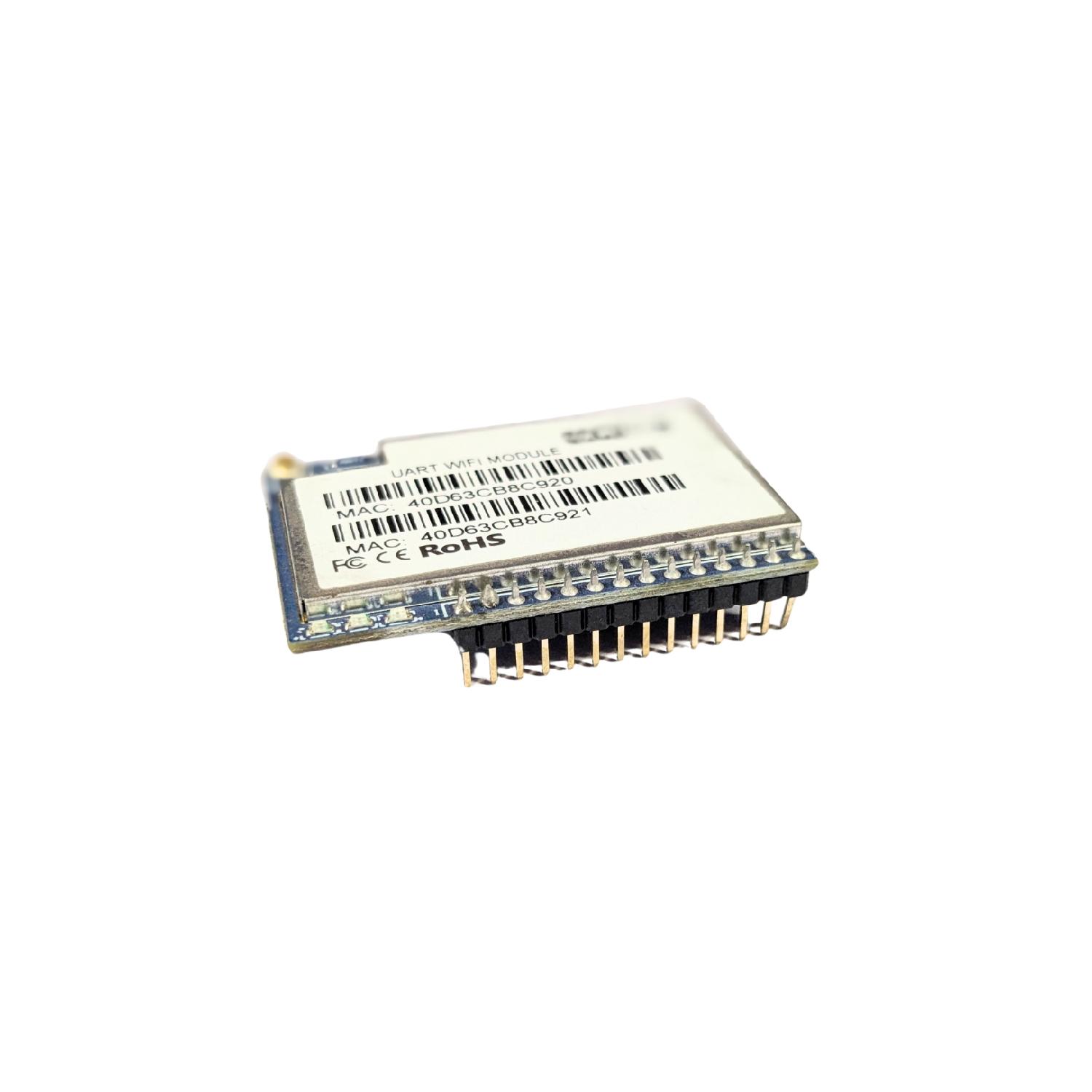

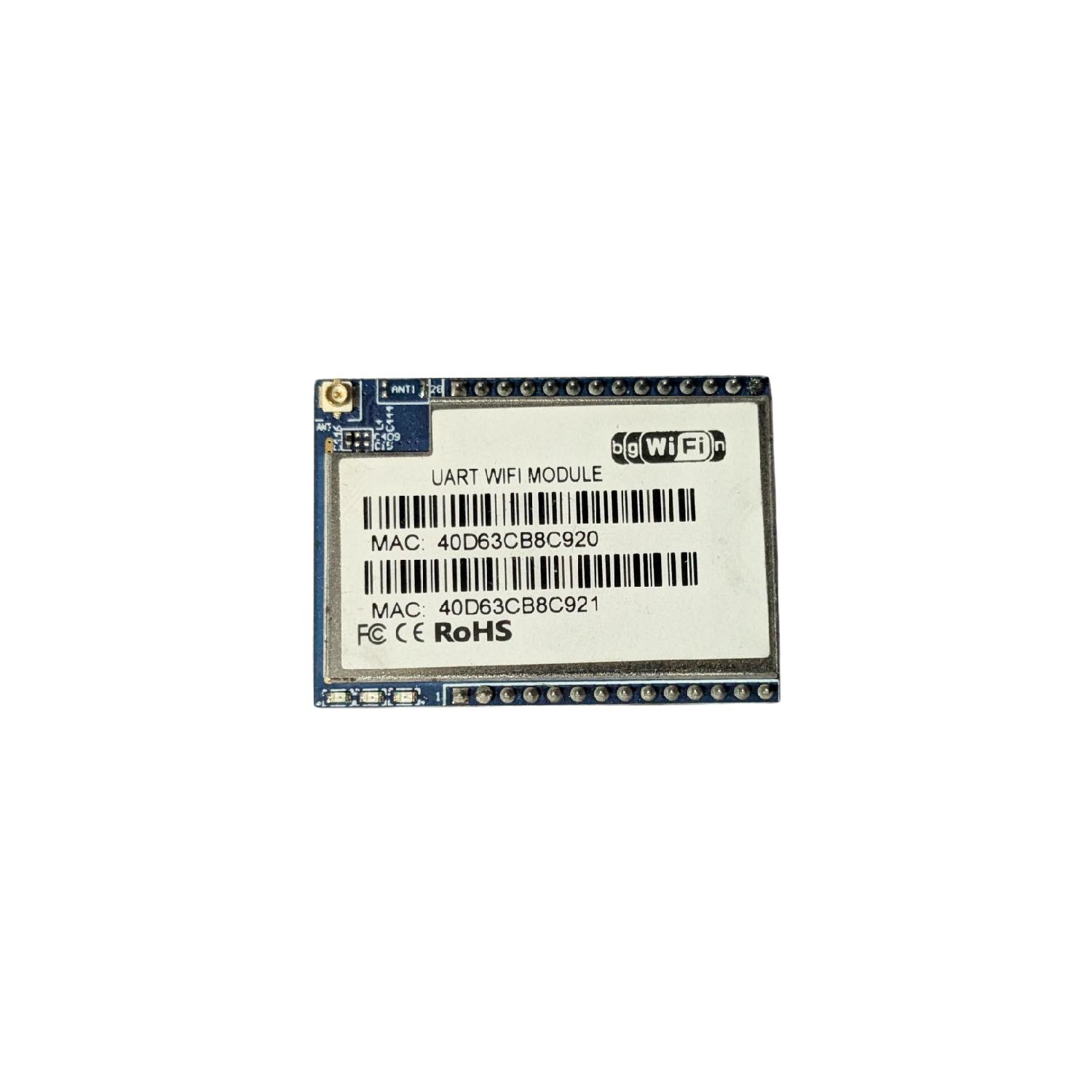

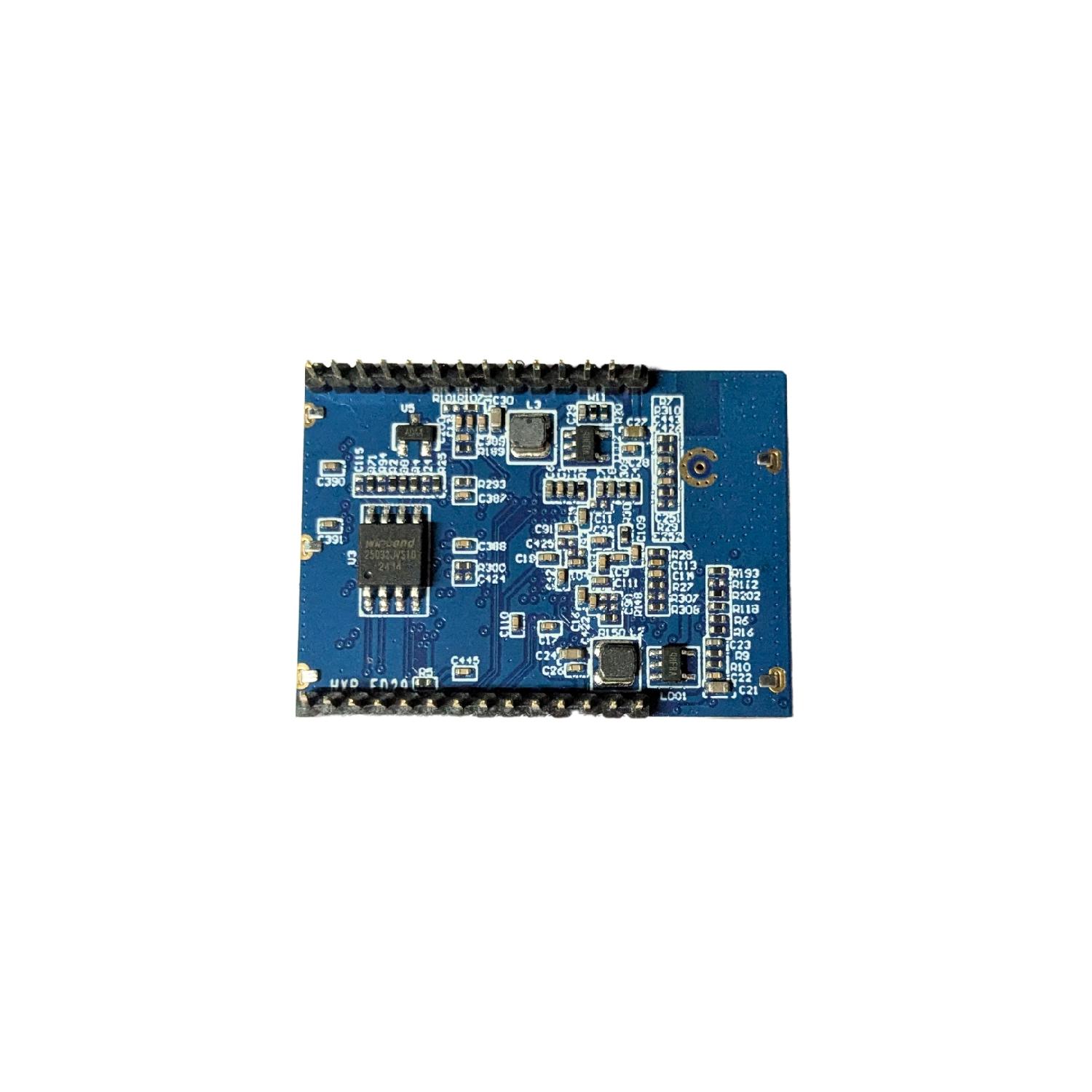

The HLK-RM04 module provides designers with a ready made component that provides a fully integrated solution for applications, using the IEEE802.11 standard in the 2.4-2.5GHz ISM frequency band, including802.11b/g/n and also provides IEEE802.3, can be quickly and easily included in product designs. The modules integrate all of the RF components required, removing the need to perform expensive RF design and test. Products can be designed by simply connecting sensors and switches to the module IO pins or uart interface. The modules use ralink’s chip Wireless Microcontroller, allowing designers to make use of the serial interface to connect with their device Hence, this module allows designers to bring wireless applications to market in the minimum time with significantly reduced development effort and cost. This product is an embedded module based on the universal serial interface network standard,built-in TCP / IP protocol stack, enabling the user serial port, Ethernet, wireless network (wifi) interface between the conversions. Through the HLK-RM04 module, the traditional serial devices do not need to change any configuration; data can be transmitted through the Internet network. Provide a quick solution for the user’s serial devices to transfer data via Ethernet Also the HLK-RM04 module have FCC modular approvals and is compliant with EU regulations.
Applications:
- WiFi Led Control
- WiFi Power Switch
- Home and Commercial building automation
- OBDII WiFi Diagnose
- RFID Data Transfer
- Toys and gaming peripherals
- Industrial systems
- Telemetry
- Remote Control
Features:
2.4GHz 802.11b/g/n,compatible
Support IEEE 802.3、IEEE 802.3u
WiFi Client/AP/Router Mode
Support wps/wds
The range of baudrate: 1200~500000bps
Support transparent transmission mode
Support multiple security authenti-cation mechanisms: WEP64/WEP128/ TKIP/ AES & WEP/WPA-PSK/WPA2-PSK
Support wireless roam
Support multiple network protoco: PPPOE/TCP/UDP/DDDNS & /DHCP/DNS/HTTP/Firewre
Support AT+ instruction set
Support two config methods:Serial/WEB
Device Dimensions 29mm*40mm* 8.8mm
