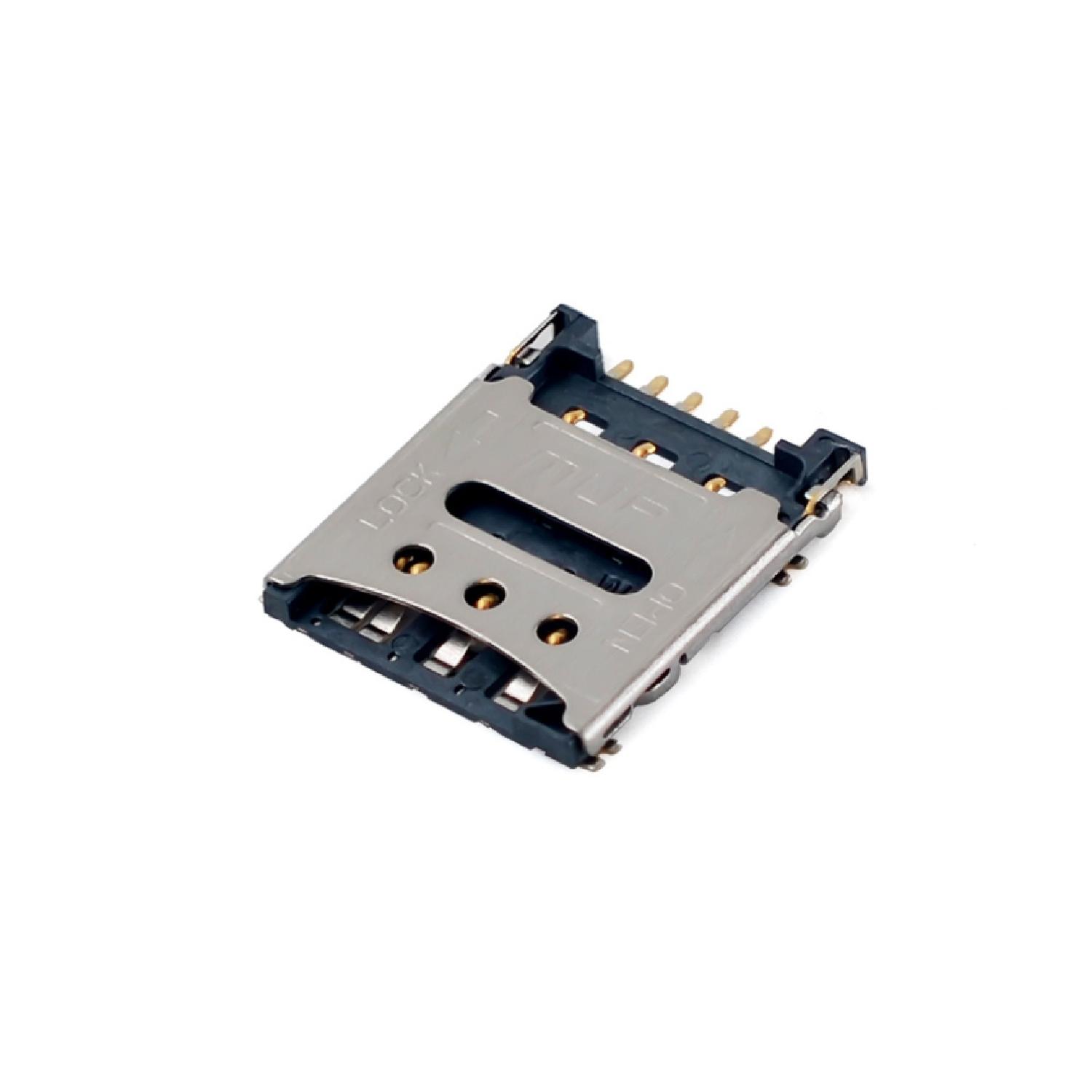

MUP M7802-02 NANO Sim Card Holder Image 1

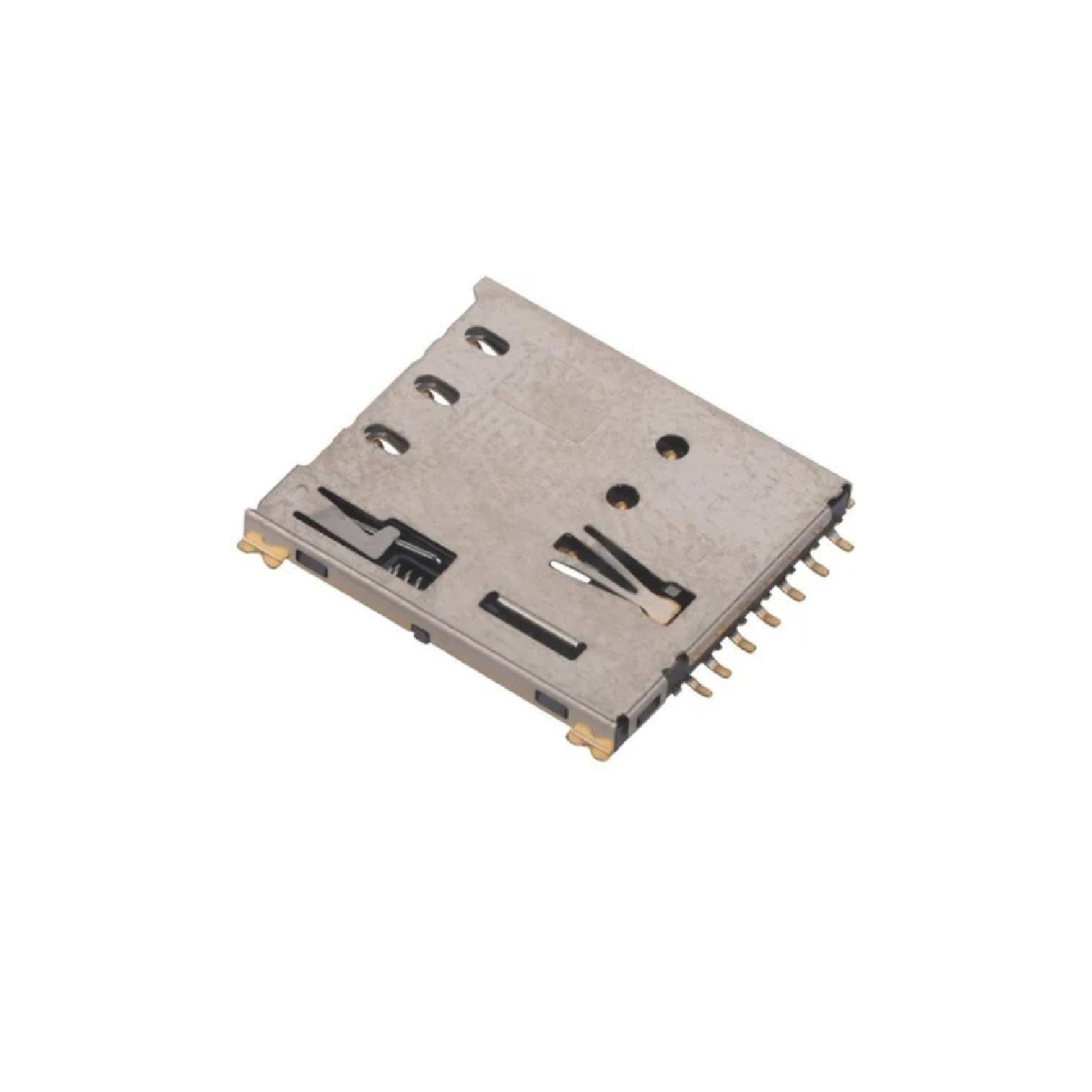

MUP M7802-02 NANO Sim Card Holder Image 2
MUP M7802-02 NANO Sim Card Holder Image 1
MUP M7802-02 NANO Sim Card Holder Image 2

MUP M7802-02 NANO Sim Card Holder

SKU: 289401

The Nano SIM Card Connector (MUP-C782-2 6Pin) is designed for reliable and secure connections with Nano SIM cards. Holder has a Contact resistance: 50mΩ typical, 100mΩ Max. and Insulation resistance: >1000mΩ/500V DC.

Its compact size makes it suitable for various devices and applications, ensuring stable communication and functionality. It is used in intelligent monitoring terminal, wireless data communication systems, mobile phones, handheld POS machines, memory key management and other intelligent identification system.

Currently unavailable.

Thank you!

We will notify once stock available.
Price :  excl. GST
Qty Price
1 > 0.00
50 > 0.00
200 > 0.00
500 > 0.00
1000 > 0.00
1001 > 0.00
NO PRICE FOUND

Features :

  • Contact resistance   :   50mΩ typical, 100mΩ Max.
  • Insulation resistance   :  >1000mΩ /500V DC
  • Connection   :   6 Pin SMT type
  • Operating temperature  : -40 deg C   - +85 deg C
  • Operating Humidity   :     10%  -  +95% RH
  • Durability   :   3,000 cycles Min.
  • Dimensions   :  12.40mm x 9.80mm x 1.35mm
  • Vapor phase  : 215℃.30 Sec.Max
  • IR reflow   : 250℃.5 Sec.Max
  • Manual soldering  : 370℃.3 Sec.Max
