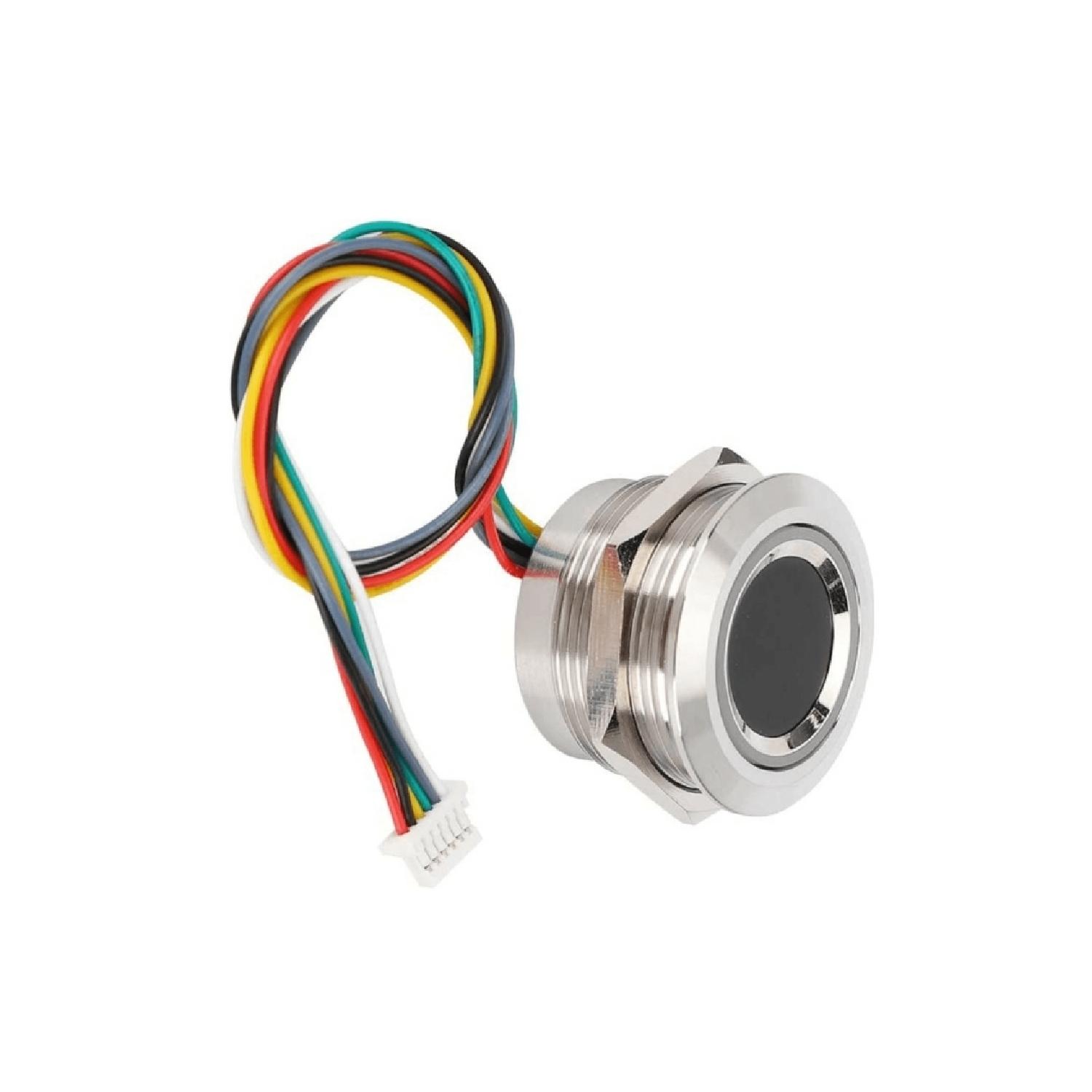

R503 Fingerprint Sensor Module Features, and Specifications
The R503 Fingerprint Module is an advanced capacitive fingerprint sensor designed for high-accuracy biometric authentication. With its 192x192 pixel sensing array, the module ensures fast and reliable fingerprint recognition for security applications, including access control systems, attendance tracking, and smart devices.
This fingerprint sensor module features an integrated image collection system and a biometric recognition algorithm that enhances matching accuracy. It is compatible with various microcontroller platforms via UART (TTL) communication and supports RGB LED indicators for status alerts. The flexibility of the module allows it to work efficiently with different fingerprint conditions—whether dry, wet, or lightly textured fingerprints.
The R503 module is compact and power-efficient, making it ideal for embedded applications such as electronic door locks, safes, and IoT security devices. With a fast scanning time of <0.2 seconds and a high-security false rejection rate (FRR ≤1%), this fingerprint scanner module is one of the best choices for secure biometric authentication.
Key Features: R503 Fingerprint Module
- Capacitive Fingerprint Sensing – High 192x192 pixel resolution for accurate scanning.
- Fast Authentication – <0.2s scanning speed & <0.3s verification speed.
- Advanced Biometric Algorithm – Supports 1:1 and 1:N matching for high accuracy.
- Multi-Condition Recognition – Works with dry, wet, textured, and aged fingerprints.
- Dual Connectivity – Supports TTL UART interface for seamless integration.
- RGB LED Indicator – Displays real-time scanning and authentication status.
- Compact & Durable – Anti-static protection (15KV) & abrasion resistance (1M cycles).
Specifications : R503 Fingerprint Module
- Interface: UART (TTL)
- Resolution: 508 DPI
- Operating Voltage: DC 3.3V
- Fingerprint Capacity: 200 templates
- Sensing Array: 192x192 pixels
- Current Consumption:
- Working: 20mA
- Standby: 2uA (typical)
- Scanning Speed: < 0.2 seconds
- Verification Speed: < 0.3 seconds
- Matching Method: 1:1 & 1:N
- False Rejection Rate (FRR): ≤ 1%
- False Acceptance Rate (FAR): ≤ 0.001%
- Connector Type: MX1.0-6Pin
- LED Indicator: RGB LED Control
- External Size:
- Outer Diameter: 28mm
- Inner Diameter: 23.5mm
- Height: 19mm
- Effective Scanning Area: 15.5mm diameter
- Working Temperature: -20°C to 60°C
- Humidity Range: 10% - 85%
R503 Finger Print Module - Datasheet
Package Details : R503 Fingerprint Module
• 1 x R503 Fingerprint Module
• 1 x M25 Nut
Frequently Asked Questions (FAQs) - R503 Fingerprint Module
What is a capacitive fingerprint scanner?
A capacitive fingerprint sensor detects fingerprints by measuring the differences in electrical charge across the ridges and valleys of a finger. This technology provides high security and fast recognition compared to optical fingerprint scanners.
Where is the R503 Fingerprint Sensor Module used?
The R503 module is used in access control systems, biometric authentication, security safes, attendance tracking, laptops, and IoT security devices.
How does the R503 fingerprint sensor work?
The sensor captures a fingerprint image, extracts unique features, and converts them into a digital fingerprint template using advanced pattern-matching algorithms.
What is the difference between optical and capacitive fingerprint sensors?
• Optical Sensors: Capture images using light reflection and analyze the fingerprint pattern.
• Capacitive Sensors (like R503): Measure the electrical properties of fingerprint ridges, making them more secure and resistant to spoofing.
