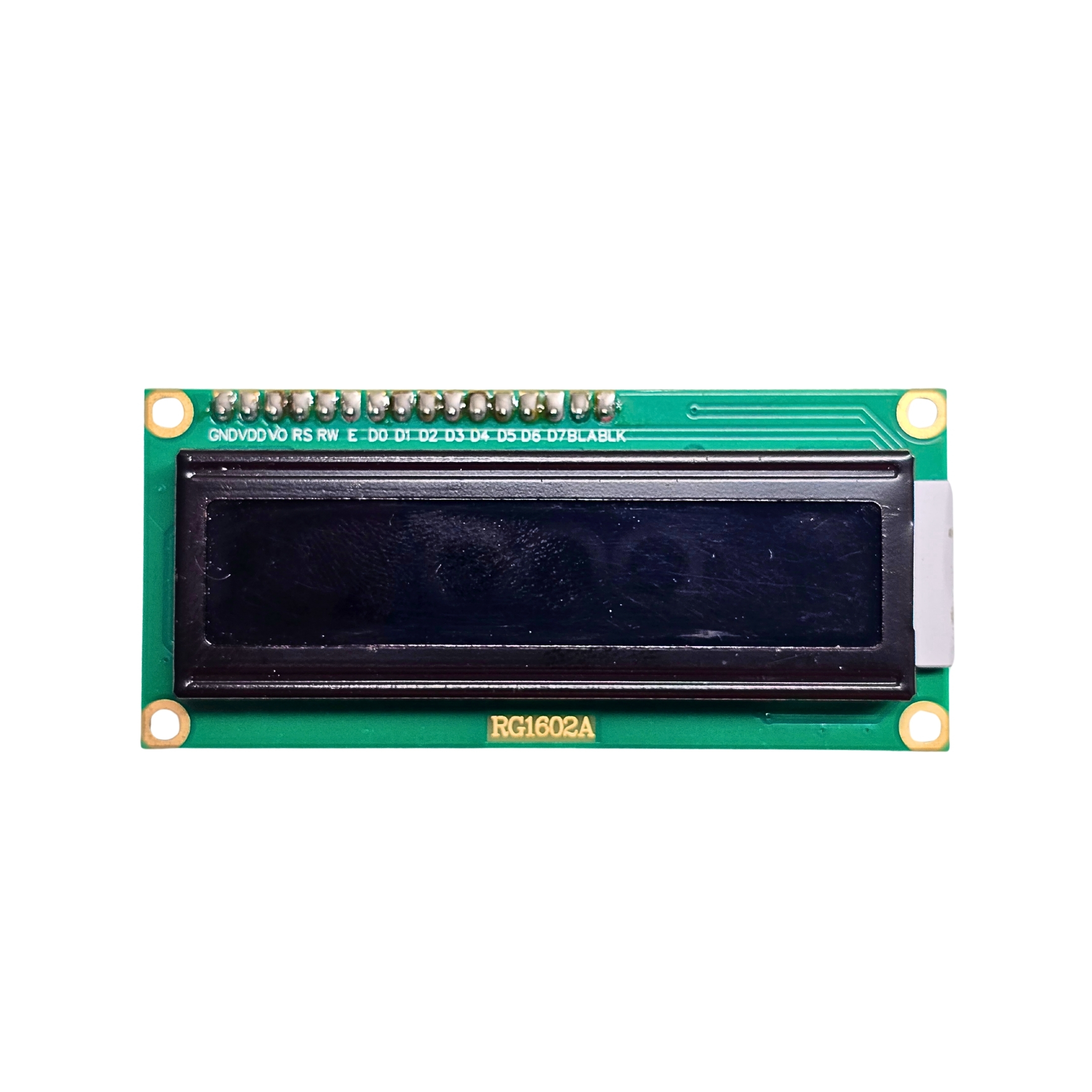

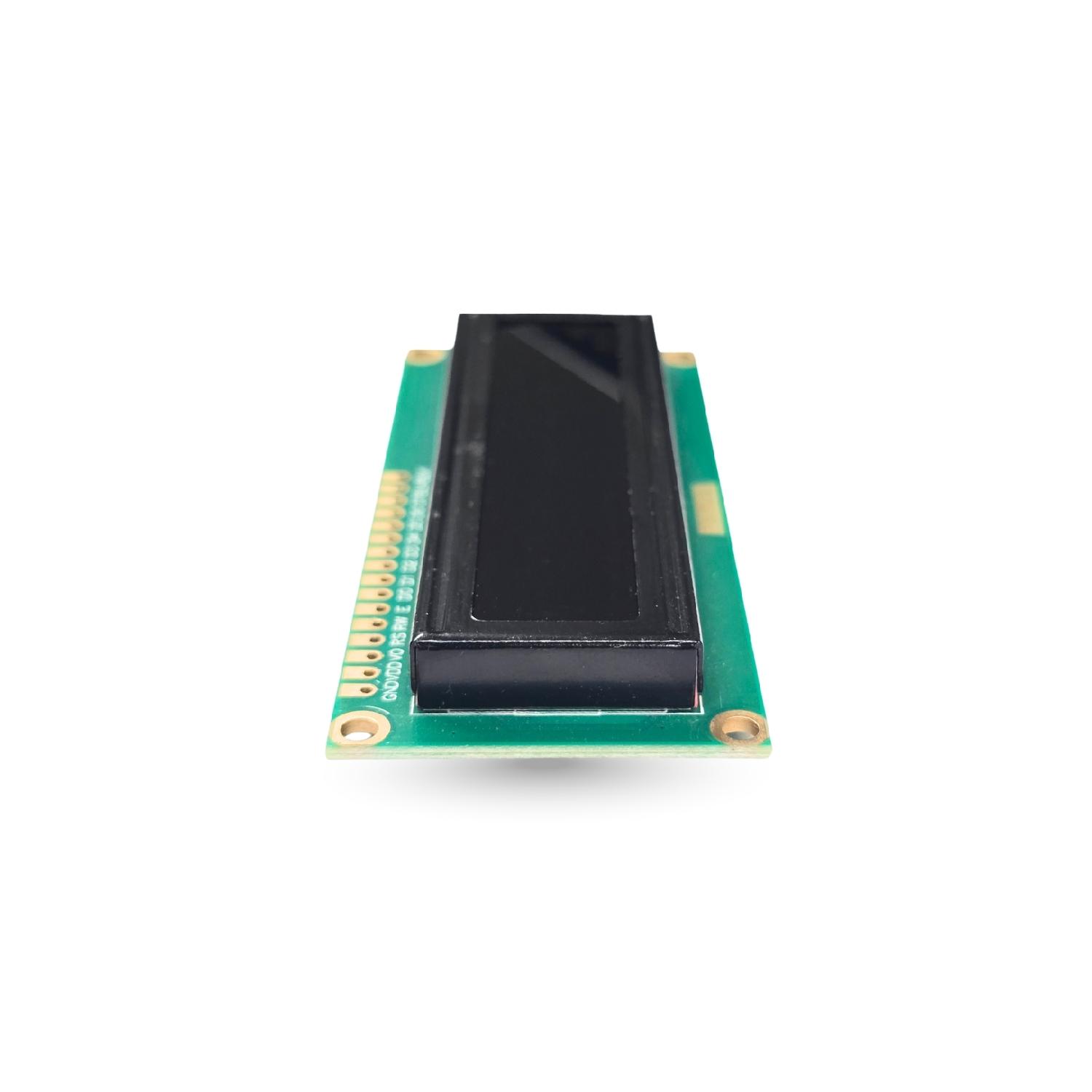

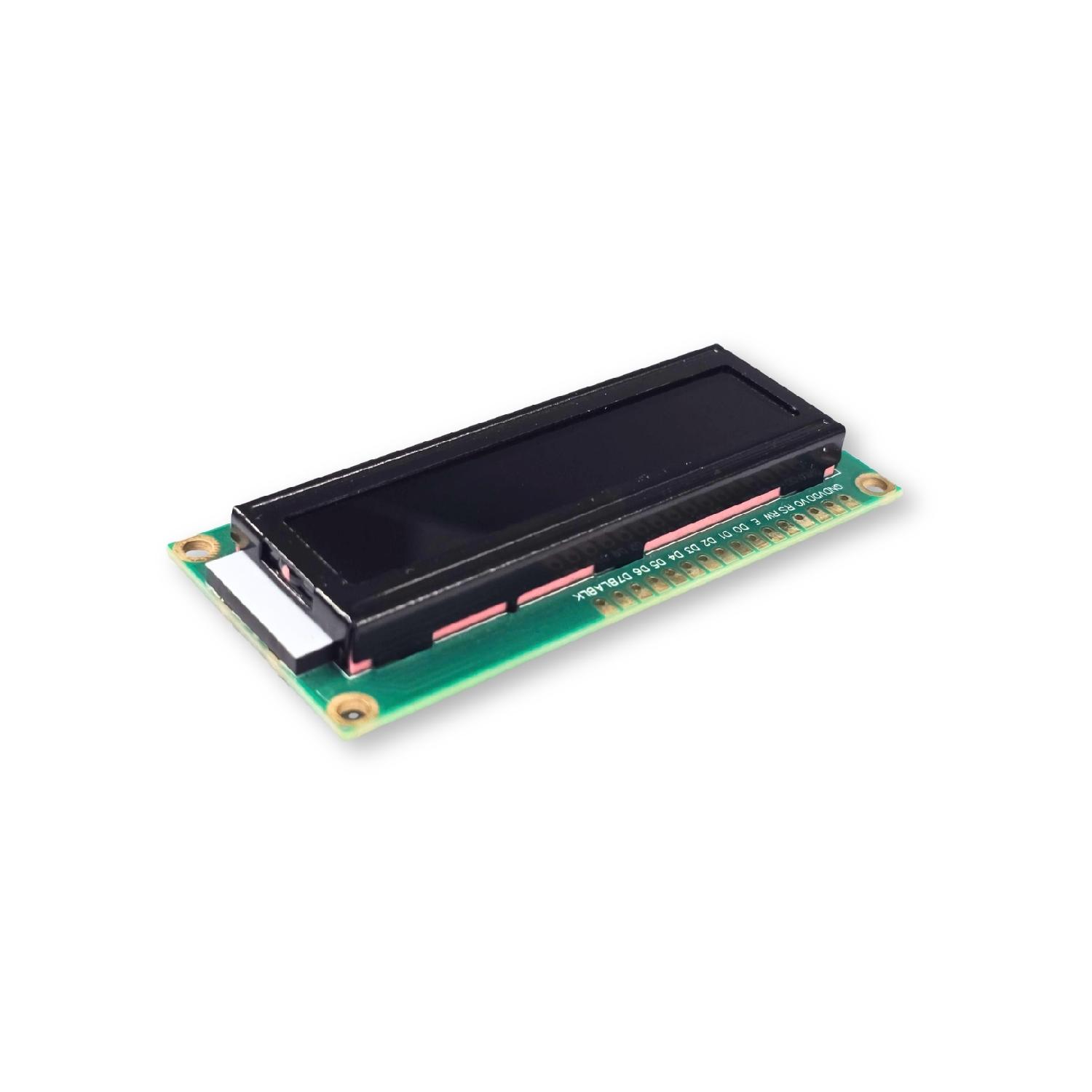

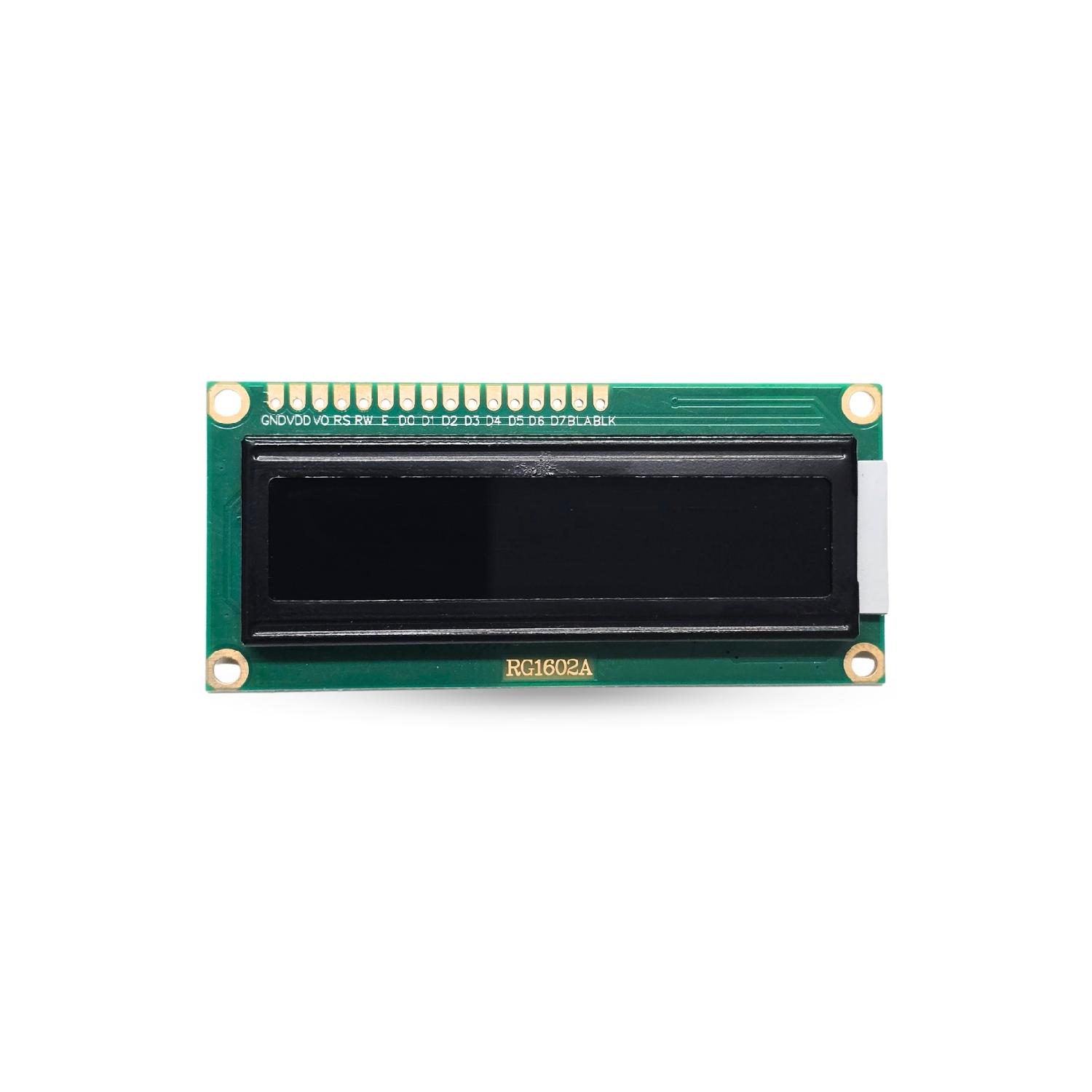

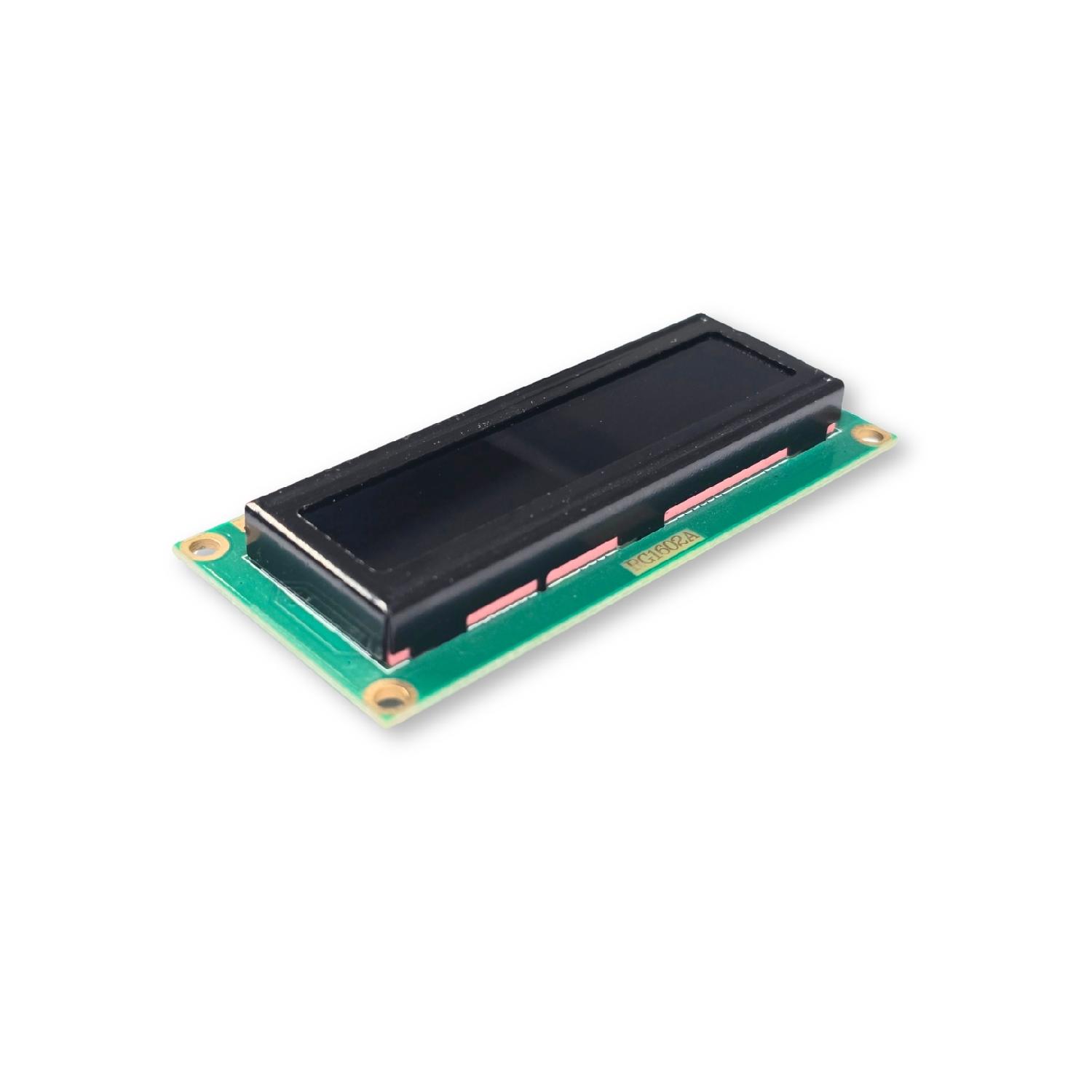

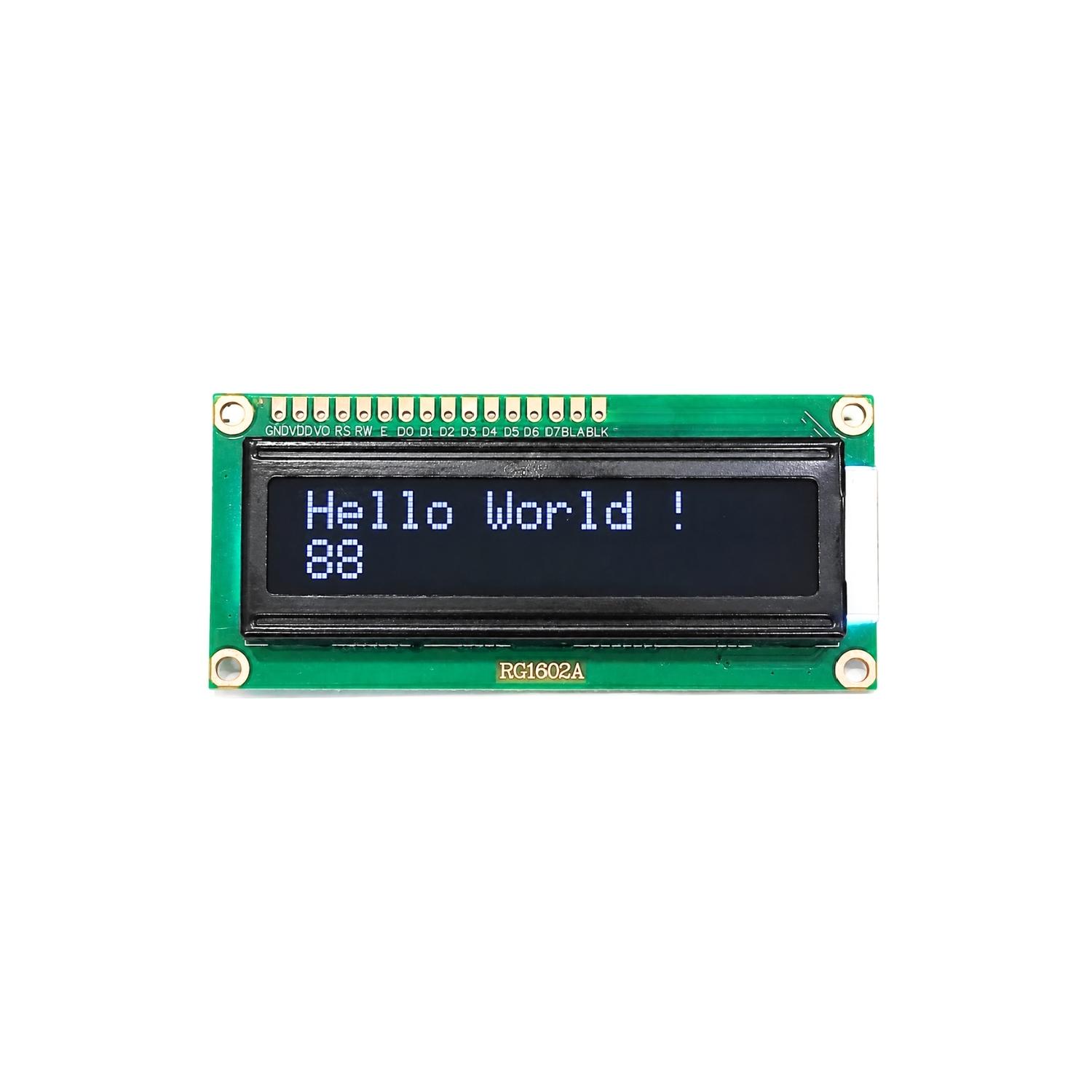

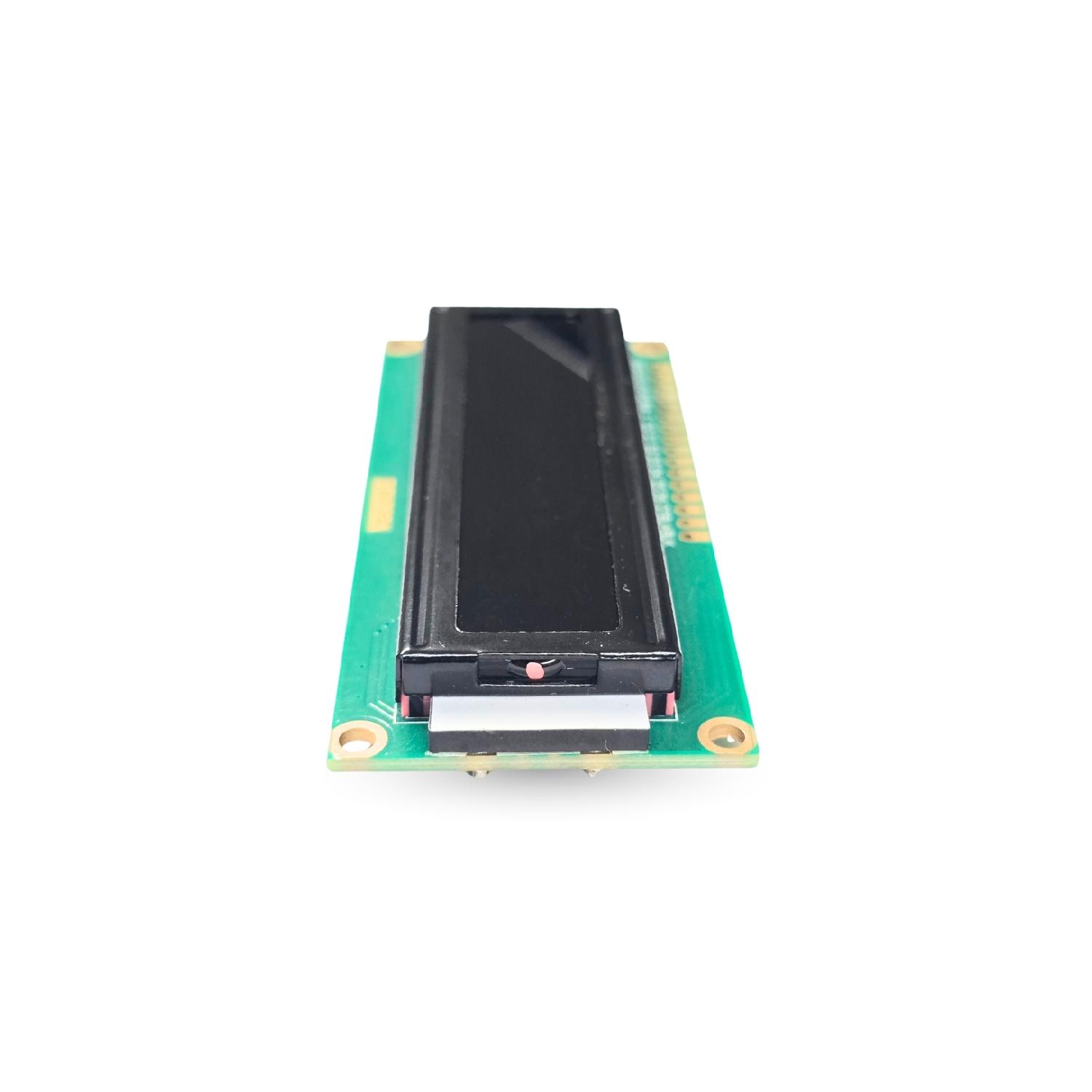

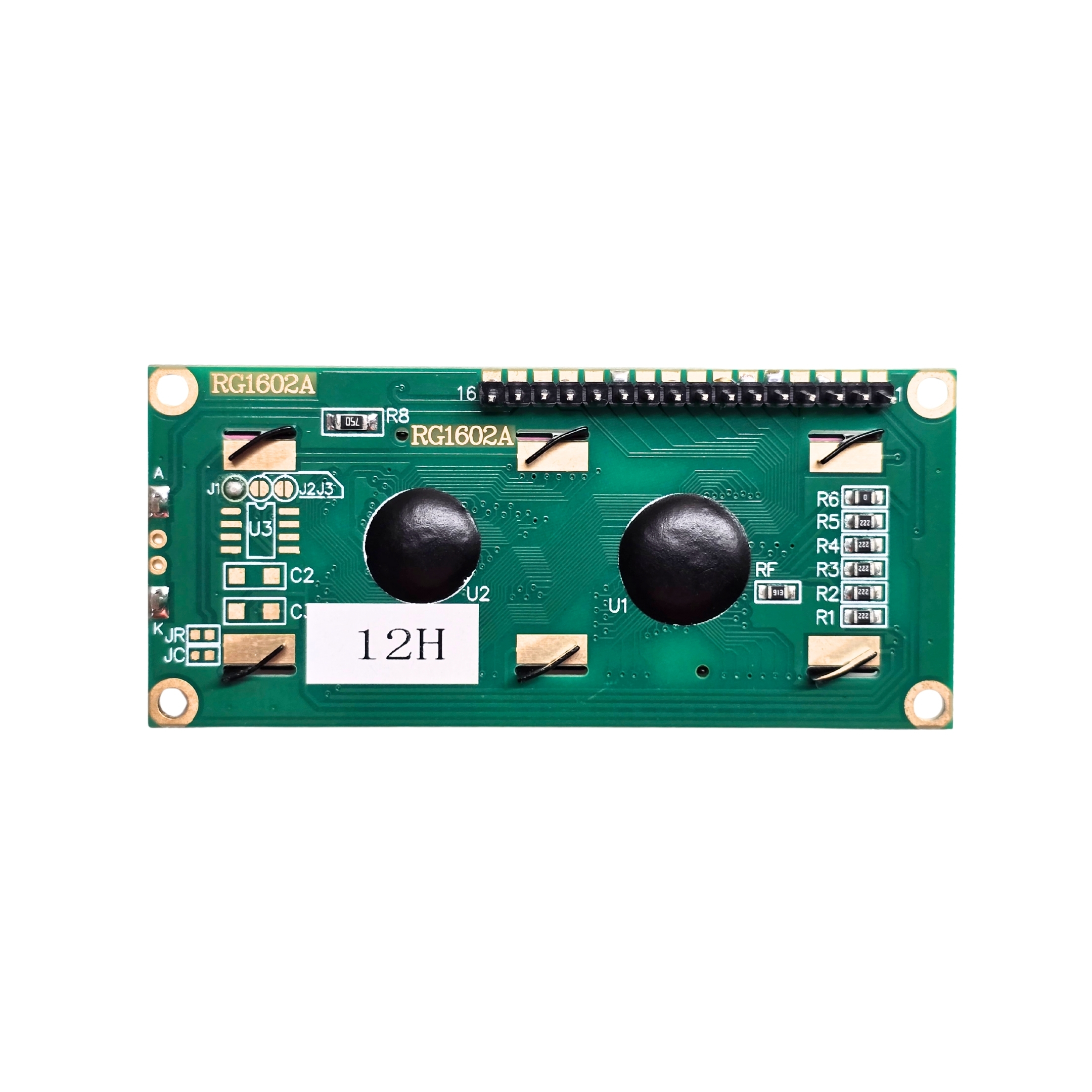

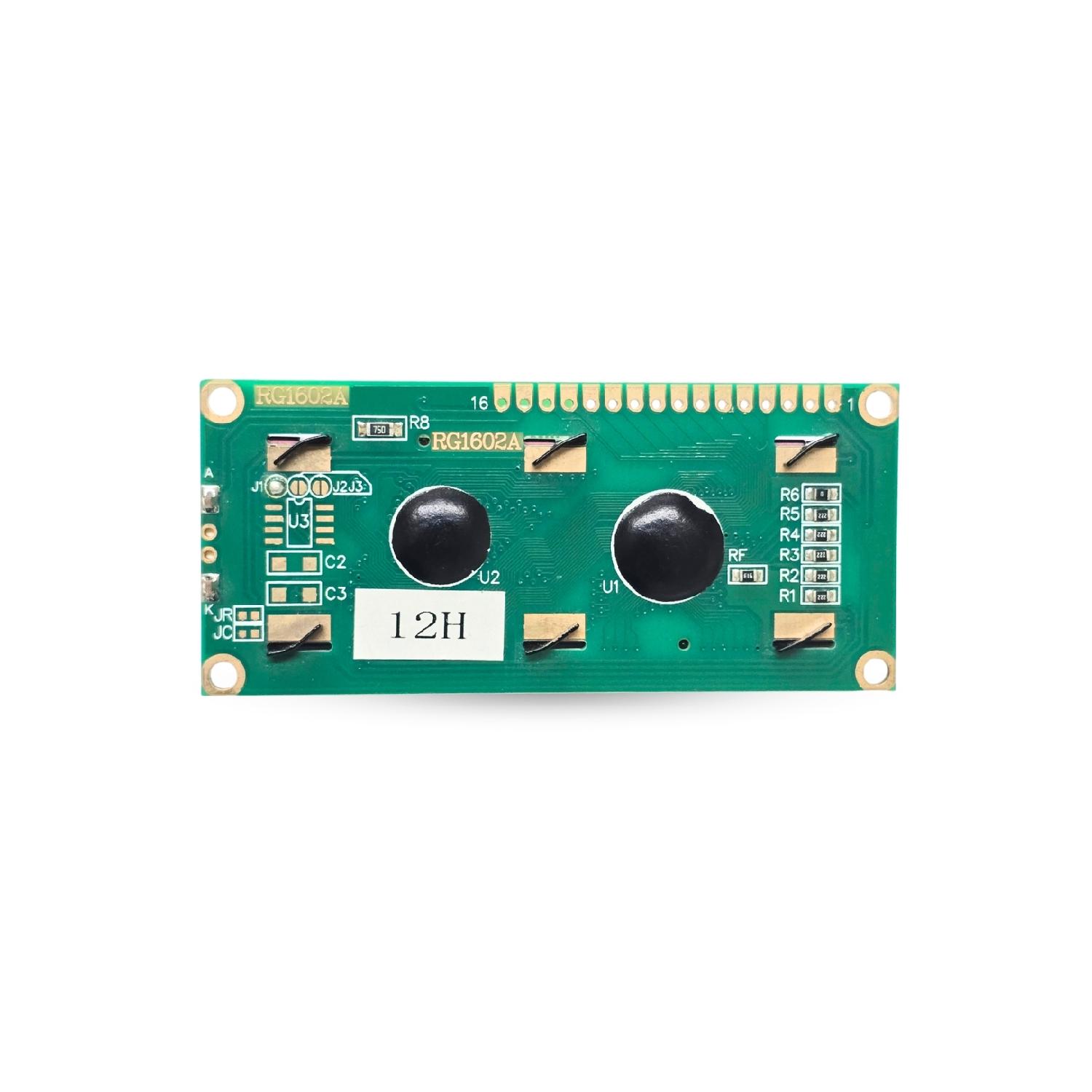

The 16x2 Character LCD Display Module is a reliable and easy-to-use alphanumeric display designed for a wide range of electronic and embedded applications. Featuring a white character display on a black background, this LCD offers excellent readability and a modern appearance suitable for consumer, industrial, and DIY projects.
Built using ST7066/ST7065 controller ICs, the module supports a standard 16-character × 2-line display format and communicates through an 8-bit parallel interface, making it compatible with popular development platforms such as Arduino, Raspberry Pi, ESP32, STM32, PIC, AVR, and other microcontrollers.
The display utilizes STN negative transmissive technology with a white LED backlight, providing high contrast and visibility in various lighting conditions. Its compact dimensions and industry-standard interface make it easy to integrate into custom electronic products, automation systems, instruments, and educational projects.
Whether you're building a sensor display, industrial controller, or embedded monitoring system, this LCD module delivers reliable performance and clear text display
Key Features
- 16 characters × 2 lines display format
- White characters on black background
- STN negative transmissive display mode
- High-contrast LED white backlight
- ST7066 / ST7065 controller IC
- 8-bit parallel interface
- Easy integration with microcontrollers
- Compact and lightweight design
- Wide viewing angle
- Suitable for embedded and industrial applications
- Low power consumption
Technical Specifications
| Parameter | Specification |
|---|---|
| Display Type | Character LCD |
| Display Format | 16 Characters × 2 Lines |
| Display Mode | STN / Black / Negative / Transmissive |
| Character Color | White |
| Background Color | Black |
| Controller IC | ST7066 / ST7065 |
| Interface | 8-Bit Parallel |
| Driving Method | 1/16 Duty, 1/5 Bias |
| Viewing Direction | 6 O’clock |
| Backlight | White LED |
| Module Size | 80.00 × 36.00 × 9.5 mm |
| Viewing Area | 64.00 × 16.00 mm |
| Effective Display Area | 55.02 × 11.00 mm |
| Dot Size | 0.55 × 0.60 mm |
| Dot Pitch | 0.61 × 0.66 mm |
Applications
Embedded Systems
- Microcontroller projects
- Development boards
- Industrial controllers
Arduino & Raspberry Pi Projects
- Sensor data display
- Home automation systems
- IoT monitoring devices
Industrial Equipment
- Process monitoring
- Instrumentation displays
- Control panels
Consumer Electronics
- Electronic appliances
- Information displays
- Status indicators
Educational Projects
- Electronics learning kits
- STEM projects
- Engineering prototypes
Benefits
- Excellent contrast with white-on-black display
- Industry-standard controller compatibility
- Easy interfacing with popular microcontrollers
- Reliable and durable construction
- Ideal for both hobby and industrial applications
- Low power LED backlight design
Package Includes
- 1 × 16x2 Character LCD Display Module (White on Black)
Why Choose This 16x2 LCD Display?
This 16x2 Character LCD Module offers a premium white-on-black display, reliable ST7066/ST7065 controller compatibility, and simple integration with embedded systems. Its clear readability, compact size, and industry-standard interface make it an excellent choice for Arduino projects, industrial controls, IoT devices, and electronic product development.
