Durable and Reliable SMA Female Connector for PCB Applications

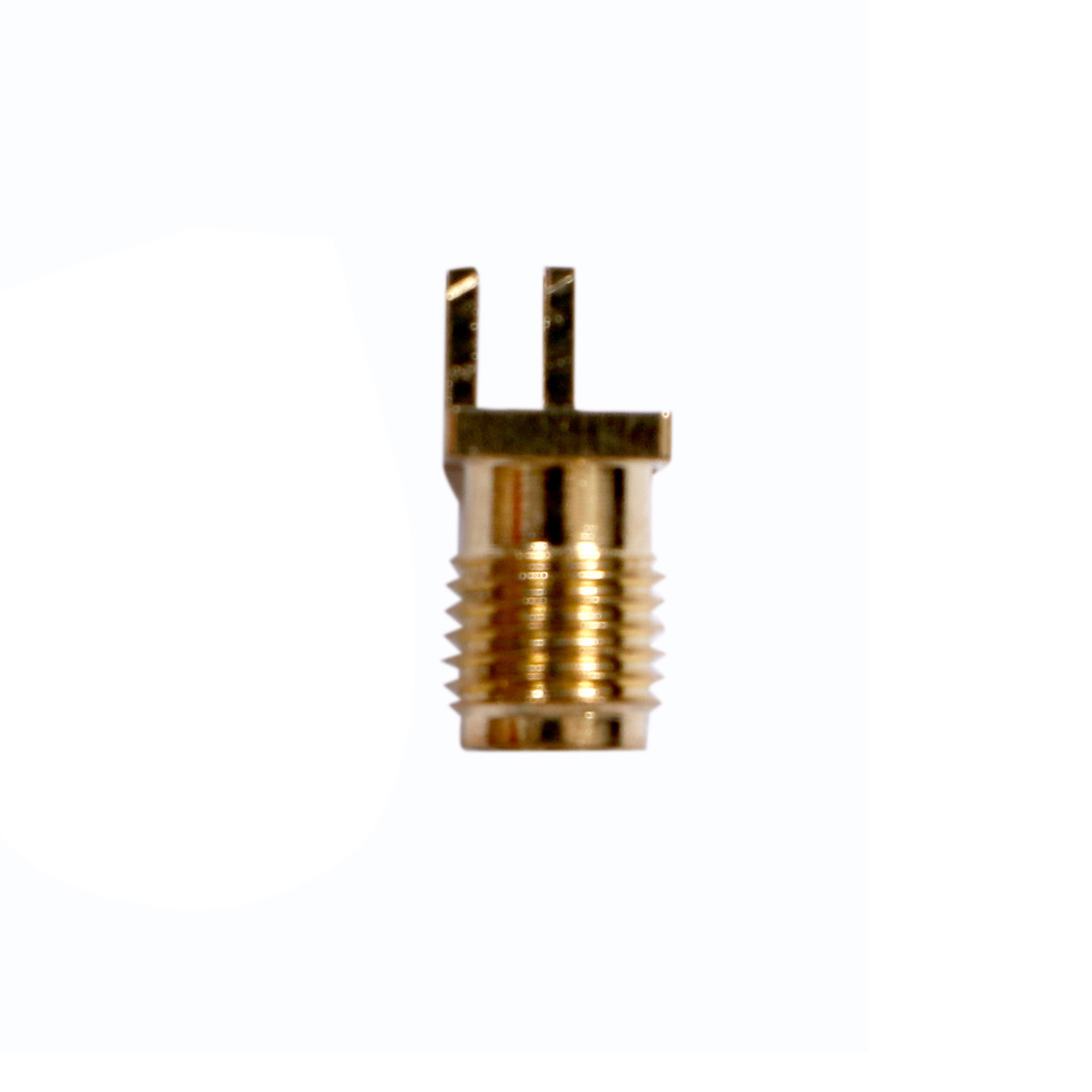

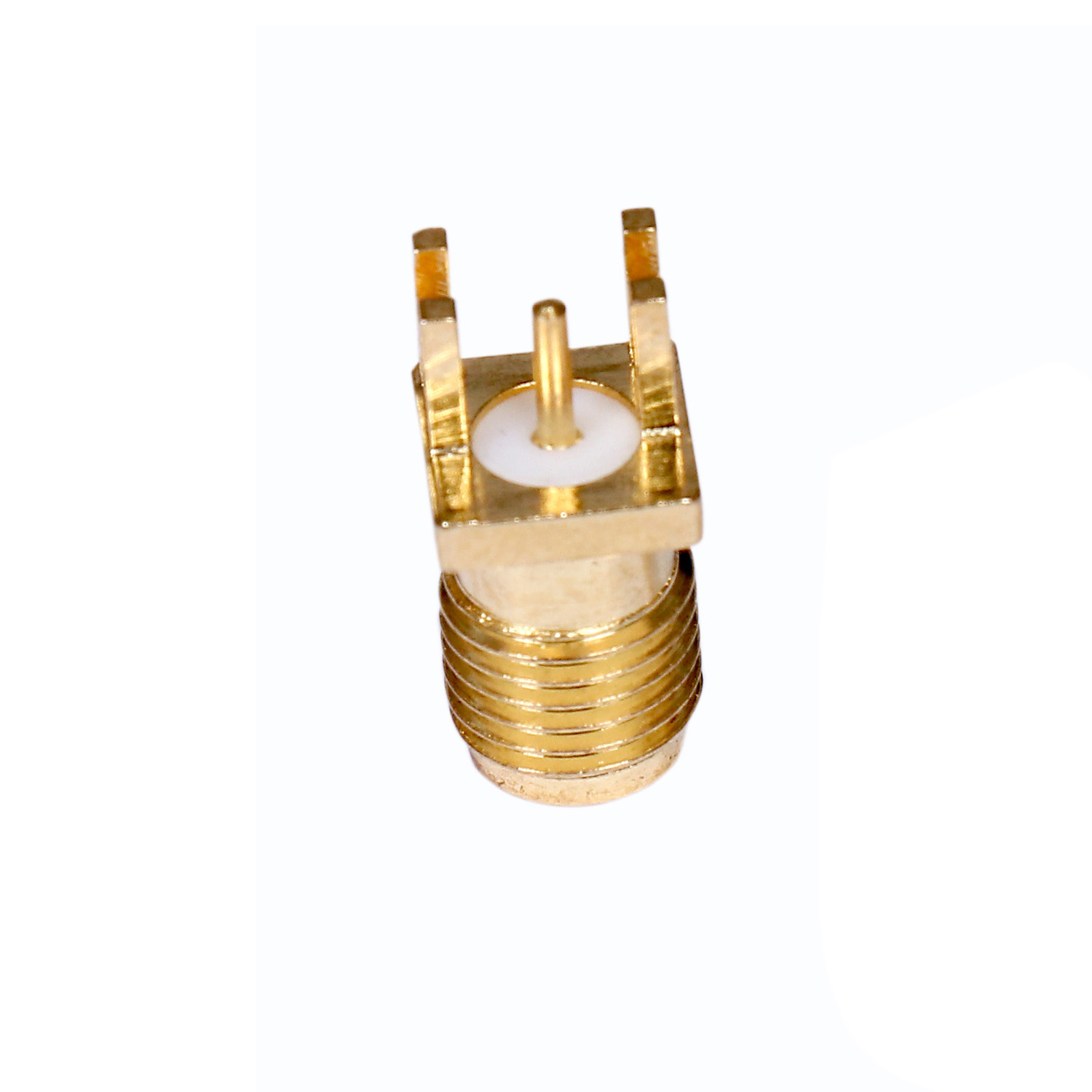

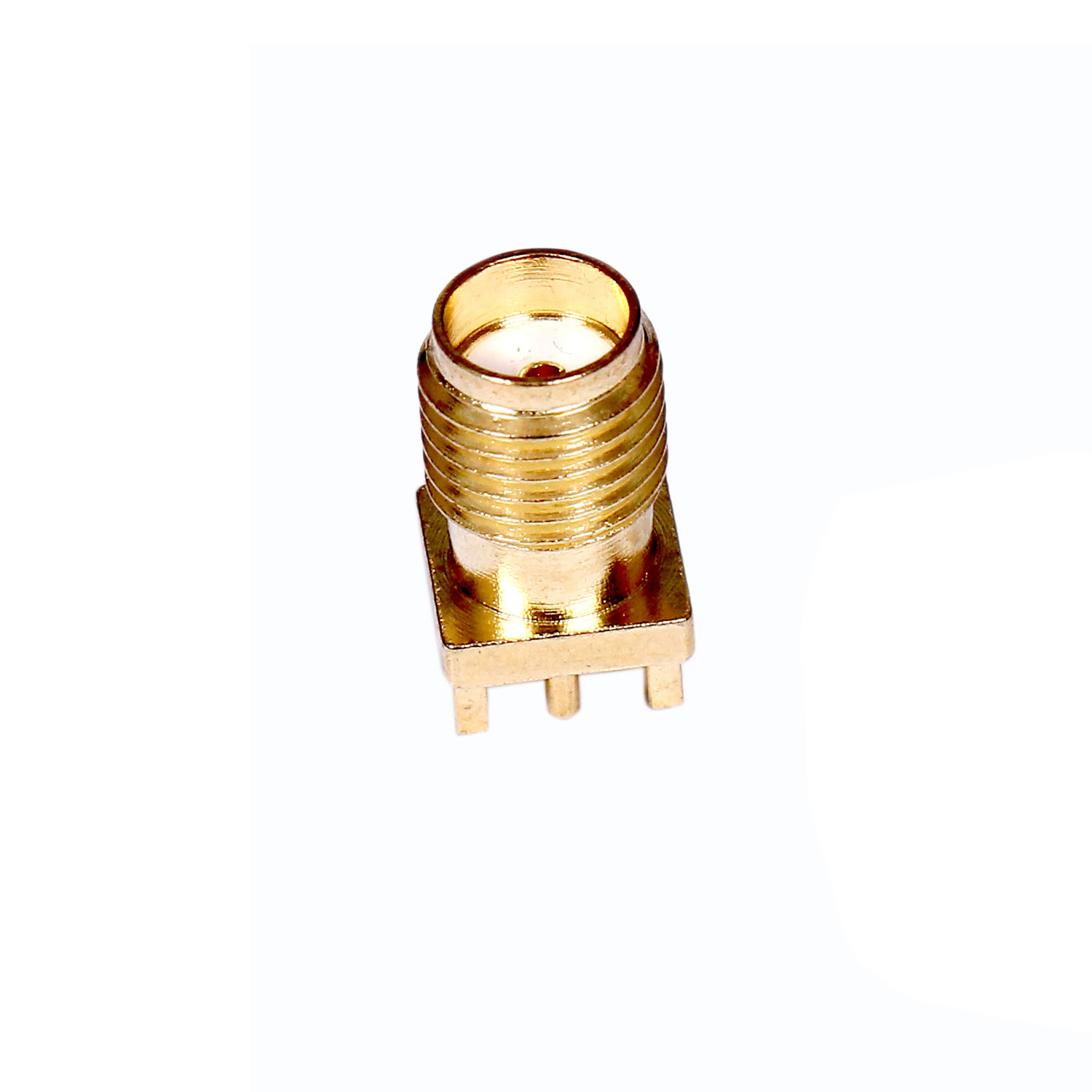

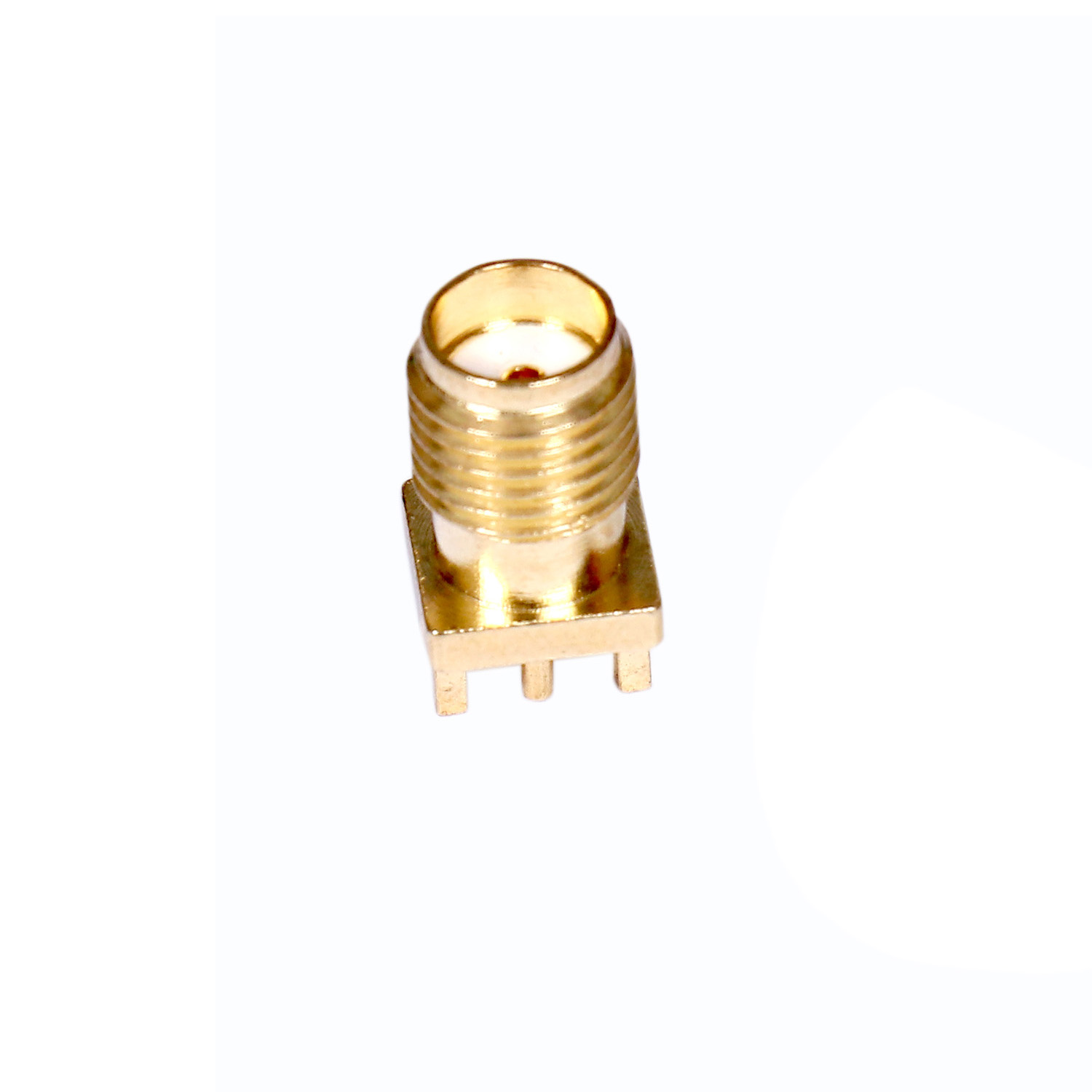

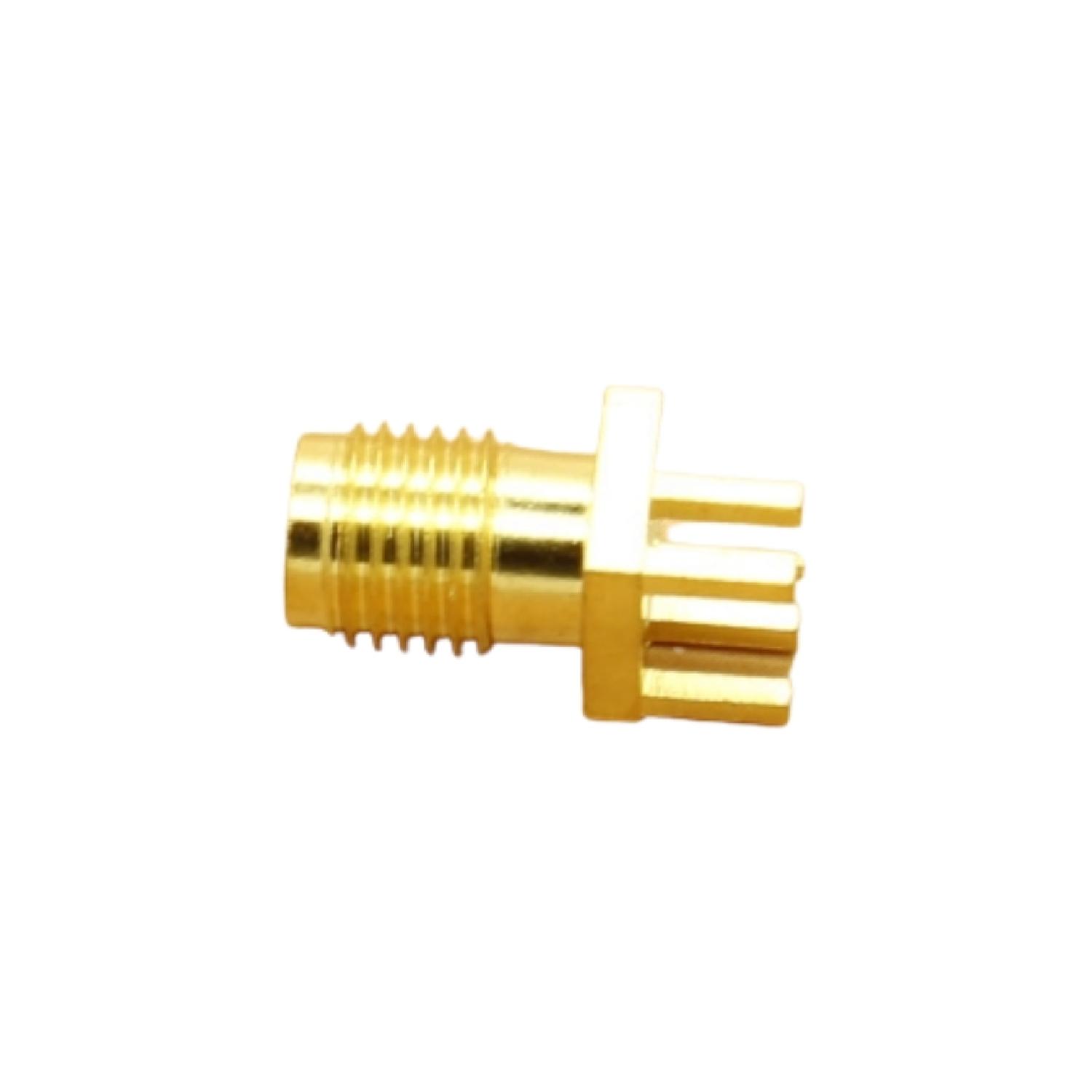

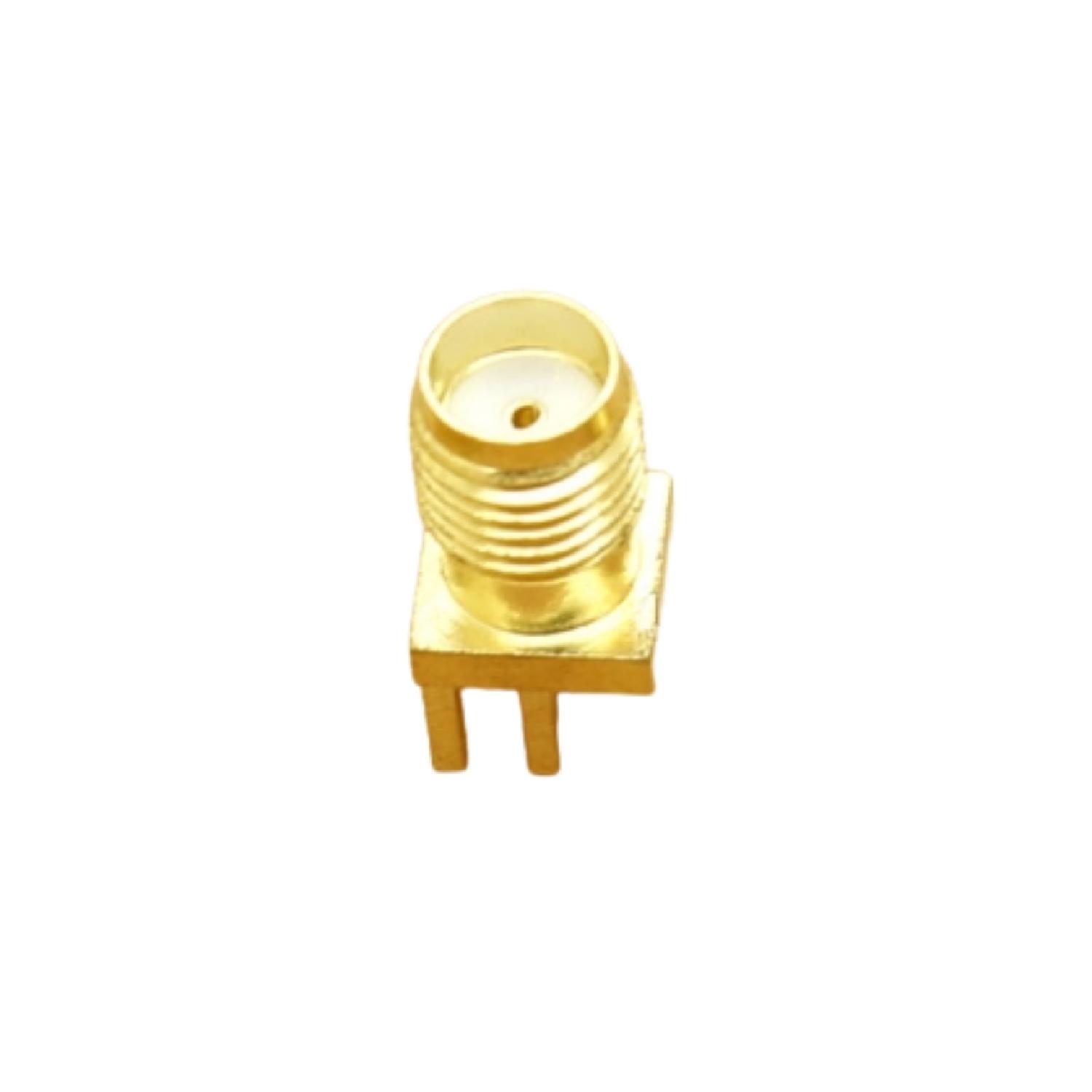

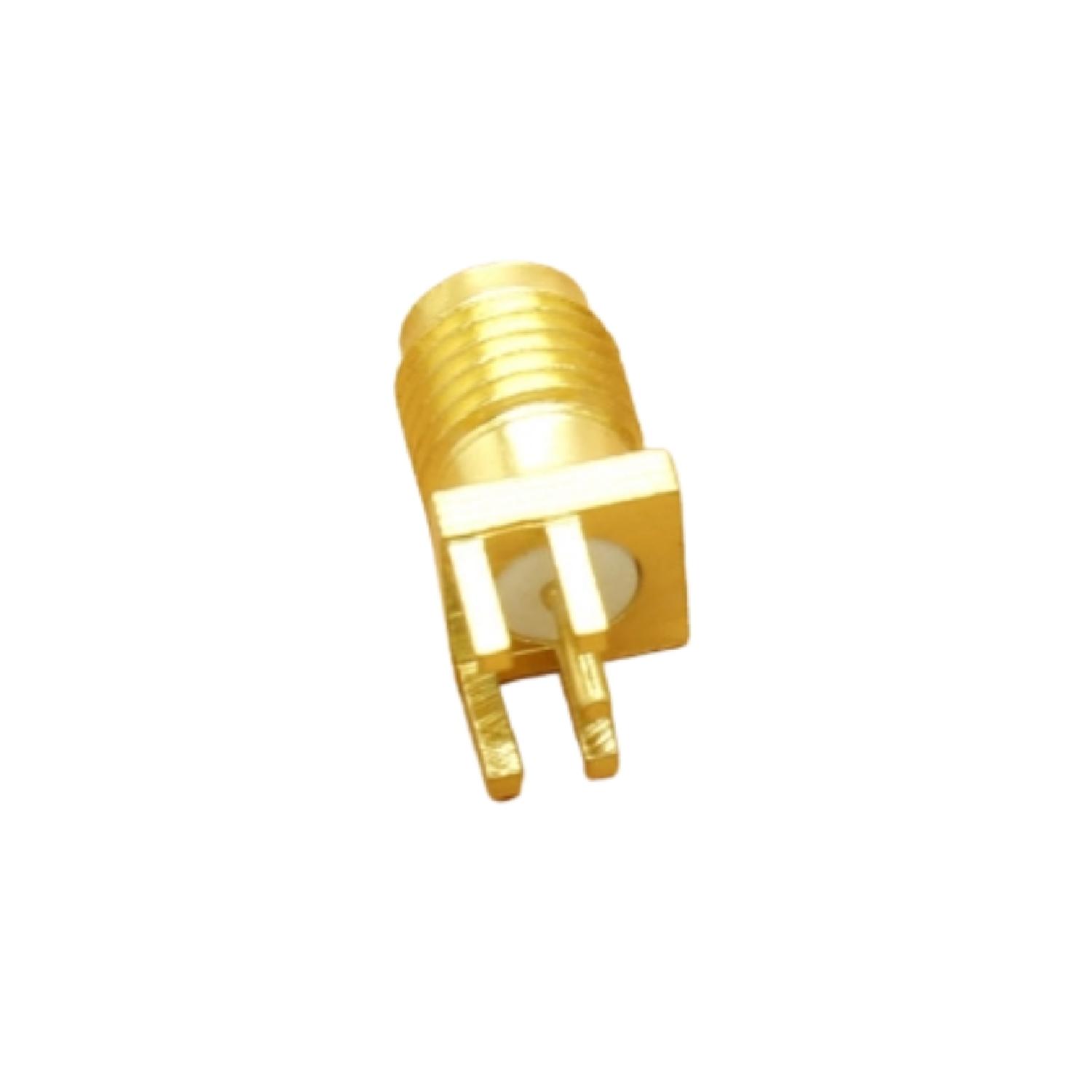

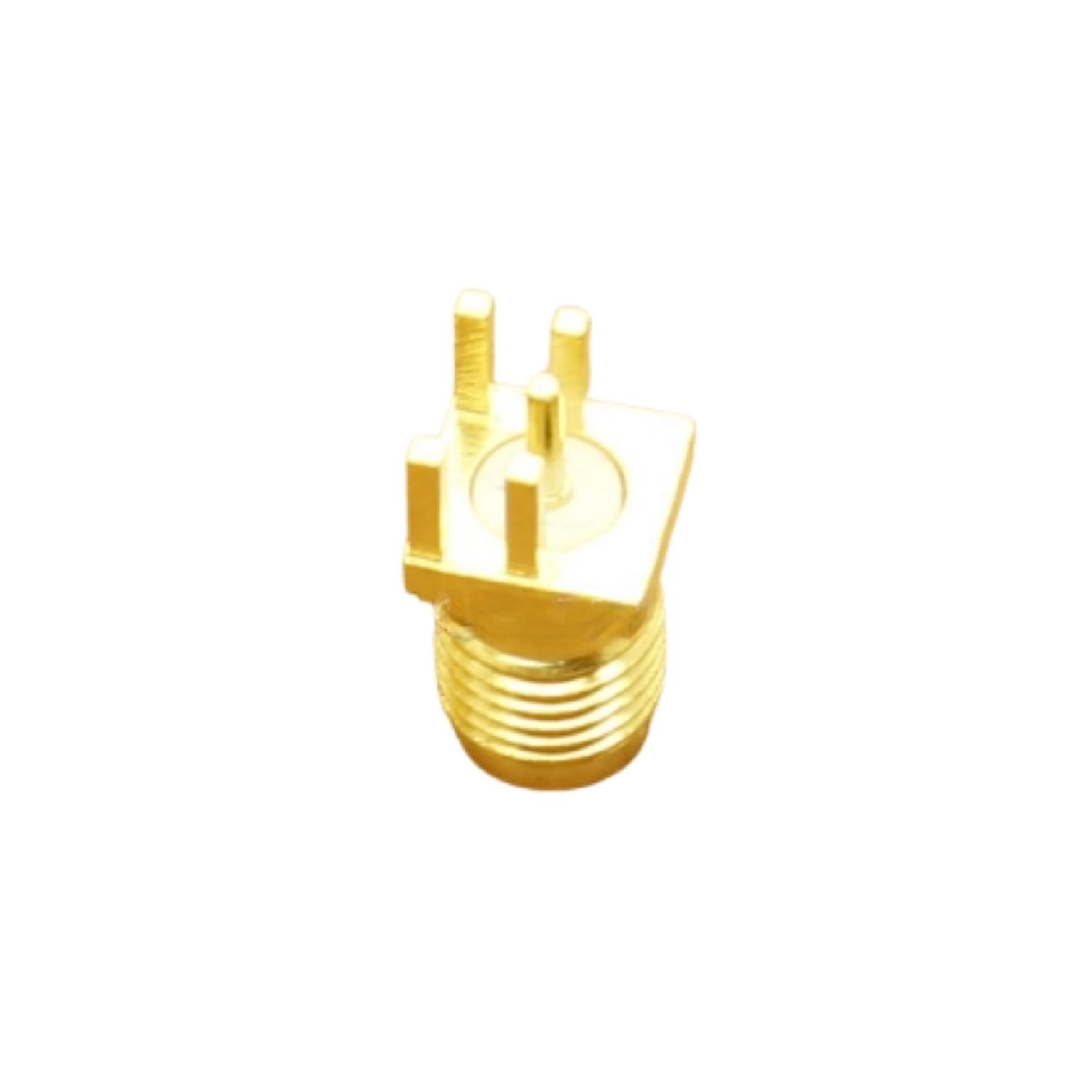

The SMA Connector 1.6mm is a high-quality SMA Female RF Connector designed for PCB edge mounting on 1.6mm thick PCBs. It is widely used in GPS modules, cellular devices, wireless communication systems, and RF circuit designs.
This connector features a gold-plated female signal pin, ensuring low signal loss and high durability. Its brass body construction enhances mechanical stability, making it suitable for automotive, prototyping, and telecom applications. With precise RF performance, it supports seamless integration with SMA Male antennas for optimal connectivity.
Features: SMA Connector 1.6mm
- Connector Type: SMA Female / Jack
- Mounting Style: PCB Edge Mount for 1.6mm PCBs
- Body Material: High-quality brass with gold-plated contacts
- Impedance: 50 Ohms for stable signal transmission
- Durability: Supports up to 500 mating cycles
- Frequency Range: Up to 6 GHz
- Application: GPS, LTE, Wi-Fi, antennas, and RF circuits
Specifications: SMA Connector 1.6mm
- Impedance: 50Ω
- Frequency Range: DC – 6GHz
- Voltage Rating: 335V RMS
- Contact Resistance: Center Contact ≤ 3mΩ, Outer Contact ≤ 2mΩ
- Operating Temperature: -55°C to +155°C
- Configuration: Circular/Cylindrical Connector, Coaxial Connector, Flat or Ribbon Cable Connector, PC Card Connector, Micro/Nano Connector
Package Details: SMA Connector 1.6mm
1x SMA Connector 1.6mm – PCB Edge Mount (Female) - Secure packaging to prevent damage during shipping
This SMA Connector 1.6mm is the perfect choice for RF engineers and designers looking for a reliable, high-performance SMA Female Connector for PCB-based RF applications.
