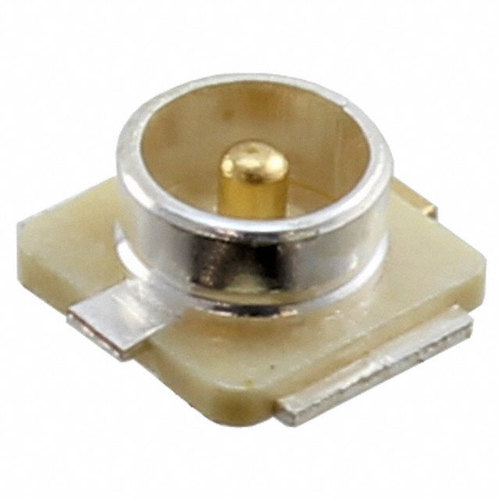

RF series-- RF Header (Mini Coaxial Connector) The RF series is designed for high frequency or wireless equipment application
Features:
- High performance and broad range of frequency from DC to 6GHz.
- Only 2mm mating height maximum. Receptacle size only 3.0mmx3.0mm. Most suitable for low-profile as well as high density design.

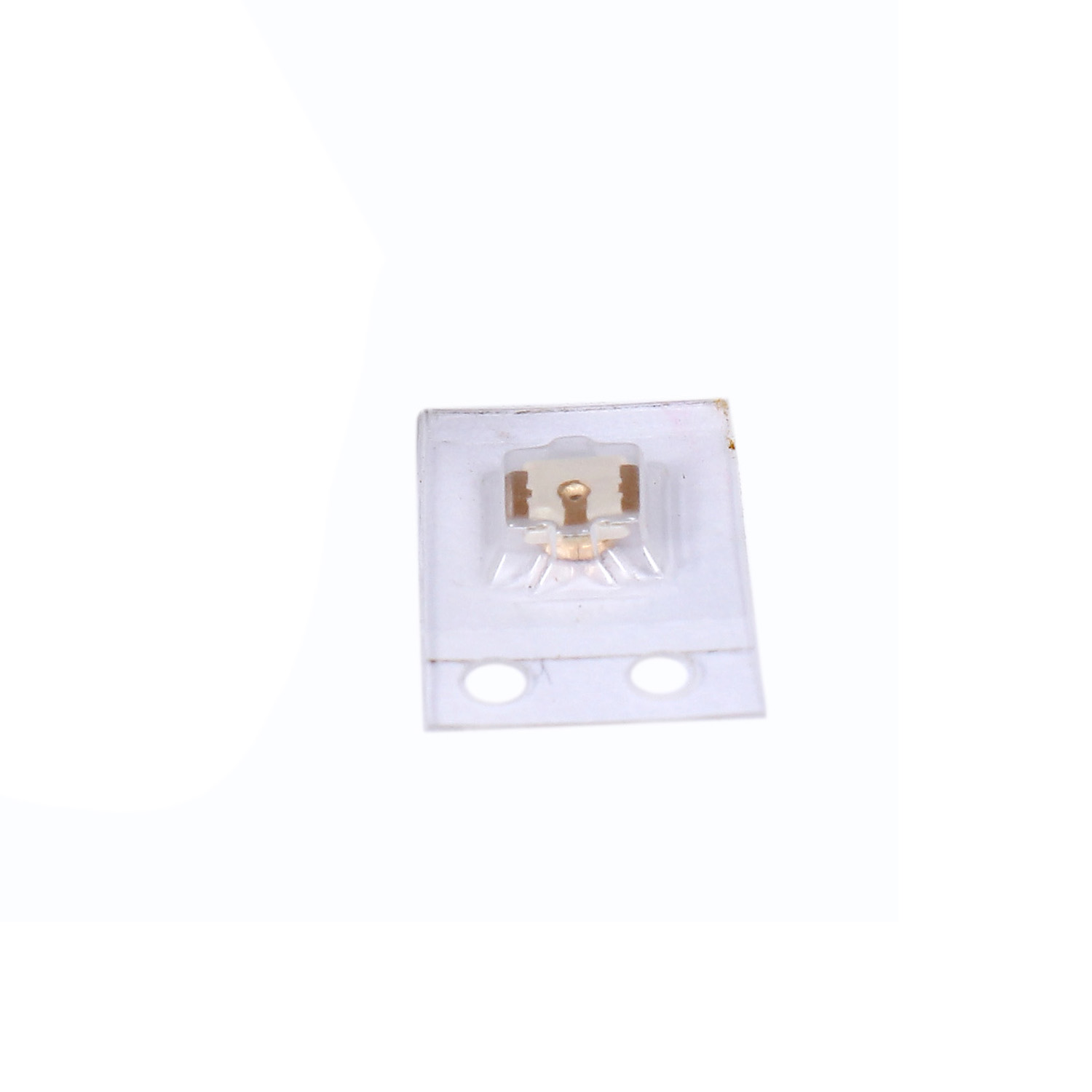

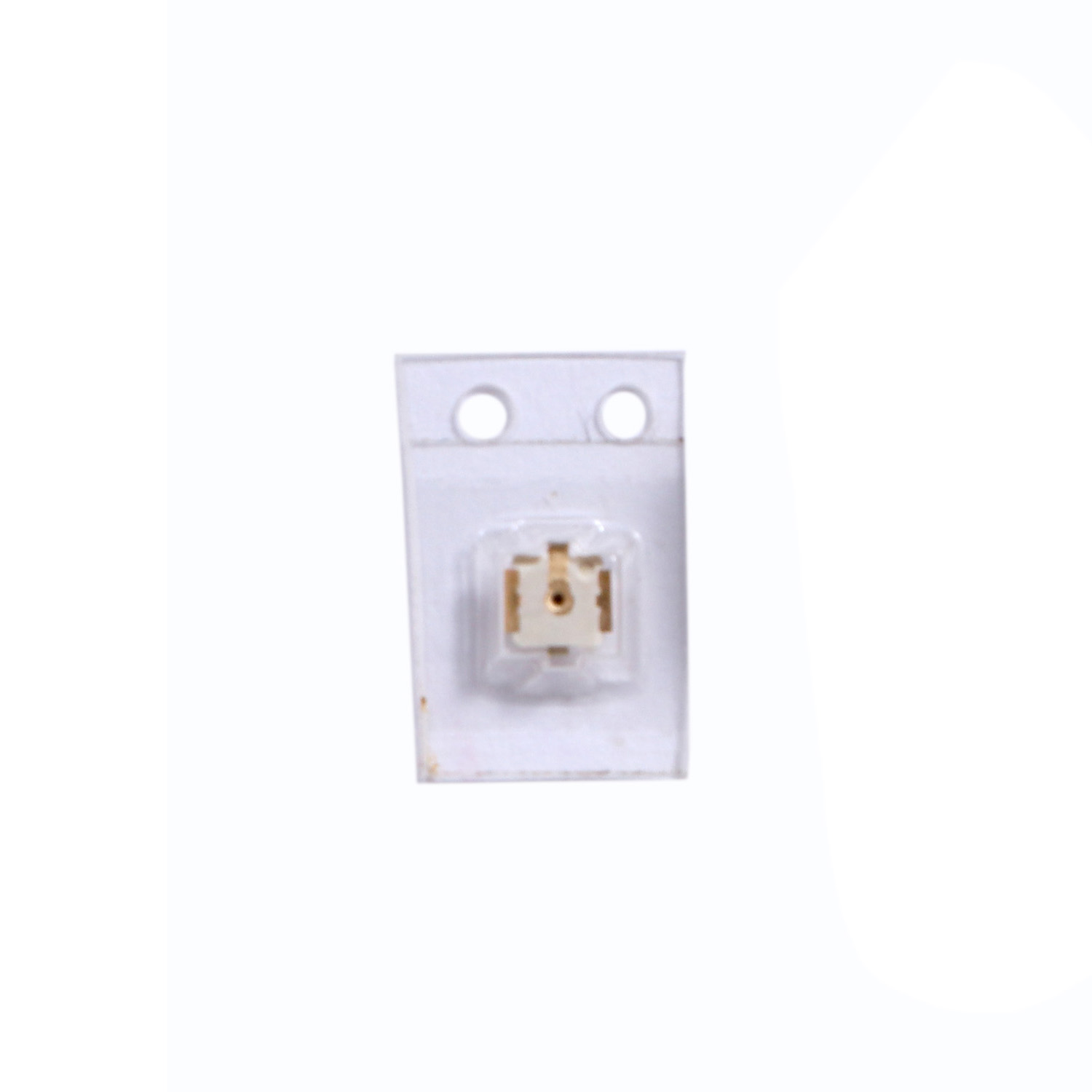

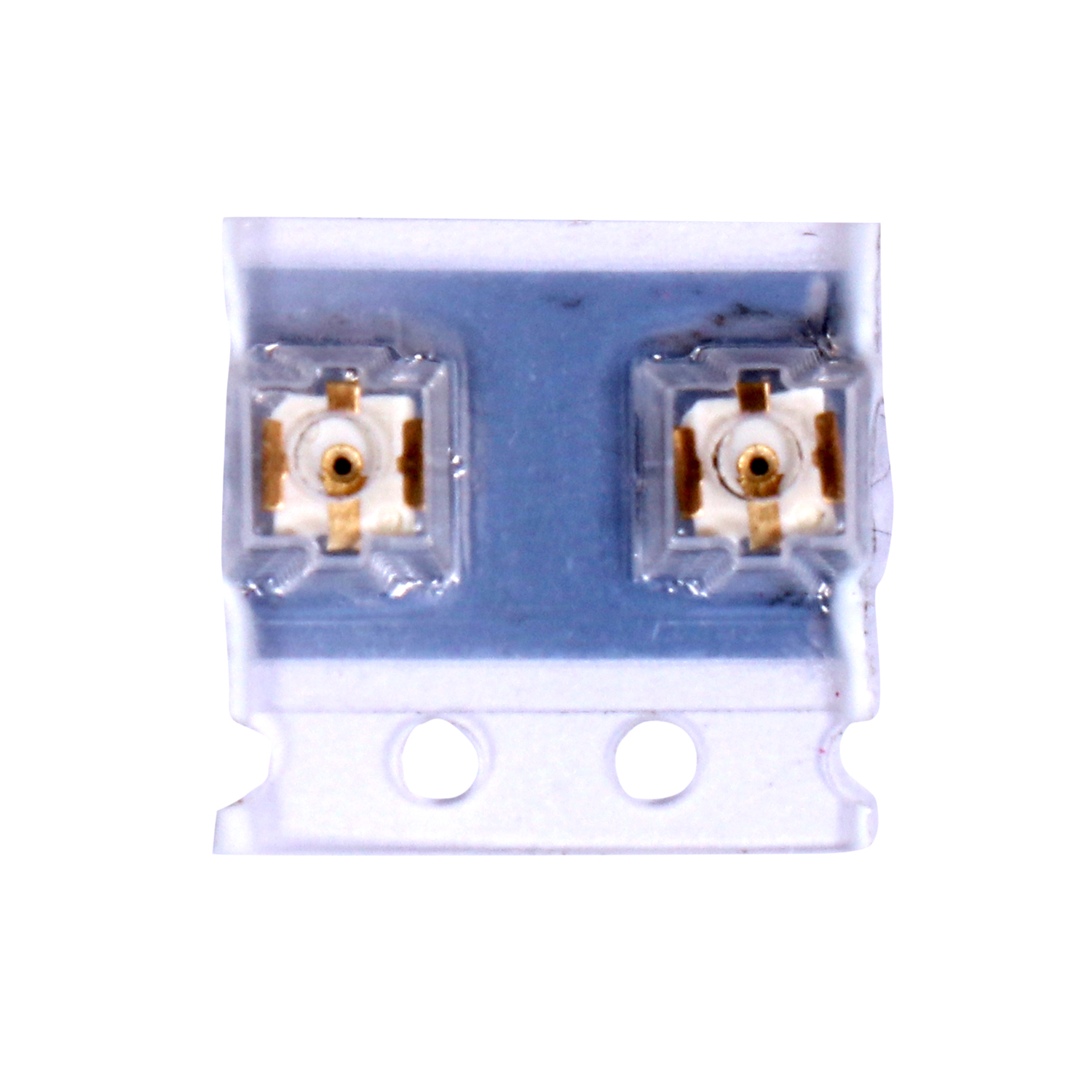

- Tape and Reel packaging suitable for SMT and re-flow soldering.
- Jig for connector removal can be easily installed.
- Applications on such as, mobile phone, cordless phone, GRS, PDA, wireless NB, PCI module, measuring equipment and many more.
Specification:
- Rated Voltage: 60V rms
- Rated Frequency: 0-6GHz
- Temperature rating: -40 to +85℃
- Impedance: 50Ω
- Insulation Resistance: 500MΩ
- Withstand Voltage: 200V rms
