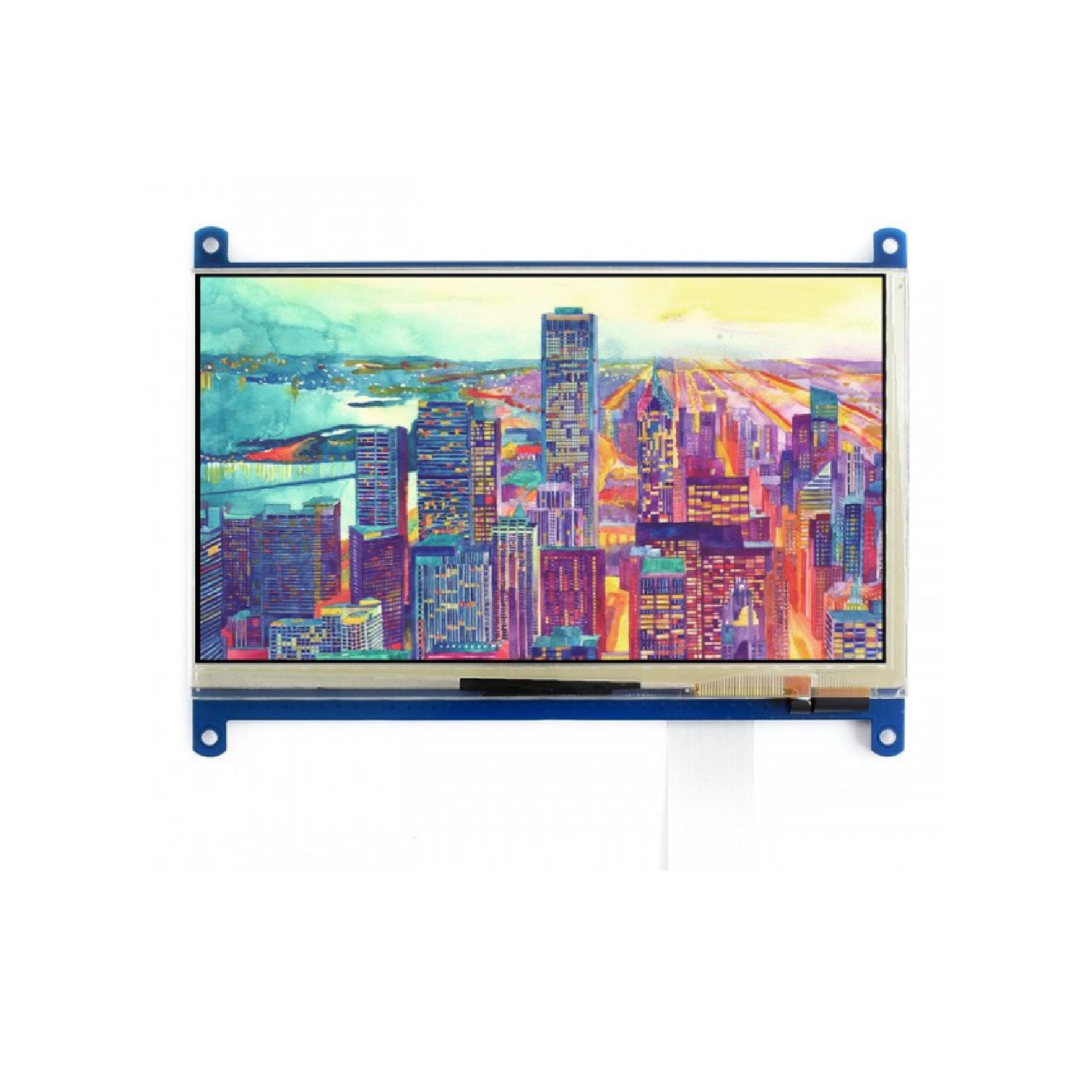

Waveshare 7inch Capacitive Touch LCD (F) Image 1

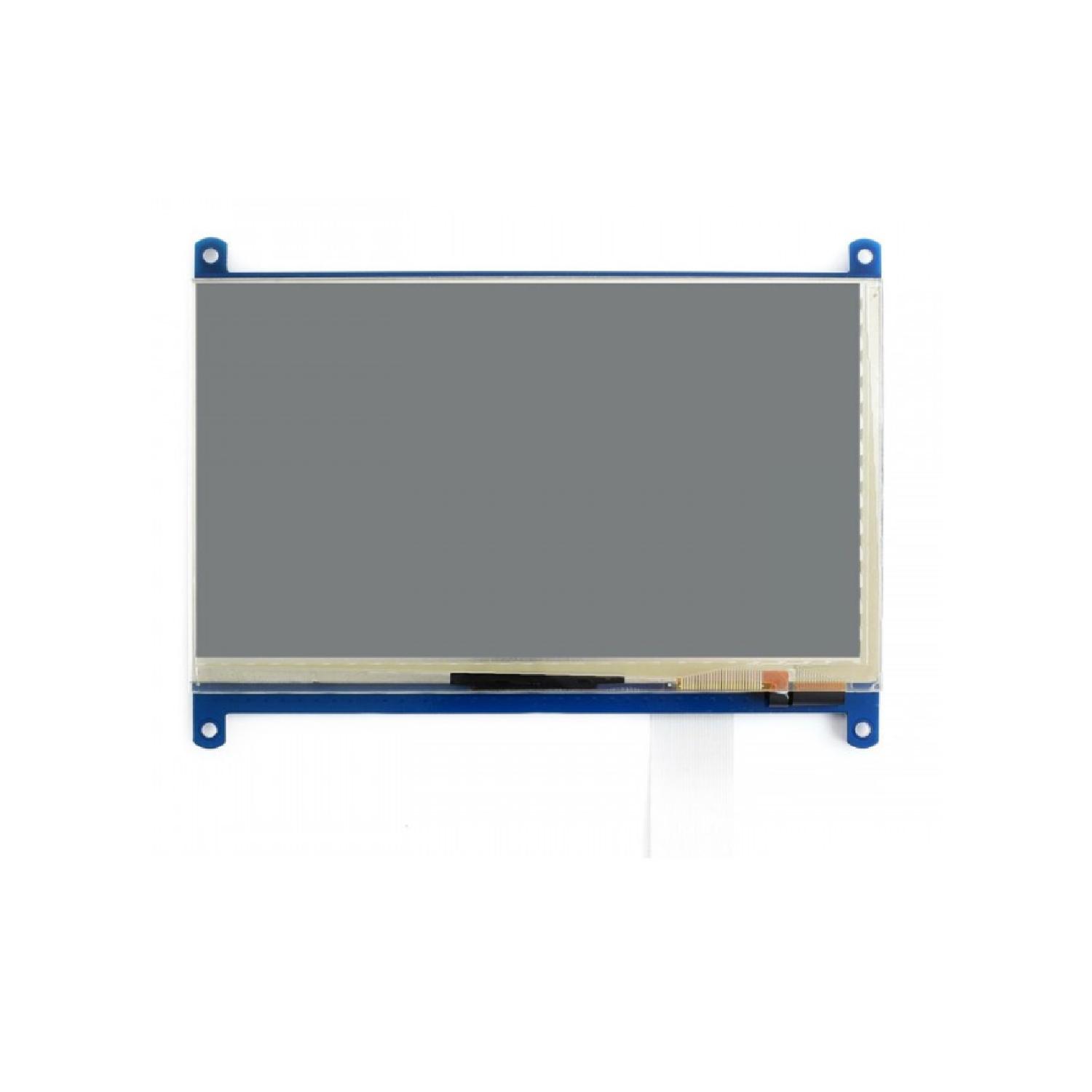

Waveshare 7inch Capacitive Touch LCD (F) Image 2

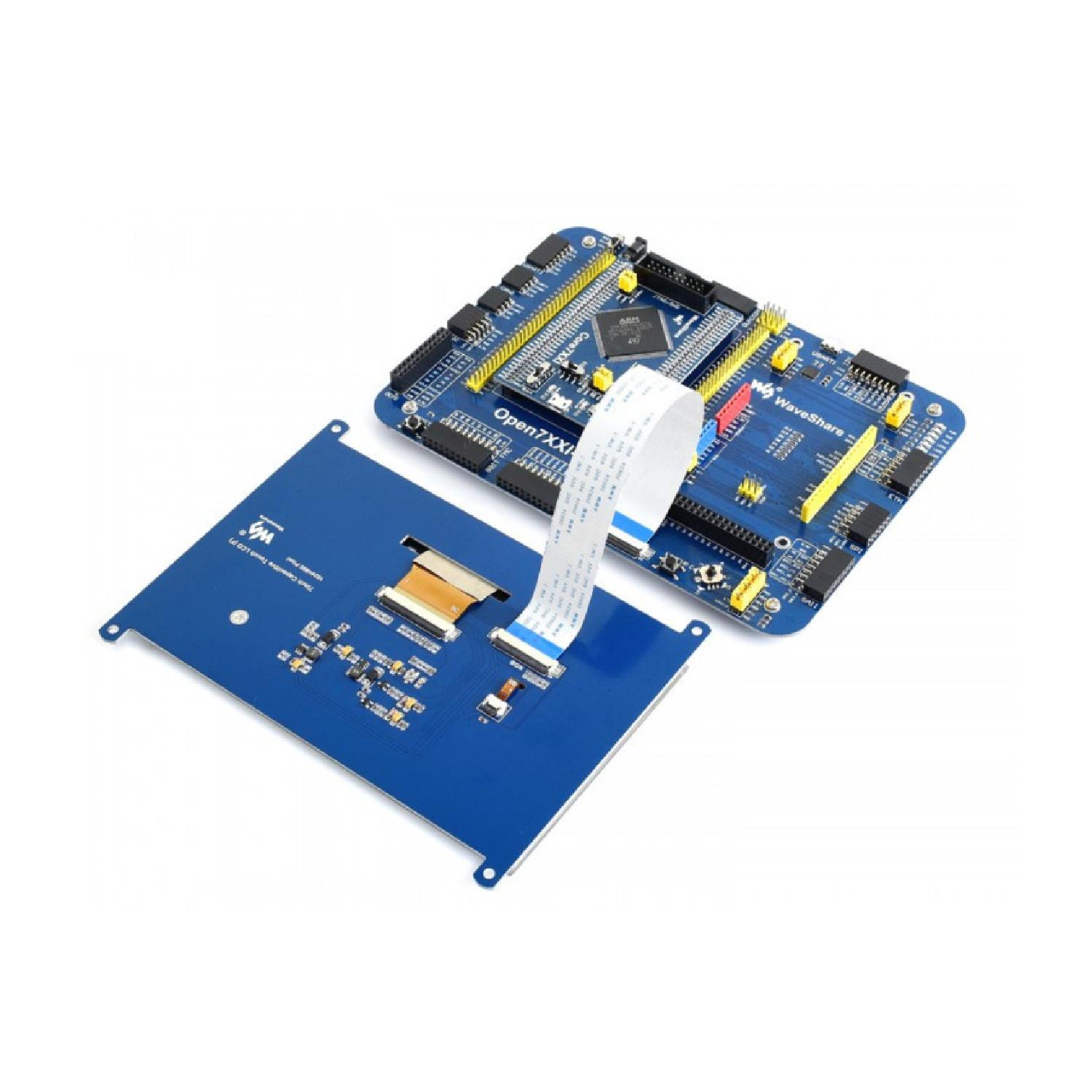

Waveshare 7inch Capacitive Touch LCD (F) Image 3

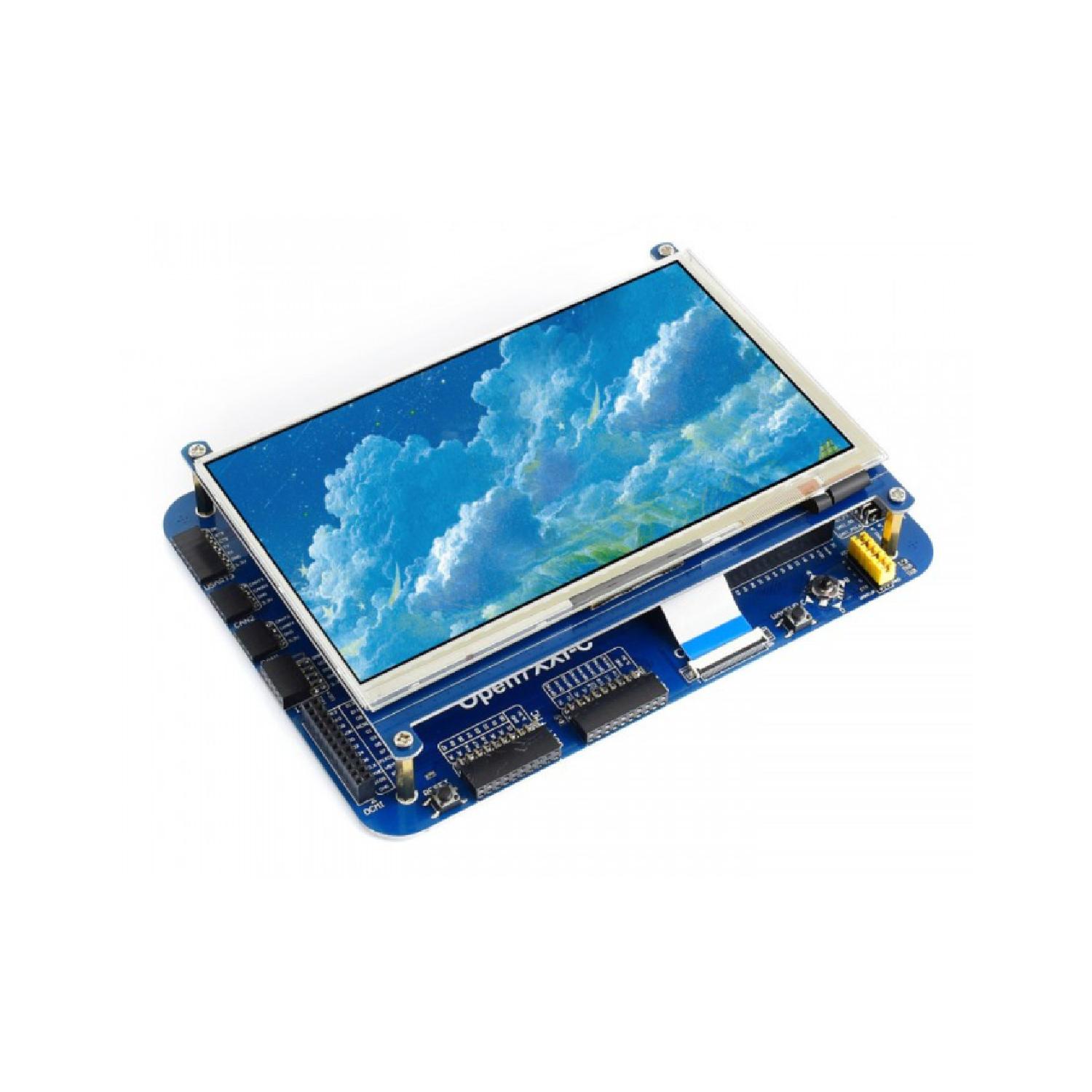

Waveshare 7inch Capacitive Touch LCD (F) Image 4

Waveshare 7inch Capacitive Touch LCD (F)

Hardware connection

1) Use the 15PIN FPC cable to connect the DSI interface of the 8inch DSI LCD to the DSI interface of the Raspberry Pi.

2) For ease of use, you can attach the Raspberry Pi to the back of the 8inch DSI LCD fixed with screws, and assemble the copper pillars. (The Raspberry Pi GPIO interface will power the LCD through the pogo pin).

Features

8-inch capacitive touch screen with a hardware resolution of 800 × 480.
Capacitive touch panel, support 5-point touch.
Toughened glass capacitive touch panel with 6H hardness.
Supports Pi 4B/3B+/3A+/3B/2B/B+/A+. Another adapter cable is required for CM3/3+/4a: DSI-Cable-15cm.
Directly drive LCD through DSI interface of Raspberry Pi, refresh rate up to 60Hz.
Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi, drive-free.
Support backlight adjusts by software.
