FEATURES:
- Low-noise analog signal path.
- Device bandwidth is set via the new FILTER pin.
- 5 µs output rise time in response to step input current.
- Small footprint, low-profile SOIC8 package.
- 2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8.
- 5.0 V, single-supply operation.
- 66 to 185 mV/A output sensitivity.
- Output voltage proportional to AC or DC currents.
- Factory-trimmed for accuracy.
- Extremely stable output offset voltage.
- Nearly zero magnetic hystereses.
- The ratiometric output from the supply voltage.
SPECIFICATIONS:

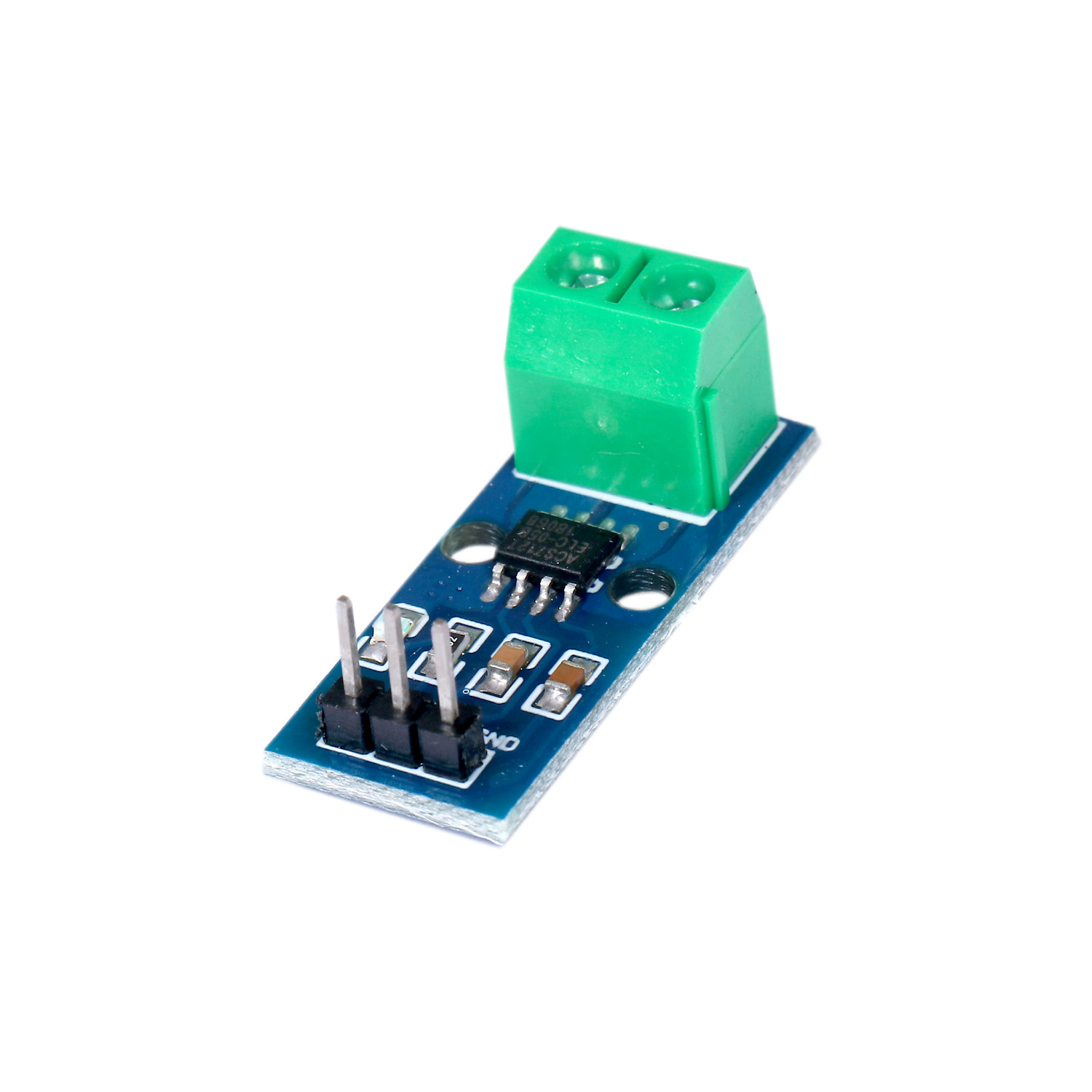

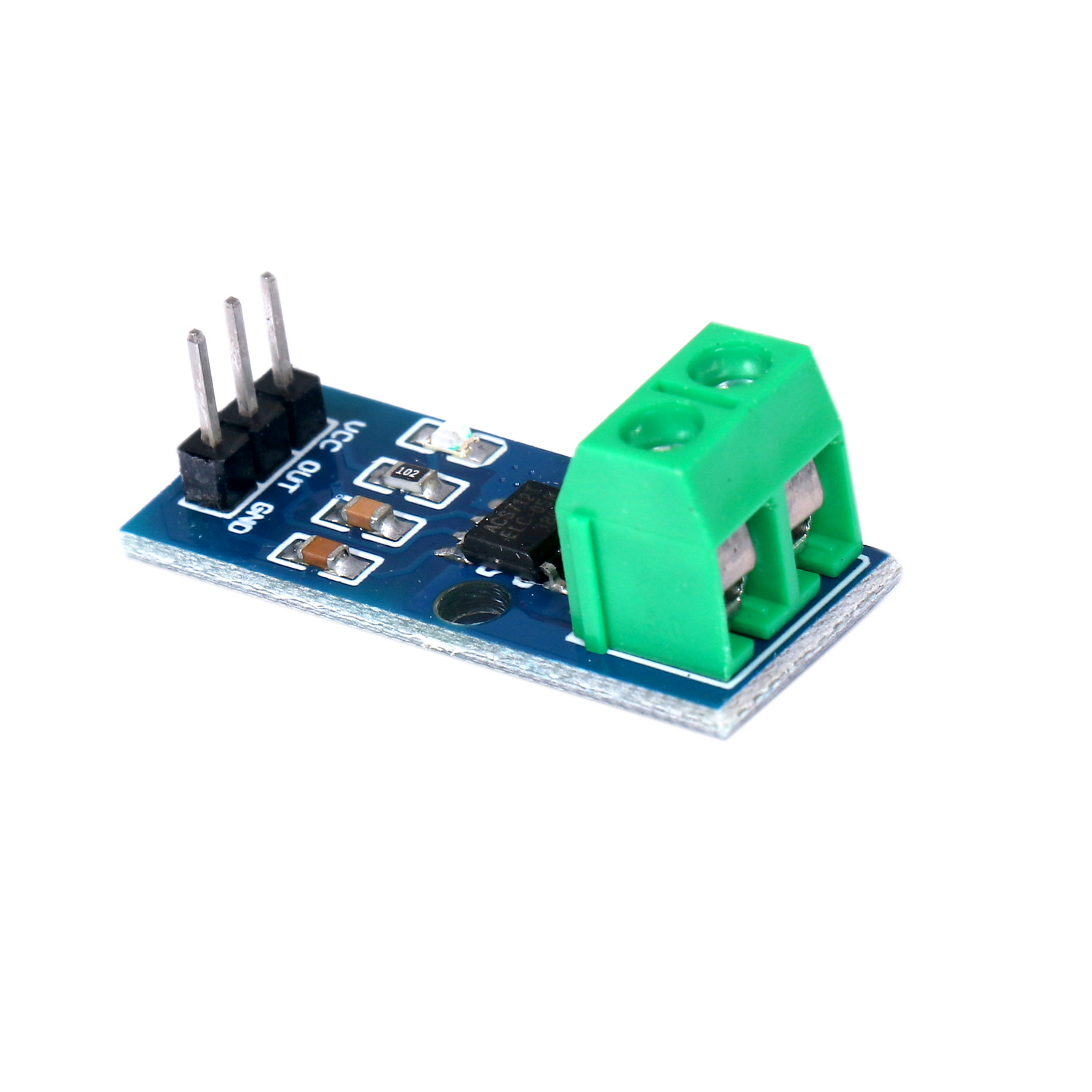

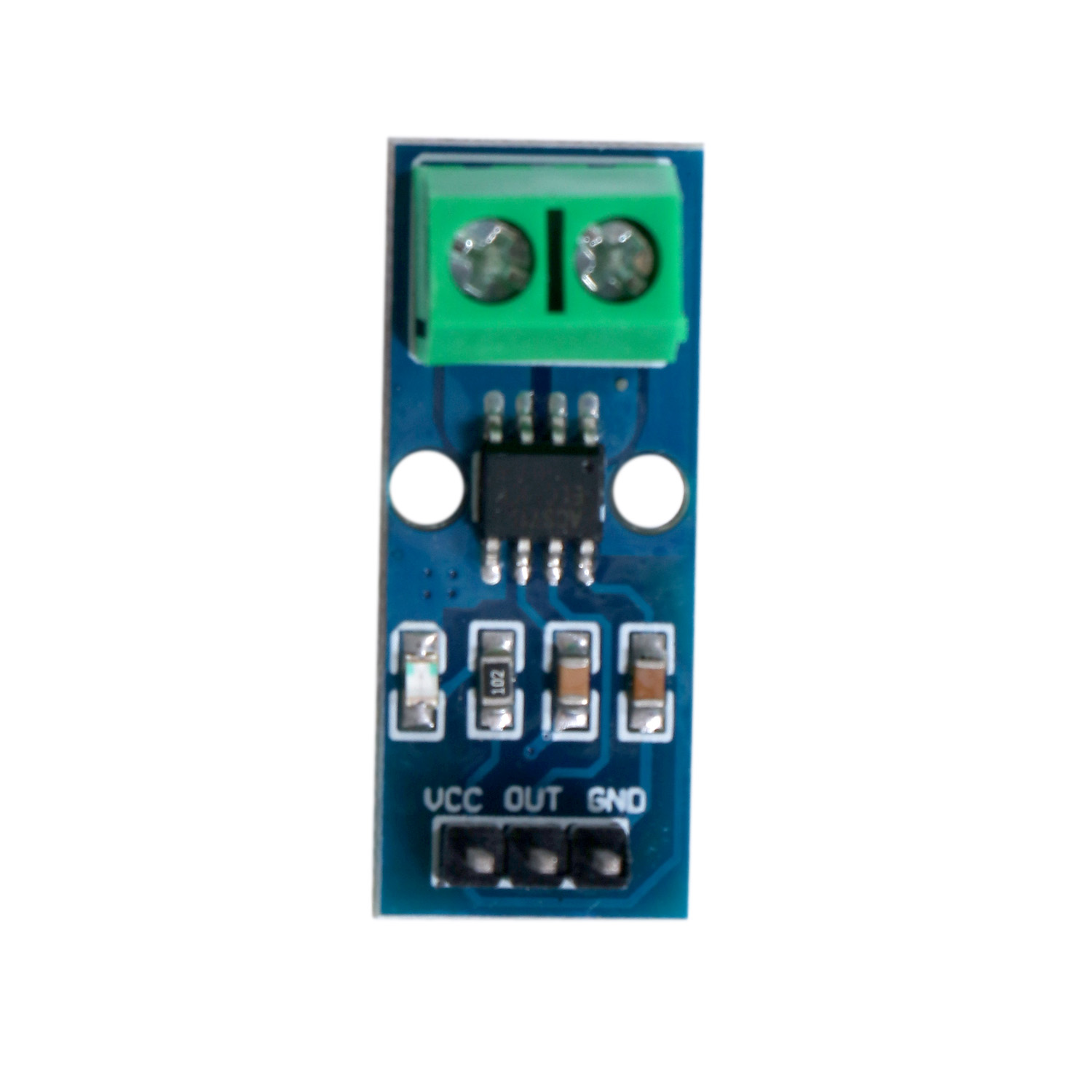

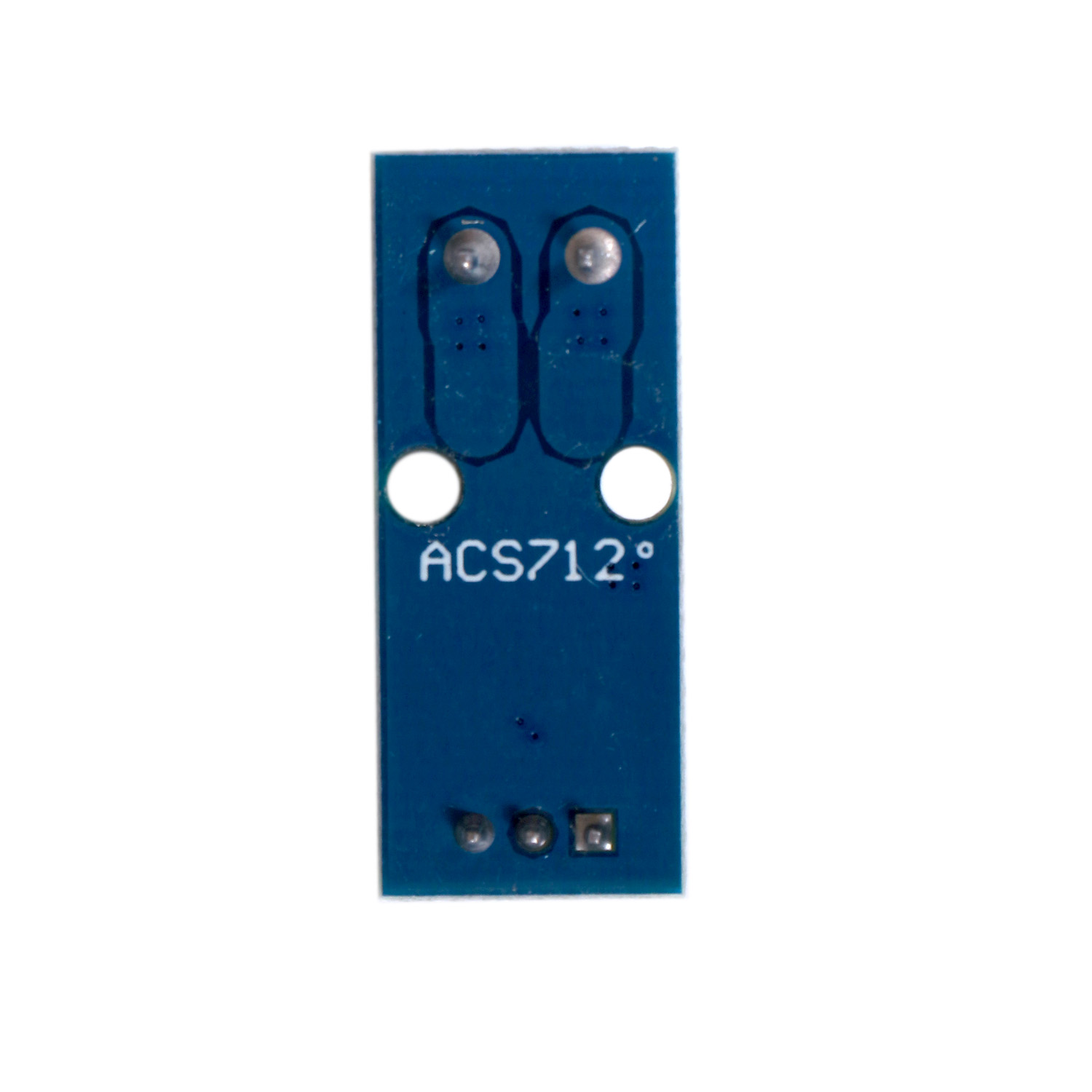

- Current sensor chip: ACS712ELC-5A
- Operating Voltage (V): 4.5V ~ 5.5V DC
- Measure Current Range: -5 ~ +5A
- Sensitivity: 100mV/A
- Dimension(LxWxH): 32x13.5x5
- Weight(gm): 5
