APDS-9960 Gesture Sensor

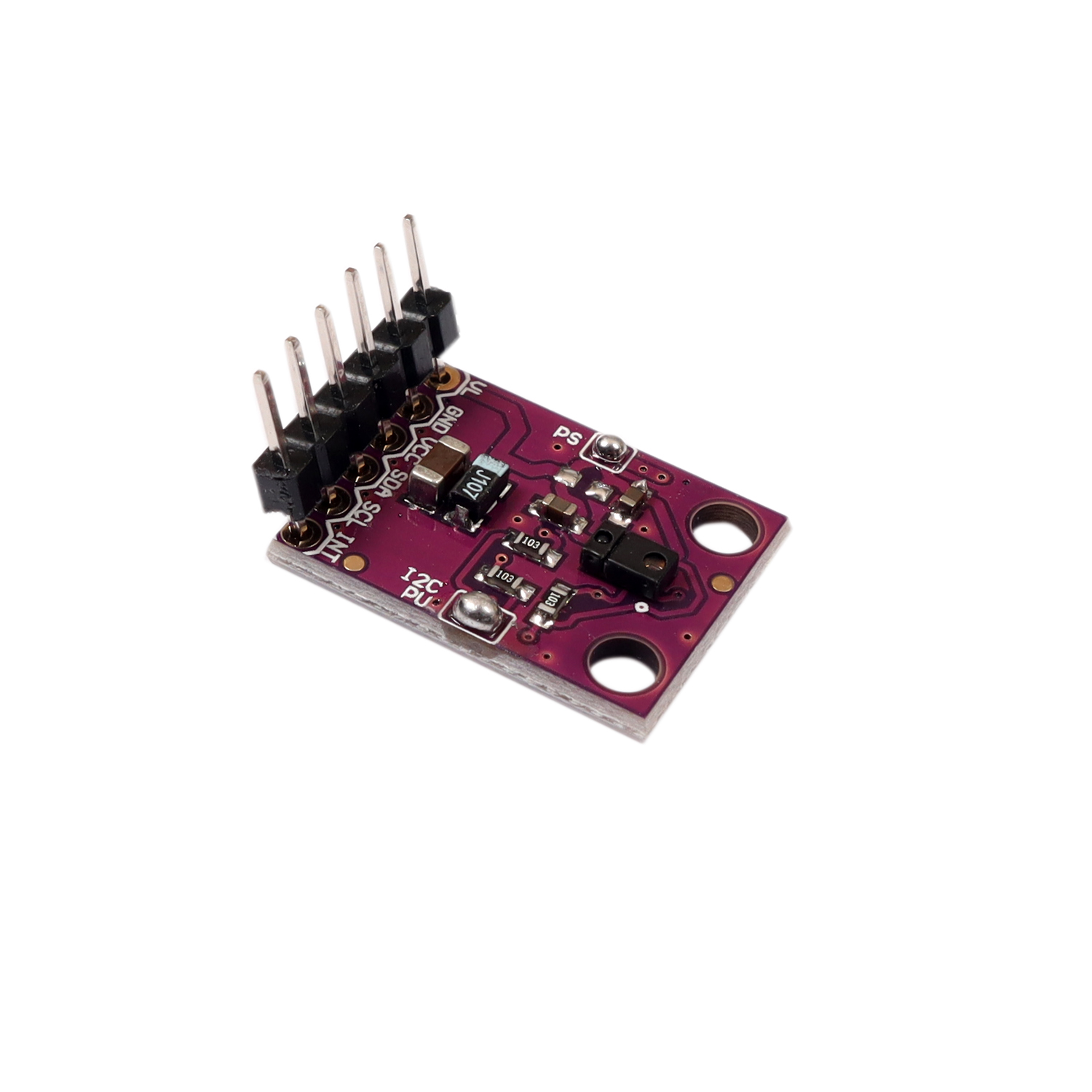

This is an RGB and Gesture Sensor, a small breakout board with a built-in APDS-9960 sensor that offers ambient light and color measuring, proximity detection, and touchless gesture sensing. With this RGB and Gesture Sensor it will be able to control a computer, microcontroller, robot, and more with a simple swipe of your hand! This is, in fact, the same sensor that the Samsung Galaxy S5 uses and is probably one of the best gesture sensors on the market for the price.

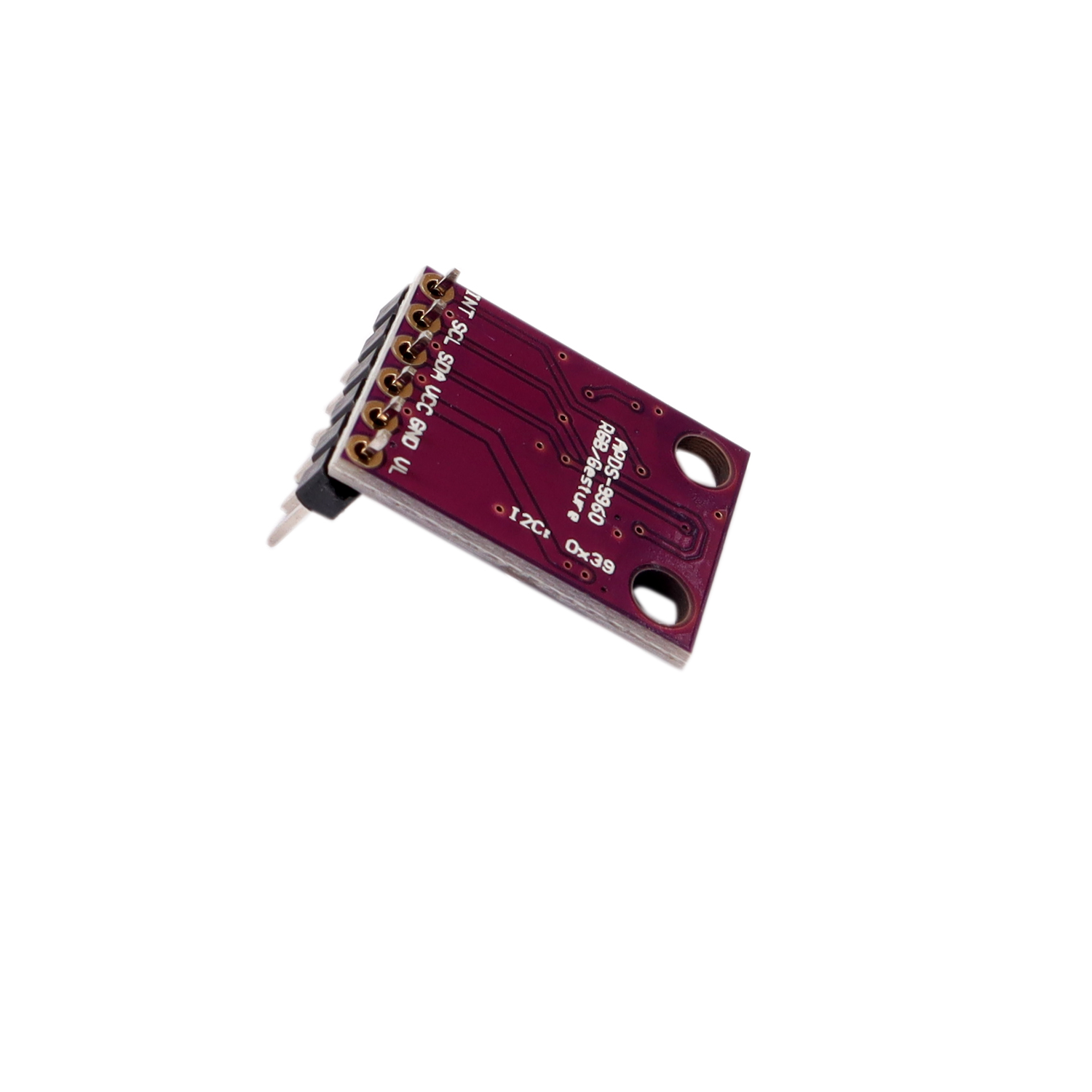

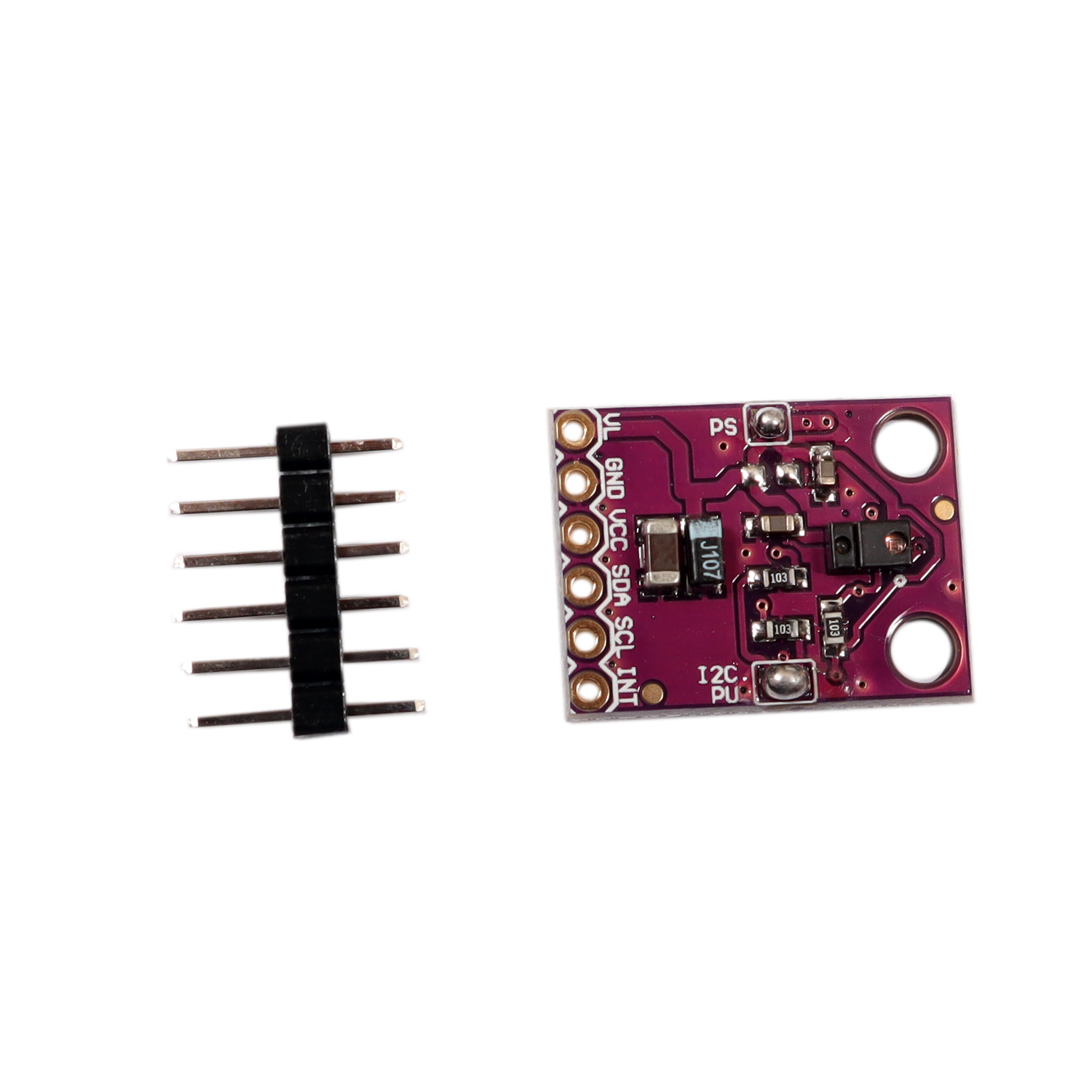

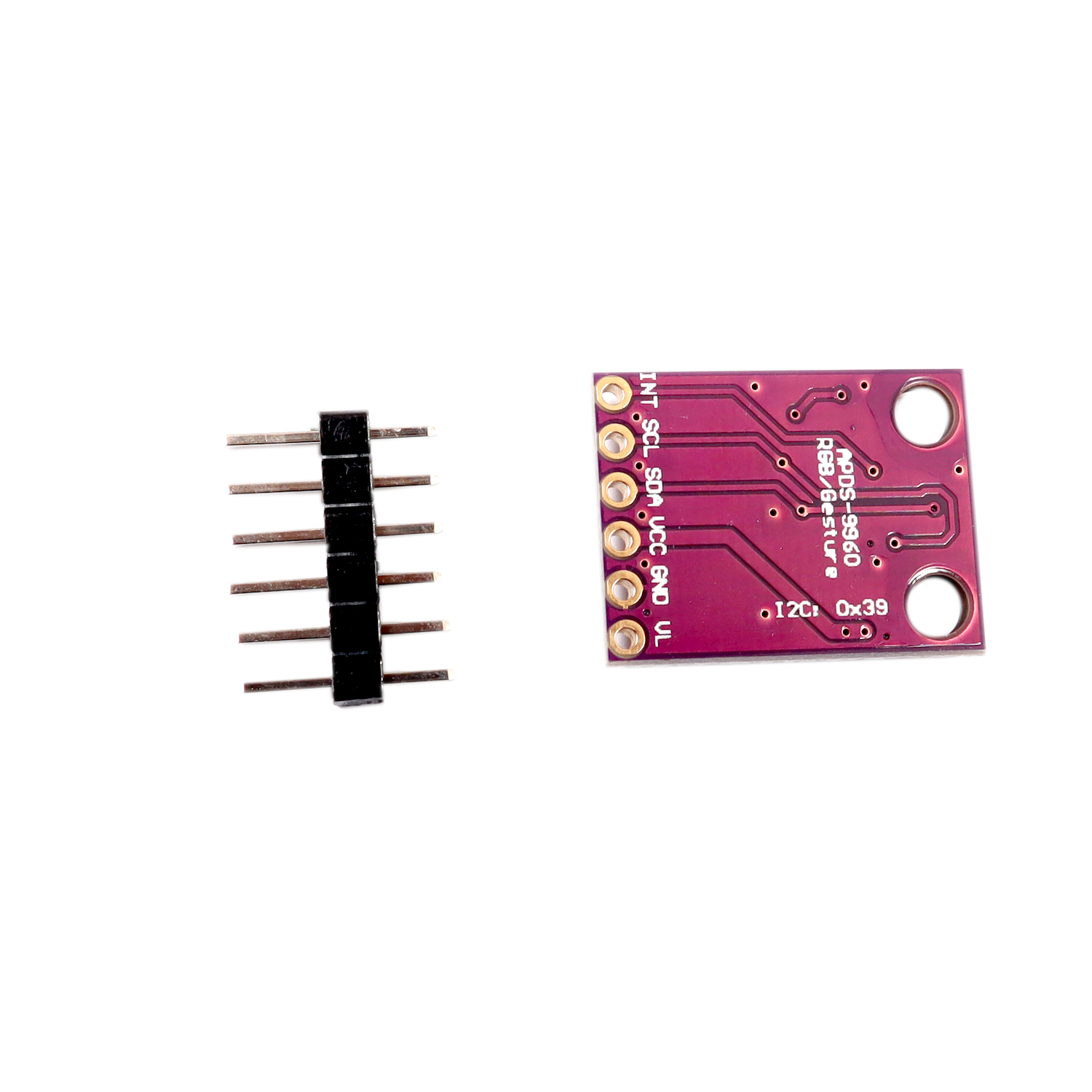

The APDS-9960 is a serious little piece of hardware with built-in UV and IR blocking filters, four separate diodes sensitive to different directions, and an I2C compatible interface. For your convenience, we have broken out the following pins: VL (optional power to IR LED), GND (Ground), VCC (power to APDS-9960 sensor), SDA (I2C data), SCL (I2C clock), and INT (interrupt). Each APDS-9960 also has a detection range of 4 to 8 inches (10 to 20 cm).

Price : 163.00 excl. GST

Qty	Price
1 >	163.00
50 >	155.00
200 >	149.00
500 >	147.00
1000 >	146.00
1001 >	146.00

Description
Datasheet

FEATURES:

Ambient Light and RGB Color Sensing, Proximity Sensing, and Gesture Detection in an Optical Module
Ambient Light and RGB Color Sensing

- UV and IR blocking filters

- Programmable gain and integration time

- Very high sensitivity

- Ideally suited for operation behind dark glass

Proximity Sensing

- Trimmed to provide consistent reading

- Ambient light rejection - Offset compensation

- Programmable driver for IR LED current

- Saturation indicator bit

Complex Gesture Sensing

- Four separate diodes sensitive to different directions

- Ambient light rejection

- Offset compensation

- Programmable driver for IR LED current

- 32 dataset storage FIFO

- Interrupt driven I2C communication

- bus Fast Mode Compatible Interface

- Data Rates up to 400 kHz

- Dedicated Interrupt Pin

Small Package L 3.94 × W 2.36 × H 1.35 mm

APDS-9960 Gesture sensor.pdf
